Aluminum Alloy Welding Wire Production Line ER4043 ER4047 ER5356 ER5183 ER1100 ER5087 All Kinds Of Alloy 0.8-4.0mm Mig Tig Aluminum Welding Wire manufacturing whole line Note:This quotation includes technical guidance, we provide a complete solutions to help customers produce high quality welding wire go to product group+
Welding Wire Layer Rewinding Machine ER4043 ER4047 ER5356 ER5183 ER1100 ER5087 All Kinds Of Alloy 0.8-5.0mm Mig Tig Aluminum Welding Wire manufacturing whole line, such as drawing,shaving,annealing , layer winding machine ,straightening cutting with embossing go to product group+
Aluminum alloy welding wire manufacturing whole line solution ER4043 ER4047 ER5356 ER5183 ER1100 ER5087 All Kinds Of Alloy 0.8-4.0mm Mig Tig Aluminum alloy Welding Wire manufacturing whole line Note:This quotation includes technical guidance, we provide a complete solutions to help customers produce high quality welding wire go to product group+
Aluminum Alloy Wire Shaving Machine To Manufature MIG TIG Welding Wire Aluminum alloy welding wire making machinery ,such as rolling, drawing,shaving,annealing and layer winding machine ER4043 ER4047 ER5356 ER5183 ER1100 ER5087 All Kinds Of Alloy 0.8-4.0mm Mig Tig Aluminum Welding Wire manufacturing whole line Note: This quotation includes technical guidance, we provide a complete solutions to help customers produce high quality welding wire go to product group+

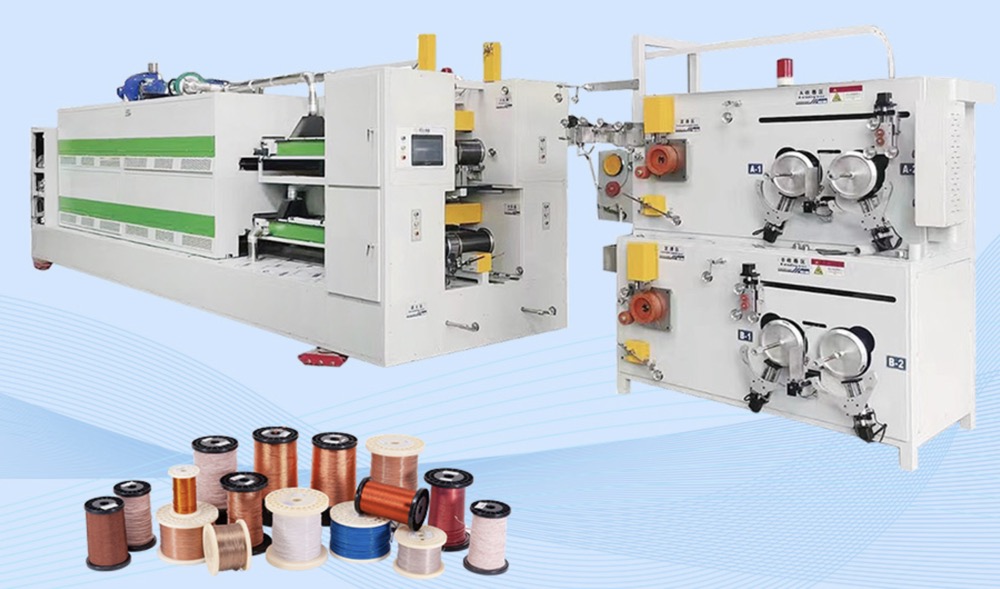

ELECTRIC Horizontal/VERTICAL ENAMELING MACHINE With Drawing Machine Compact design:1/2/4 lines option ,ELECTRIC Horizontal/VERTICAL ENAMELING MACHINE Suitable for the production of round/flat enameled copper and aluminum wire Horizontal/vertical high speed wire enamelling machine with online drawing. R&D and manufacturing team with more than 35 years of experience,100 sets of annual production capacity. High speed wire enamelling machine with inline drawing OF zero pollution and zero power consumption in oven in December 2013 , DV 140-180, total power consumption less than 500Kwh/ton, the indicators are far more than domestic and foreign competitors. ◎ENVIRONMENTALLY FRIENDLY Much more technologies and experiences concerning heat recirculation and catalyst combustion, controlling VOC emissions less than national standard by enough effective methods. Main catalyst is imported from Germany,Ultra-high conversion efficiency, temperature up to 800 C. Exhaust gas treating catalyst is standard configuration.Effective from 320C，do not need any auxiliary heating, reducing carbon and hydrogen content in the exhaust gas. NOX treatment system is optional, by that we achieve the true meaning of zero pollution. ◎ENERGY SAVING Developments of catalyst combustion and heat exchange efficiency. Heat dissipation by radiation has been decreased by modifications of heat insulations. Exhausted heat has been effectively transferred to supplementary facilities such as steam generator and etc. Energy consumption is reduced to a significant level by all these measures above. ◎Compact New compact enamelling machines is adapted for copper, aluminum andetc. ◎ARTIFICIAL INTEL IGENCE Provide complete set of automatic computer control system and intelligent unmanned factory according to the requirement of customer, which lead to high stability ,high reliability and high efficiency. go to product group+
PV Busbar Machine Rolling Mills Annealing And Tinning Line Fourth types PV ribbon making equipments 1.PV Ribbon 2: PV Round wire 3. PV Segmented round flat welding tape for Module ,4.PV Triangle wire ， More information:Whatsapp/Wechat 008618913191585 jerrypro@qq.com www.newleadgroup.com Copper ribbon for photovoltaic panels The so-called interconnect ribbons – tinned copper ribbons that are soldered onto the silicon wafer – take away the energy produced photoelectrically. The connection of these interconnect ribbons with the rectifier takes place via the so-called busbars – slightly larger copper ribbons that are also tinned. NEWLEAD supplies highly productive rolling mills for the rolling of interconnect ribbons and busbars from round copper wire. The rolled ribbons are formed into coils and can then be annealed and tinned in later processes. High requirements as to dimensional accuracy and straightness of the ribbons are placed on the rolling mill, since only this allows smooth further processing of the ribbon. go to product group+

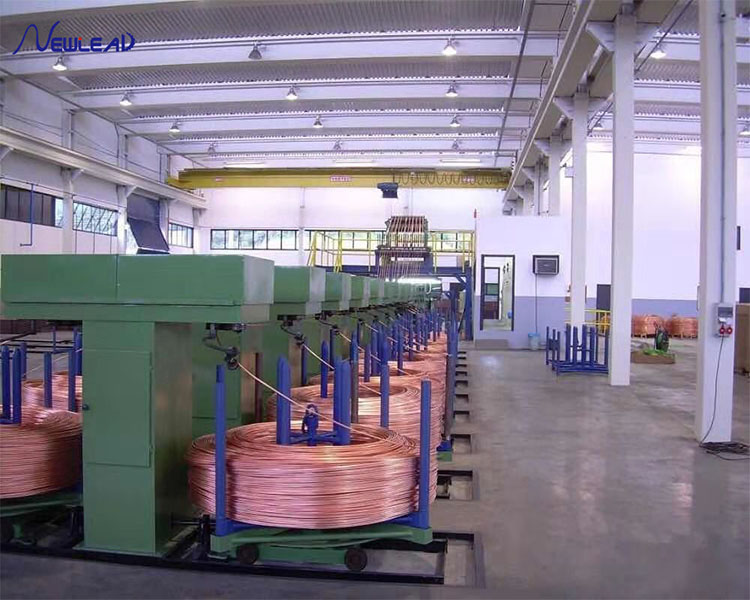

Individual Motors Rod Breakdown Machine Advantages of this safe investment choice Increase in quality: High surface quality of the wires due to the optimized wire path (2° inclination of the gearing/drawing capstans) innovative drawing die holders with high-pressure cooling of the drawing dies Increase in productivity: Reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology (quick drawing die change system) Reduced downtime due to touch screen- Based user guidance and fault display Cost-effectiveness: Reduced tool consumption (drawing capstans, drawing dies) with minimized-slip operation
energy savings of up to 20% are achieved by switching off unused drives long service intervals and extended drawing tool service life minimize the requirement to stock and use spare parts Reduced consumption of oil and drawing lubricant Design: Optimized wire cooling/lubrication (due to the fully-immersed drawing basin) flexible adjustment of the wire elongation per draft Individually driven drawing shafts in horizontal tandem layout three-phase AC drives, water-cooled and maintenance-free Ergonomic and user-friendly machine design, with easy maintenance no noise protection cabin required up to 85 dB (A)
helically geared precision gearing for extremely smooth operation and uniform load transmission vibration-damping grey cast iron housing for long service life Highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals) go to product group+

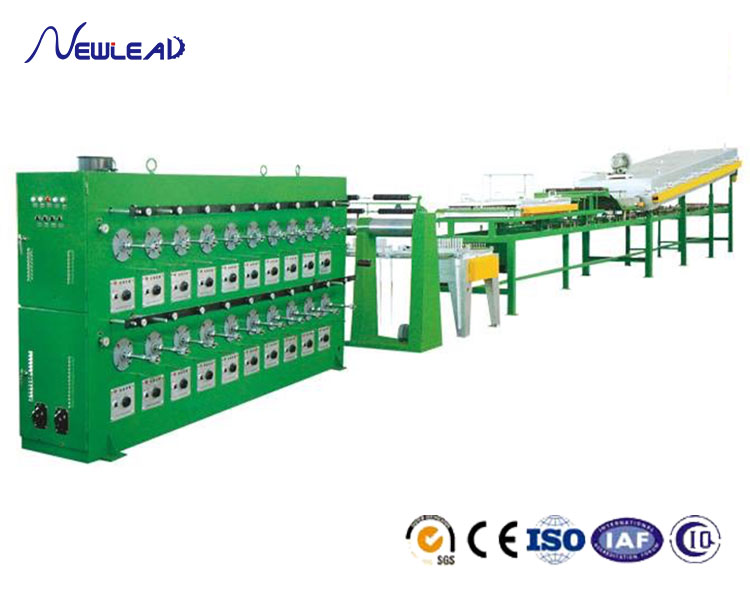

Double Lines MBB Round PV Ribbon Drawing Annealing Tinning Machine With Automatic Spools Changer Double Lines MBB Round PV Ribbon Drawing Annealing Tinning Machine With Automatic Spools Changer After a year of development and design, as well as continuous improvement in customer use, we have successfully launched the most advanced photovoltaic ribbon production line. 1. Automatic spools changer Video site: https://youtu.be/UUGIbOuHyOs Implemented automatic replacement of wire reels and automatic placement on storage racks 2. Automatic tin bars feeding device Automatically dispense tin material to ensure the stability of the tin liquid level height 3. Automatic tin liquid level cleaning tools Video site: https://youtube.com/shorts/9pcXNkI4XJY Automatically clean the tin ash on the tin plating surface to ensure smooth tin plating and no residual tin slag. 5. Max speed 350mpm, normally running at 300mpm Video site: https://youtube.com/shorts/CxzUBUKOvkk Reduce manual labor by half, significantly increase production capacity We have sold this new machine to domestic customers, and the development cost of the machine has been borne by them. In order to promote this machine, we have set a very reasonable price. go to product group+
Sand belt grinding descaler wire descaling machine wire descaler machine 1180Plus Sand belt grinding descaler. Wire pre-treatment Grinding descaler Wire rust online cleaning, rust removal fields of application Steel wire,SS wire,Nail Wire, Wire for steel fibres, Spring Wire, Titanium alloy wire, nickel alloy wire, PC Wire，and so on. For sand belt descaling as well as removal of rust and some surface defects High efficient system, high speed Optionally up to 20 mm inlet-Ø Advanced Technology: Tensioning belt by button,3-8seconds quickly change belts, the photoelectric switch detects the sand belt and the safety door protection system. go to product group+
Cone Type Drawing Machine for the Intermediate Wire Range intermediate wire drawing machine manufacturer Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Fine Copper Wire Drawing Machine With Continuous Annealing Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Super fine Wire Drawing Machine ultra fine wire drawing machine Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Multi wire drawing machine and system components for intermediate and fine wire drawing Multiwire drawing lines and system components for intermediate and fine wire drawing Designed for user-specific configuration Typical wires which can be produced on multiwire drawing lines are copper wires for highly flexible cables, automotive cables, battery cables and installation cables. Newlead multiwire drawing lines have had an outstanding reputation for long lifecycles for years. Because of their modular design Newlead multiwire drawing lines can be adapted to different customer requirements with great flexibility. Get an overview of the system components ranging from pay-off systems to continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Versatile single spoolers ,double spoolers,multi spoolers Versatile single spoolers and double spoolers Compact, cost-effective, open to diverse systems Due to the variety of types, Newlead spoolers can be seamlessly integrated in complete lines. All the machines are naturally designed for durability and to be easy to use and maintain. Get an overview of the range of Newlead wire spoolers for automatic or manual spool loading and unloading. go to product group+
Straight line drawing machine Straight line drawing machine(Individual motors, variable frequency motor and servo motor option): Application：Such a machine has been applied widely in high, medium and low carbon wire, steel cord wire, bead wire, steel rope, welding wire, galvanized wire, PC strand, spring wire, stainless steel wire, SS Wire, nickel wire, Ti wire, Al alloy wire, ACS,screw wire,golden steel busbar and so on. go to product group+

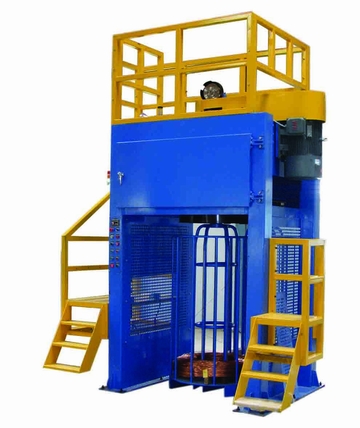

Automatic Down Coiler Barrel and static Efficient and versatile wire production Suitable for use with barrels, stems or non-returnable containers, NEWLEAD barrel coilers are designed for non-stop operation with wire drawing lines. Transport systems can be adapted to the customer’s automation solution to perfection. Get an overview of the range of NEWLEAD barrel and static coilers for connecting to drawing machines for wire rod or intermediate wire and to galvanic wire plating lines. go to product group+
Rod breakdown machine 11D inlet 8mm & outlet 1.6-4.0mm copper rod breakdown Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+

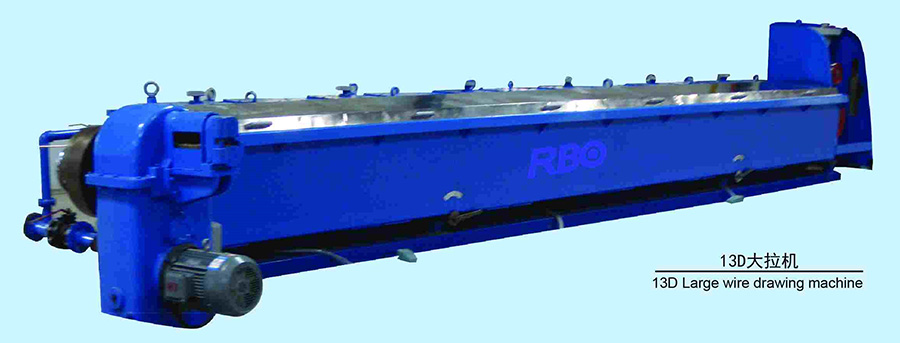

Rod breakdown machine 13D inlet 8mm & outlet 1.2-4.0mm copper rod breakdown machine with annealer Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+

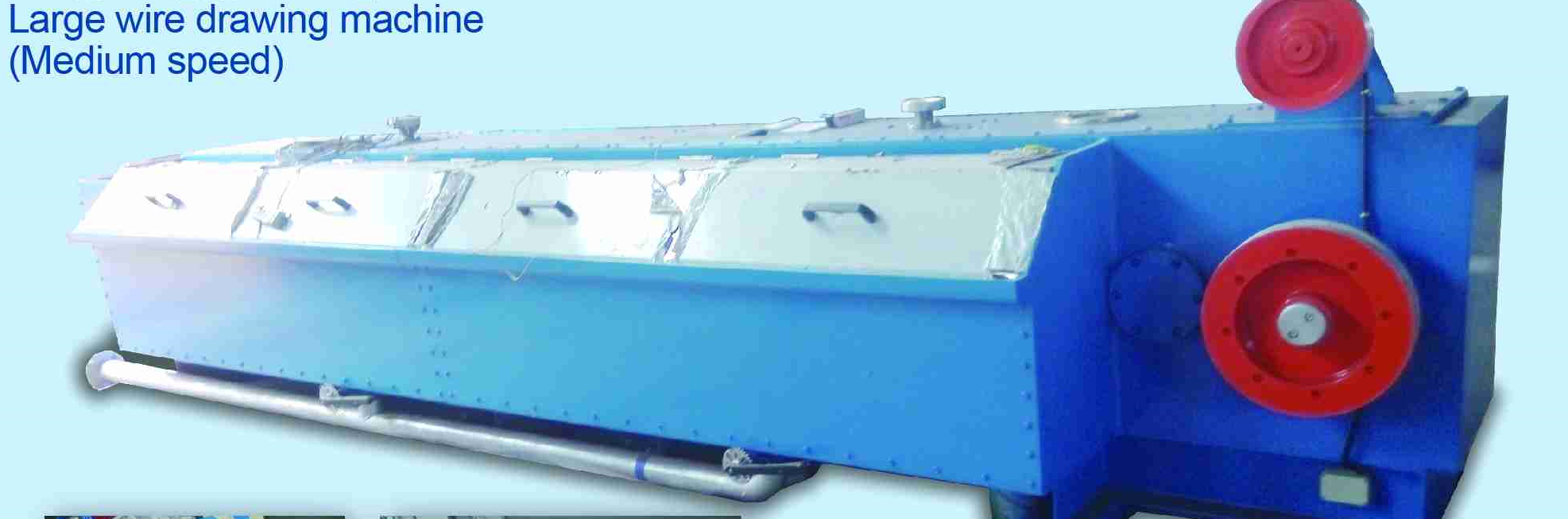

Rod breakdown machine (Medium speed) 8D/400 inlet 8mm & outlet 2.6-3.0mm rod breakdown machine Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines(medium speed) have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
Rod breakdown machine (Medium speed) 11D/400 inlet 8mm & outlet 1.6-3.0mm rod breakdown machine for copper Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines(medium speed) have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
rod breakdown machine for aluminum aluminum rod breakdown machine rod breakdown machine manufacturer Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines(medium speed) have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
Rod breakdown machine with continuous annealing 9DT inlet 8mm & outlet 2.2-4.0mm rod breakdown machine process Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines with continuous annealing have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
Rod breakdown machine with continuous annealing 11DT inlet 8mm & outlet 1.6-4.0mm rod breakdown lines Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines with continuous annealing have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
Rod breakdown machine with continuous annealing 13DT inlet 8mm & outlet 1.2-4.5mm Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead rod breakdown machines with continuous annealing have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
Medium rod breakdown machine with continuous annealing 11DST lnlet 3.5-3.0mm & outlet 0.8-2.78mm intermediate wire drawing machine manufacturer Rod breakdown lines Fast, modular, flexible, precise High availability, performance, durability, low wear. Newlead medium rod breakdown machines with continuous annealing have been setting standards for wire manufacturing worldwide ever for more than 10 years. Get an overview of the system components ranging from pay-off systems to continuous resistance annealing. More information on the most important developments is provided in the technology section. go to product group+
17MDS Gear high speed medium wire drawing machine inlet 2.5-3.2mm & outlet 0.4-1.2mm intermediate wire drawing machine Multiwire drawing lines and system components for intermediate and fine wire drawing Designed for user-specific configuration Typical wires which can be produced on multiwire drawing lines are copper wires for highly flexible cables, automotive cables, battery cables and installation cables.Newlead multiwire drawing lines have had an outstanding reputation for long lifecycles for years. Because of their modular design Newlead multiwire drawing lines can be adapted to different customer requirements with great flexibility. Get an overview of the system components ranging from pay-off systems to continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
17DS Gear high speed medium wire drawing machine inlet 2.5-3.5mm & outlet 0.4-1.6mm medium wire drawing machine Multiwire drawing lines and system components for intermediate and fine wire drawing Designed for user-specific configuration Typical wires which can be produced on multiwire drawing lines are copper wires for highly flexible cables, automotive cables, battery cables and installation cables. Newlead multiwire drawing lines have had an outstanding reputation for long lifecycles for years. Because of their modular design Newlead multiwire drawing lines can be adapted to different customer requirements with great flexibility. Get an overview of the system components ranging from pay-off systems to continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
copper wire drawing process inlet 2.5-3.2mm & outlet 0.4-1.2mm wire drawing line Multiwire drawing lines and system components for intermediate and fine wire drawing Designed for user-specific configuration Typical wires which can be produced on multiwire drawing lines are copper wires for highly flexible cables, automotive cables, battery cables and installation cables. Newlead multiwire drawing lines have had an outstanding reputation for long lifecycles for years. Because of their modular design Newlead multiwire drawing lines can be adapted to different customer requirements with great flexibility. Get an overview of the system components ranging from pay-off systems to continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
17MD Chain medium wire drawing machine inlet 2.5-3.2mm & outlet 0.4-1.2mm wire drawing machine manufacturer wire drawing machine manufacturer go to product group+
The fine wire drawing machine 22DH inlet 1.6mm & outlet 0.2-0.7mm wire drawing machinery Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. wire drawing machinery More information on the most important developments is provided in the technology section. go to product group+
The fine wire drawing machine 13DH inlet 1.8mm & outlet 0.35-1.0mm wire drawing machinery manufacturers Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. wire drawing machinery manufacturers More information on the most important developments is provided in the technology section. go to product group+
14D inlet 0.8-1.6mm & outlet 0.25-0.6mm copper wire drawing machinery Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. copper wire drawing machinery More information on the most important developments is provided in the technology section. go to product group+
wire drawing machine China 22DS inlet 0.6-1.2mm & outlet 0.1-0.4mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. wire drawing machine China More information on the most important developments is provided in the technology section. go to product group+
wire drawing machine price 24DS inlet 0.5-1.0mm & outlet 0.08-1.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. wire drawing machine price More information on the most important developments is provided in the technology section. go to product group+
wire drawing machine design 20D inlet 0.15-0.4mm & outlet 0.05-0.12mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. wire drawing machine design More information on the most important developments is provided in the technology section. go to product group+
wire drawing machine for sale 22D inlet 0.6-1.2mm & outlet 0.1-0.4mm wire drawing machine for sale go to product group+
copper wire drawing machine price 24D inlet 0.5-1.0mm & outlet 0.06-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
copper wire drawing machine manufacturers 24VX inlet 0.14-0.45mm & outlet 0.025-0.06mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
copper wire drawing machine manufacturers China 20D(horizontal type) inlet 0.16-0.32mm & outlet 0.05-0.12mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
copper wire drawing machinery 22DS(horizontal type) inlet 0.6-1.2mm & outlet 0.1-0.32mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
High speed fine wire drawing machine 24DS(horizontal type) inlet 0.6-1.0mm & outlet 0.06-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
wire drawing machine with annealer 22DT inlet 0.8-1.2mm & outlet 0.1-0.32mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section.wire drawing machine with annealer go to product group+
copper wire drawing machine 24DT inlet 0.5-1.0mm & outlet 0.08-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. copper wire drawing machine More information on the most important developments is provided in the technology section. go to product group+
Fine wire drawing machine with continuous annealing 14DT inlet 0.8-1.6mm & outlet 0.25-0.6mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
world's best wire drawing machine 17MD inlet 1.0-2.05mm & outlet 0.25-0.8mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. world's best wire drawing machine More information on the most important developments is provided in the technology section. go to product group+
Copper-clad aluminum wire drawing machine14DL inlet 1.0-2.05mm & outlet 0.25-0.8mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing process 24DL-A inlet 1.2-2.05mm & outlet 0.4-1.2mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing machine 24D inlet 0.5-1.2mm & outlet 0.15-0.30mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing video 24DL-B inlet 0.5-1.0mm & outlet 0.08-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Copper-clad aluminum wire drawing machine 20D inlet 0.15-0.4mm & outlet 0.08-0.15mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine copper wire drawing machine 24DG inlet 0.5-1.0mm & outlet 0.08-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing equipment 14DG inlet 0.6-1.6mm & outlet 0.25-0.5mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Copper-clad steel wire drawing machine 17DG inlet 1.2-2.6mm & outlet 0.5-1.0mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
ultra fine wire drawing machine 24VB inlet 0.09-0.3mm & outlet 0.02-0.07mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. ultra fine wire drawing machine More information on the most important developments is provided in the technology section. go to product group+
super fine wire drawing machine 24VB-X inlet 0.09-0.3mm & outlet 0.02-0.07mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing machine manufacturer 24DB inlet 0.5-1.0mm & outlet 0.06-0.25mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Stainless steel wire drawing machine 12DB inlet 0.8-1.6mm & outlet 0.4-1.0mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
Stainless steel wire drawing machine 14DB inlet 0.6-1.2mm & outlet 0.25-0.5mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
fine wire drawing machine manufacturer germany 17DB inlet 1.5-2.5mm & outlet 0.5-1.6mm Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+

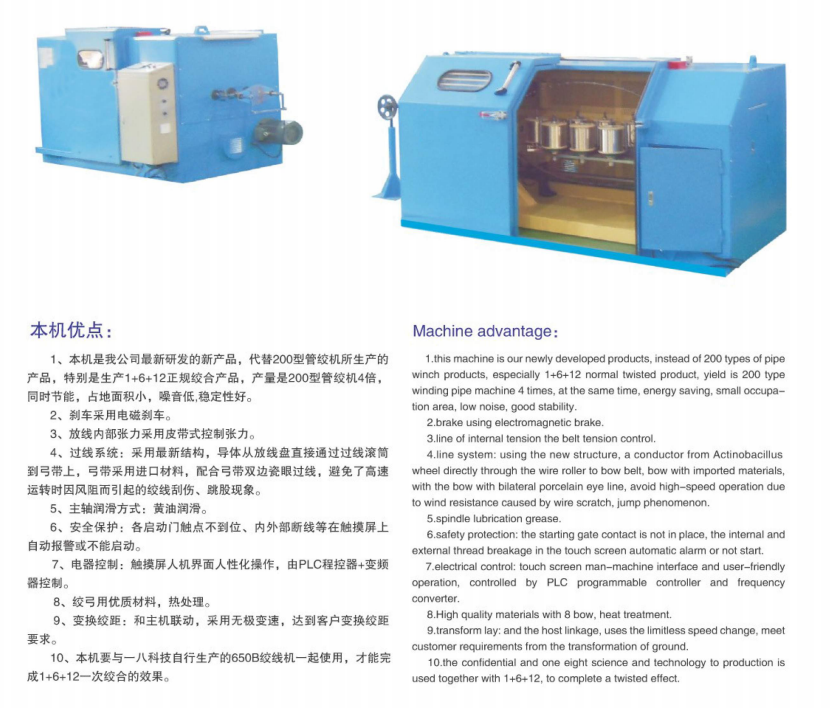

Series of 1+6+12 Bunching Mchine Single Wire Dia 0.16-0.64mm & Strading Section Area 0.38-6.0mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of Model B ultra-fine High speed Bunching Mchine 200B Single Wire Dia 0.016-0.08mm & Strading Section Area 0.014-0.035mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of Model B ultra-fine High speed Bunching Mchine 250B Single Wire Dia 0.03-0.18mm & Strading Section Area 0.0049-0.3mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of Model B ultra-fine High speed Bunching Mchine 300B Single Wire Dia 0.05-0.28mm & Strading Section Area 0.0137-0.45mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of Model B ultra-fine High speed Bunching Mchine 400B Single Wire Dia 0.05-0.32mm & Strading Section Area 0.0137-1.0mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+

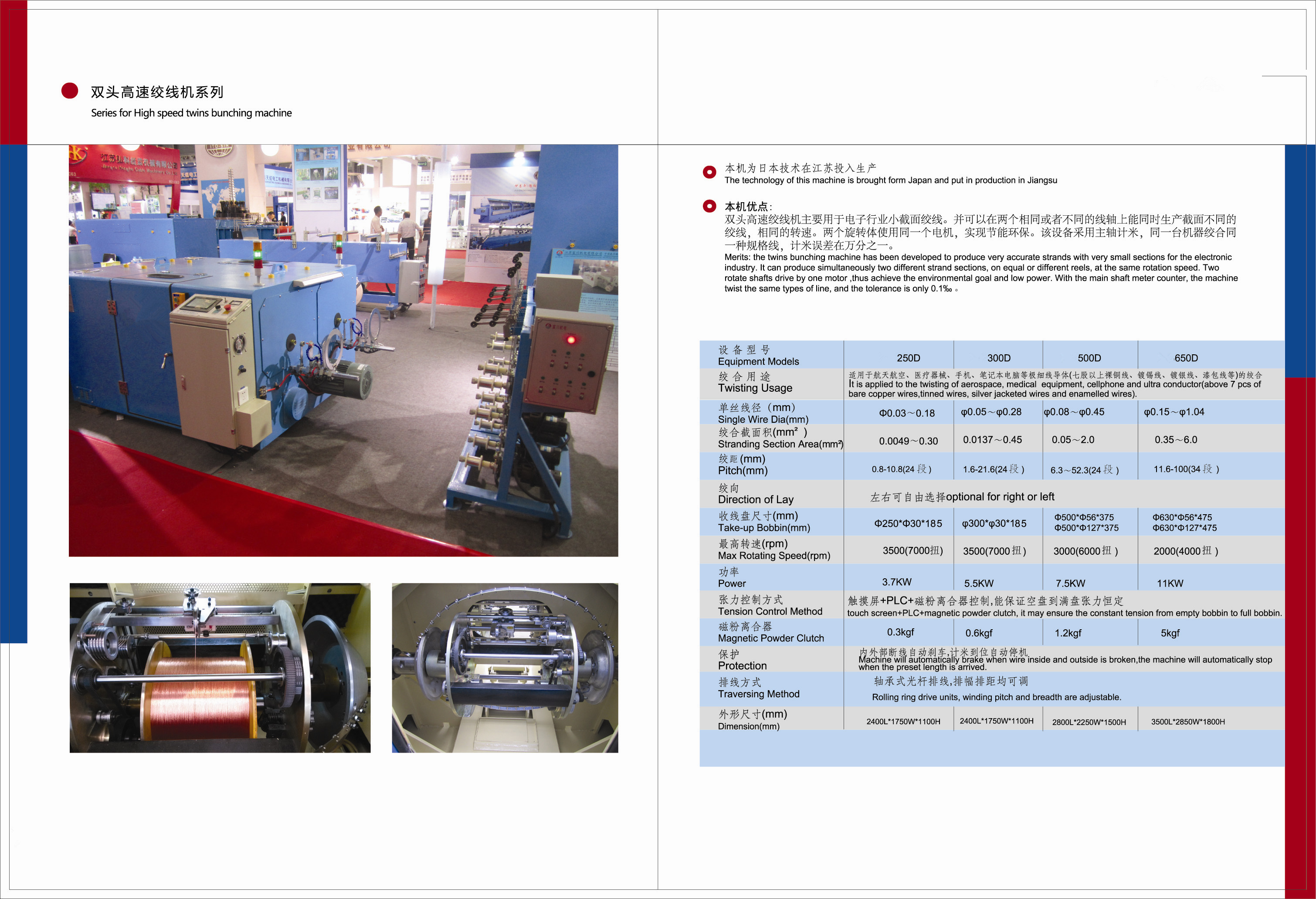

Series of High speed twins bunching machine 250D Single Wire Dia 0.03-0.18 & Strading Section Area 0.0049-0.30mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of High speed twins bunching machine 300D Single Wire Dia 0.05-0.28mm & Strading Section Area 0.0137-0.45mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of High speed twins bunching machine 500D Single Wire Dia 0.08-0.45mm & Strading Section Area 0.05-2.0mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
Series of High speed twins bunching machine 650D Single Wire Dia 0.15-1.04mm & Strading Section Area 0.35-6.0mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
1000B Series for Model B Large Wire High Speed Bunching Machine and Double Twist Bunching Machine Single Wire Dia 0.30-1.7mm & Strading Section Area 6.0-35.0mm2 Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
1250 Double Twist Stranding Machine Video site:https://youtu.be/IN2HCBk4LVc Design: • universally applicable for bunching and stranding of insulated conductors • working height of 1300 mm for all range of double twist stranders • rotor bearings with temperature control & vibration sensor • automatic traverse with flange detection Increase in quality: • adjustable winding force • strong compacting degree achievable • smooth cable passage for highest quality of conductor • compacting rollers or long set of post- formers useful for special cables • motorized compacting die with cable lubrication • dancer tension control for winding the cable onto the spool (optional) • perfect repeatable product quality Increase in productivity: infinitely variable lay length for max. flexibility by virtue of the haul-off capstan with separate drive without change gear • highest flexibility for the production of sector-shaped conductors, insulated cables, ropes and strands • telemetric system for reliable contactless data transfer • highest automation, best production control via recipe management 1. Main technique parameter: 1.1 Usage: PVC wire, flexible copper wire and Aluminum wire; 1.2 Inlet diameter: Flexible copper wire: 1.0 mmφ- 3.2 mmφ/ 7 cores; PVC wire: 2.0 mmφ-6.5 mmφ/2 - 4 cores; Aluminum wire: 1.6mmφ- 3.2mmφ/7 cores. 1.3 Stranding Sec. Area: 3.5-350 mm2; 1.4 Lay pitch: 40- 350mm (can changeable according to the customer’s requirement) Automatic calculus adjustment; 1.5 Twisted wire diameter: Soft copper wire Twisted outer diameter: 3.0 mm -25mm φ 1.6 Twisted outer diameter of PVC wire: 5.0 mm diameter -15 mm diameter 1.7 Stranding Direction: S: Z; 1.8 Twist speed: 1000RPM/Max (2000TPM) go to product group+
1600B Single Wire Dia 0.50-2.52mm Series for Model B Large Wire High Speed Bunching Machine and Double Twist Bunching Machine Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
500B Single Wire Dia 0.08-0.45mm & Strading Section Area 0.05-2.5mm2 Series for Model B Normal Wire High Speed Bunching Machine & Double Twist Bunching Machine Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
650B Single Wire Dia 0.15-1.04mm & Strading Section Area 0.35-6.0mm2Series for Model B Normal Wire High Speed Bunching Machine & Double Twist Bunching Machine Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
650C Single Wire Dia 0.12-0.52mm & Strading Section Area 0.30-4.0mm2 Series for Model B Normal Wire High Speed Bunching Machine & Double Twist Bunching Machine Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
800B Single Wire Dia 0.38-1.70mm & Strading Section Area 1.00-16.mm2 Series for Model B Normal Wire High Speed Bunching Machine & Double Twist Bunching Machine Production of strands and stranding of cables High precision, flexible, fast and versatile Sophisticated control systems guarantee that a Newlead bunching machine and stranding line delivers high production speeds and fine tolerances. More information about the most important Newlead developments for bunching and stranding is provided in the technology section. go to product group+
RX-QHL7400-14+14/6 Double Hearth Vertical Enameling Machine with Heated Air Circulation Wire Range 0.60-1.80mm/6passes/28lines Newlead spcialized in the Designing and Manufacturing of high speed enameling machines with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in C hina and is entering the international market.Our philosophy is to develop with our customers. More information about the most important Newlead development for enameling machine is provided in the technology section. go to product group+
RX-QHW3000-12+12/9 & 14+14/8 & 16+16/7 Horizontal enameling machine with heated air circulation line:0.05-0.10mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. newtech enameling machine More information on the most important developments is provided in the technology section. go to product group+
RX-QHW3600-12+12/9&14+14/8&16+16/7 Horizontal enameling machine with heated air machine line:0.08-0.20mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW4000 -12+12/9&14+14/8&16+16/7 horizontal enameling machine with heated air circulation line:0.10-0.30mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW4200-12+12/9 & 14+14/8 & 16+16/7 Horizontal enameling machine with heated air circulation line:0.15-0.40mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW4500-9+9/10 & 10+10/9 & 12+12/8 Horizontal enameling machine with heated air circulation line:0.25-0.60mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW4800-8+8/11&9+9/10&10+10/9 horizontal enameling machine with heated air circulation line:0.40-0.80mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW5000-8+8/11&9+9/10&10+10/9 Horizontal enameling machine with heated air circulation line:0.60-1.00mm Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHL7400-10+10/7 Double hearth vertical enameling machine with heated air circulation Wire range:0.80-2.50mm/7passes/20lines Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
RX-QHW1800-Single takeup/24(10+14) horizontal enameling machine with heated air circulation Wire range:0.02-0.05mm/24(10+14)passes/single takeup Newlead Specialized in the designing and manufacturing of high speed enameling machine with inline drawing,leader in the field of nonferrous metals processing. Newlead has already sold annually 200 lines of machines to the leading wire producers in China and is entering the international market.Our philosophy is to develop together with our customers. More information on the most important developments is provided in the technology section. go to product group+
Aluminium alloy welding wire rolling machine Aluminium alloy welding wire making machinery ,such as rolling, drawing,shaving,annealing and layer winding machine go to product group+
Aluminium alloy wire drawing machine Aluminum alloy welding wire making machinery ,such as rolling, drawing,shaving,annealing and layer winding machine go to product group+

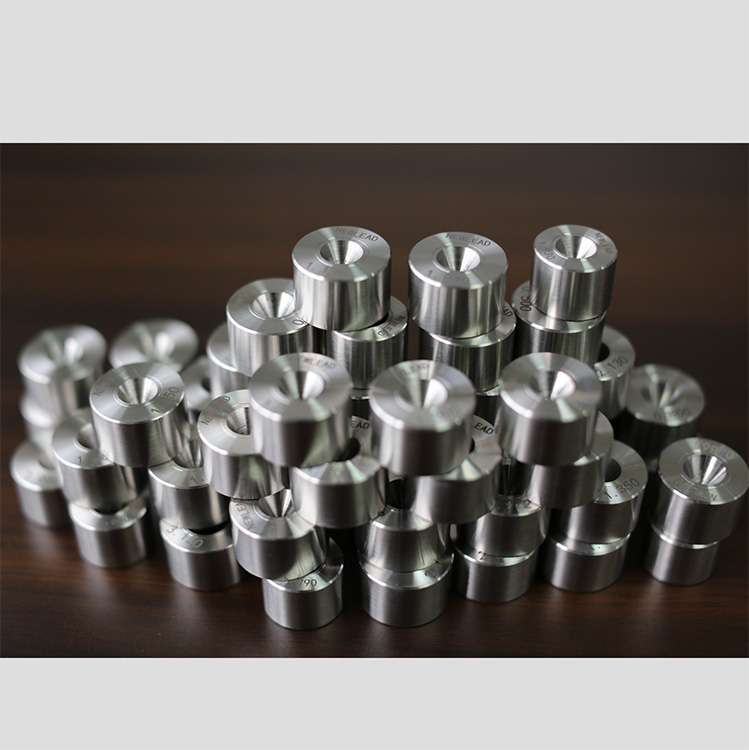

Drawing dies of wire drawing machine Drawing dies of wire drawing machine, high PCD material ,GE standard made in China go to product group+

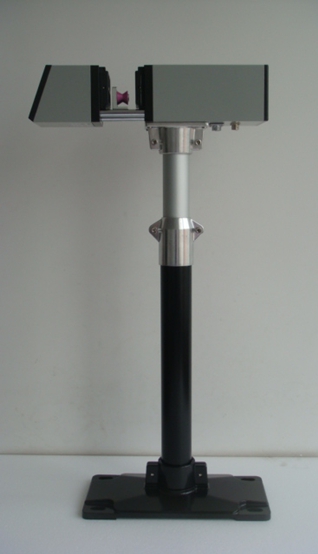

Diameter Gauge for Measurement and Control laser diameter controller Diameter Gauge for Measurement and Control laser diameter controller of wire and cable extruder go to product group+
Aluminium rod coiling machine compact winding machine Aluminium rod coiling machine compact winding machine go to product group+

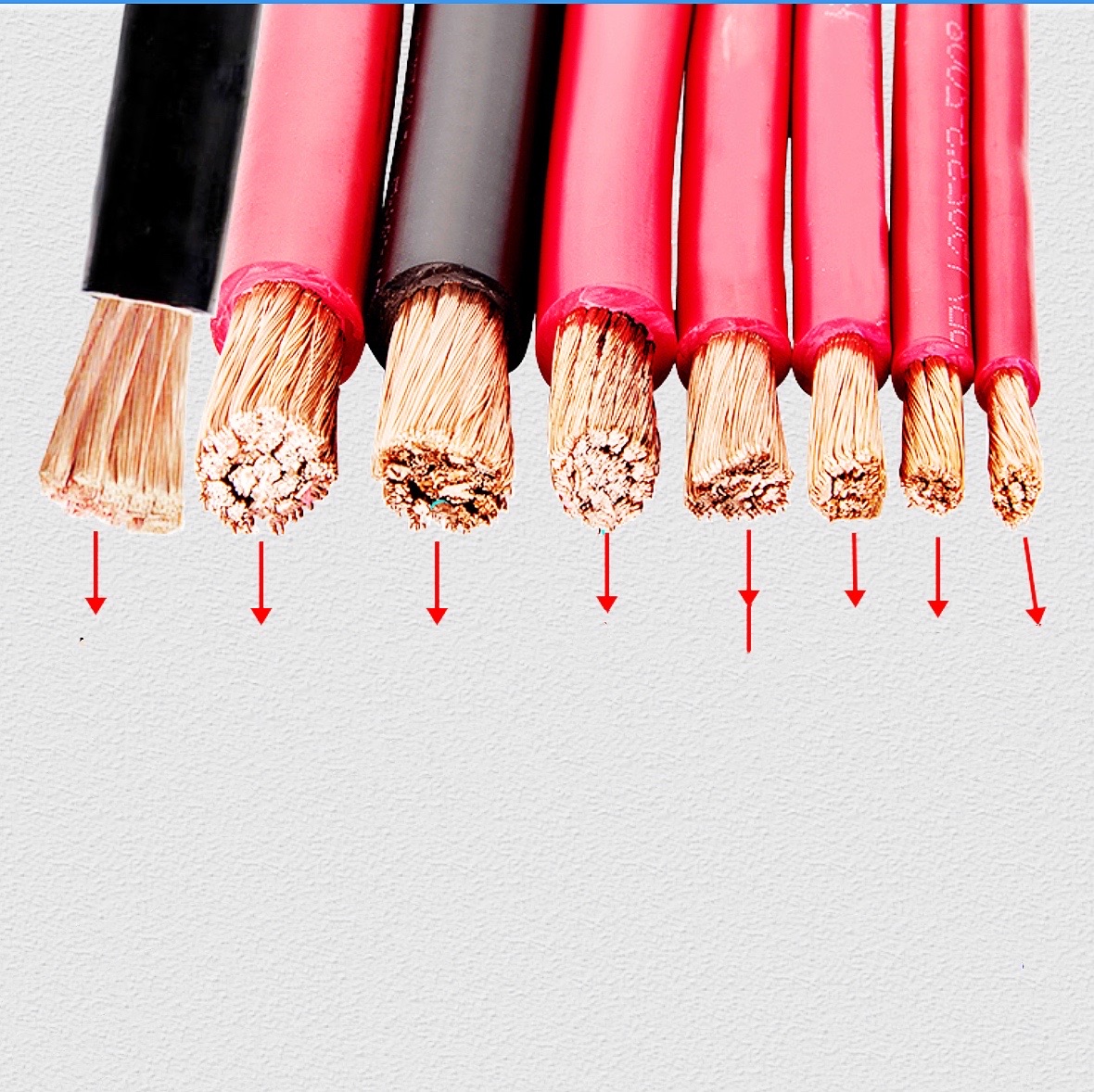

Power cable,building cable and insulation sheath cable Power cable,building cable and insulation sheath cable Fast,modular,flexible,pricese Application: Suitable for PVC.Pu,PE,et extruder materials Apply to the power cabled Computer wlre. lnsulated wire sheath,building line and other production. Part list: Fay off,straight flat table,main machine,electric control system,water channel store cable channel,track traction.take up parts,by action pay off system,heating system for copper wlfe,〇ver powder machine,special LDPEscrew,Low density screw . high density screw X/Ray measure cable machine and PLC control system go to product group+
The large cable extrusion line The large cable extrusion line Fast,modular,flexible,pricese Machine description: 1、 This machine high output,continuous prodution and high automatlon. 2、 Attachments may be configured upon ordering, such as shaftless large-disc rdding/unreelirlgmaohines. 3、 Full course computer control is customizable.lnstrument、copper llne preheatiny instrument. go to product group+
Production line for UL electric wire,special cable and automotive wire Production line for UL electric wire,special cable and automotive wire Fast,modular,flexible,pricese Application: Suitable for PVC,PE,et extruder materials Apply to the UI electric wire special cable and automotive wire. Part list: Fay off,slraight flat table,maln machine,electric contfol system,water channel store cable channel,track traction.take up parts.by action pay off system,heating system for copper wire,〇ver powder machine,special LDPE screw.Low density screw.high density screw,X/Ray measure cable machine and PLC control system or without PLC. go to product group+
Extruder production line Extruder production line Fast,modular,flexible,pricese Application: Suitable for PVC,PE.et extruder materials Apply to the power cable Computer wire and insulation sheath cable and building cable etc. Part list: lay off,straight flat.lable,main maehine,electric control system.water channal store cable channel,track traction.Linkage cutting machine and action pay off system.heating system tor copper wire.Over powder machine.special LS0' s screw,Low density screw,high density screw X/Ray measure cable machine and PLC control system or without PLC. go to product group+
Fluoroplastic Teflon extruder and double color machine Fluoroplastic Teflon extruder and double color machine Fast,madular,flexible,pricese Application: Suitable for FEP(Fluorinated Ethylene Propylene.also known as F46)FPA and ETEE(also known as F40) etc,fluorine plastic produotion. Part list: Screw barrel: Adopt new #3 Steel GH113 (with the United States GDA material) corrosion resistant and High temperature resistant; Cross head: Adopt new#3 steel GH113 Material special fixed centering cross head or manual centering cross head; Heatlng system: Adopt high temperature resistant copper alloys heater: Ouality oontrol: Equipped wlth diameter inspection feedback device,full process control of product outer diameter and concentriclty diameter: Electronic oontrol lmpolrted converter+PLC touch screen control, go to product group+
High-precision double layer co-extrusion extruder production line(Nuclear Power Station Products) High-precision double layer co-extrusion extruder production line(Nuclear Power Station Products) Fast,modular,flexible,pricese Application: Suitable for low smoke halogerl free,XLPE extrusion mainly used for the productlon of Nuclear Power Station products cable Equipment components: : lt is composed-of Pay-off, straightening, mainframe main control cabinet printer water through accumulator caterpillar, take-up machines accessorles, 〇ptional single-head/double-head/active type.pay-off/ PLC computer all-process control/laser diameter gauge, copper pre-heater. go to product group+
PV cable (Solar energy)production line PV cable (Solar energy)production line Application: 1.Suitable for various nylon sheath and low smoke halogen free wire extrusion.Screw tube all adopts water cooling; 2.Screw barrel;Adopt the latest japanese structure design and the strengthenlng structure is speclally estabIished acoording to the different extrusion prcess requirements with view to adapt to various low smoke halogen free ectrusion; 3.Crosshead:Low smoke halogen free or special crosshead: 4.Heating and cooIing system:Coordinated with the special design of the screw barrel,the machine is equipped with special heating and cooling system to satisfy the requirement of precise extrusion of different compountds; 5.Extrusion auxiliary machine:The machine is able to equip with propef auxiliary machine(30,35and40 etc.)according to various process recluirements and after changing the crosshead and screw.nylon sheath wire can be produced immediately and the various process requirements of single strip,double strip as double-layer extrusion,etc. can be satisfied; 6.Quality control:Equipped with outer diameter detection feedback device control product of outer diameter and concentricity etc.technological parameter,avoid wire diameter arld insulation thickness error.and the resulting rise in the oost of produotion; 7Electrical control:lmported inverter+PLC touch screen control. go to product group+

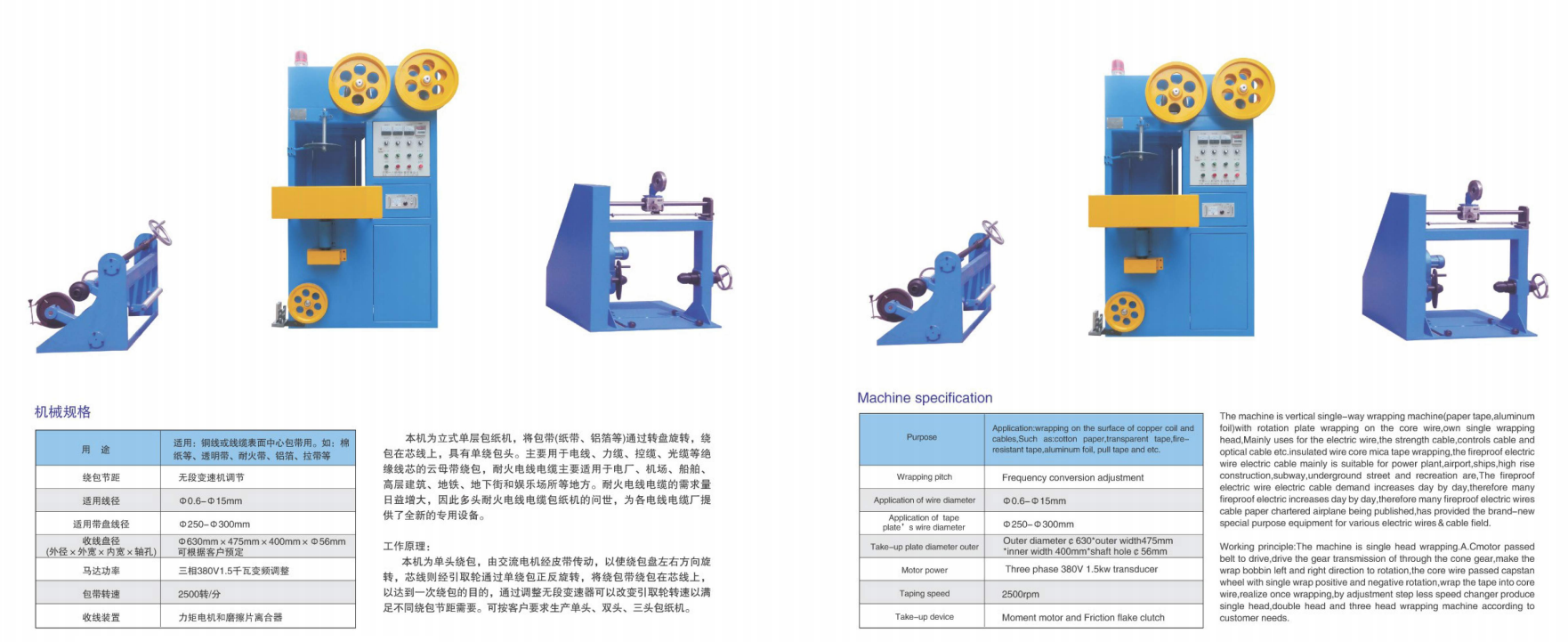

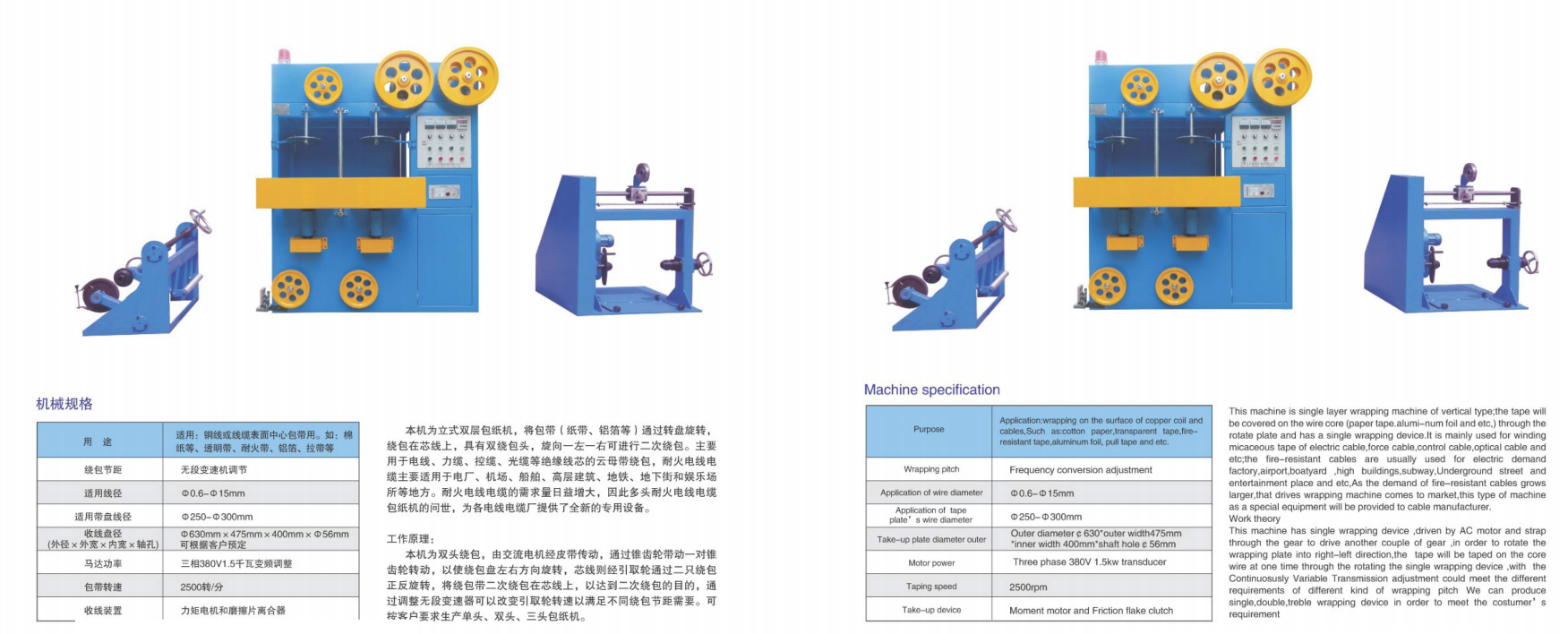

Single layer high speed wrapping machine Single layer high speed wrapping machine The machine is vertical single-way wrapping machine(papertape,aluminum foll)with rotation plate wrapping on the core wire,own single wrapping head,Mainly uses for the electric wire.the strength cable,controls cable and optical cable etc,insulated wire core mica tape wrapping,the fireproof electric wire electric cable mainly is suitable for power plant.airportships.high rise construction,subway,underground street and recreation are,The fireproof electric wlre electric able demand increase5 day by day.therefore many fireproof electric increases day by day.therefore many fireproof electric wires cable paper chartered airplane being publlshed,has provided the brand-new speclal purpose equipment for various electric wlres&cable field. Working principle:The machines single head wrapping comotor passed belt to drive, the gear transmission of through the cone gear,make the wrap bobbin left and right direction to rotation.the core wire passed capstan wheel with single wrap posilive and negative rotation,wrap the tape intocore wire,realize once wrapping,by adjustment stepless speed changer produce singIe head,double head and three heacl wrapping machlne accordlng to customer needs. go to product group+
Double layer high speed wrapping machine Double layer high speed wrapping machine This machine is single layer machine of vertical type ;the type will be covered on the wire core(paper tape alumi-num foil and etc,)through the rotate plate and has a single wrapping device.It is mainly used for winding micaceous tape of electric cable,force cable,control cable,optical control and etc;the fire-resistant cables are usually used for electric demand factory,airport,boatyard,high building,subway,underground street and entertainment place and etc.As the demand of fire-resistant cables grows larger ,that drives wrapping machine comes to mareket,this type of machine as a special equipment will be provided to the cable manufacturer. go to product group+

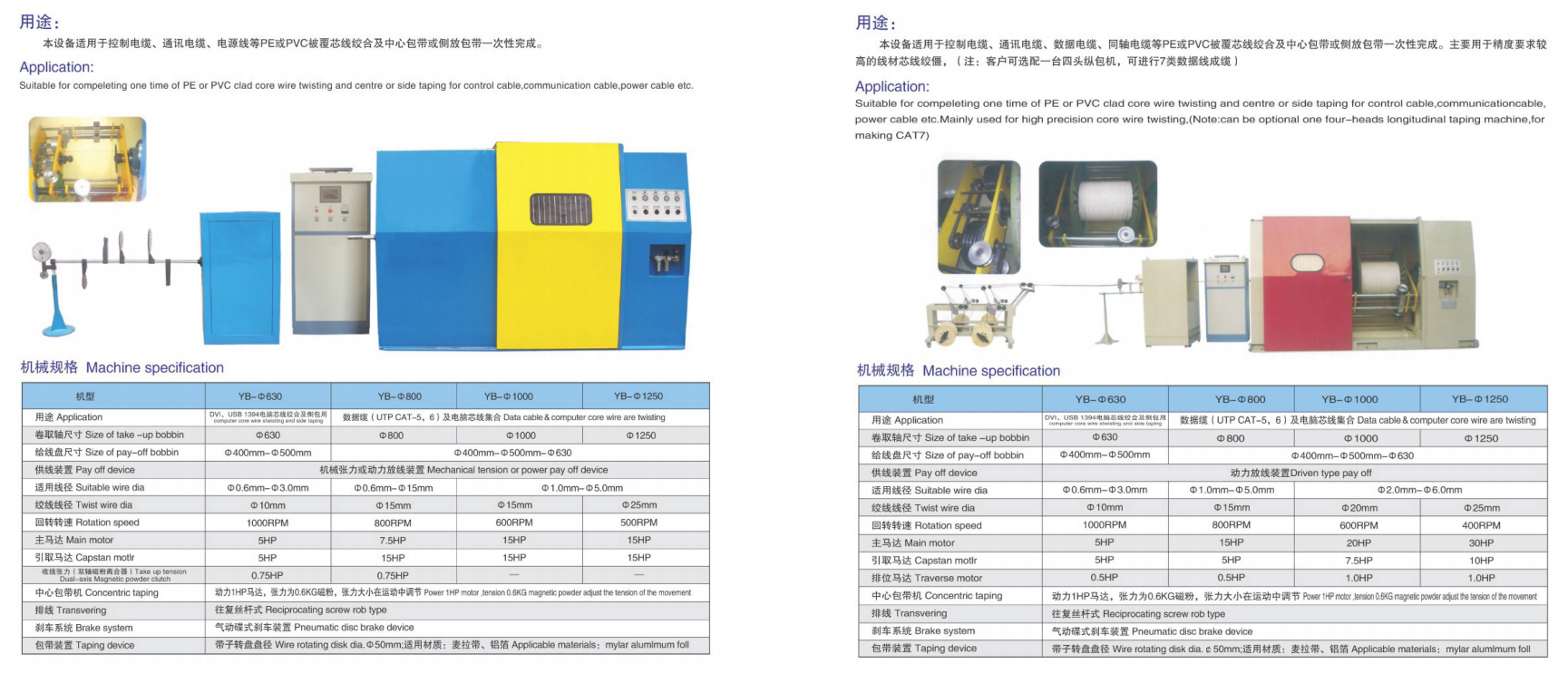

YB-630-1250 High-speed singel strading machine YB-630-1250 High-speed singel strading machine Suitable for compeleting one time of PE or PvC clad core wire twisting and centre or side taping for oontrol cable,communioationoable, power cable etc.Mainly used for high precision core wiretwisting,(Note:can be optional one four-headslongitudinal taping machine,for maklng CAT7) go to product group+

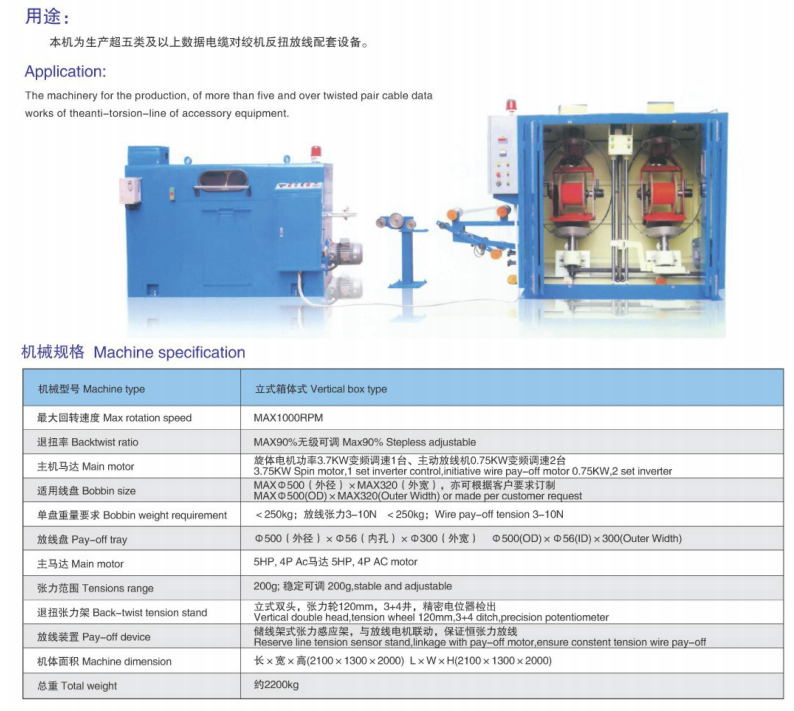

Vertical Double Bobbin Twist Machine Vertical Double Bobbin Twist Machine The machinery for the produotion. of more than five and over twisted pair cable data works theanti-torsion-line of accessory equipment. go to product group+
Horizontal Double Bobbin Bckward Twist Machine Horizontal Double Bobbin Bckward Twist Machine Application: Suitable for insulated core wire pairtwisted ofLANcat5、5e、6、6E cable go to product group+

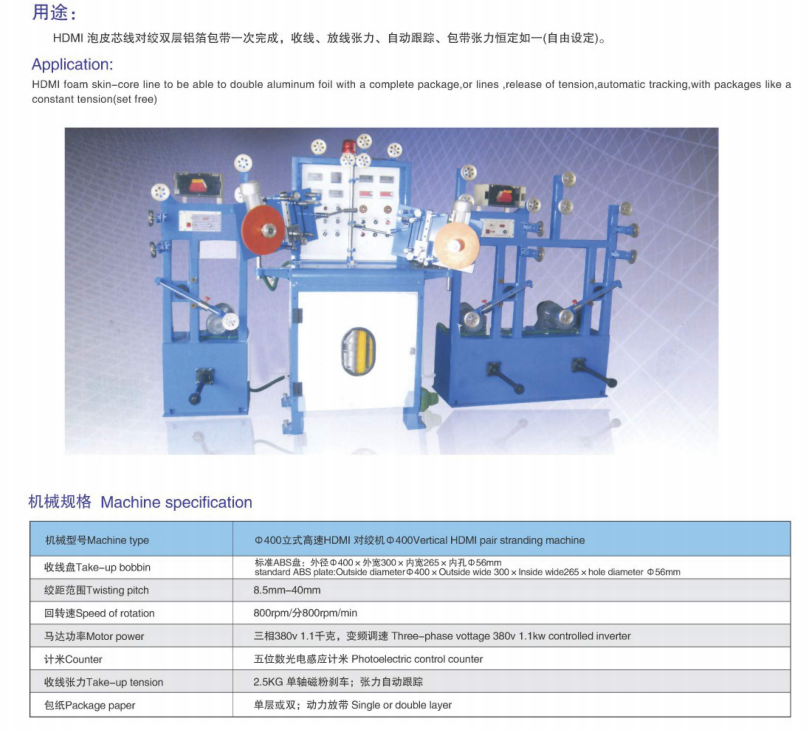

300-400 Vertical HDMI pair strading machine 300-400 Vertical HDMI pair strading machine Application: HDMI foam skin-core line to be able to double aluminum foil with a complete package,or lines,release of tension,automatic tracking,with package like a constant tension(set free) go to product group+

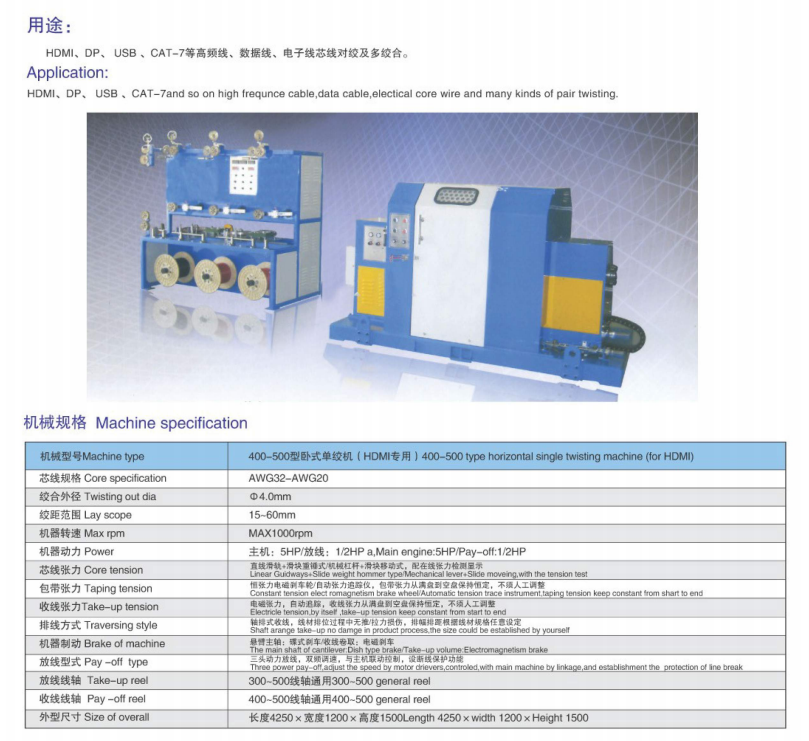

400-500type horizontal single twisting machine(for HDMI) 400-500type horizontal single twisting machine(for HDMI) Application: HDMI,DP,USB,CAT-7 AND so on high frequence cable,data cable,electric core wire and many kinds of twisting. go to product group+

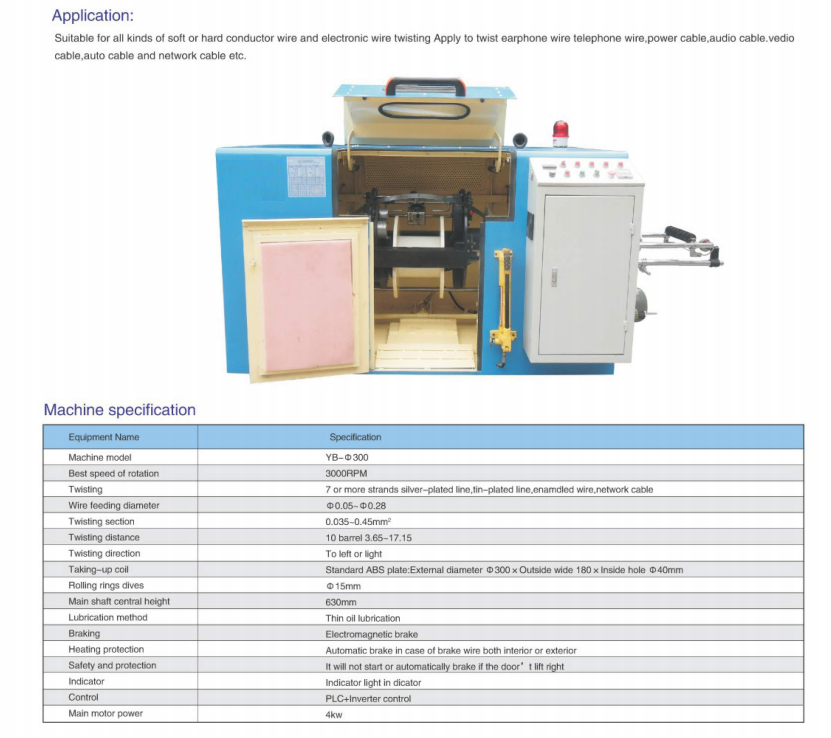

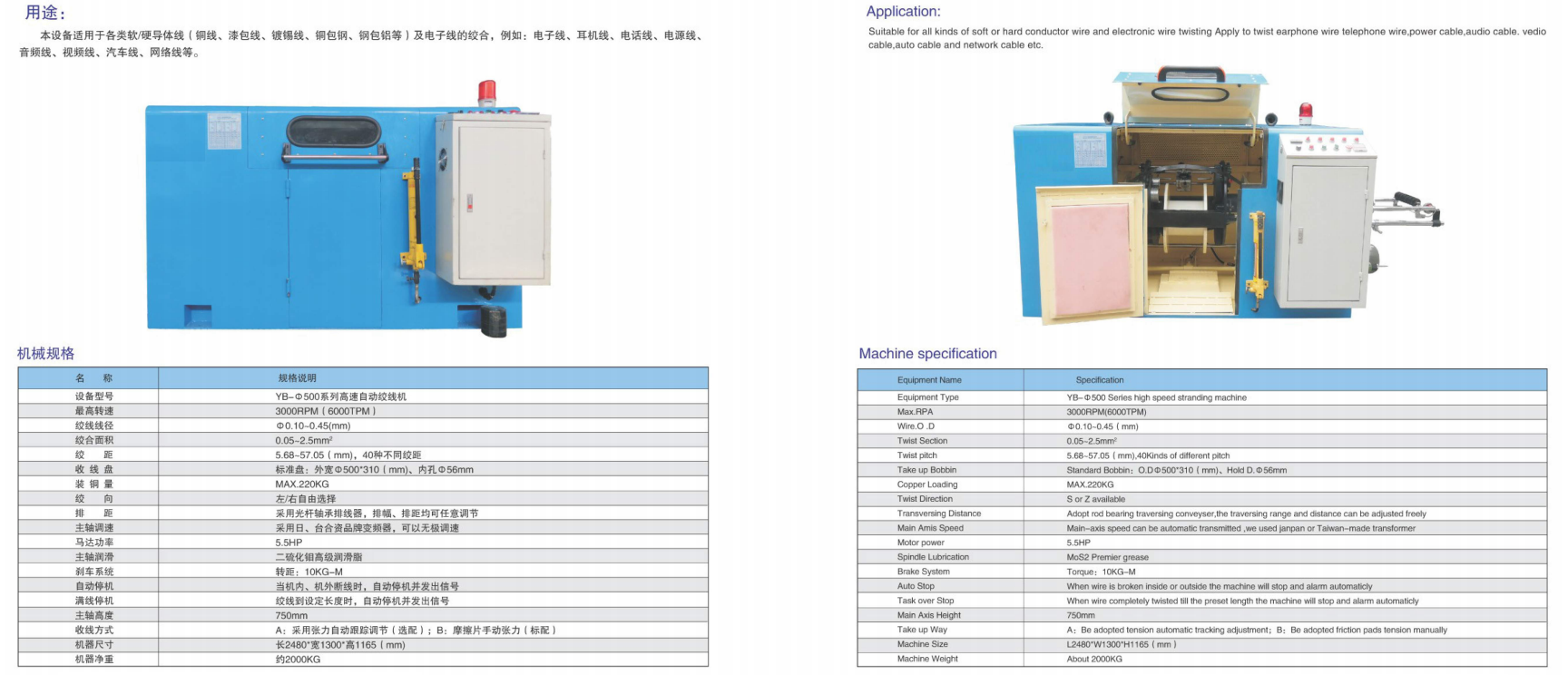

YB-300 High speed strading machine(3000RPM) YB-300 High speed strading machine(3000RPM) Application: Suitable for all kinds of soft or hard conductor wire and electric wire twisting .Apply to twist earphone wire telephone wire,paper cable,audio cable,vedio cable,auto cable and network cable etc. go to product group+
YB-500 High speed strading machine(3000RPM) YB-500 High speed strading machine(3000RPM) Application： Suitable for all kinds of soft or hard conductor wire and electronic wire twisting.Appiy to twist earphone wire,paper cable,audio cable,vedio cable,auto cable and network cable etc. go to product group+
YB-630 High speed strading machine(1600RPM) YB-630 High speed strading machine(1600RPM) Application: Suitable for 7or more strands conductor twisting,such as electronic wire,earphone wire,telephone wire,network cable,audio cable,video cable etc. go to product group+
YB-800 High speed stranding machine(1500RPM) YB-800 High speed strading machine(1500RPM) Application: Suitable for twisting all kinds of soft or hard cooper or aluminum strands(filament);Such as:CAT5E;6;and 6A network wire or telephone cable. go to product group+

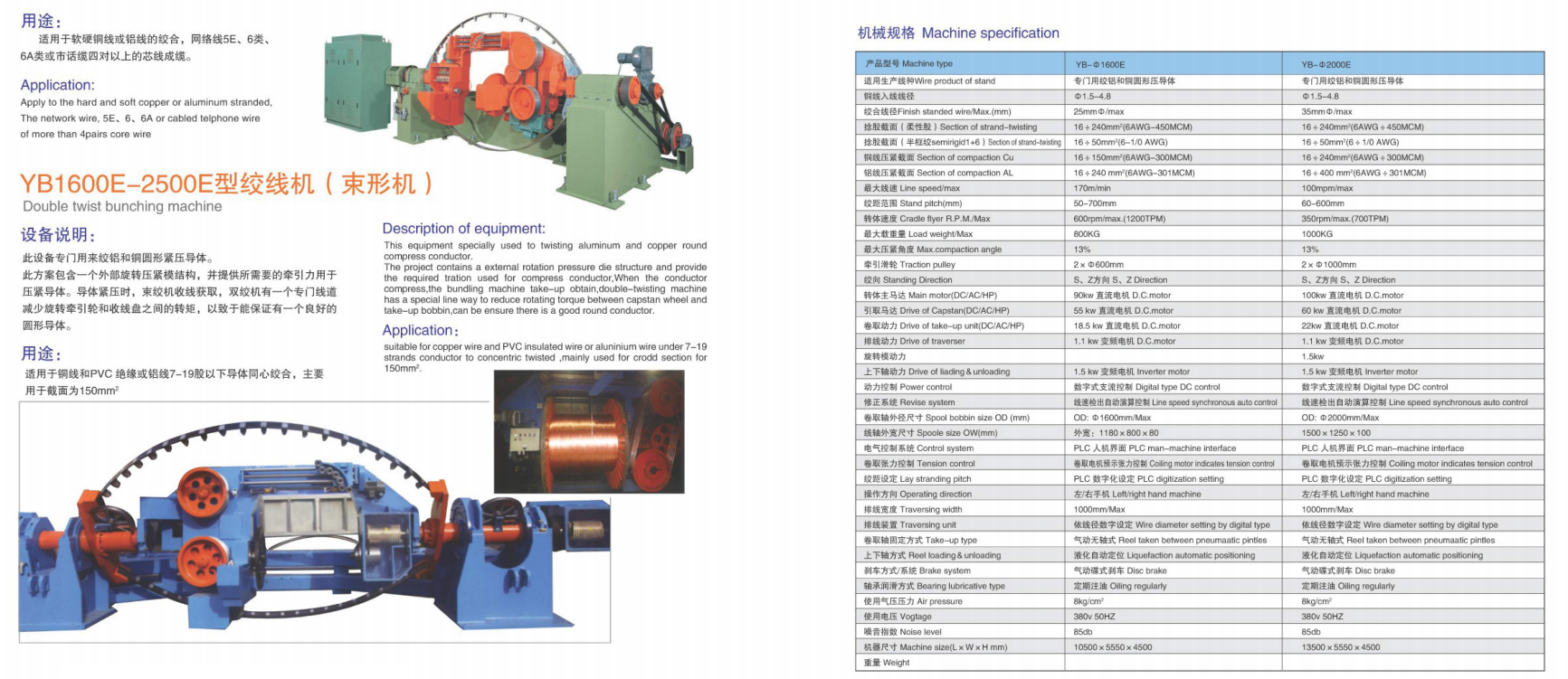

Bow-type strading machines/Double twist bunching machine Bow-type strading machines Application: Apply to the hard arldsoft copperor aluminum strandedThe network wire, 5E、 6、6A orcabled teIphone wire of morel than4pairs core wire Double twist bunching machine Description of equipment: This equipment specially used to twisting aluminum and copper round compress conduotor. The projeet contains extemal rotation pressure die strudure and provide the required tration used for compress conductor,When the conduotor compressthe bunching machine take-up obtain,clouble-twisting machine has a special line way to reduce rotating torque between capstan wheel and take-up bobbin,canbe ensure there ls a good round conductor. Application: suitable forcopperwire and PVC insuIated wire or aluninium wire under7-19 strands conduotor to concentrictwist ,mainly used for croddsection for 150mm go to product group+
YB-1+6+12 Regular stranded high-speed equipment YB-1+6+12 Regular stranded high-speed equipment Performance parameters: 1.use: used1+6+12 normal conduotor strandedconductor. 2.Conductor oorlduotor monofilament range of phi 0.15 phi 064mm 3.1+6 stran,cled cllameter rangel diameter1.2 ~ 1.92mm diameter 4.put the wire disc size: 0200mm x 030mm x190mmand 0185mm 030mm x180mm(can be provided accordlng to your company.s drawings top cone) 5.the bow speed:3000RPM 6.the spring, tension control of belt tension, so as to control the reel tension. 7.1+6 strand twist away: and the host linkage, with stepless variable speed to change the stranding pltch 8.the main motor AC motor: 7.5KW 1+65.5KW AC motor. 9.the amount of each dish dish: about15Kg 10,the cutter to: change the motor steering so as to change the pitch of the twisted to. 11 on and off axls: the manual disc 12,the spindle lubrioation: Grease 13.the noise index: noiselessthan75deoibels 14.the machlne size(length· width· helght): 2800 x1205 x1310 15.weight: 1500 Kg. go to product group+

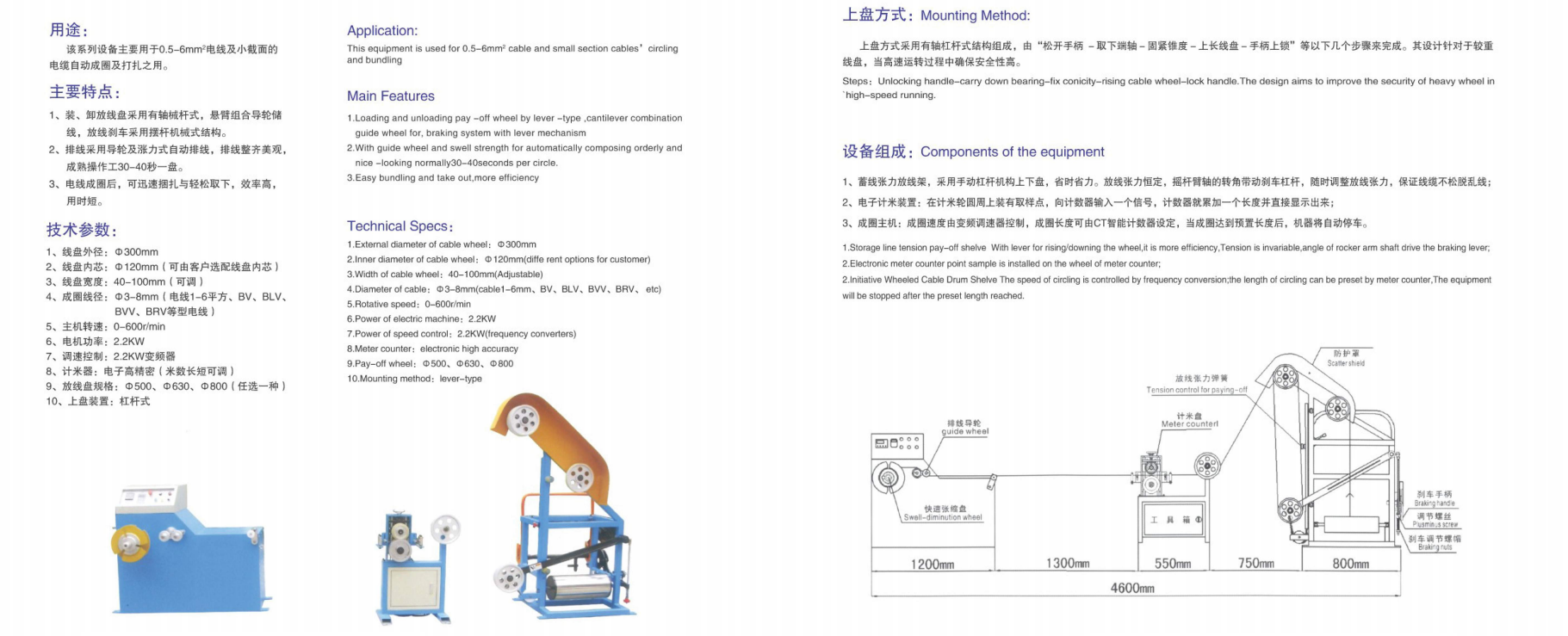

YB-630High speed automatic cable circling equipment series(lever-type) YB-630High speed automatic cable circling equipment series(lever-type) Application: This equipment is used for o.5-6mm cable and small section cables' circling and building. Main Features 1.Loading and unloading pay-off wheel by lever-type,cantilever combination guide wheel for, braking system wlth lever mechanism 2.With guide wheel and swell strength for automatioally composing orderly and nice-looking nomally30-40seconds per circle. 3.Easy bundling and take out.more efficiency Technical Specs: 1.Extemal diameter of cable wheel: 〇300mm 2.Inner diameter of cable wheel: 0120mm(dlffle rent options for customer) 3.Width of cattle wheel: 40_100mmlAdjustable) 4.Diameter of cable: o3-8mm(cable1-6mm、 BV、 BLV、 BVV、 BRV、 etc) 5.Rotative speed: 0-600r/mir1 6.Power of electric machine1 2.2KW 7Power of speed control: 2.2KW(frequence converters) 8Metercounter: electronic high accuracy 9.Pay-offwheel: 〇500、 (1)630、 l1)800 10,Mounting mothod: lever-type go to product group+

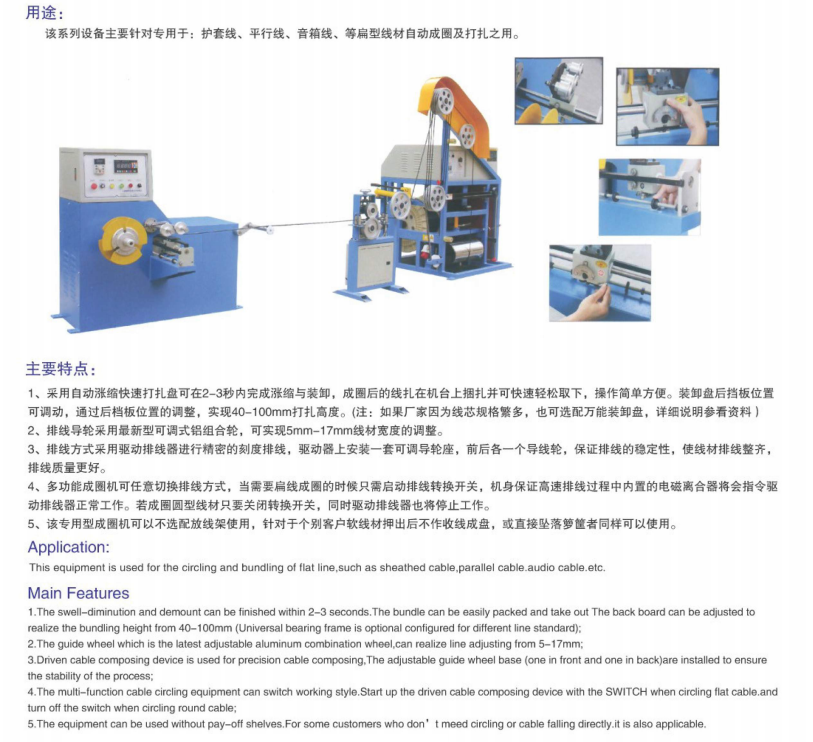

High speed automatic cable circling equipment series(dedicated for flat-line) High speed automatic cable circling equipment series(dedicated for flat-line) Application: This equipment is used for the circling and bundling of flat line,such as sheathed cable,parallel cable.audio cable.etc. Main Features 1.The swell-dlminution and demount can be finished within2-3seconds.The bundle can be easlly packed and take out The back board can be adjusted to realize the bundling height from40-100rnm(Universalbearing frame is optional configured for different line standard): 2.The gulde wheel which is the latest adjustable alumlnum combination wheel can reallze line adjusting from5-17mm; 3.Dlriven cable composing device is used for precislon cable composing,The adjustable gulde wheel base(one inlront and one in back)are installed to ensure the stability of the process; 4.The multi-functlon cabIe circling equipment can swltch working style.Start up the driven cable compossing device wlth the SWITCH when oircling flatGablB.and tum off the switch when circling round cable: 5.The equipment can be used without pay-off shelves.For some customers who don' t meed circling or cable falling directly.it is also applicable. go to product group+
Middle Section Automatic Circling Equipment Middle Section Automatic Circling Equipment Application: This equipment is used for the circling and bundling of 10-50mm single cable and the round sheathed cable which the diameter is less than 200mm. Technical Specs: 1.Pay-olf shelve:end bearing,electronic elevator 2.Electronic elevator:deceleration motor 2HP( 1.5KW) 3.High-accuracy meter counter 0.1% 4Max.rotative speed:300r/min 5.Powerof the machine:5HP(3.7KW) 6.Control system;Frequency conversion+SCM integration system 7Circling wheel:〇130mm-〇250mm(optional configuration in this range) 8.Pay-off wheel:1250mm-l600mm(optional configuration In this range) 9,Braking system:aerodynamic braking control 10 Applicable range:10-50mm single cable and the round sheathed cable which the diameter is less than 20mm go to product group+

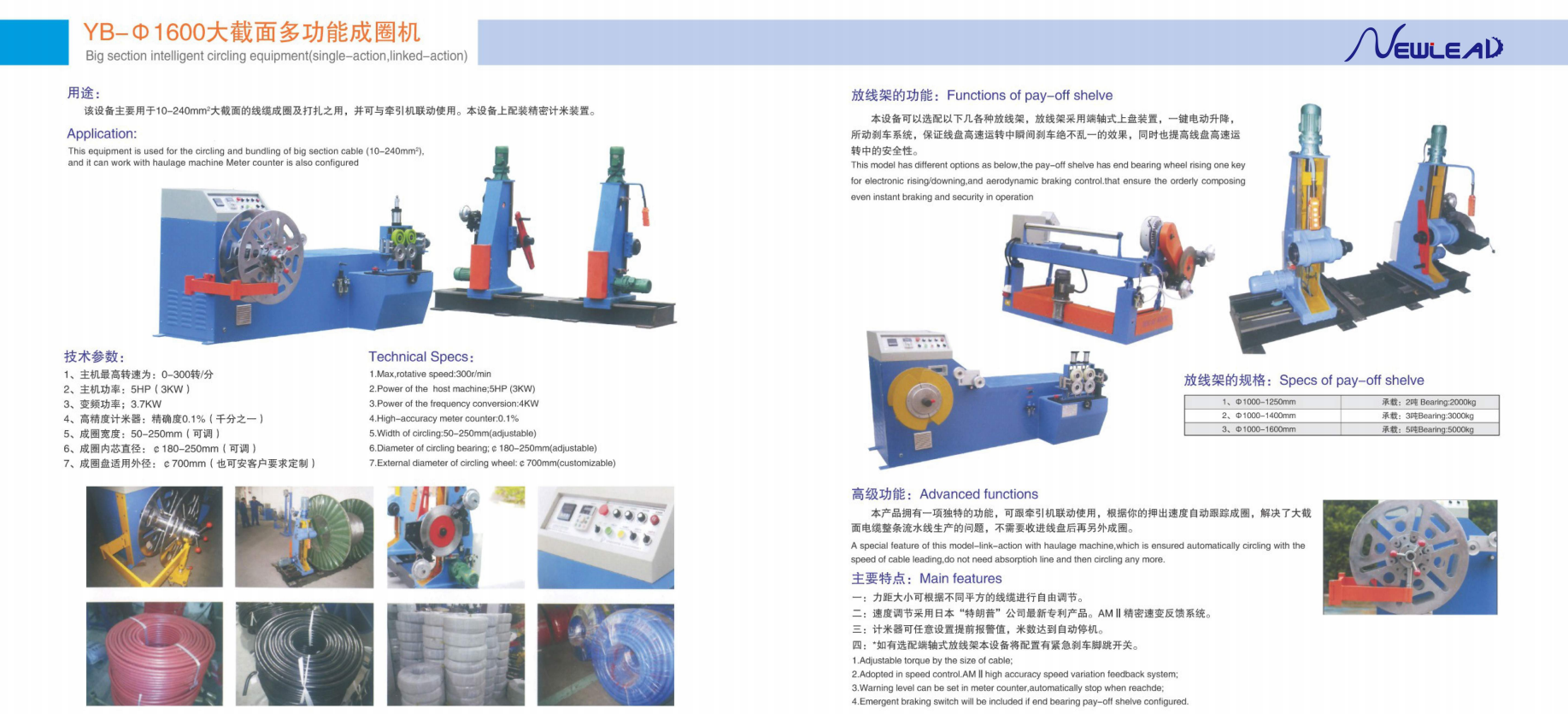

Big section intelligent circling equipment (single-action,linked-action) Big section intelligent circling equipment (single-action,linked-action) Appl ication: Thls equlpment is used for the circling and bundling of big section cable(10-240mm2), and it can work with haulage machine Meter counter is also configured Technical Specs: 1Max,rotative speed:300rlmin 2.Power of the host machine;5HP(3KW) 3.Power of the frequency conversion:4KW 4.High-accuracy meter counter:0.1% 5,Width of circling50-250mm(adlustable) 6.Diameter of circling bearing; 0180-250mm(adjustable) 7.Extemal diamaltar of circling wheel: lt700mm(customizabla) go to product group+
WS-HST400 High speed strading machine WS-HST400 High speed strading machine Application: Suitable for all kinds of power cable,car wire,the net wire,the mouse wire,and other small core/above 9 core the following cable strading and wrapping. go to product group+

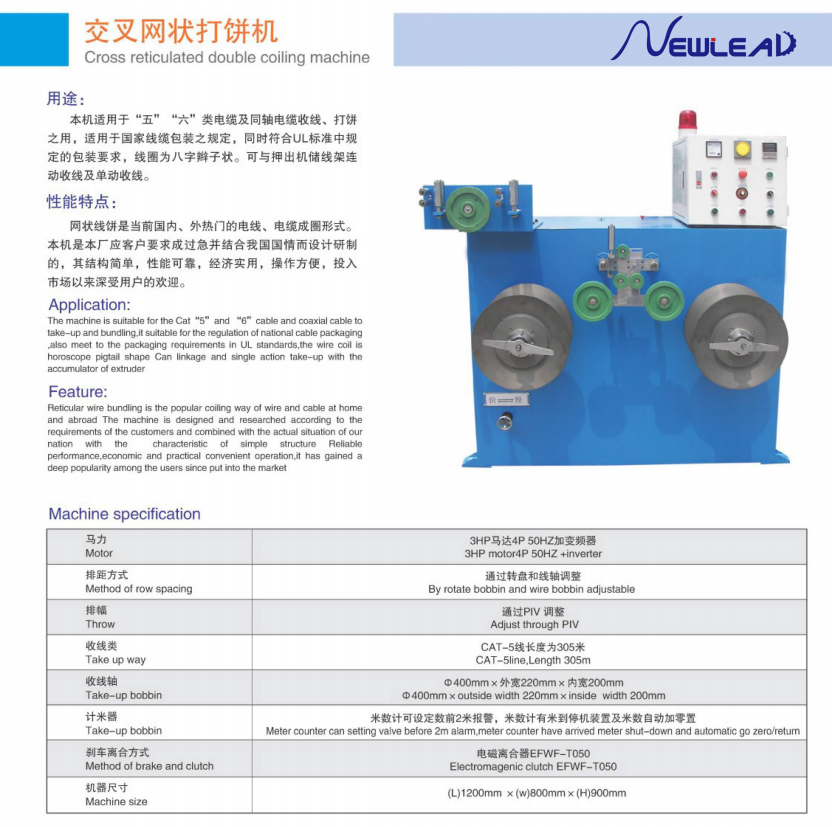

Cross reticulated double cooiling machine Cross reticulated double cooiling machine Application: The machine is suitable for cat "5" and "6" cable and coaxial cable to take-up and bundling,it suitable for the regulation of national cable packaging,also meet to the packaging requirements in UL standards,the wire coil is horoscope pigtall shape can linkage and single action take-up with the accumulator of ectruder. Feature: Reticular wire bundling is the popular coiling way 0f wlre and cable at h0me and abr0ad The machine is designed and researched according t0 the requirements 0f the customers and combined with the actual situation of our nation with the characteristic of simple structure Relible pert0rmance.ec0n0mic and practical c0nvenient Operati0n it has gained a deep popularity among the users since put into the market. go to product group+

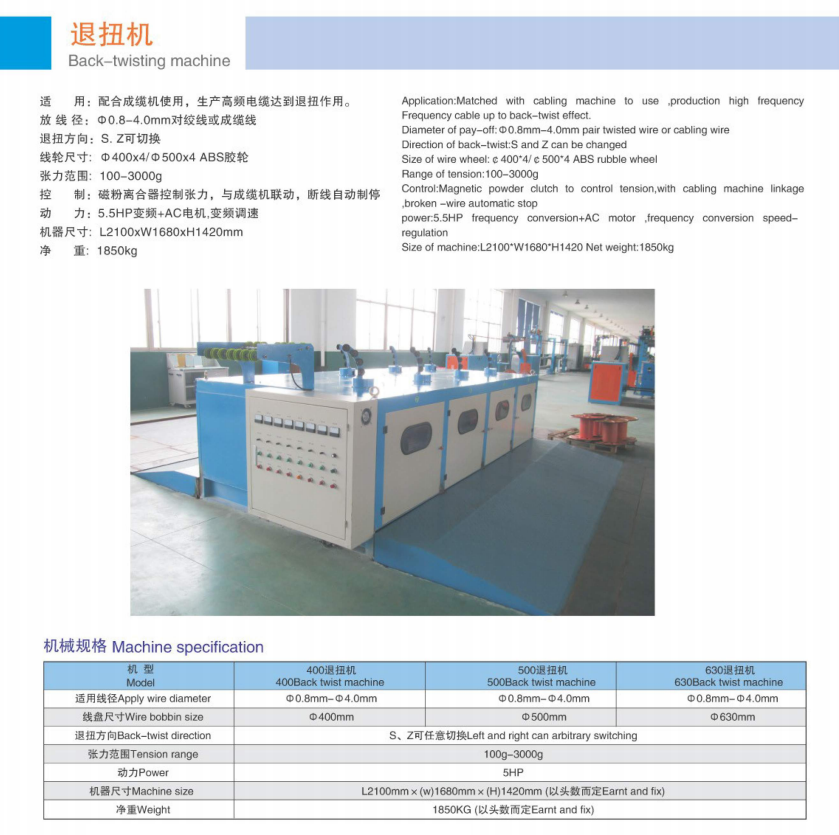

Back-twisting machine Back-twisting machine Application: Match,Epd wlth abling mchine to use ,production high frequency Frequency cable up to back-twist effect. Diameter of pay-off: 〇0.8mm-4.0mm pair twisted wire or cabling wire Direction of back_twist1:S and Z can be changed Size of wire wheel: c400·4/c500·4 ABS rubble wheel Range of tension:100-3000g Control;Magnetic powder clutch to control tension.with cabling machlne linkage ,broken-wire automatic stop power15.5HP frequency conversion+AC motor .frequency conversion speed-regulation Size of machine:L2100'W1680'H1420 Net weight:1850kg go to product group+

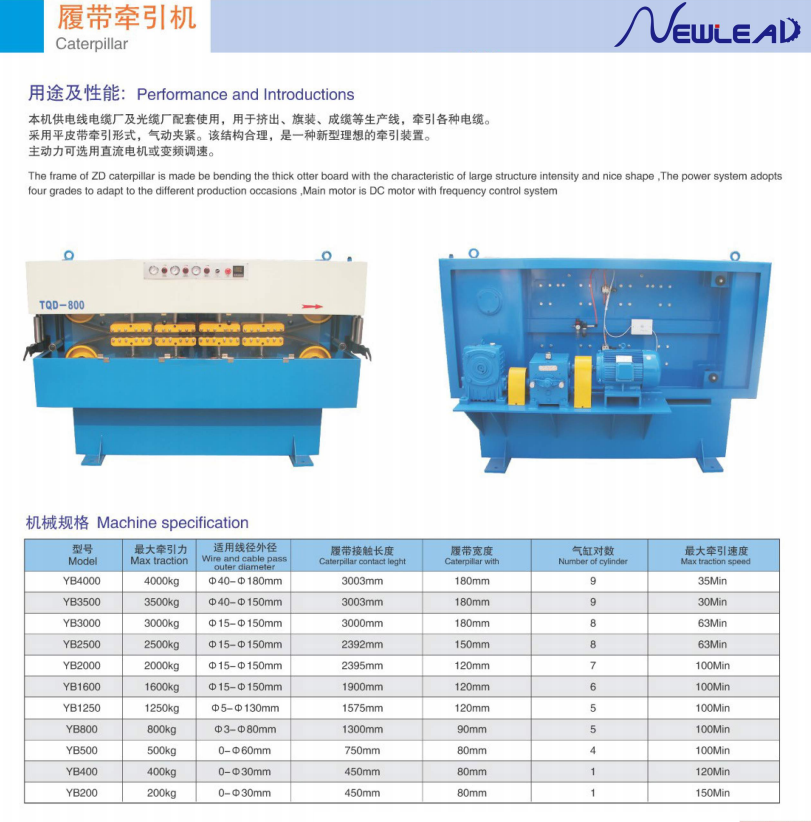

Caterpillar Caterpillar Performance and Introductions The frame of ZD caterpillar is made be bending the thick offer board with the characteristic of large structure intensity and nice shape.The power system adopts four grades to adapt to the different production occasions.Main motor is DC motor with frequency control system. go to product group+

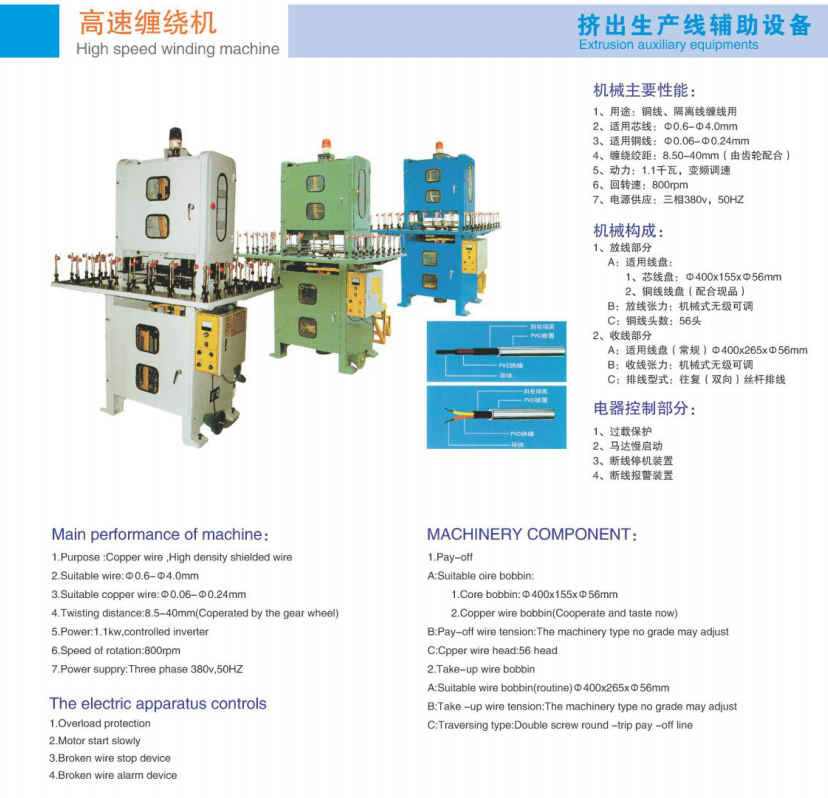

High speed winding machine High speed winding machine Main performance. of machine: 1.Purpose:Copper wire.High density shielded wire 2,Suitable wire: 〇0.6-〇4.0mm 3.Suitable copper wlre1〇0.06-〇0.24mm 4.Twisting distance:8.5-40mm(Coperated by the gear wheel) 5.Power: 1 ,1 kw.controlled inverter 6.Speed of rotation:800rpm 7.Power suppryThree phase 380rv,50HZ The electric apparatus controls 1 Overload protection 2Motor start slowly 3.Broken wire stop device 4.Broken wire alarm device go to product group+
Color injection machine/Power chip flow filter Color injection machine The machine needs to injection small-scale extruder with plastic of other colors when matched with the extruder to produce wlres the four wheels can move flexlbly The splral stop-go devlce and rotation handles can make the universal wheel on one side leave the ground and the machine positlon on a fast basis:The terrain clearance of module mouth is 990 1120mm. Power chip flow filter The product is a filtering machine with cheap price and extremely capacity of power and chip flow domestically after field experiment of many years and obtaining the suggestions of several manufactures. go to product group+
High speed cutting machine High speed cutting machine This kind of machine should be used together with pay-off machine and tension frame,cutting ability scope:round wire 4.0-10mm,flat wire thickness:2.0-4mm,width 4.5-11mm,it main motor using the imported motor,the speed of wire cutting reach up to 200m/min,max 150 strips per minute.the length of conveyor can be setting according to the customer requirement.The biggest features for in the process of operation,can continuous wire cutting.Suitable for working environment of high-speed and saving the mainpower,high efficiency and save time and effort,will suit your work needs. go to product group+

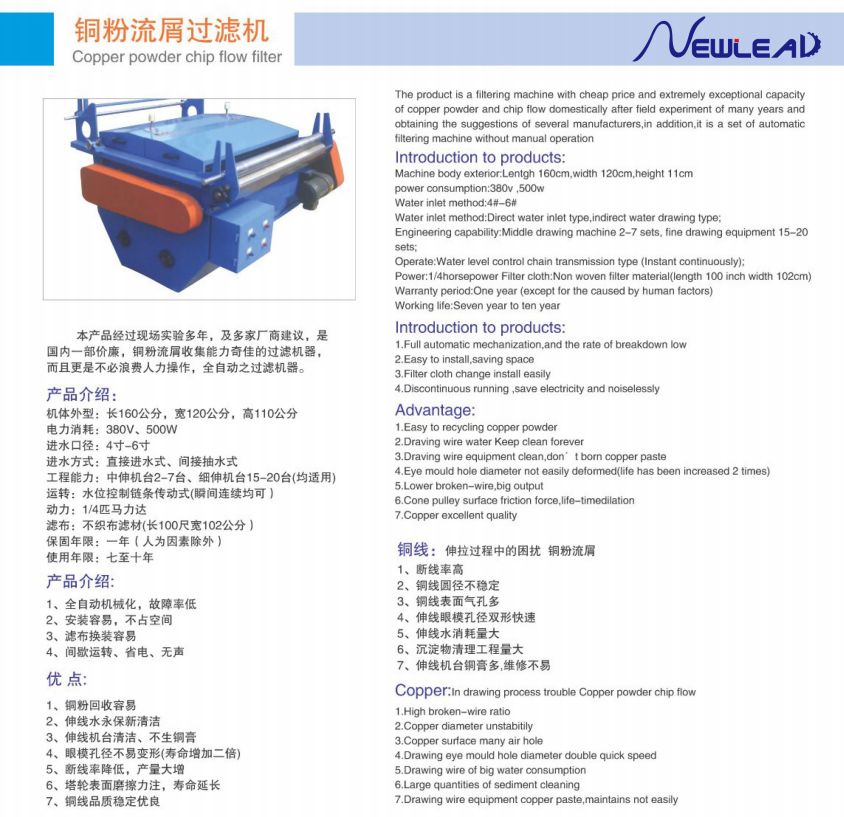

Copper powder chip flow filter Copper powder chip flow filter The procluct is a filtering machine with cheap price and extremely exceptional capacity of copper powder and chip flow domestically after field experiment of many years and obtaining the suggestions of several manufacturers,in addition,it is a set of automatic fittering machine without manual operation lntroduction t0 products: Machine body exterior: Lentgh160cm,width120om,height11om power consumption:380v500w Water inlet method;41ll-6# Water inlet method:Direct water inlet type.indirect water drawing type; Engineering capability:Middle drawing machine2-7 sets, fine drawing equipment15-20 sets; Operate:water level control chain transmission type(lnstant continuously) Power:1/4horsepower Filter cloth:Non woven mter materia1(length100 inch width102cm) Warranty period:0ne year(except for the caused by human factors) Working life:Seven year to ten year lntroduction to products: 1.Full automatic mechanization and the rate of breakdown Iow 2.Easy to install.saving space 3.Filter cloth change install easily 4.Discontinuous runnlng ,save electricity and noiselessly go to product group+
Automic coiling & packaging machine（two machine become one) Automic coiling & packaging machine（two machine become one) Feature: Wires,will be coiled and packaged one by one.produotion with high speed. lt has auto aduust type coil-holding arm.without manual adjustments. lt has auto labeling machine.which don't need label by manual,more safe and convenience. When problem come out.the machine can auto detect the mistakes .and send message to warm operator. lt can save labour force,amplify capaclty and advance industrial automation. go to product group+

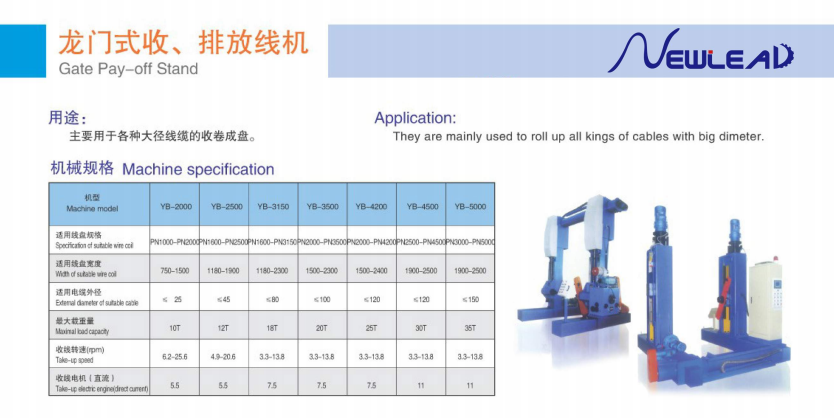

Gate pay-off stand Gate pay-off stand Application: They are mainly used to roll up all kinds of cables with big dimeter go to product group+

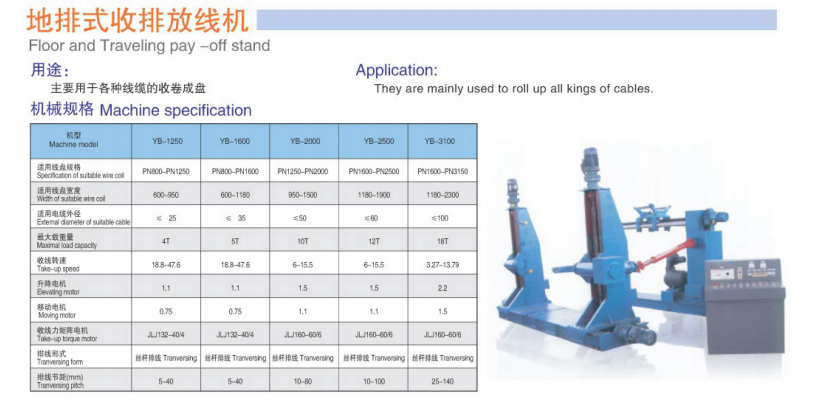

Floor and traveling pay-off stand Floor and traveling pay-off stand Application: They are mainly used to roll up all kinds of cables go to product group+

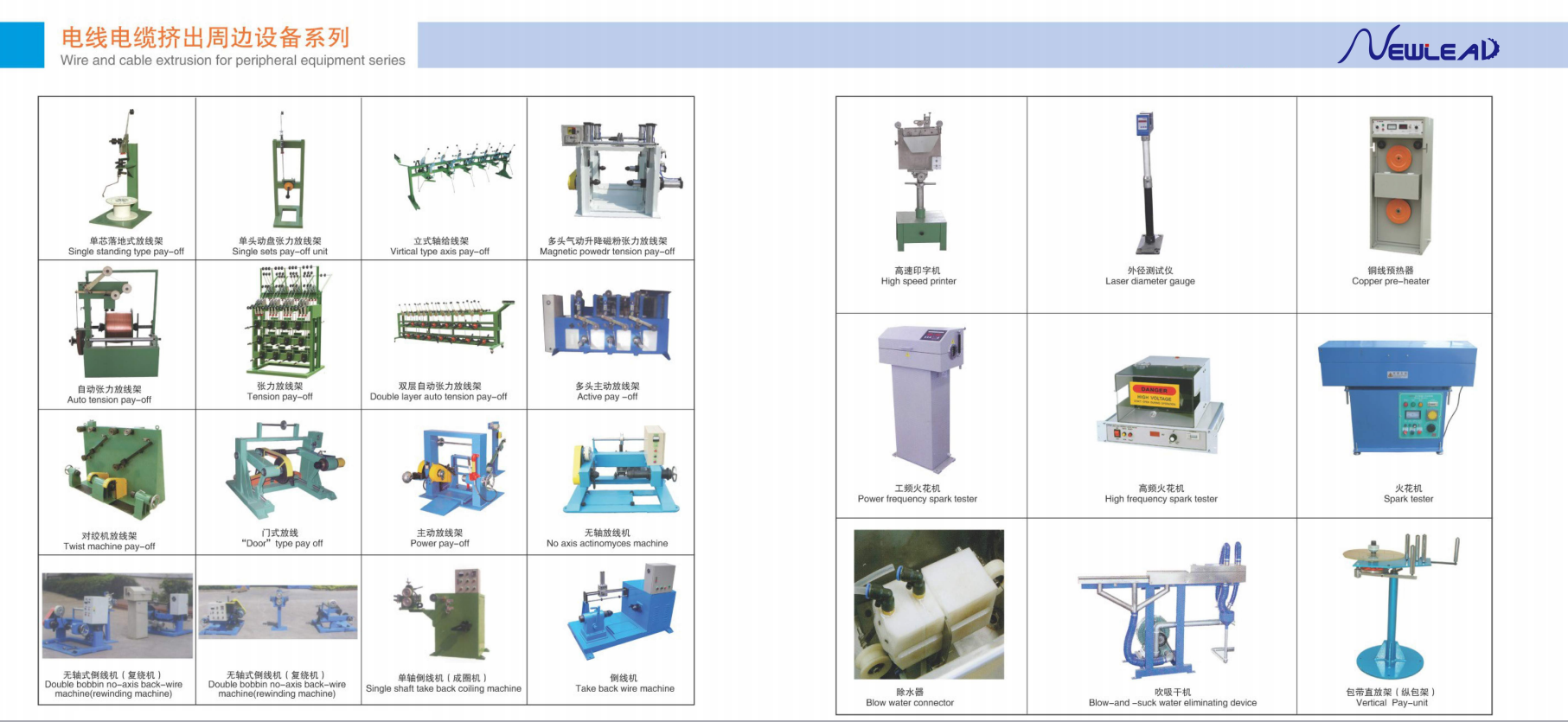

Wire and cable extrusion for peripheral equipment series Wire and cable extrusion for peripheral equipment series go to product group+

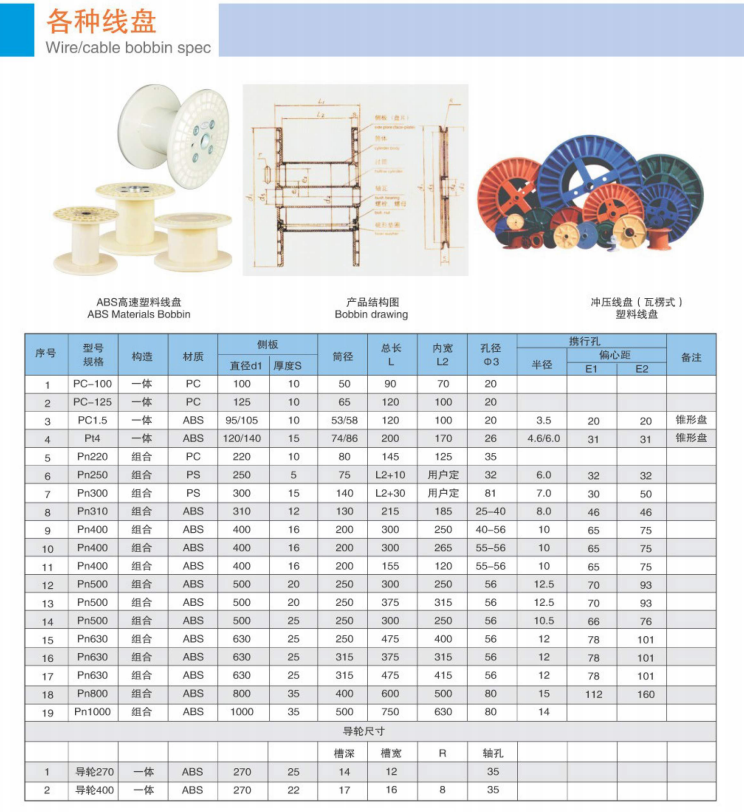

Wire/cable bobbin spec go to product group+

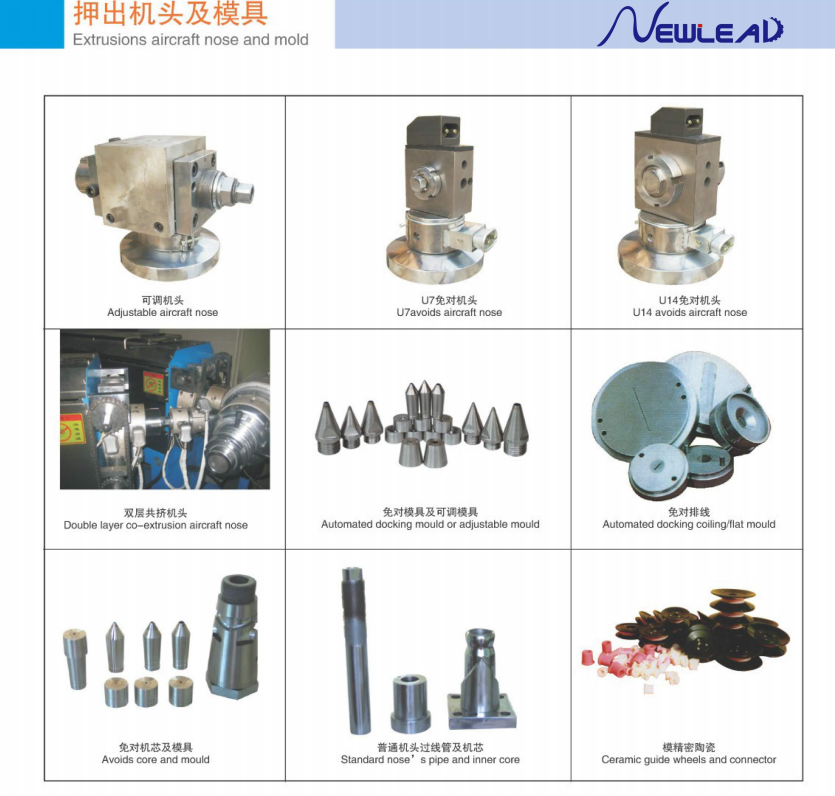

Extrusions aircraft nose and mold Extrusions aircraft nose and mold go to product group+

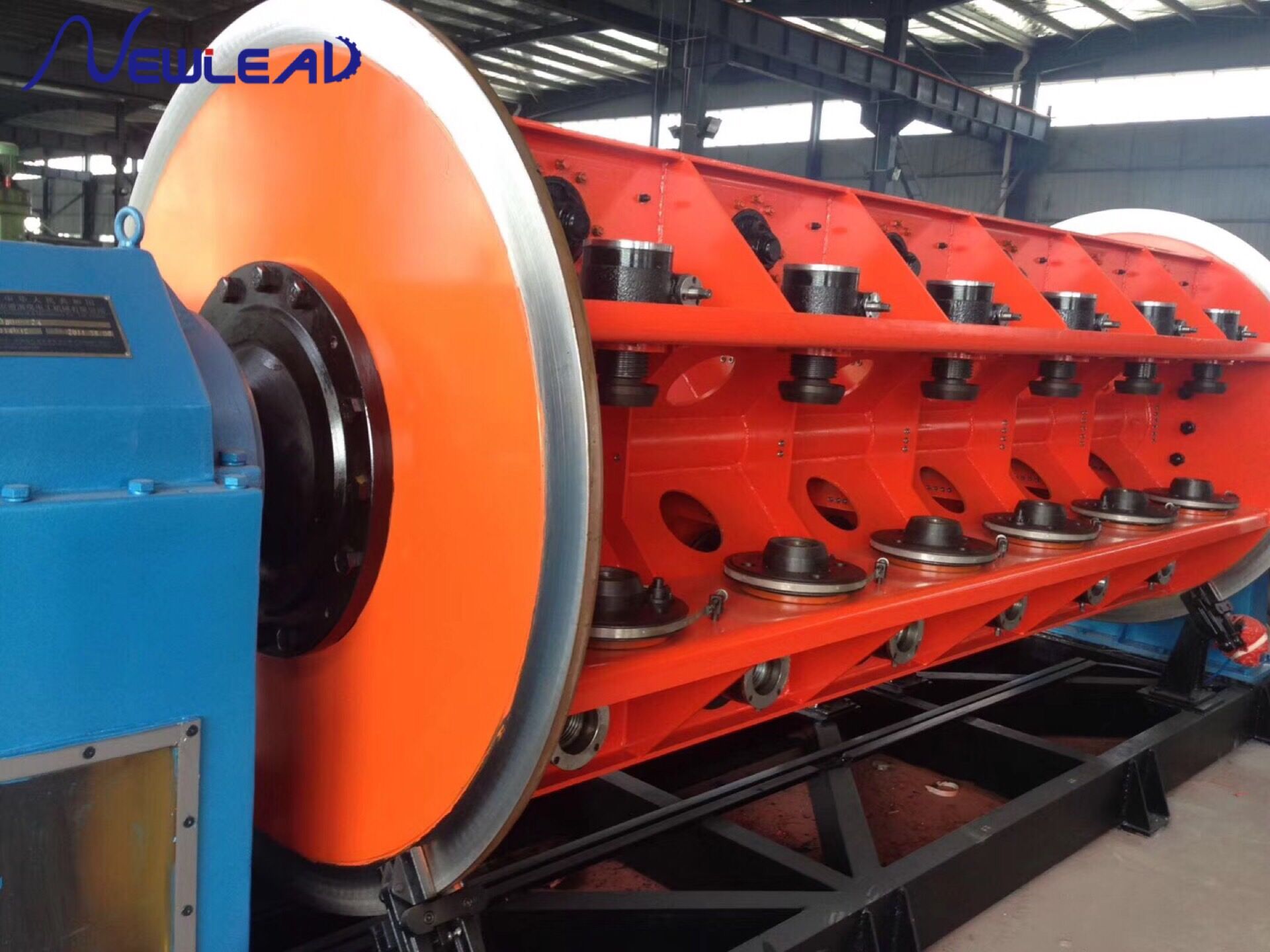

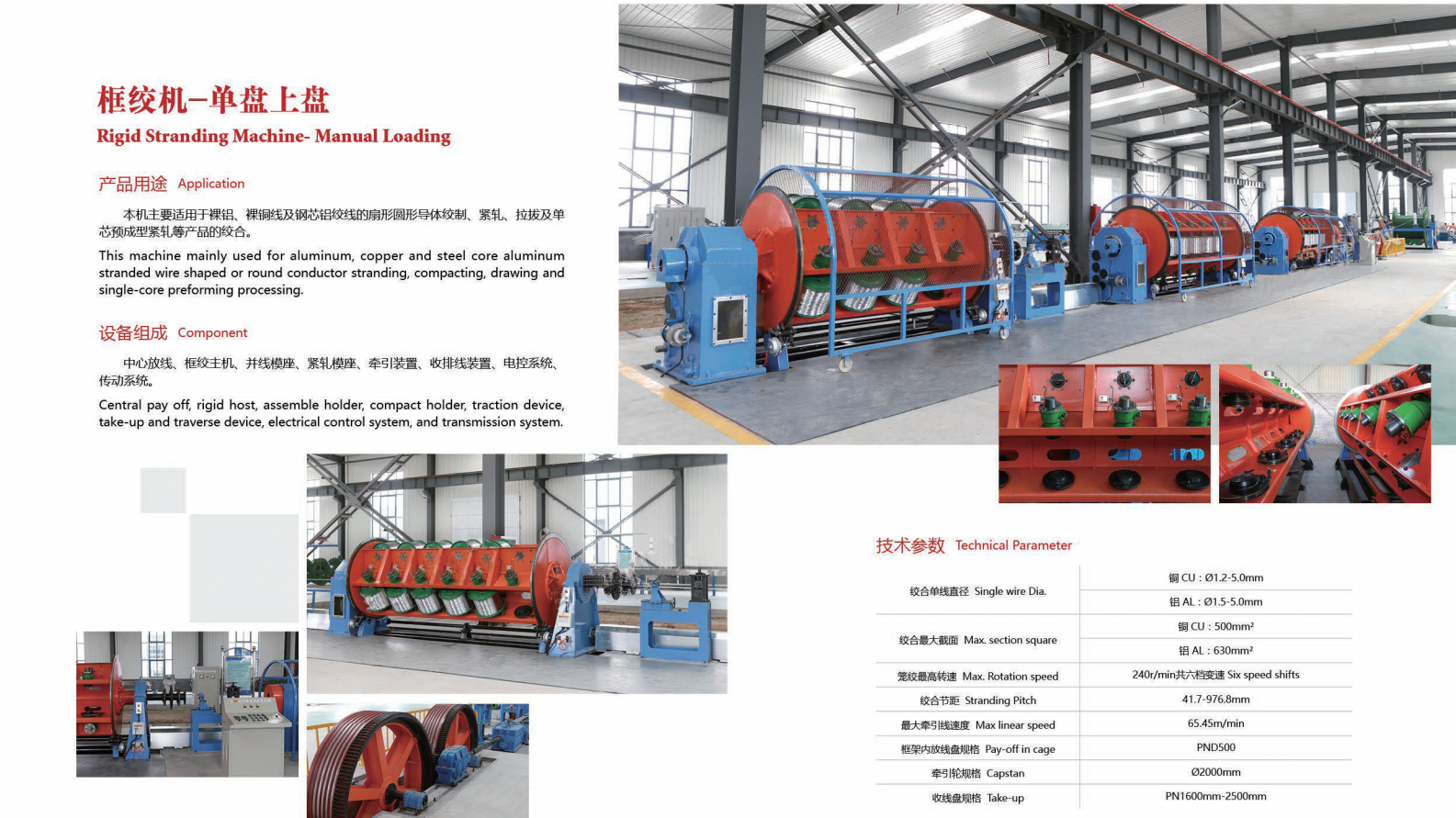

Rigid Strading Machine-Manual Loading Rigid Strading Machine-Manual Loading Application: This machine mainly used for aluminum,copper and steel core aluminum stranded wire shaped or round conductor stranding,compacting,drawing and single-core preforming processing. go to product group+

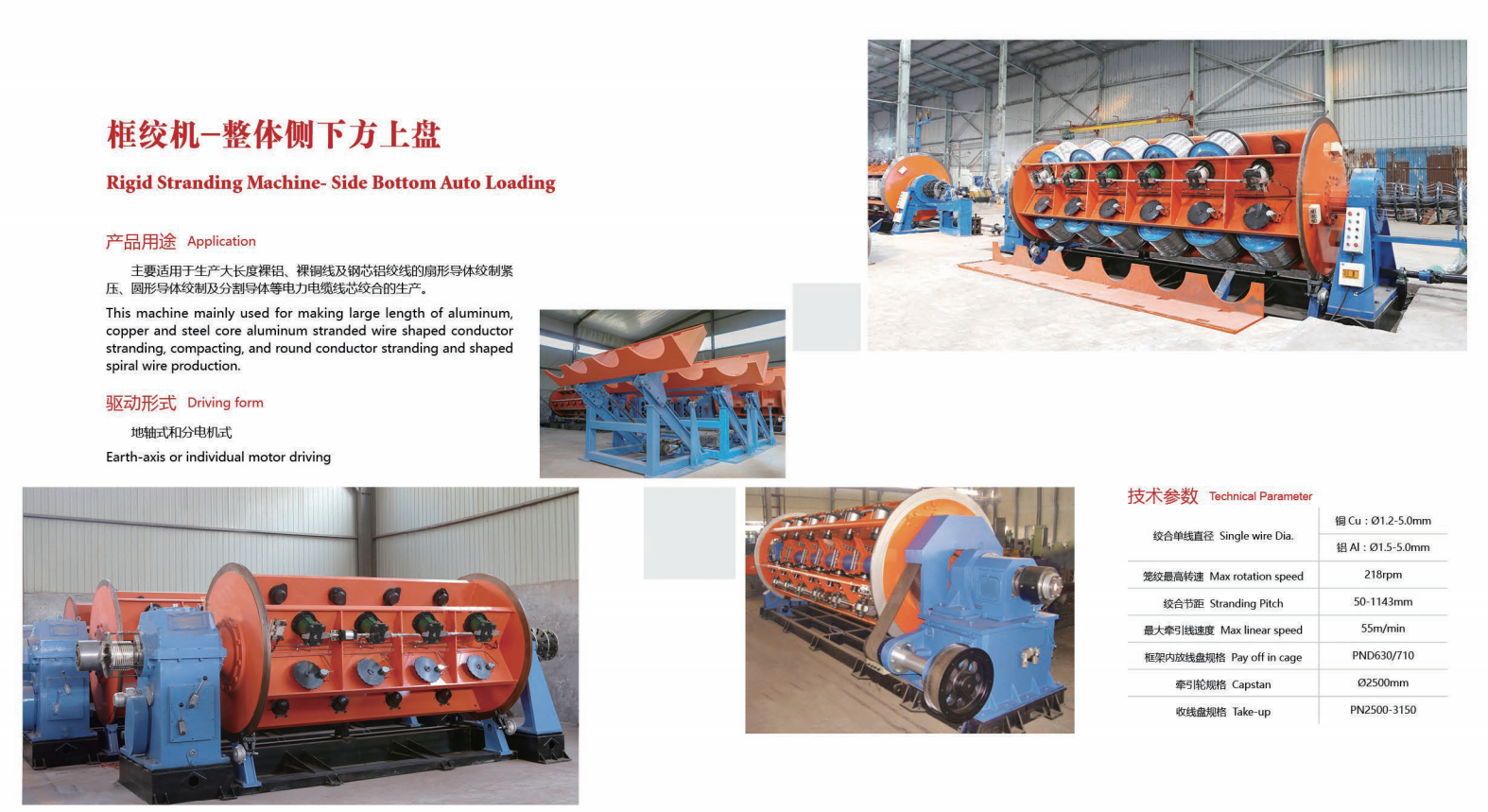

Rigid Strading Machine-Side Bottom Auto Loading Rigid Strading Machine-Side Bottom Auto Loading Application: This machine mainly used for making large length of aluminum,copper and steel core aluminum strand wire shaped conductor stranding,compacting,and round conductor stranding and shaped spiral wire production. Driving form: Earth-axis or individual motor driving go to product group+
Laying up machine Laying up machine Application: The machine is used for stranding or armouring all kinds of different cross-section core rubber cable,power cable,control cable and charging pile cable production process. go to product group+

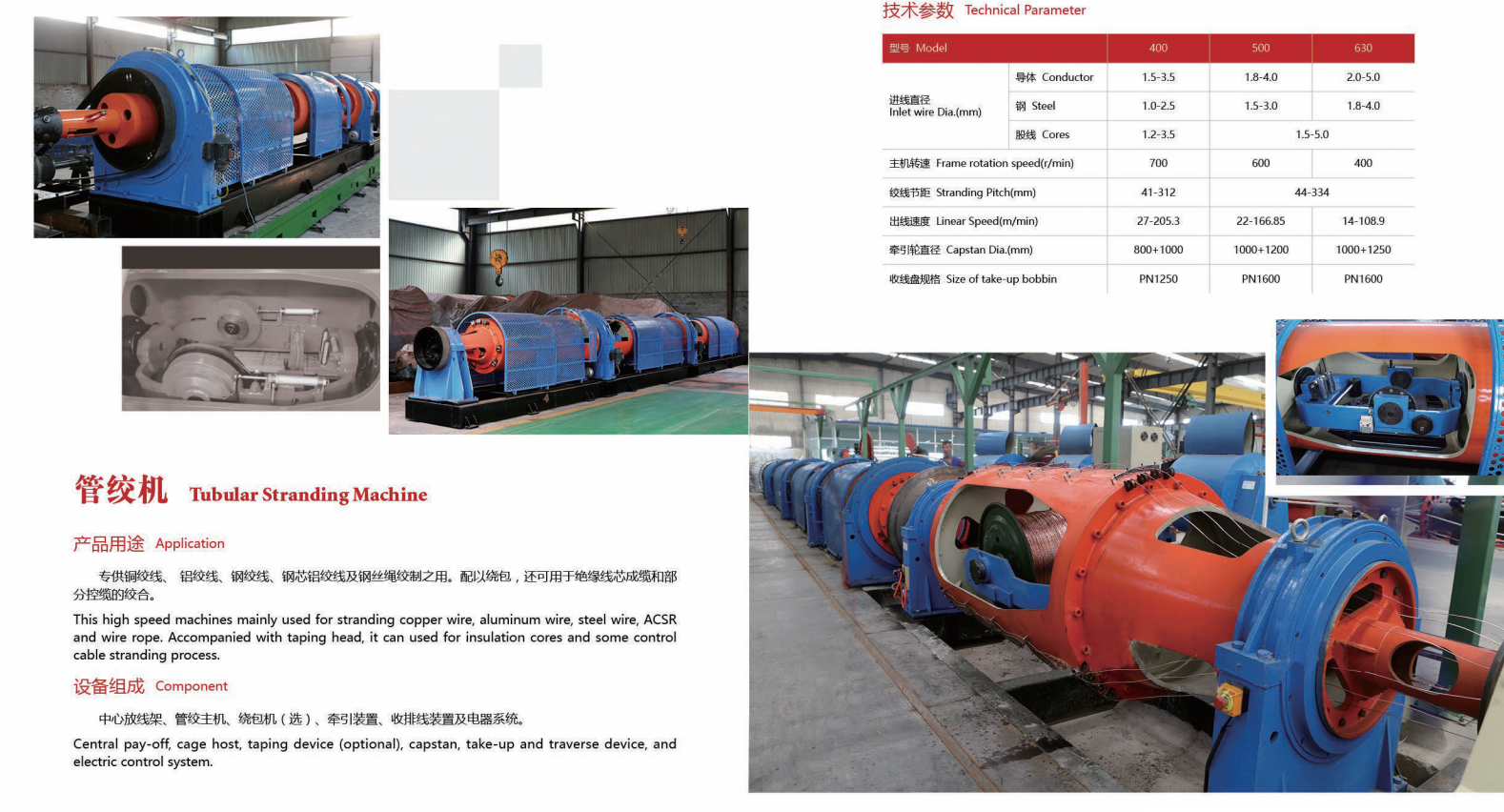

Tubular Stranding Machine Tubular Stranding Machine Application: This high speed machines mainly used for sreanding copperr wire,aluminum wire,steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process. go to product group+

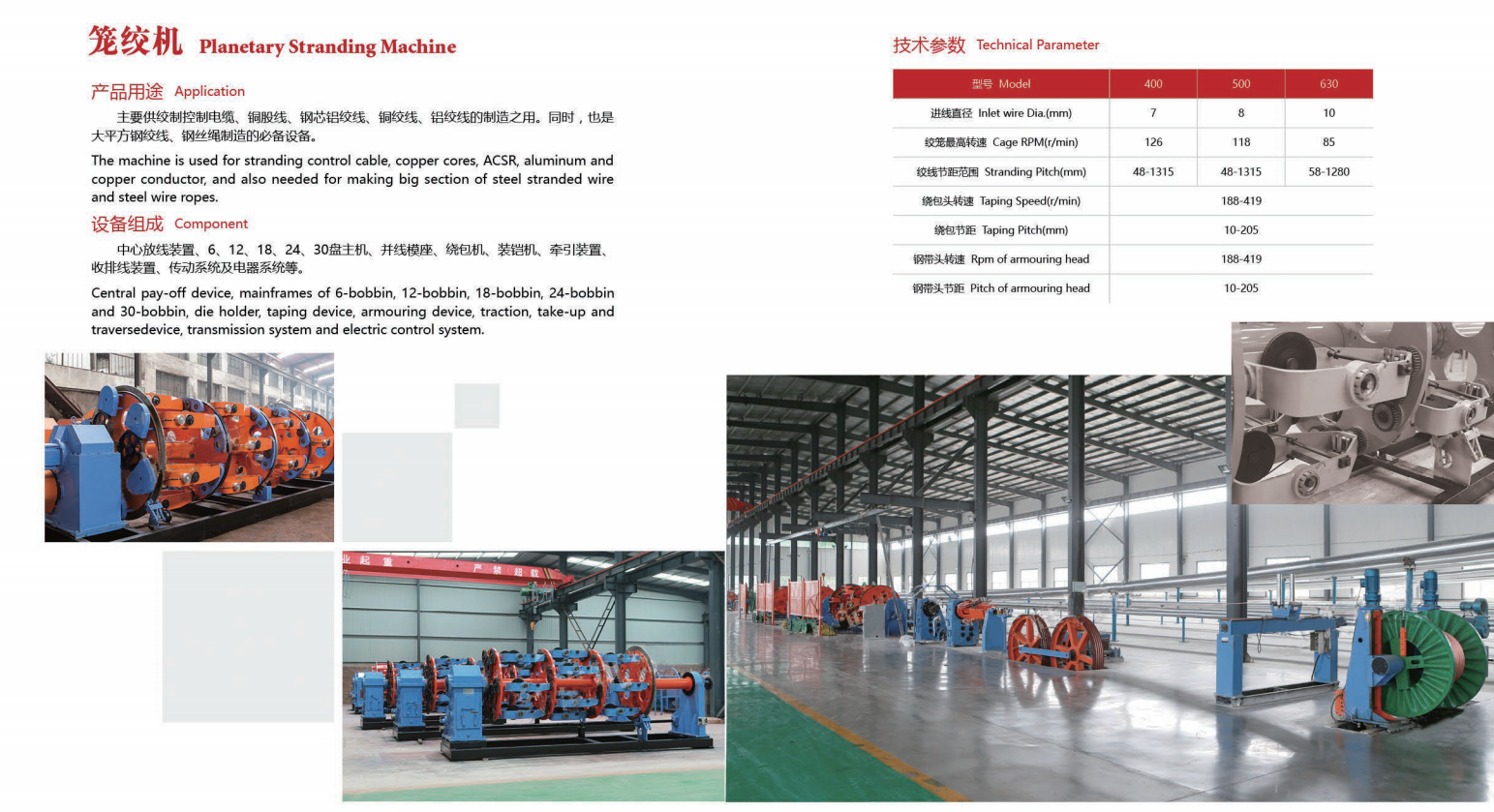

Planetary Stranding Machine Planetary Stranding Machine Application: The machine is used for stranding control cable,copper cores,ACSR,aluminum and copper conductor,and also needed for making big section of steel stranded wire and steel wire ropes. go to product group+

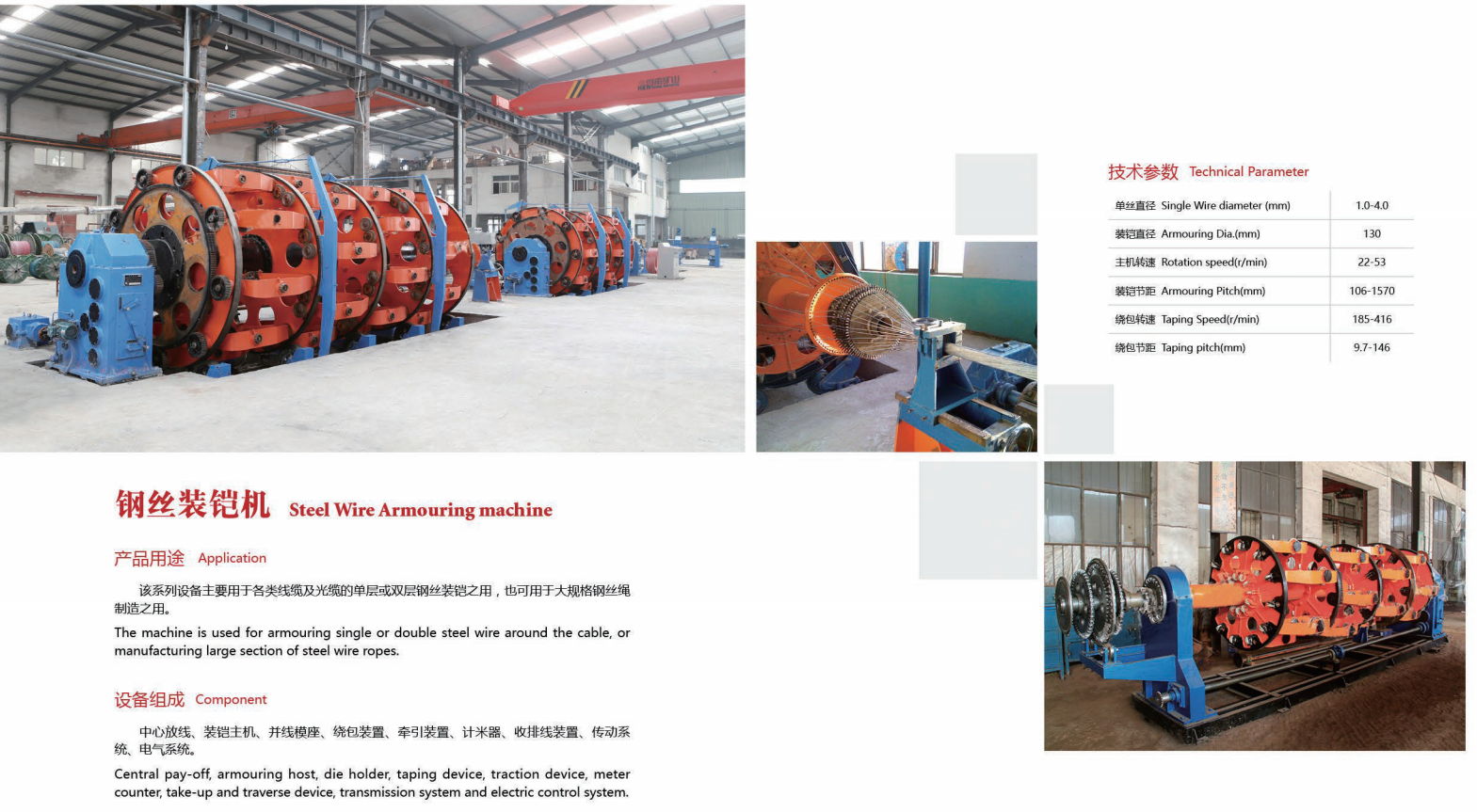

Steel Wire Armouring Machine Steel Wire Armouring Machine Application: The machine is used for armouring single or double steel wire around the cable,or manufacturing large section of steel wire ropes. go to product group+

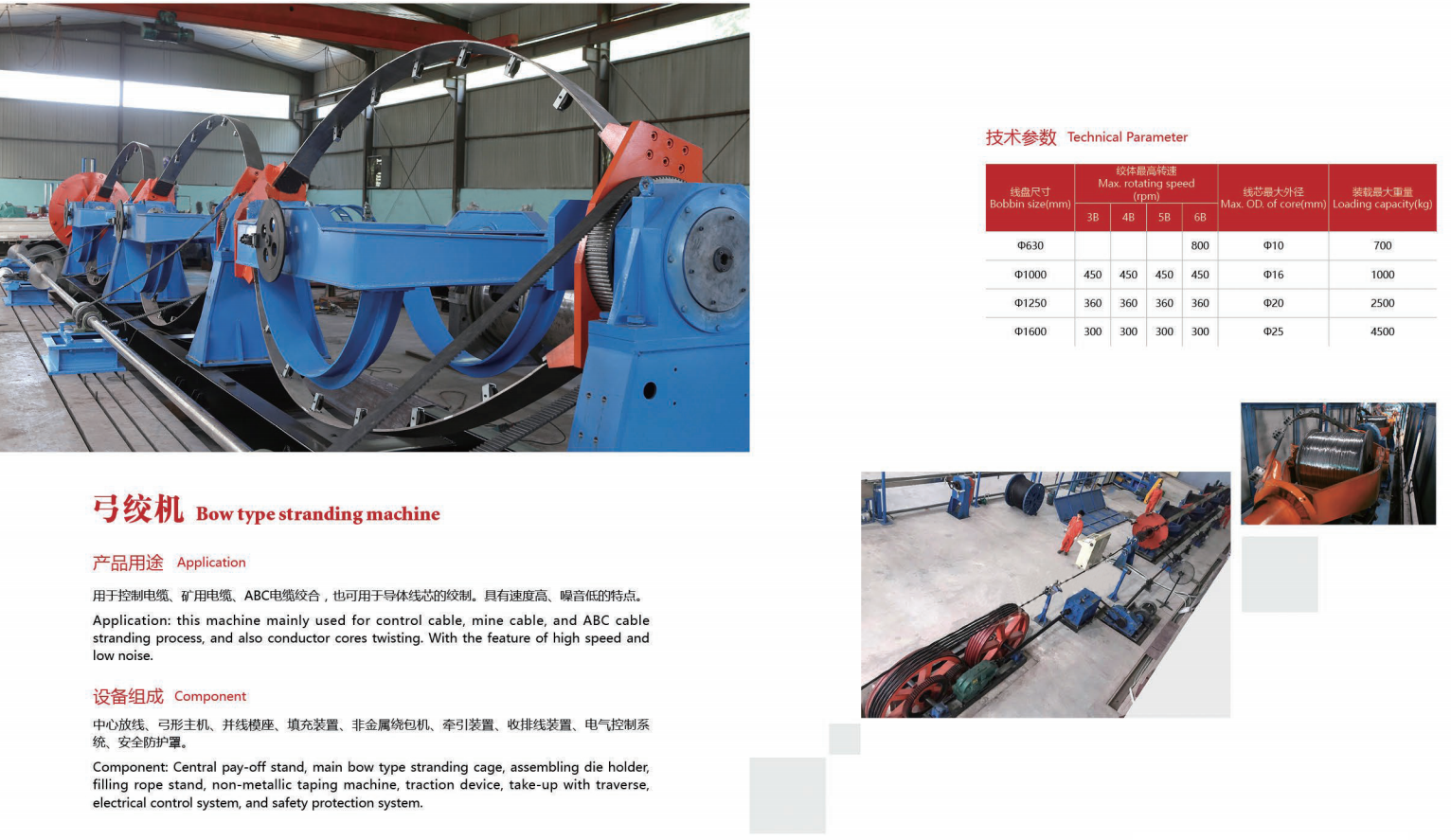

Bow type stranding machine Bow type stranding machine Application: This machine mainly used for control cable,mine cable,and ABC cable stranding process,and also conductor cores twisting.With the feature of high speed and low noise. go to product group+
Plastic Extruder Plastic Extruder The machine is used for extruding the sheath and insulation coating of the plastic cable,and it can also be used for extruding plastic product. go to product group+
Drum Twister Drum Twister Application: This machine mainly used for stranding large section or long length power cable,and can produce round or sector cable.It also can be used forarmouring steel belts or wire and copper shield process. go to product group+
Energy Dispersive X-Ray Fluorescence Spectrometer EDXRF Energy Dispersive X-Ray Fluorescence Spectrometer Chemical analysis 1.Halogen-free directive testing 2.Alloy analysis range(especially light elements) Composition analysis and grade determination of aluminum alloy Composition analysis and grade determination of copper alloy Composition analysis and grade determination of SS Composition analysis and grade determination of steel alloy,cast iron and pig iron 3.Analysis of plating thickness Plating component analysis Plating solution environmental analysis 4. Packaging Directive testing (94/62 EC) Cd+Pb+Hg+Cr6+< 100 5. Toy Directive testing standardsEN7 3 go to product group+

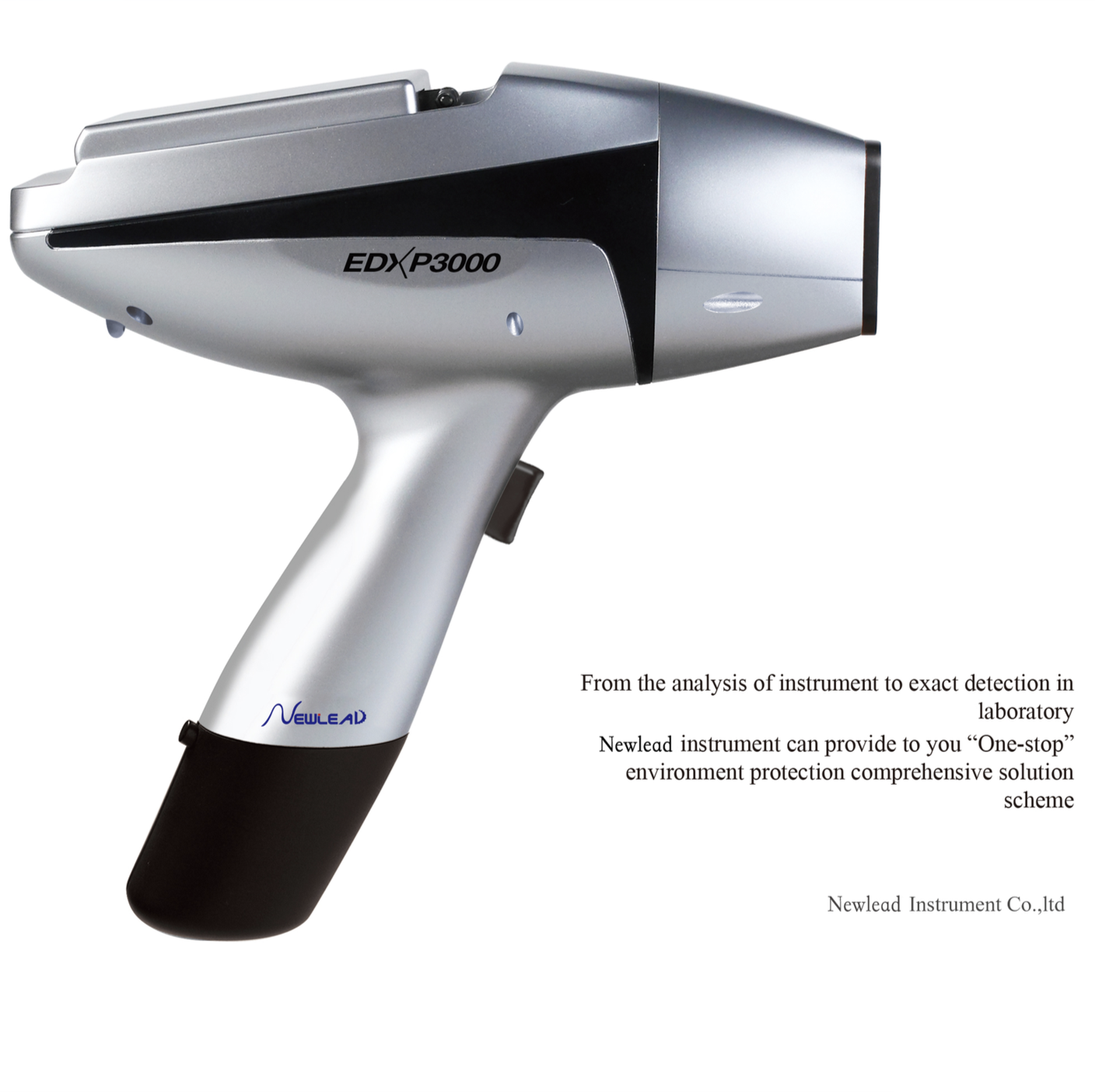

Hand held Spectrometer Energy Dispersive X-Ray Fluorescence EDXRF Energy Dispersive X-Ray Fluorescence Spectrometer Chemical analysis 1.Halogen-free directive testing 2.Alloy analysis range(especially light elements) Composition analysis and grade determination of aluminum alloy Composition analysis and grade determination of copper alloy Composition analysis and grade determination of SS Composition analysis and grade determination of steel alloy,cast iron and pig iron 3.Analysis of plating thickness Plating component analysis Plating solution environmental analysis 4. Packaging Directive testing (94/62 EC) Cd+Pb+Hg+Cr6+< 100 5. Toy Directive testing standardsEN7 3 go to product group+

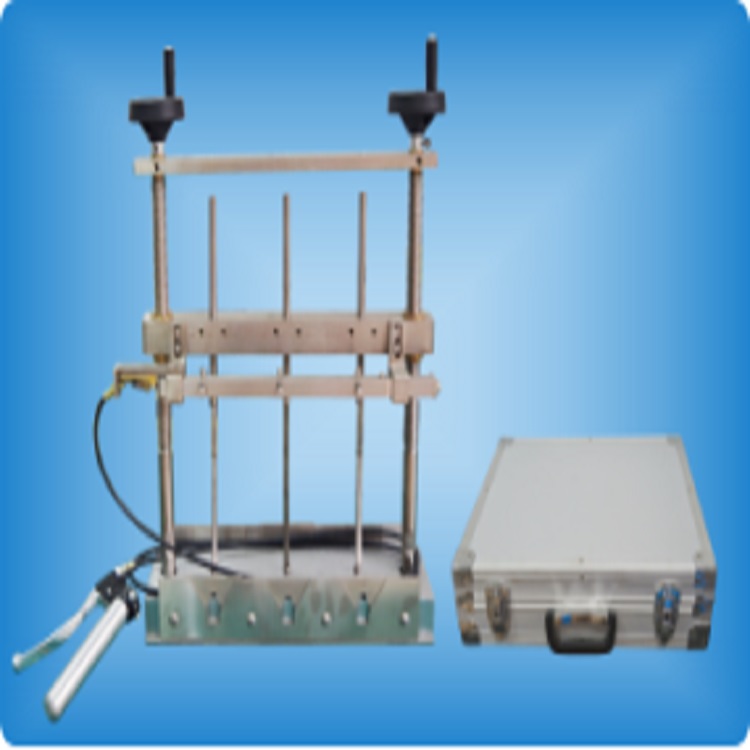

cold welding machine hydraulic cold welding machine cold welding machine hydraulic cold welding machine for copper and aluminium wire from 0.05-25mm go to product group+

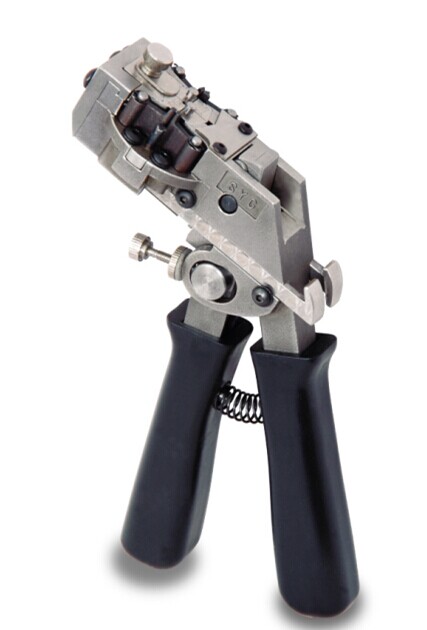

wire pointing machine of rod breakdown machine and intermediate wire drawing machine wire pointing machine of rod breakdown machine and intermediate wire drawing machine go to product group+
compact coiling machine compact winding mahine compact spooler compact coiling machine compact winding mahine compact spooler, to make wire layer winding coil , easy transport. go to product group+

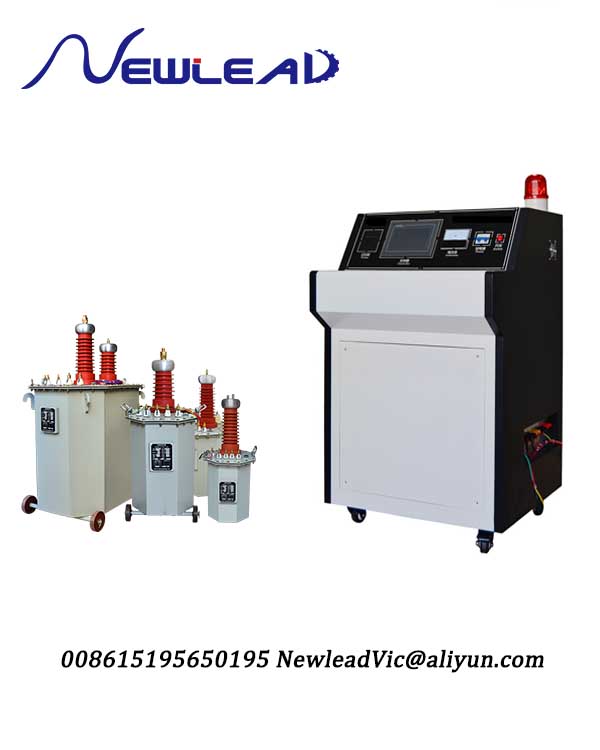

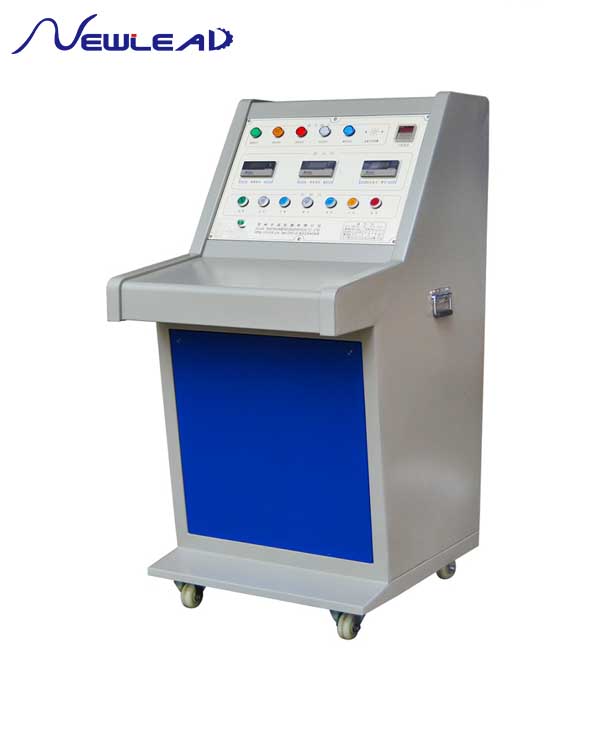

Online Pinhole detection: High-voltage Film Continuity Tester Pinhole detection: High-voltage Film Continuity Tester Performance Characteristics of Product ◆Reference executive standard for pinhole detection: High-voltage Film Continuity Test Method in GB4074.5-2008/IEC60851; ◆To detect pinhole and particles (enamel tumor) on surface of enameled wires of different wire sizes and shapes in the production line; ◆Fully computer-controlled, Windows XP Chinese operation interface, a host is capable of controlling 96 routes of enameled round wires or 48 routes of enamel flat wires; ◆Two networking modes (wire or wireless transmission) is optional based on user’s actual production environment, facilitating system upgrade and expansion; ◆Facilitate circuit detection, provide mature software design, high accuracy and easy operation; ◆High detection sensitivity, durable and no damage to test samples; ◆Particle and pinhole detection can be conducted by the same detection head; ◆Each detection head can perform such functions as pinhole counting, particle counting, pinhole acousto-optic alarm and continuous defect (bare wire) acousto-optic alarm, timely and clear reporting defect location; ◆All records of each detection head are automatically stored in the database and when detection is not stopped, can be viewed at any time and the query results be printed; ◆It supports full-automatic detection, wire change clearing and wiring length calculation can be interlocked with enameling machine without requiring additional operation. Major Technical Parameters Speed measurement mode Pulse/speed Pinhole detection voltage 350V, 500V, 750V, 1000V, 1500V, 2000V, 2500V and 3000V is optional   Test voltage error <5% Steady state short-circuit current 25±5цA Counting frequency for bare wire in contact 500±10n/min Voltage drop caused by 50MΩ defect resistance <75% Response time of defect counting circuit 5±1mS Particle differentiation level Level 25 Working environment Temperature: 0-70℃ Relative humidity ≤75% Input power AC220V±5% 50Hz Consumed power <650W go to product group+

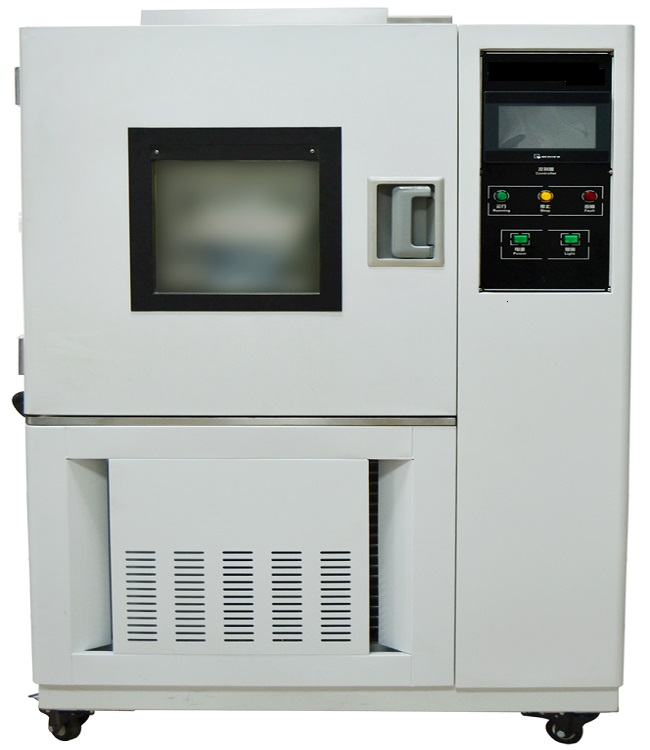

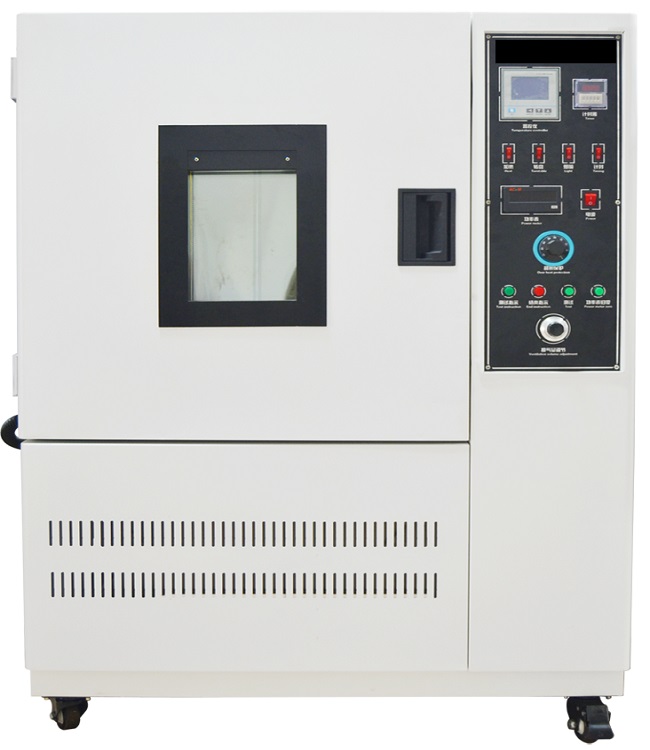

Enamelled winding wire temperature index voltage tester Performance Characteristics of Product ◆Executive standard: GB/T4074.7-2009/IEC60172: 1987 and GB/T4074.8-2009;  ◆Meet the requirements of standard GB/T6109-2008, GB/T7095-200, GB/T23310-2009 and GB/T23311-2009;  ◆Withstanding voltage test that is used to determine the temperature index of enameled round wires with nominal conductor diameter 1.500mm and below and of enameled flat wires of 3.000mm (narrow side)×8.000mm (wide side); ◆Withstanding voltage test is conducted for a group of samples (11 samples for each) after repeated heat aging until all samples fail in withstanding voltage test; ◆Voltage ranging 250～5000V can be set at any value according to wire size of test samples; ◆Conduct automatic detection and adjustment for set voltage value; ◆Test time and withstand voltage time interval for each test sample should be 1s;  ◆Clamp a group of test samples (11 for each) once, available to complete withstand voltage test for any of sample one by one or individually, all operations would be automatically completed; ◆Color touch screen operation and display of test process and result; ◆Test data can be automatic stored, inquired and also copied via USB port; ◆Test results can be printed by miniprinter; ◆Equipped with test rack, test sample forming die for flat round wires and with round wire twist device and weight; ◆Test box door is provided with safety interlocking device, compliant with relevant regulations on high voltage testing equipment. Major Technical Parameters Rated power of transformer ≥500VA Scope of test voltage 250~5000V Scope of test voltage indication error ＜±2% Test voltage drop ＜2% Number of samples 11 Sample test time 1S Breakdown alarm current ≥5mA Input power AC220V±5% 50Hz Consumed power ≤700W Working environment Temperature: 0-40℃; Relative humidity: ≤85% Overall dimensions L×W× H 550×650×1700mm Weight 80kg go to product group+

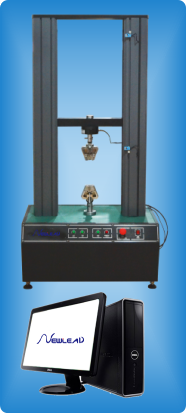

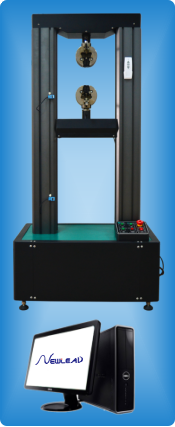

Intelligent tensile strength tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008 ◆Applicable to metal wires with pulling strength ≤3000N; ◆Test process would be automatically completed and, after user inputting wire size of samples to be measured, the instrument would automatically calculate tensile strength; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test results of elongation, pulling strength and tensile strength; ◆Two test modes are available: Micro-fine wire and medium & large wire; ◆50N-3000N sensors can be switched over arbitrarily; ◆Automatic outrange protection for instrument; ◆The application of software facilitates instrument’s on-line operation and control as well as data analysis and comparison, and allows for display of stress-strain curve chart of 15 samples in different colors; ◆Automatically calculate the average of each test result of less than fifteen samples; ◆Number and save test results and corresponding curves automatically in chronological order; ◆Report of test results can be generated and printed out; ◆Instrument is provided with sensor self-calibration function and equipped with standard weight for calibration; ◆Servo motor and high precision ball screw is used; ◆Clamps are designed on the basis of characteristics of wires and can be conveniently loaded and unloaded with samples; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Start distance between two clamps  (200mm or 250mm) ±0.5mm two modes adjustable Displacement distance of movable clamp ≥80﹪(≥160mm or 200mm) Stretching speed of sample 50~400mm/min adjustable Error between displayed and actual elongation value ＜1%; Dynamometry accuracy Within ±0.2% of indicating value Test force resolution 0.10N Input power AC220V±10%  50Hz Consumed power ≤400W Overall dimensions L×W×H  600×400×1050mm Weight 75kg   ●Standard configuration: ◆Microwire: One 50N and 500N sensor for each; One 20N standard weight; One SC-5E software CD; ◆Medium and large wires: One 500N and 3000N sensor for each; One SC-5E software CD; ●Sensors available: 100N, 200N, 1000N and 2000N ●Optional Model: SC-5D elongation and tensile strength tester (desktop) go to product group+
Intelligent elongation tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008 ◆Used to test elongation (ductility) of copper wires covered with φ0.018-φ3.000mm enamel, silk or other insulation materials and other metal wires with tensile strength ≤2000N; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test result; ◆Clamps are designed according to characteristics of various wires to prevent samples from breaking at clamp jaws, easy to load samples and, after samples are compressed, enamel can be automatically broken; ◆While sample is broken, movable clamp would automatically stop moving, with error between displayed and actual elongation value less than 1%; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire.  ●Optional Model: SC-5 Elongation Tester Major Technical Parameters Start distance between two clamps 200±0.5mm Stretching speed of sample 300±60mm/min Maximum elongation testing range ( displacement distance of movable clamp) ≥80% (≥160mm) Display of elongation LCD display, display accuracy of 0.1% Input power AC220V±10% 50Hz Consumed power ≤200W Overall dimensions L×W×H  640×420×410mm Weight 45kg Note: non-standard products can be ordered according to requirement. go to product group+

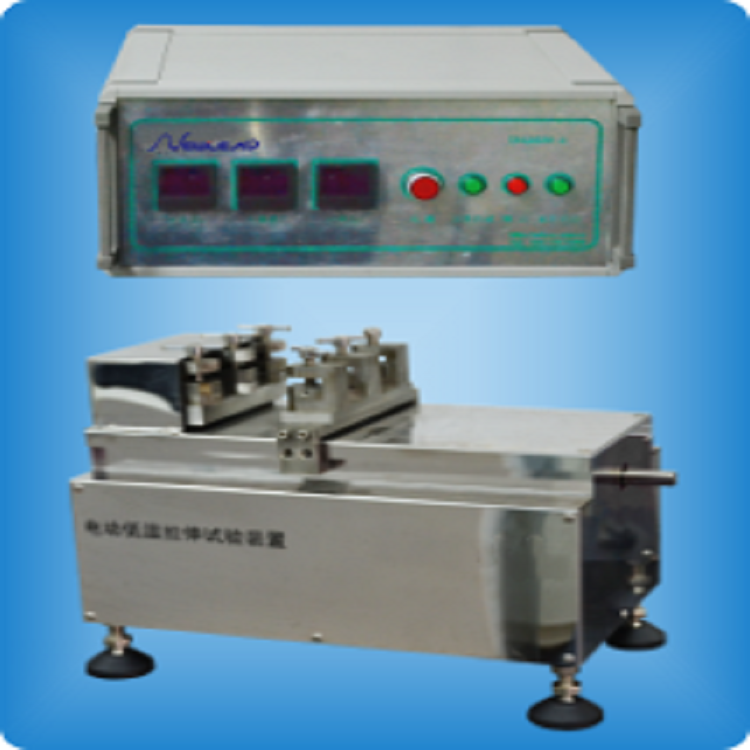

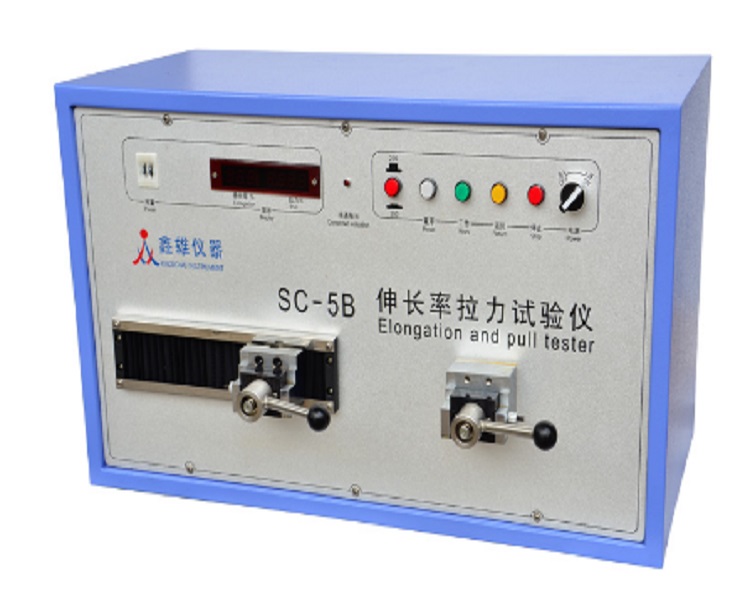

Elongation tensile tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008 ◆Used to test elongation (ductility) of copper wires covered with φ0.100-φ3.000mm enamel, silk or other insulation materials and other metal wires with tensile strength ≤2000N; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Preset elongation of samples with two-digit toggle switch and, when the preset value is reached during test, motor and counter would automatically stop action and display results; ◆The instrument is capable of measuring elongation while also the tensile force and holding the maximum tensile force value during stretching; ◆Clamps are designed according to characteristics of various wires to prevent samples from breaking at clamp jaws, easy to load samples and, after samples are compressed, enamel can be automatically broken; ◆While sample is broken, movable clamp would automatically stop moving, with error between displayed and actual elongation value less than 1%; ●Optional Model: ◆SC-5C elongation and tension tester (copper-clad aluminum conductor) ◆SL-A elongation and tension tester (microwire, maximum load 5kg) Major Technical Parameters Start distance between two clamps (200mm or 250mm) ±0.5mm two modes adjustable Stretching speed of sample 300±60mm/min Maximum elongation testing range ( displacement distance of movable clamp) ≥80﹪(≥160mm) Display of elongation Three-digit LED automatically displays test results with accuracy of 0.1% Display of tension value Four-digit LED automatically displays test results with accuracy of 0.2% Input power AC220V±10%  50Hz Consumed power ≤200W Overall dimensions L×W×H  640×400×420mm Weight 45kg   ●Optional range of sensor: ◆Microwire:  20N, 50N, 100N, 200N and 500N ◆Medium and large wires: 1000N, 2000N, 3500N and 5000N go to product group+

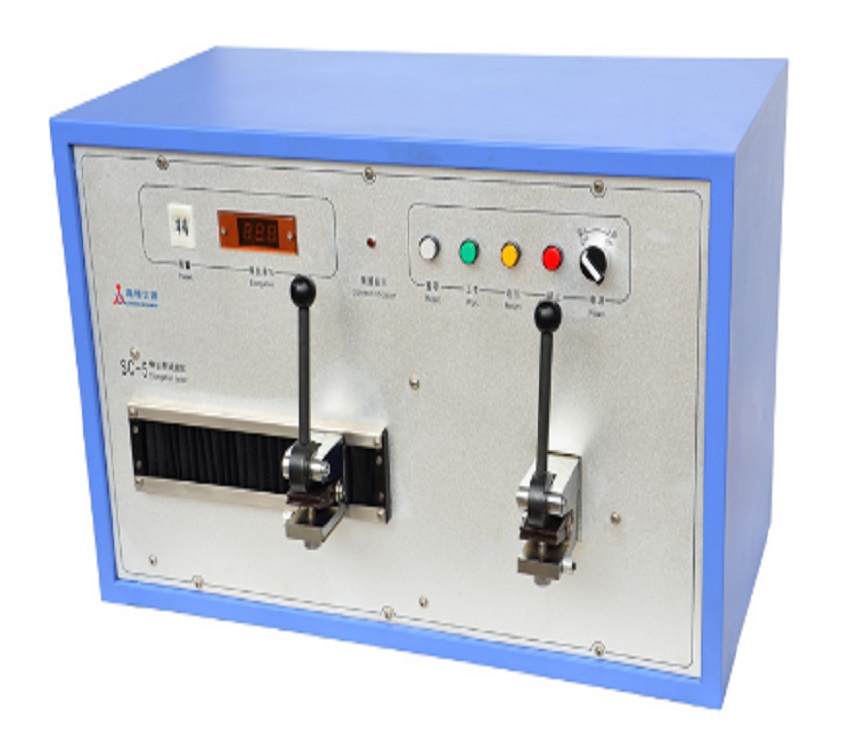

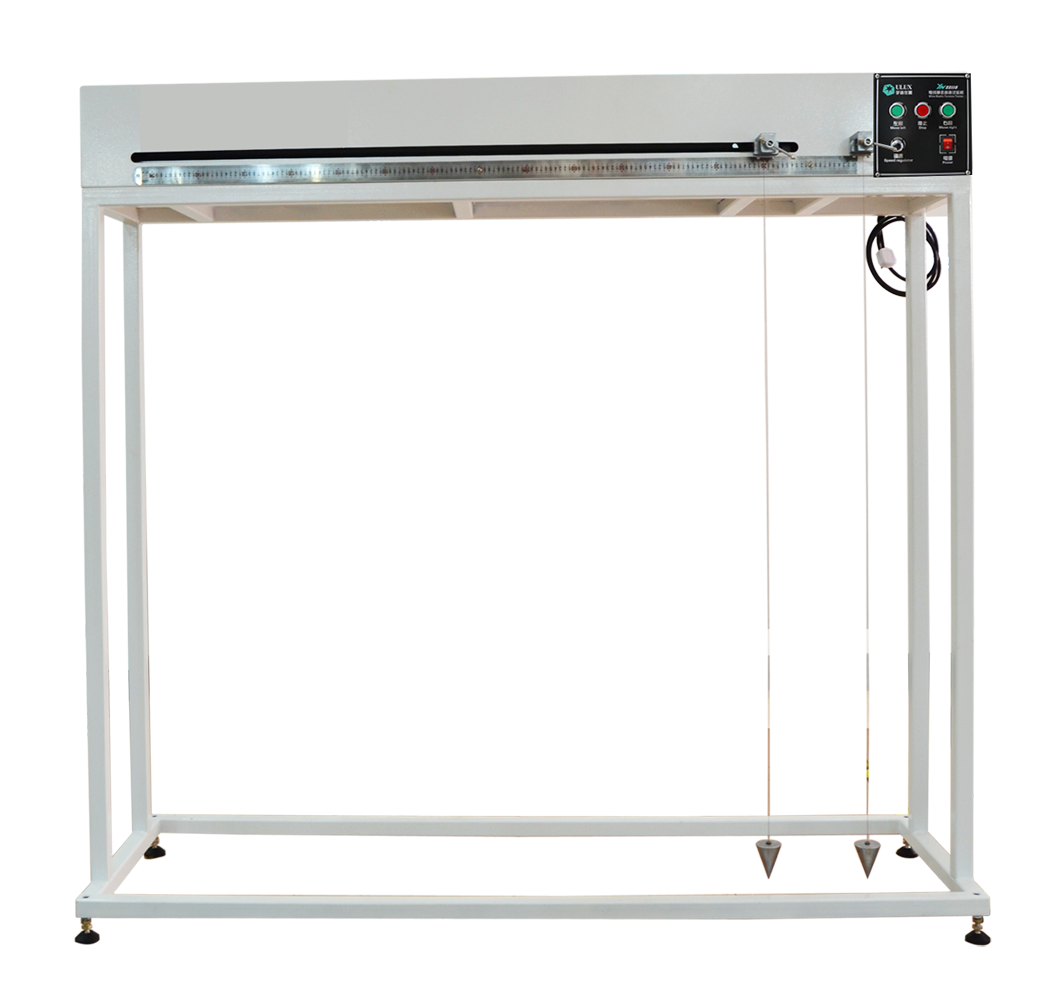

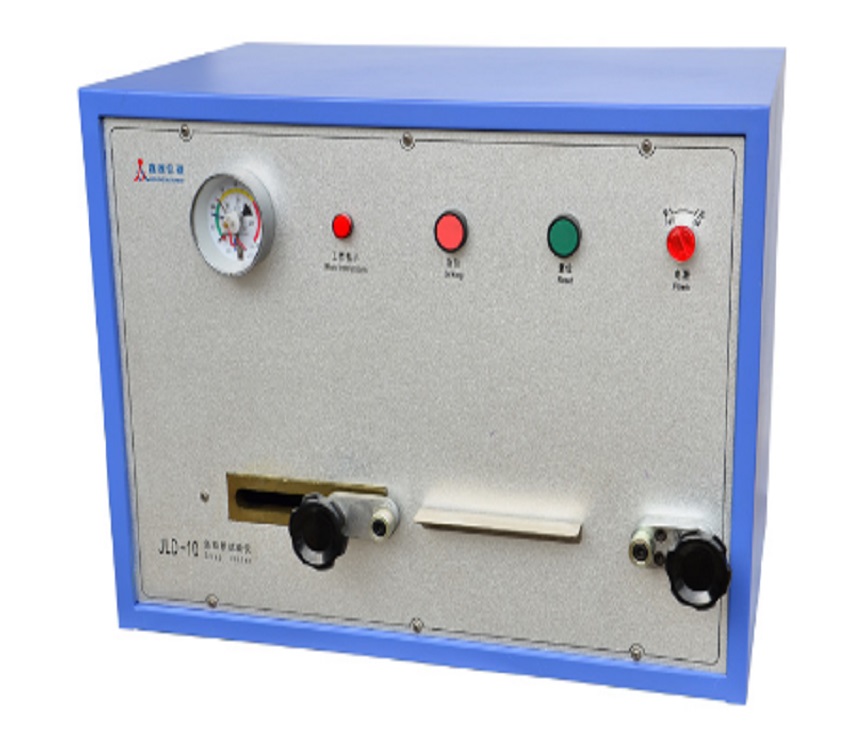

Snap tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.5-2008  ◆Used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below; ◆Built-in small ultra-quiet air compressor would provide power supply and automatic constant pressure; ◆Samples, while being jerked, would not move and slip out; Major Technical Parameters Jerking speed ≥3m/s Start distance between two clamps 250±1mm Maximum moving distance of movable clamp 125mm Working pressure 0.4~0.8MPa Input power AC220V±10%  50Hz Consumed power ＜150W Overall dimensions L×W×H  650×405×425mm Weight 55kg ●Optional Model: JLS-10 Stretching Tester   (Subject to NEMA and GB/T4074) go to product group+

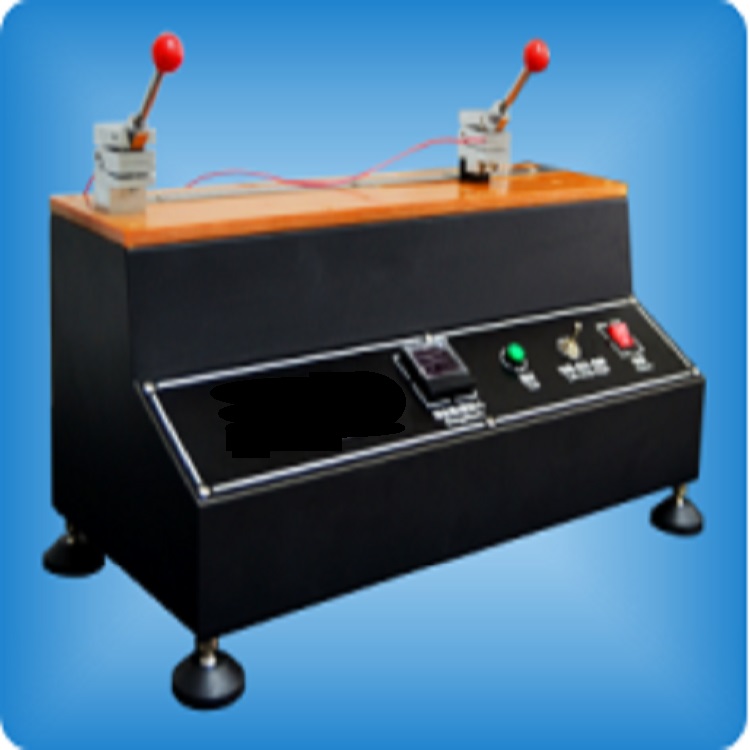

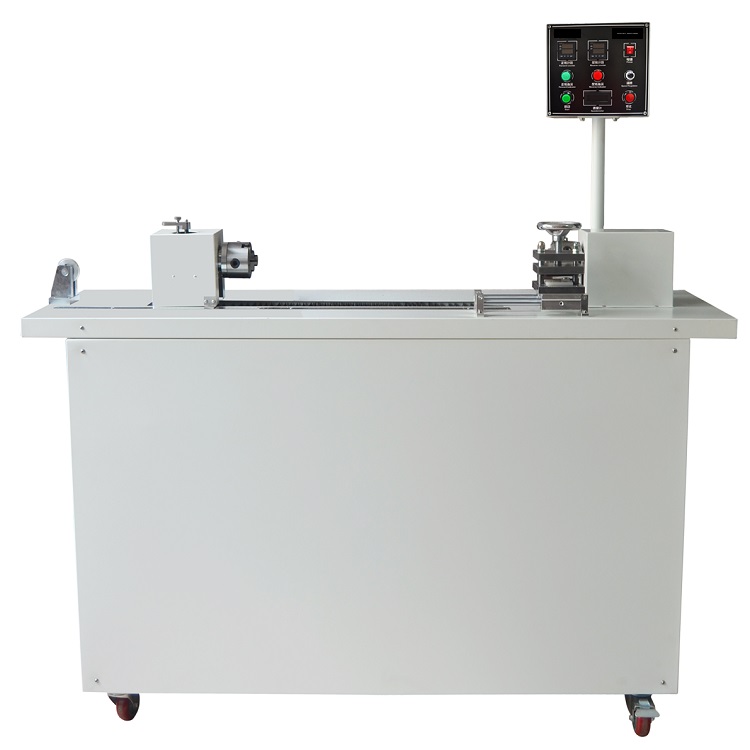

Enameled wire stripping twist tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.6-2008 ◆Used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below; ◆High-end SCM control is used; ◆Set arbitrarily the number of twist; ◆LED would automatically display the number of twists; ◆Twist counter performs accurate and reliable counting; ◆High-strength steel scraper would complete sample scarping at once, easy to operate and use; Major Technical Parameters Twist speed 80±5r/min Space between two clamps(Test length) 500±2mm Preset twist counting Ranging 1~999r Input power AC220V±10%  50Hz Consumed power ＜150W Overall dimensions L×W×H  1200×220×350mm Weight 35kg ●Preparation of weights:  5N×1, 15N×2, 20N×3 and hook + hook seat 5N ● Optional accessories: 55N weight, 100N weight, hook + hook seat (10N)  go to product group+

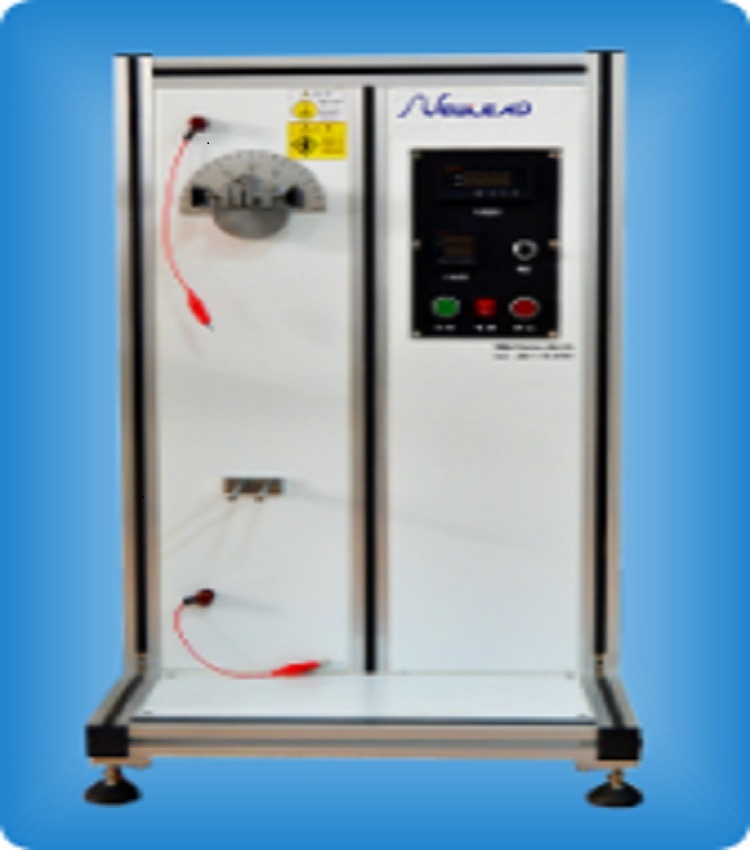

Automatic rebound angle tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.4-2008 ◆Used to measure the rebound resistance of enameled round wires with nominal conductor diameter of between 0.080mm and 1.600mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Automatic stop after winding 5 circles; ◆Sensor is unnecessary to be adjusted for samples of different specifications; ◆Coils slowly loosen during springback, free from abrupt springback or bounce. ◆LED automatically records and displays test results; ◆Error between displayed value and indicating value on dial is no more than ±1°; ◆Simple operation, high sensitivity and excellent repeatability Major Technical Parameters Winding and rebound speed of sample 7±0.5 r /min Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H  560×314×360mm Weight 25kg ●Optional Model: HTJ-16A intelligent springback angle tester (Subject to standard NEMA and GB/T4074) ●Preparation of weight:                                Unit: N Load 0.25 0.50 1.0 2.0 4.0 8.0 12.0 15.0 Error ± 0.02 0.05 0.1 0.2 0.4 0.8 1.0 1.0 ●Preparation of test bar:                                 Unit: mm Diameter of test bar 5 7 10 12.5 19 25 37.5 50 Error ± 0.16 0.18 0.18 0.22 0.26 0.26 0.32 0.32 go to product group+

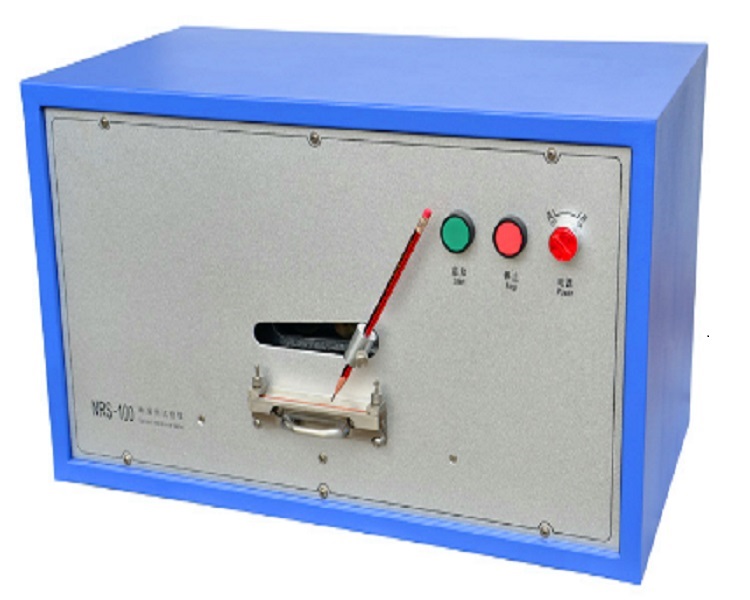

Intelligent one-way scraping paint tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008 ◆Used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Automatically complete the whole test process and work out the average of scraping forces obtained in three times;  ◆Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample; ◆As driven by precision linear rail, scraper is free from shake during movement; ◆When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample＜3mm; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test result; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Displacement distance of painting scraper ＞100mm Movement speed of painting scraper 400±40mm/min Diameter of scraper 0.23±0.01mm Test voltage DC6.5±0.5V Short-circuit current 20±0.5mA Scraping force error ＜±5% Input power AC220V±10%  50Hz Consumed power ＜150W Overall dimensions L×W×H 640×350×355mm Weight 45kg ●Preparation of weights:  5N×3、2N×2、1N×1、0.5N×1、0.2N×2、0.1N×1 go to product group+

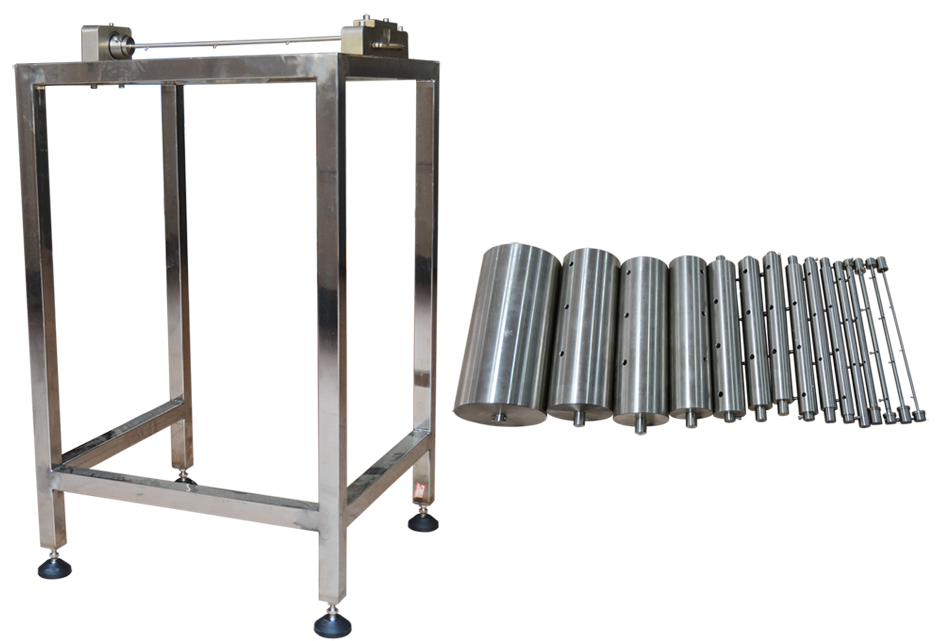

Enamelled round wire winding tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Instruments necessary for measuring the flexibility, adhesiveness, thermal shock and other performances of the film of enameled round wire with nominal conductor diameter below 1.600mm; ◆Used in combination with JRB-16 enameled round wire winding test bar; ◆Set any number of winding turns ◆LED would automatically display and record the number of winding turns. ◆The application of high-end SCM control allows for simple operation, steady and stable performance. Major Technical Parameters   Winding speed 100±10r/min Number of winding turns 1~999r optional   Input power AC220V±10%  50Hz Consumed power ≤100W Overall dimensions L×W×H 640×345×350mm Weight 40kg   ●Preparation of weights: Mini-weight hook 0.1N×1, mini-weight 0.1N×2, 0.2N×1 and 0.5N×1 Large-weight hook 1N×1, large-weight 1N×2, 2N×1 and 5N×3 go to product group+

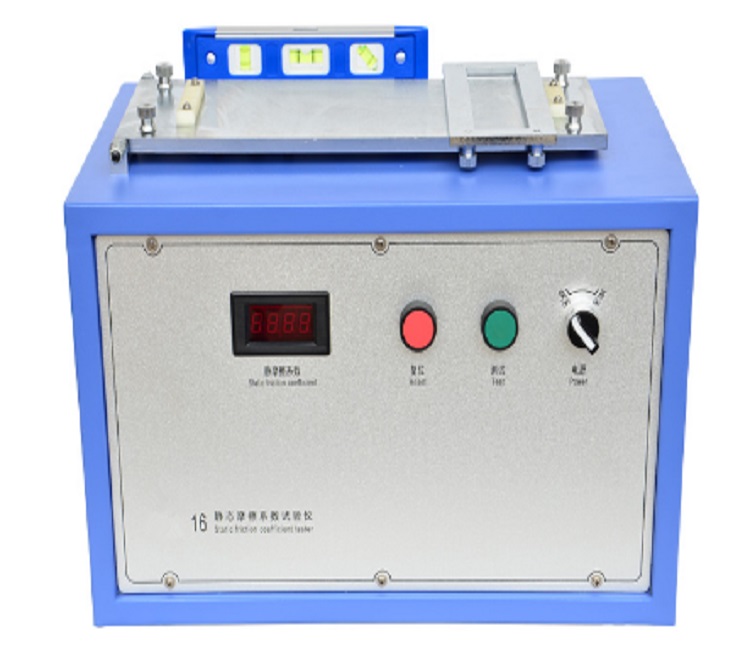

Static friction coefficient tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.16-2008 ◆Used to detect static friction coefficient (μs) of enameled round wires with nominal conductor diameter ranging from 0.050mm to 1.600mm; ◆The application of high-end SCM control allows for high sensitivity and excellent repeatability. ◆Four-digit LED would automatically display static friction coefficient (μs) of sample; Major Technical Parameters Speed of sliding plate at slant angle 1±0.2°/s Inclination angle of sliding plate 0-30° Tanα indication error α＜0.005 Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H  490×280×290mm Weight 28kg go to product group+

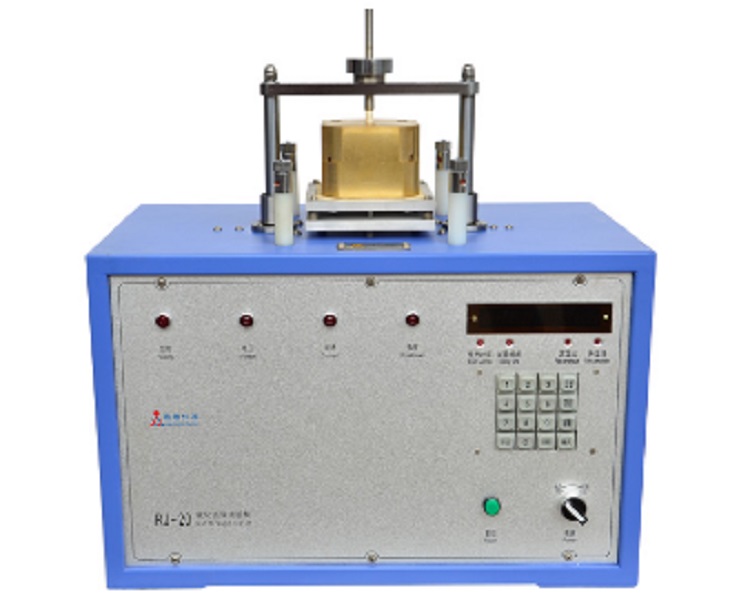

Thermal bonding test device ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Comply with the requirement of GB/T6109-2008;  ◆Used to detect the heat bonding and solvent adhesion property of enameled round wires with nominal conductor diameter ranging 0.050mm to 2.000mm; ◆The device reflects the ability of coil winding to be bonded under heat and solvent action. ●Standard configuration: ◆Round bar: 15 types, 3 for each: φ1, φ2, φ3, φ4, φ5, φ6, φ7, φ8, φ9, φ10, φ11, φ12, φ14, φ16 and φ18 ◆Round bar seat: 15 types, 3 for each: φ1, φ2, φ3, φ4, φ5, φ6, φ7, φ8, φ9, φ10, φ11, φ12, φ14, φ16 and φ18 ◆Load weights applied to coil while preparing and bonding spiral coil: 0.05N,0.15N,0.25N,0.35N,0.5N,0.75N,1.25N,1.75N,2N,2.5N,3.25N,4N,4.5N,5.5N,6.5N,8N,10N, 17 types, 3 for each; ◆Load weights applied under high-temperature binding force: 0.04N, 0.05N, 0.06N, 0.08N, 0.19N, 0.25N, 0.55N, 0.8N, 1.2N, 1.7N, 2.1N, 2.6N, 3.2N, 3.8N, 4.4N, 4.9N, 6.4N, 7.9N, 18 types, 3 for each; ◆ Specific load weights for maximum opening while winding spiral coil: 0.12N, 0.3N, 2N, 5N, 12N and 30N, 6 types, one for each; Note: User may request for selection or customization according to needs. go to product group+

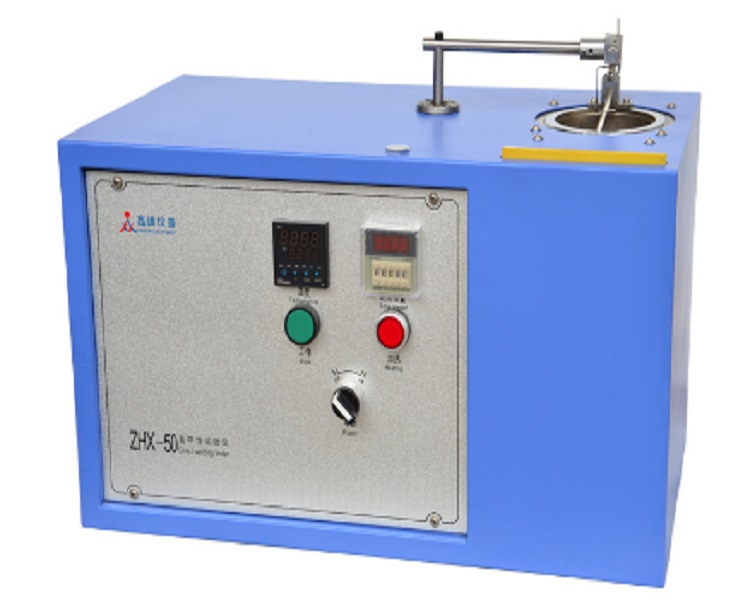

Direct welding tester Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.14-2008 ◆Used to detect the self-solderability of enameled round wires and wire harness; ◆Set variable temperature range and automatically maintain constant temperature; ◆Under mechanical driven, samples would be withdrawn by the action of automatic insertion and lateral movement, free from vibration and noise; Major Technical Parameters Capacity of solder cylinder ＞500ml Solder temperature Ranging RT+20~500℃ Solder temperature indication error ＜3℃ Test time for samples inserting into solder tin Ranging 0.01s~99h 99min Solder tin heating power 1000W Input power AC220V±10%  50Hz Overall dimensions L×W×H  530×300×350mm Weight 30kg go to product group+

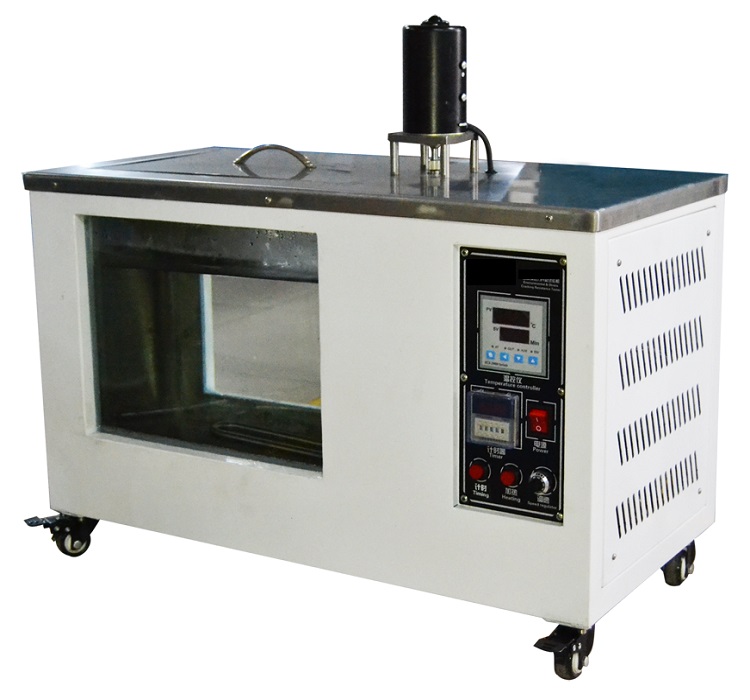

Solvent resistance tester Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.10-2008 ◆Used to detect the solvent resistance performance of enameled round wires and flat wires with nominal conductor diameter above 0.250mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Driven by precision linear rail, pencil moves steadily, free from shake; ◆Pencil push unit would automatically lay down pencil and move ahead, lift pencil and automatically return to initial position; ◆Used in combination with JRK-60 solvent thermostatic controller; ◆Automatic pencil sharper can sharpen pencil tip to be 60° symmetrical to its axis; ◆Clamp can be loaded and unloaded with sample quickly and conveniently. Major Technical Parameters Movement speed of pencil 400±40mm/min Movement distance of pencil ＞60mm Inclination angle between pencil and plane of sample 60±5° Force along the direction of pencil 5±0.25N Input power AC220V±10%  50Hz Consumed power ＜100W Overall dimensions L×W×H  640×345×350mm Weight 35kg ●Optional accessories: JRK-60 solvent thermostatic controller MBQ-60 automatic pencil sharpener go to product group+

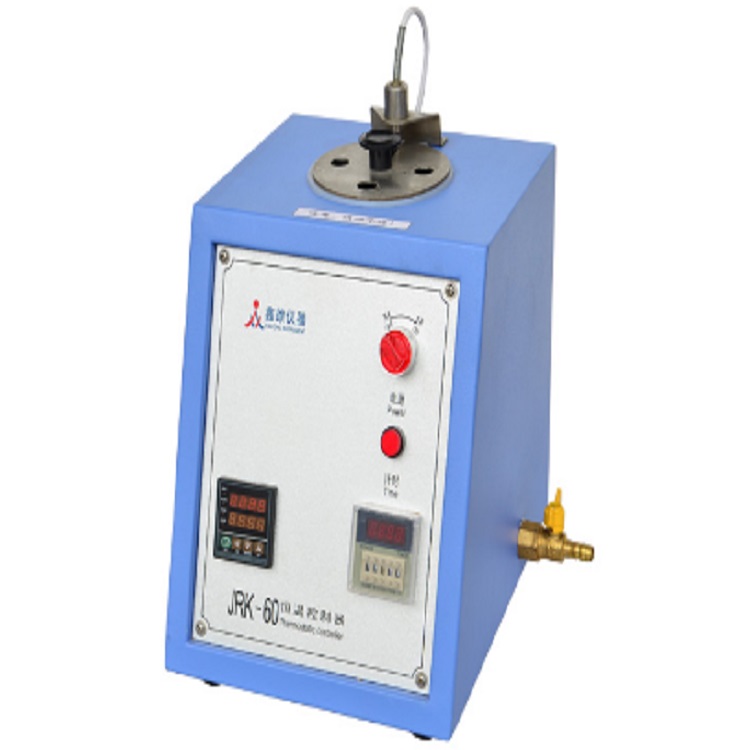

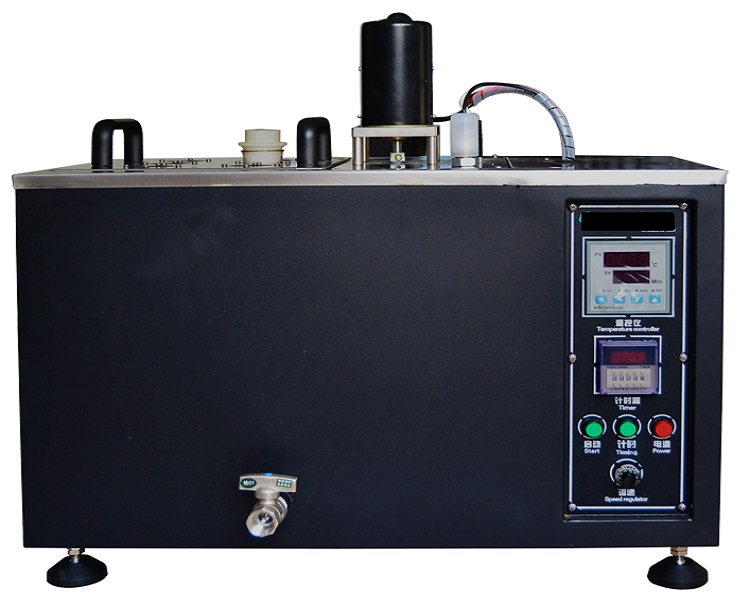

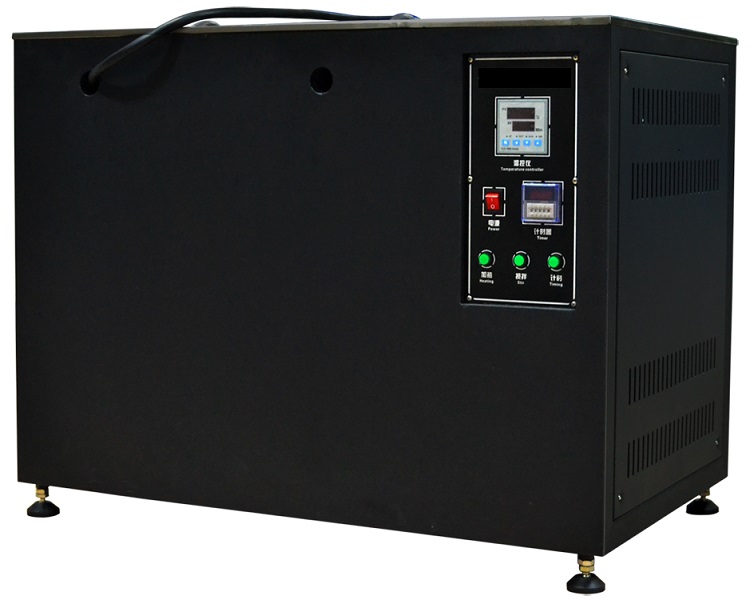

Solvent temperature controller Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.10-2008 ◆A heater used to detect the solvent resistance performance of enameled round wires and flat wires with nominal conductor diameter above 0.250mm; ◆Heat solvent and automatically maintain constant temperature; ◆Capable to performing temperature correction; ◆Equipped test timing and completion allocation equipment; ◆Used in combination with NRS-100 solvent -resistance tester Major Technical Parameters Maximum service temperature 100℃ Error between indicating solvent temperature and actual temperature ＜3℃ Timing range Ranging 0.01s ~99h 99min Input power AC220V±10%  50Hz Consumed power ＜400W Overall dimensions L×W×H  240×288×340mm Weight 6kg go to product group+
Solvent temperature controller Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.10-2008 ◆A heater used to detect the solvent resistance performance of enameled round wires and flat wires with nominal conductor diameter above 0.250mm; ◆Heat solvent and automatically maintain constant temperature; ◆Capable to performing temperature correction; ◆Equipped test timing and completion allocation equipment; ◆Used in combination with NRS-100 solvent -resistance tester Major Technical Parameters Maximum service temperature 100℃ Error between indicating solvent temperature and actual temperature ＜3℃ Timing range Ranging 0.01s ~99h 99min Input power AC220V±10%  50Hz Consumed power ＜400W Overall dimensions L×W×H  240×288×340mm Weight 6kg go to product group+

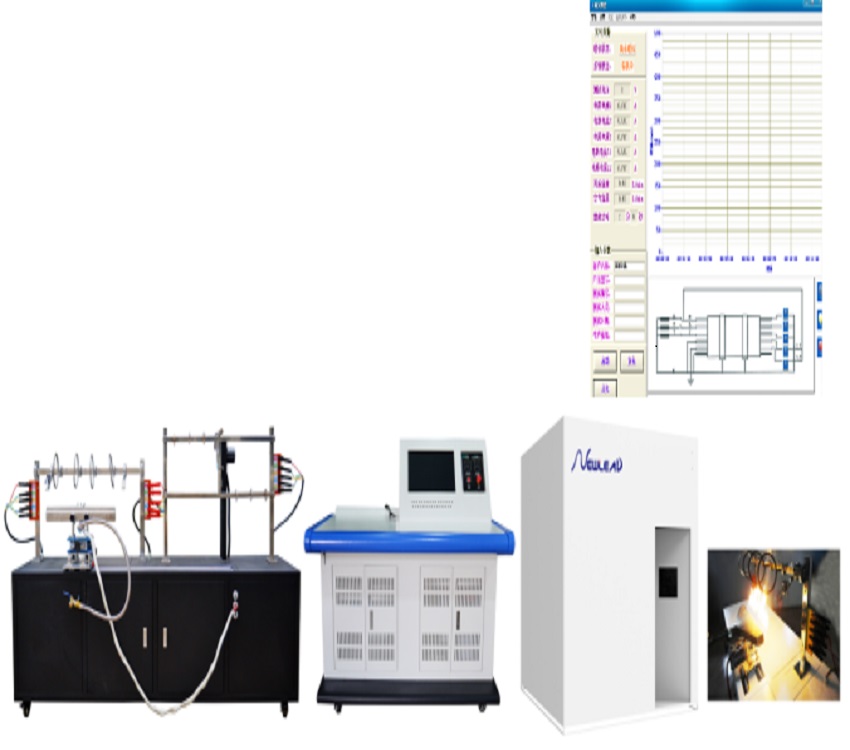

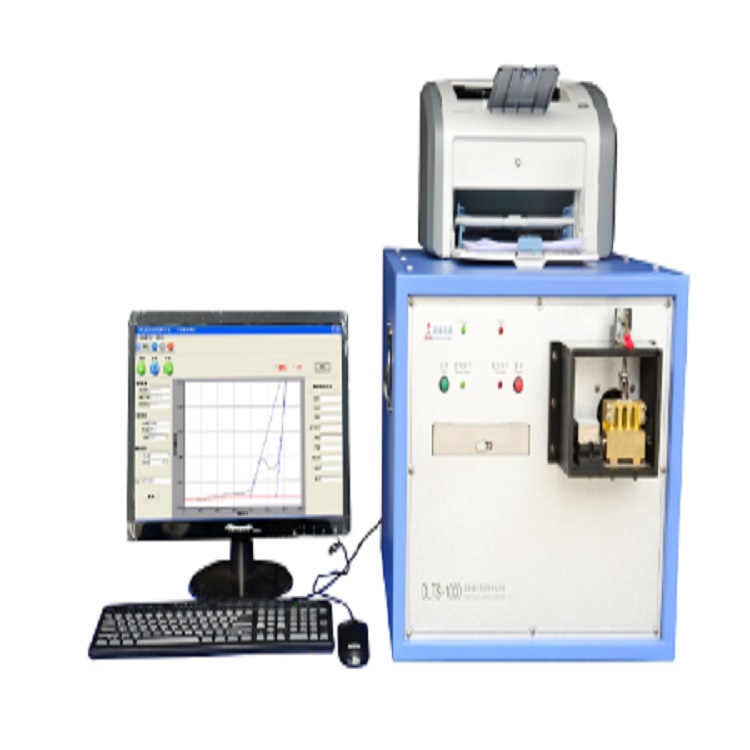

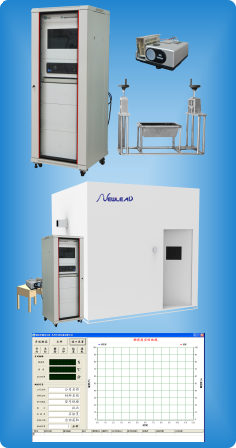

Enameled wire dielectric loss test system Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-5 ◆Applicable to detect enameled round wires with nominal conductor diameter between 0.020mm and 3.00mm and all specifications of enameled flat wires; ◆Automatically complete the whole measurement process such as heating, sampling, curve drawing, calculation of sudden rising temperature; ◆Historic data query, curve comparison, report generation, curve charge and report printing; ◆Analysis and calculation of temperature corresponding to minimum dielectric loss, and of wave crest and trough value; ◆Capable of displaying 8 historical data curves on the same screen in different colors, convenient for data comparison and analysis; ◆Designed with two databases, namely “standard curve” and “ordinary curve”, which can store test results individually; ◆Provided with new graphite paint, convenient for painting, smooth and even, free from burrs, easy to be saved; ◆Windows platform software interface is concise and aesthetic, easy to operate. Major Technical Parameters Test temperature 40-350℃ Temperature difference between temperature test value and actual temperature value ＜±1.5℃ Test time 3~8min Test frequency 1KHz (accuracy 0.001%) Test resolution 0.0001with C＞100pF Test voltage 1.0Vrms Environmental temperature Working condition: 0℃-40℃  Transport and storage: -10℃-55℃ Environmental humidity Working condition: 30% -85%  Transport and storage: 0% -90% Input power AC220V±10%  50Hz Consumed power ≤350W Overall dimensions of host L×W×H  520×500×410mm Weight 45kg   ●Optional Model: DLTS-1000R dielectric loss test system for enameled round wires DLTS-1000F dielectric loss test system for enameled flat wires DLTS-1000M 1MHz dielectric loss test system for enameled wires go to product group+

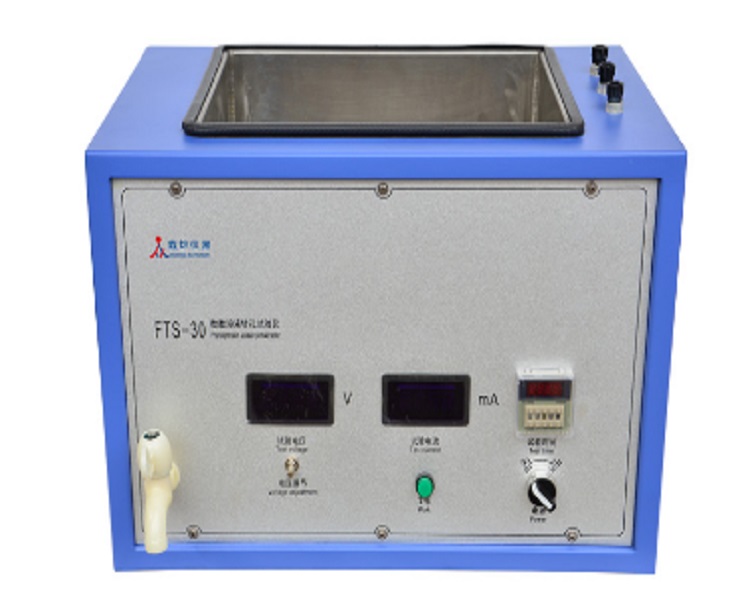

Low pressure film continuity tester Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-5; Inspection standard: JB/T4279.12-2008 ◆Used to test the film continuity (namely the pinhole number of enameled wire sample per unit length) of enameled round wires with nominal conductor diameter of 0.050mm and below; ◆The application of high-end SCM control allows for faster operation and stronger anti-interference capacity. ◆Test medium: 30g/L sodium sulfate ◆Automatic circulation of solution; ◆Continual defect indication light would flash while samples being tested have more than 10 defects per second; ◆Equipped with independent continuous defect detecting circuit, automatically detect and display number of defects and continuous defects Major Technical Parameters Test voltage DC50±1V Speed of test wire 16.5±1m/min Length of test sample Ranging 1~999m Stress applied to sample ＜0.03N Effective length of felt electrode 20±2mm Restoration time of counting device ＜0.02s Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H   560×314×360mm Weight 18kg go to product group+
Computer conductor resistance tester Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-4; Inspection standard: JB/T4279.2-2008 ◆Used to measure conductor with nominal diameter ≥0.010～9.000mm or various round or flat copper and aluminum wires and other metal wires with DC current resistance of 1μΩ～3MΩ; ◆Combination of intelligent DC conductor resistance measuring meter and DC resistance test fixture with sample straightening function; ◆Both potential fixture and current fixture are made of copper; ◆The application of microcomputer control allows for full-automatic completion of test; ◆Select tap position automatically according to the resistance value of sample, and after clamping samples, current temperature resistance value would be displayed; ◆Temperature sensor would automatically sense the temperature; after inputting material number, diameter or cross section area of sample to be tested, the instrument will automatically work out the resistance value (R20 resistance value), real-time resistivity and R20 resistivity at 20℃; ◆According to the market need, setting for six different materials is available, it is allowed to input at will the temperature coefficient not specified in the standard; ◆Chinese LCD will intuitively display various parameters and measurement results; ◆The application of software facilitates instrument’s on-line operation and control as well as data analysis and comparison; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Length measurement (space between two potential fixtures) 1000±1mm Space between potential fixture and adjacent current fixture 50mm Knife-edge width of potential fixture 1.8±0.2mm Resolution 1μΩ measurement range and accuracy 1μΩ～3MΩ±0.05% Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H 1380×265×290mm Weight 25kg ●Optional model and accessories: Computer conductor resistance tester (0.1μΩ -110MΩ) DZJ-15 DC resistance test fixture; DRS-10 DC resistance test fixture; LDZ-15 DC resistance test fixture (with tensile force) go to product group+
Phenolphthalein solution pinhole tester Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-5 ◆Used to detect pinhole on the film of enameled wires; it is mainly designed to indicate the position of pinhole by the color of phenolphthalein indicator and visually inspect the number of pinhole; ◆Detection range is not subject to the limitation of wire size and specification; ◆It is an economic and indispensable pinhole detection tool, featuring simple operation, stable, intuitive and reliable data detection. Major Technical Parameters Test voltage DC2～30V adjustable Concentration of sodium chloride solution 2g/L Concentration of phenolphthalein ethanol solution 30g/L Short-circuit current ＜150mA Saline tank capacity 9000ml Immersion time of sample Ranging 1s～99min 59s Input power AC220V±10%  50Hz Consumed power ≤50W Overall dimensions L×W×H 500×340×340mm Weight 18kg go to product group+
Intelligent voltage tester Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-4; Inspection standard: JB/T4279.11-2008 ◆Used to test the breakdown voltage performance under room temperature of enameled round and flat wires with nominal conductor diameter of 0.018mm and above; ◆Three voltage rise speeds are available: 20V/s, 100V/s and 500V/s, with error being ±5%; ◆Three test methods can be adopted: round bar method, twist pair method and ball method; ◆Applicable to withstand voltage test for electrotechnical products; ◆Application of SCM control allows for fast operation, strong anti-interference capacity and high intelligence; ◆Clamp a group of test samples (5 for each) once, available to complete breakdown or withstand voltage test for any of sample one by one or individually; breakdown voltage and withstand voltage time would be automatically saved for future enquiry; all operations would be automatically completed; ◆Capable of conducting high temperature breakdown voltage test in combination with RDS-50 thermal-state voltage tester; ◆LED would automatically display test results and automatically return; ◆During sample breakdown, breakdown voltage indication value would be automatically locked, free from flashing, and the test result is distinct and relatively clear; ◆Equipped with test fixture for round rod method and twist pair method as well as the test weight for round rod method; ◆Equipped with ball method test device (steel balls are prepared by user); ◆Test box door is provided with safety interlocking device, compliant with relevant regulations on high voltage testing equipment. ◆The application of software facilitates instrument’s on-line operation and control as well as data analysis and comparison; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Breakdown action current 5±0.5mA Maximum Test voltage ≥15000V Indication value error of test voltage ＜2% Withstand voltage time Ranging 1s~19999s Diameter of round bar pole 25±0.5mm Rated capacity of test transformer 1000VA Input power AC220V±10%  50Hz Consumed power ≤1200W Working environment Temperature: 0-40℃;Relative humidity:≤85% Overall dimensions L×W×H  550×650×1700mm Weight 125kg ●Preparation of weights: A set of test weights for round bar method; ●Optional Model: ZDS-50C 15KV intelligent voltage tester ZDS-50C 20KV intelligent voltage tester ZDS-50B 20KV automatic voltage tester ZDS-50B 15KV automatic voltage tester (single-head) ZDS-50B 20KV automatic voltage tester (single-head); ZDS-50B insulation material voltage tester; ZDS-50B saline method voltage tester ZDS-50B glycerinum method voltage tester ZNJ-16 auto strander  go to product group+
Intelligent high voltage film continuity tester Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-5; Inspection standard: JB/T4279.13-2008 ◆Used to test the film continuity (namely the pinhole number of enameled wire sample per unit length) of enameled round wires with nominal conductor diameter ranging from 0.050mm to 1.600mm; ◆The application of high-end SCM control allows for faster operation and stronger anti-interference capacity. ◆Select 8 test voltages by pressing button: 350V, 500V, 750V, 1000V, 1500V, 2000V, 2500V and 3000V;  ◆Test length ranging 0～99m;  ◆Automatically complete test process and display wiring length and pinhole number; ◆Brushless electric machine is used as drive motor, and also guide wheel and takeup pulley is used;  ◆Circuit board is subject to anti-static and moisture treatment and, after long-time aging, has more stable quality and higher durability; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Test voltage error ＜5% Steady state short-circuit current 25±5μA Voltage drop caused by 50MΩ defect resistance ＜75% Response time of defect detecting circuit 5±1ms Defect counting frequency while in contact with bare wire 500±10n/min Speed of sample passing through electrode 16.5±1.5m/min Working environment Temperature: 0-40℃，Relative humidity:≤85% Input power AC220V±10%  50Hz Consumed power ＜200W Overall dimensions L×W×H  640×500×410mm Weight 40kg ●Optional model: ZGQ-16B automatic high-voltage film continuity tester go to product group+
Automatic twisting machine Performance Characteristics of Product  ◆Executive standard: GB/T4074.5-2008 and IEC60851-5, USA NEMA and JIS; ◆Inspection standard: JB/T4279.11-2008 ◆Satisfy the requirement of GB/T6109;  ◆Auxiliary equipment used for sample preparation in twist pair test for breakdown voltage test of enameled round wires with nominal conductor diameter of 0.100～2.500mm; ◆Number of twist turns: 0~99 ◆LED would automatically display the twist result Major Technical Parameters Twist speed 100±5r/min Input power AC220V±10%  50Hz Consumed power ＜100W Overall dimensions L×W×H   603×294×335mm Weight 25kg ●Preparation of weights: 0.85N, 1.7N, 3.4N, 6.5N and 13.5N, one for each, 27N×3, one 7N (weight hook seat) go to product group+
Thermal voltage tester Performance Characteristics of Product ◆Executive standard: GB/T4074.6-2008/IEC 60851-6; Inspection standard: JB/T4279.7-2008 ◆Used in combination with voltage tester for such tests as high-temperature breakdown voltage, high-temperature failure and thermal shock, etc.; ◆Working chamber is equipped with double-deck shelf (with height adjustable) for heating sample, drying workpiece and gaining components; ◆Working chamber door is sealed with silicone rubber, presenting high temperature resistance and excellent sealing property; ◆Cabinet door is provided with large areas of double-layer tempered glass inspection window through which samples or articles to be heated in the cabinet can be clearly observed; ◆High precision intelligent digital temperature controller has such functions as digital setting, digital display, over temperature alarm, P (proportion) I(Integral) D(differential) regulation and PID parameter self-tuning, timing for heating, etc. ◆Durable ceramic insulation terminal is used Major Technical Parameters Temperature range RT+10~300℃ Temperature fluctuation 0.5℃ Temperature uniformity ±2.5℃ Dimensions of working chamber L×W×H   400×450×450mm Input power AC220V±10%  50Hz Heating power 1550W Overall dimensions L×W×H  740×530×1580mm Weight 80kg go to product group+
Softening breakdown tester Performance Characteristics of Product ◆Executive standard: GB/T4074.6-2008/IEC 60851-6; Inspection standard: JB/T4279.8-2008 ◆Refer to NEMA and JIS; ◆Used to detect the insulation property of enameled round wires and film wrapped round wires with nominal conductor diameter of 0.020mm- 3.000mm after softening under heat condition; ◆The application of high-end SCM control allows for faster operation and stronger anti-interference capacity. ◆Two test methods: temperature rise and constant temperature; ◆Automatic temperature measurement, control, regulation and display; instrument would automatically complete preheating, adding load and test voltage to sample according to the set preheating time, target temperature and test time and, when test time is over or breakdown occurs, automatically discharge load, alarm and display test time and temperature, the whole of test process is then completed;  ◆Automatically cool down test moulds with forced air, facilitating the secondary test; ◆Heating moulds are made of brass; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Dimensions of heating mould 100×100×70mm Intersection angle of two slots of heating mould 90° Test voltage between two samples AC100±10V Breakdown action current of sample 5±0.5mA Short-circuit current between two samples ＜50mA Display the temperature and temperature difference at intersection point ＜2℃ Preheating and test time of sample Ranging 1s～9999s Maximum test temperature ≤500℃ Set the test temperature under constant temperature method RT~500℃ Error of timing device during a period of 120s ±1s Input power AC220V±10%  50Hz Heating power 900W Overall dimensions L×W×H  540×310×345mm Weight 32kg ●Preparation of weights: Weight seat 0.25N×1, weight seat 1N×1, weight 0.15N×1, 0.25N×1, 0.45N×1, 1.2N×1, 3.5N×1, 4.5N×2, 17N×1, 34N×1 and 35N×1; ●Optional Model: ZRJ-20 intelligent cut -through tester (subject to NEMA, JIS and GB/T4074) go to product group+
Reciprocating scratch tester Performance Characteristics of Product ◆Executive standard: NEMA、JIS; Inspection standard: JB/T4279.15-2008 ◆Used to detect the scraping resistance of coating and cable insulation layer of flat wires of 0.800～5.600mm (narrow side) and the silk and enamel covered round wires with nominal conductor diameter of 0.100～5.000mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample; ◆Scratching needle is vertical to the paint scraping direction and parallel with sample supporting table; ◆When film is scratched and the action current is ≥5mA, painting scraper would automatically stop scraping; ◆LED would automatically display the number of scraping. Major Technical Parameters Scraper stroke 11±0.5mm Scraping speed 60 times /min Test voltage DC1～20±0.5V, adjustable   Number of scraping Ranging 1~999 Sensitivity 5±0.5mA Diameter of scratching needle 0.45±0.01mm or 0.55±0.01mm Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H  560×314×360mm Weight 25kg ●Preparation of weights: 1N×1，2N×2，5N×2，0.1N×1，0.2N×2，0.5N×1 go to product group+
Flat /strip wire bending test machine Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Applicable to bending test for various electromagnetic wires such as enameled flat wires, paper covered flat wires, glass fiber covered flat wires and thin film covered wires with narrow side less or equivalent to 16mm and corresponding copper and aluminum flat wires. Major Technical Parameters Bending host machine 1# machine 2# machine Diameter of flange φ260mm φ370mm Length of bending and rotating arm 350mm 400mm Rotation angle of rotating arm ＞180° Number of test bar and diameter range Pagoda bar:  3,  φ4～φ60mm Round bar (standard times of diameter) 88 types, φ4～φ80mm ● Note: For round bars with non-standard times of diameter, customization according to user needs is acceptable. go to product group+
Flat/strip rebound angle tester Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Used to detect the rebound elasticity of enameled flat wires with narrow side of 0.800mm- 5.600mm and of enameled round wires with nominal conductor diameter of 1.600mm- 5.600mm. Major Technical Parameters Bending angle of sample ＞30° Minimum resolution for quadrant dividing rule 0.2° Adjustable range of movable slider (contact) 28~252mm Overall dimensions L×W×H  460×315×120mm Weight 20kg go to product group+
17DST Intermediate wire drawing machine medium wire drawing machine,Inlet:2.5-3.5,outlet 0.4-1.8mm. with or without online continuous annealer, High speed , gear transmission. go to product group+
No twist coiler line for quality wire coiling Drum packing to coiling wire in carton ,wire down coiler No twist coiler line for quality wire coiling , to packing wire in carton. go to product group+
Bunched Cable Vertical Flame Spread Tester Product description: Bunched cable vertical flame spread tester is used to detect vertically mounted under specified conditions for vertical flame spread inhibiting the ability of bundle cable or fiber optic cable. In accordance with IEC60332—3—10: 2009, Standards: • IEC60332—3—10: 2009 • GB/T18380.(31—36)—2008 Technical parameters: • Internal dimensions of stainless steel test chamber: 1,000(W)×2,000(D) ×4,000(H)mm, supplemented with insulated mineral wool material • At the lower section of the test chamber, there is a 800(W) x 400(D) sized hole at the 150mm position from the front side of the chamber to supply the air • Exhaust hole of the top: 300(W) ×1, 000(D)mm • Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm; quantity: 1 • Standard stainless steel ladder dimensions: 800(W) ×3, 500(H); quantity: 1 • Two sets of banding standard propane burner devices • Two sets of venturi gas mixing devices • Pressure gauge and pressure reducing valve device, which is able to adjust propane and air pressure to 0.1 MPa • Control and regulation of gas supply: airflow is rotor flowmeter 10 ~ 100L / Min adjustable, propane flow is rotor flowmeter 2 ~ 20L / Min adjustable • Cabinet with ladders and handrails is more convenient for users to observe at the top • With a ball valve enable to manually shut down the gas supply • Set flame test time automatically, and by then the air supply can be cut off automatically • Mounted K thermocouples inside the chamber, indicating the internal temperature • With forced fire extinguishing device • Automatic lifting device Specifications: • External dimensions of the burning cabinet: 1150(W) ×2150(D) ×5110(H)mm • External dimensions of the control cabinet: 1280(W) ×830(D) ×1290(H)mm • Power supply: AC 220V, 50/60Hz, 2A • Air source: propane and air( prepared by users) go to product group+
IEC 61034 - 1997;GB/T17651.1～2-1998 3M Cube (Wire and Cable) Smoke Density Tester Product description: 3M cube smoke density tester is used for measurement of smoke density of cables burning under defined conditions Test index: Optical density (OD) and specific optical density (DS) of the smoke Measuring principle: Lambert-beer Law Measuring method: Measure the smoke light transmission percent of original light transmission to represent smoke density, and calculate the max DS by min percentage of the transmission Standards: • IEC 61034 - 1997 • GB/T17651.1～2-1998 Technical parameters: Burning device: • Use the long pole ignition devices to ensure the testing personnel’s safety; stainless steel flame testing machine stand allocated with a automatic sample fixture Stainless steel alcohol tray: Internal size of the bottom: 210mm×110mm Internal size of the head: 240mm×140mm Height: 80mm Optical system: • Use the restructured optical system light source which is imported by Germany The light receptor is made of imported high resolution batteries Tungsten quartz-halogen lamp: Voltage: DC 12V, Power: 100W, Nominal luminous flux: 2000lm~3000lm, Nominal color temperature: 2800K~3200K, Lens light beam: 1.5m±0.1m adjustable • Test software: Smoke density DAQ test software, the light path calibration system: 0, 100% spot calibration, which is available to operated on laptop and desktop computer both • Standard fan: (fan shaft height 200 ~ 300mm; blade diameter 300 ± 60mm; wind 7 ~ 15m³ / min). Specifications: • Control cabinet dimensions: 600mm(W)×600mm(D)×1600mm(H) • Power supply: AC 220V, 50/60Hz, 1A • Burning chamber dimensions: 3m×m×3m(prepared by users) go to product group+
IEC 60754-1~2-1994;GB/T 17650.1~2-1998 Halogen, PH & Conductivity Tester Product description: Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃) Standards: • IEC 60754-1~2-1994 • GB/T 17650.1~2-1998 Technical parameters: • Activated carbon (air filtering): filter for filtering the supplied air • Silica gel (air drying): a device for drying the supplied air • Flowmeter: 0.1～1L/min, a device to control the flow of the air source • Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0 ～ 1300℃ • Quartz tube: ￠40×800 • Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water • PH meter: a device used for measuring the pH acidity (ray magnetic) • Conductivity meter: a device for measuring conductivity of combustion gas (ray magnetic) • 7 "color touch screen and PLC and PID automatic calculation of the module control heating furnace temperature • Heating furnace: ￠220×600; effective heating space: ￠43×550; power: 4KW • Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1 Specifications: • Installation size: 2300 mm (W) × 600 mm (D) • Power supply: AC 220V, 50/60Hz, 21A • The reagent and air supply are prepared by users go to product group+
Single Wire and Cable Vertical Flame Propagation Tester Product description: Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 . Obtain and determine wire and cable’s capability of prevent the fire from spreading under fire condition Standards: • GB/T18380.(11-12)—2008 • GB/T5169.14-2007 Technical parameters: • Stainless steel control cabinet, fume cupboard and metal cover is all-in-one type, which is easy to operate and good looking • Metal cover: 1200mm (H)×300mm(W)×450mm(D). The front is open, the top and bottom are sealed • Blowtorch: nominal power: 1kw • Control mode: When the set burning time reaches the preset time, the machine stops supplying the fire automatically • Burning device: automatic high pressure ignition • Flowmeter: air flowmeter: 1.5~15L/min, gas flowmeter, 0.1~1L/min • The separately controlled exhaust fan is installed at the top • Flame detection device: one imported thermocouple of ￠0.5, K type, one electrolytic copper billet ￠9mm, one each weight is 10g±0.05g, a suit of temperature and time display device Specifications: • Overall dimensions: 630mm(W)×600mm(D)×2170mm(H) • Power supply: AC 220V, 50/60Hz, 2A • Air source: propane and air( prepared by users) go to product group+
Automobiles Cable Horizontal Flame Test Chamber Product description: Automobiles cable horizontal flame test chamber is suitable for test and determination of low-tension cables with thin wall insulation for automobiles, keep cables under fire conditions until flaming, and self-extinguish after the flame is removed within 15s Standard: • JASO D 618-1994 Low-tension cables with thin wall insulation for automobiles Technical parameters: • Integrated flame chamber, brushed stainless steel surface • Test chamber: 610 (H) mm × 310 (W) mm × 360 (L) mm, front open • Control mode: automatic ignition, and automatically the blowtorch self-extinguishes when setting time is up • Blowtorch: blowtorch inner diameter of 10mm, flame height of 35mm • Timing range: 0-9999s Specifications: • Overall dimensions: 380mm (L) × 470mm (W) × 1250mm (H) • Power supply: 220V 50HZ go to product group+
• IEC60331—23: 1999 • IEC60331—12: 2002 • GB/T19216.(11, 21, 23, 25)-2003 • GB/T19216.(12, 31)-2008Wire and Cable Fire Resistance Tester Product description: Wire and cable fire resistance tester is in accordance with IEC60331—12: 2002, obtain and determine the flame-resistant property parameters of flame-resistant cables or optical cables under the flame conditions Standards: • IEC60331—23: 1999 • IEC60331—12: 2002 • GB/T19216.(11, 21, 23, 25)-2003 • GB/T19216.(12, 31)-2008 Technical parameters: • Burning frame is cabinet type, fire-resistant properties and fire-resistant impact are all-in-one, easy to operate and with a nice appearance • Burner: 500 mm belt-type torch ( including venturi mixer ), the burner orifice 3 rows of staggered orifice diameter: ¢ 1.32, center distance: ¢ 3.2, the burner can be up and down, left and right adjusted to meet the horizontal and vertical distances location of the cable • Fire-resistant properties bracket: consists of two metal rings brackets, intermediate length is about 300MM, test supporting metal ring inner diameter is 150MM, ring-sectional diameter is 10±2MM, one end of the sample holder fitted with a clamp fixed sample, and the other end to facilitate heat along the test vertical transfer • Refractory impact bracket: the impact test ladder is assembled by the steel frame, in order to accommodate different sizes of cable testing, the two vertical steel members in the center of the test ladder rack can be adjusted, the test ladder length is 1200mm and the height is about 600mm, the total mass of test ladder is (18 ± 1) kg, four rubber liner whose hardness is (50 to 60) Shore A, the diameter of the impact bar is (25 ± 0.1) mm and the length is (600 ± 5) mm, which is made of low carbon steel round, the impact rod angle is 60 ° • Samples applied voltage: AC100V~1000V, adjustable • Sample short circuit breakdown current: 2A • Sample holding current: 100-260MA adjustable • Three-phase transformer: 380V, 9KVA • Sample short circuit, open circuit, stop the fire supply and cut off the voltage, with software malfunction prompt • Fire supply time: 0 ~ 999 Min, adjustable • Two Ф1.5mm thermocouples used for flame correct and a corresponding portable thermometer • Control and regulation of gas sources: the mass flow rate of air flow agent 20~200L/Min adjustable, the mass flow rate of propane flow agent 2~20L/Min adjustable • Control mode: the computer software controls the operation and monitors the current and voltage gas flow during the test, test results are curve printing Specifications: • Specimen support dimensions: 2430mm(W)×800mm(D)×1500mm(H) • Control cabinet dimensions: 1500mm(W)×900mm(D)×1300(H) • Test box: 3m×3m×3M(prepared by users) • Gas source: propane and air ( prepared by users) • Power supply: three phases and five lines, AC380V 50/60Hz 10A go to product group+
BS Wire and Cable Fire Resistance Tester Product description: The structure and performance of BS fire resistance impact shock tester, including fire resistance test, water spray fire resistance test and mechanical fire resistance test, suitable for mineral insulated cable which the rated voltage is not exceeding 450/ 750V, maintain circuit integrity for a long time under fire conditions. In comply with the British fire resistance cable standard BS 6387 Standard: • BS6387: 2013 1. Fire resistance test: the fire resistance test bed consists of the following parts: 1.1: Heat source Cable support system: Both ends of the cable sheath are horizontal clamped. The middle part of the cable is fixed by two metal rings (spacing distance 300mm), the metal rings and the other metal parts of the device are grounded. For those non-armored cables which diameters are less than 10mm, or some other cable with noticeable displacement occurred during the test, the metal rings should be 2 pcs, and each metal ring is fixed in the original ring at about 150mm 1.2 Continuous detection device: During the test, make the current get through all the cores of the cable, a three-phase star shape connected transformer or three single-phase transformers (or a single-phase transformer, if the test is for single-core cable), and ensure that it is absolutely able to keep it maintaining 3A maximum allowable leakage current at the test voltage. At the other end of the cable, each core wire is connected with a lamp, and load the current of close to 0.25A under the rated cable voltage 1.3 Heat supply is a tubular gas burner with 610 mm length and can be forced to supply methane and a flame dense 1.4 Temperature measurement: place a armored thermometer of 1.5mm diameter near the inlet, and be parallel to the top of the burner 75mm 1.5 Testing flame temperature and time: (view BS6387 flame rating) A 650℃ ± 40℃ -- 3 hours B 750℃ ± 40℃ -- 3 hours C 950℃ ± 40℃ -- 3 hours S 950℃ ± 40℃ -- 20 minutes 1.6 Specimen: Specimen is a section of finished product, with a length not less than 1200mm, remove the sheath and covering layer of 100mm on the both ends. The wires of the cable two ends should be in accordance with the electrical connection 1.7 Test voltage: 100~1000V adjustable 1.8 Test Current: 100~260mA adjustable 2. BS resistance to mechanical shock and fire： 2.1 Walls and installations: The walls are made of heat resistant, flame retardant materials, and fixed to the two horizontal girders, one on upper of the board and the other one on bottom of the board. This board is about 900mm long, 300mm wide, 9mm thick, and the total weight of walls (that is to say, the board plus the supporting frame) is 10 ± 0.5 kg. Each girder is about 1m long, 25㎡ square pipe. If you need to fill materials, you need to place them inside of girders. The upper girder has to be fixed on the board, to make the upper surface be flush with the upper edge of the board. There is a horizontal hole on each girder and outer edge of the board, the precise position is determined by the requirements of the particular support pad and the supporting frame. The wall is bonded to the frame by 4 rubber bushings, the bushing diameter is approximately 32mm, thickness is 20mm 2.2 Heat supply: a strip burner with a length of 500mm which is able to burn 500mm cable specimens, the burner assembly is adjustable, it is able to furnish a bright flame with temperature of 650℃ 2.3 Temperature measurement: an armored thermometer of 1.5 mm diameter, make the thermometer through the wall and keep one end of the thermometer 8mm-10mm away to the wall. The temperature is measured by the following procedure: In one end of the low-carbon steel rod with diameter 3mm ± 5%, length 300mm, tie a thermometer on it, so that it can measure the temperature of the rod. Grab the rod and make it close to the flame, keep it 40mm to 50mm far away from the flame. When the flame temperature reaches to 950℃, the steel rod temperature reaches 400℃ in 10s to 20s, when the flame temperature reaches to 650℃, the steel rod temperature reaches 400℃ in 20s to 40s. 2.4 Test flame temperature and time: Test temperature needs to be selected from the following table: X 650 ± 40℃, Y 750 ± 40℃, Z 950 ± 40℃. 2.5 Shock device: a low-carbon steel rod (diameter 25mm ± 5%, length 600mm ± 5%). Longitudinal section of the rod parallels to the wall, and is higher than the top of wall 200mm. An axis divides it into 200mm and 400mm two parts, the longer section towards the wall. Every 30±2s, it drops down from the parallel position to the center of the wall at 60℃. 2.6 Test voltage: 100 ~ 1000V adjustable. 2.7 Test Current: 100~260mA adjustable 3. Water and fire resistance test: 3.1 Heat supply: a strip burner with a length of 500mm which is able to burn 500mm cable specimens, the burner assembly is adjustable, it is able to furnish a bright flame with temperature of 650℃ ± 40℃. 3.2 Temperature measurement: Place an armored thermometer of 1.5 mm diameter under the surface of the cable. 3.3 Test flame temperature: 650℃ ± 40℃. 3.4 Water spray: a shower nozzle mounted on a test stand, in the middle of the burner, the pressure is 250KPa to 350KPa, spray 0.25L/㎡ to 0.30L/㎡ water around the specimens. This rate measurement requires a collection tray, this tray should have a sufficient depth to make its long axis parallel to the axis of the cable and be center placed. This tray is approximately 100mm wide 400mm long. 3.5 Specimen: Specimen is bigger than 1500mm from the finished products, and has been done bending test at ambient temperature, remove sheaths and coating layers of 100mm at each end. The lead wires at the ends of the cable should be properly handled in accordance with electrical connections and suggestions of manufacturers 3.6 Test voltage: 100 ~ 1000V adjustable. 3.7 Test Current: 100~260mA adjustable Specifications: • Test main machine dimensions: 2430mm (W) × 770mm (D) × 1600mm (H) • Console dimensions: 1500mm (W) × 900mm (D) × 1300mm (H) • Tank dimensions: 1500mm × 1200mm × 900mm • Test chamber: 3M × 3M × 3M(prepared by users) • Air source: propane, air (prepared by users) • Power supply: two-phase AC380V + N 50 / 60Hz 30A go to product group+
TICW8-2012 Medium Voltage Wire and Cable Fire Resistant Tester Product description: As the development of high-rise buildings, the improvement of the fire-prevention level and the safety awareness of citizens, the medium voltage fire resistant wires and cables are emerged at the right moment, however, the low voltage cable fire-resistant test standard of the nominal voltage which is up to 0.6/1KV is unable to reflect the property of medium voltage cable correctly, so this medium voltage wire and cable fire resistant tester is designed to improve its quality. The test machine consists of two parts that specimen holder and control cabinet, the structure and properties are designed according to the standard TICW8-2012 Standards: • TICW8-2012 Technical parameters: • Fire frame: the inside frame welded by square tube, A3 steel plate shell + black anti-static spray, both ends of the specimen are independent supporting frame Burner: 500mm ribbon burner 2 pcs (including venturi mixer), the blowtorch is able to be up and down, back and forth to adjust to meet the position requirements of the specimen • Sample holder: consists of two metal ring bracket, the intermediate space is about 500mm, test supporting metal ring inner diameter of 150mm, wire diameter of 10 ± 2mm; one end of the specimen fixed with clamps to prevent movement, and the other end is a free support • Specimen applied voltage: AC1 ~ 10KV adjustable, leakage current 0 ~ 50mA • Stop fire supply and cut off voltage when specimen is failure • Fire supply time: 0 ~ 999 Min, adjustable • Control and regulation of gas source: air mass flow meter 20 ~ 200L / min adjustable, propane mass flow meter 2 ~ 20L / min adjustable • Flame temperature detection: two pcs of Φ1.5mm US OMEGA temperature sensor • Control mode: push-button control Specifications: • Specimen support dimensions: 1000mm (W)×600mm(D)×1000mm(H) • Control cabinet dimensions: 2000mm (W)×900mm(D)×1300(H) • Test chamber: 3m×3m×3M (prepared by users) • Gas source: propane and air (prepared by users) • Power supply: AC380V 50/60Hz 30A go to product group+
GB2406-2009 Digital-readout Oxygen Index Tester Product description: Digital-readout oxygen index tester is used to test the required oxygen concentration (volume percent) in the process of polymer burning. Polymer OI value is the min oxygen volume percent of the required oxygen and nitrogen gas mixture in the process of this material is able to be kept burning for 50 mm or 3 minutes once being ignited. Standard: • GB2406-2009 Features: • Simple structure, and easy operation • It is a tool to identify the polymer burning performance, as well as a tool of the related research, thereby, we can get a better understanding of the polymer burning • Applied to test the property of plastic, rubber, forth etc • The test result is accurate and with very good reappear function, therefore, it’s an essential testing instrument for researching and producing flame-resistant materials Technical parameters: • Internal diameter of the combustor: 100mm • Height of the combustor: 450mm • Pipe hole diameter of the long pole igniter trailing end ￠2±1mm • Flowmeter: 160~1600L/H adjustable • Precision of the pressure gauge: level 2.5 • Resolution of the pressure gauge: 0.01Mpa • Resolution of the Oxygen concentrate indicator: 0.1% • Oxygen sensor: imported from Germany with high precision • Gas source: the GB3863 specified oxygen, the GB3864 specified nitrogen • Experiment environment: temperature: 10~35℃, humidity: 45-75% • Input pressure: 0.2-0.3Mpa • Working pressure: 0.05-0.15Mpa • Sample type: self-supporting materials and non-self-supporting materials • Oxygen index die: 10mm×100mm Specifications: • Overall dimensions: 700mm(W)×400mm(D)×600mm(H) • Power supply: AC220V, 50/60Hz 5A • Air source: oxygen, nitrogen( prepared by users) go to product group+
UL1581-21003 VW-1 (Vertical-specimen) Flame Tester Product description: VW-1 (Vertical-specimen) Flame Tester is designed in accordance with UL1581 and approved by Guangzhou Meihua UL corporation, completely in line with VW-1 flame test standard, is used for test of VW-1 and FT-2. It’s economic and applicable, which is widely used in wire and cable industry. The test is taken in a sealing laboratory which volume is 4.32 cubic meters. Test methods: Adjust the height of the flame, put the top of the flame under the sample to burn for 15s, then put out for 15s. Examine the sample’ burning situation after repeating 5 times. You can set the burning, go out time and times of repetition freely and make it operate automatically. Standards: • UL1581-21003 Technical parameters: • Test chamber: It adopts electrostatic spray paint in outside and electrostatic roast black paint inside, who is rustproof and has a great looking • There’s a fume extractor on the top, so that the waste gas can be released when the test is completed. There’re 2 air intakes on the lower of both sides, and it’s equipped with a set of pneumatic seal operation device • There’s an observing-window in the front, which is convenient for observation • It adopts anti-smoke and anti-mist round Lamps inside • 7" color touch screen and PLC control • Flame time setting: 0~999S adjustable • Stop flame time setting: 0~999S adjustable • Continuous flame time setting: 0 ~ 999s, settable • Heat sensor adopts high rates of electrolytic copper • Equipped with a imported thermocouple of ￠0.5, type K, whose shell is stainless steel • The smart temperature controller is match with the K type thermocouple, the reading is beyond to 1000℃ • With the function of high-pressure auto ignition • Blowtorch: imported from USA HUMBOLDT, applying with the requirements of ASTM D 5025-99, standard power: 500W, angle: 20° • Test support frame: VW-1 and FT2 flame test support frame • "U" type tube pressure meter: 1 (imported from American Dwyer) • Flowmeter: 0.2 ~ 2L / Min adjustable, high-precision • Equipped with a micro-printer. Specifications: • Dimensions of test chamber: 2m(W)×1.2m(D)×1.8m(H) • Overall dimensions: 2020mm(W)×1250mm(D)×2365mm(H) • Power supply: AC 220V 50/60Hz 3A • Air source: propane, air( prepared by users) go to product group+
Single Wire and Cable Tilting Flame Tester Product description: Single wire and cable tilting flame tester is generally applicable to road vehicles 60V and 600V single core wire tilt anti-retardant standard, horizontal flame-resistant time standard and international automotive cable standards of low-voltage cables for automobiles unshielded horizontal flame test methods. It is used for performance assessment of cable under fire conditions. Test method: Fix the two terminals of the sample, and put it into a metal over with three metal plate surfaces. Light on the blowtorch, keep the blue inner cone point under sample 50mm away, and connect with the sample. The sample should be 45°tilted to the horizontal plane Standards: • ISO6722-2006; • QC/T 730-2205; • GB/T 2508/5-2010; Technical parameters: • Metal cover: electric cabinet and the metal cover are integrated, the material is SUS304 stainless steel • Blowtorch: imported from USA HUMBOLDT, burning pipe internal diameter: 9mm, flame height: 100mm, inner blue flam cone length: 50mm • When the setting burning time reaches to preset time, the device will automatic stop • Ignition: automatic high pressure ignition • Flowmeter: 0.2L～2L/min Specifications: • Overall dimensions: 1000mm(W)×600(D)mm×1000(H) • Power supply: AC220V 50/60Hz 1A • Air source: propane or natural gas( prepared by users) go to product group+
GB / T2951.41-2008 Carbon Black Content Test Device Product description: Carbon black content test device is designed and produced in line with GB/T2951.41—2008 , used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics Standards: • GB / T2951.41-2008 Technical parameters: • Tubular electric furnace: RT ~800 ℃, length 400mm • Quartz tube: inner diameter 30mm, overall length 600mm • Temperature sensor: K-type, RT~ 1300 ℃ • Washing bottle: 500ml, 2 pcs / unit • Combustion boat: 77 type, 100 pcs / unit • Flowmeter: 0.3 ~ 3L / min Specification: • Overall dimensions: 600mm (W) × 450mm (D) × 770mm (H); • Power supply: AC220V 50 / 60Hz; • Gas source: nitrogen (oxygen content <0.5%), oxygen (prepared by users) go to product group+
Computer-controlled Electronic Universal Tester (double columns) Product description: Computer-controlled electronic universal tester (double columns) is used for tensile, compression, bending, cutting test of various materials, which adopted with advanced machinery, SCM and computer technology to record the load of the sample, the variable displacement and time change curve, to research the material property and control the quality during manufacturing Standards: • GB/T 228-2002 • GB/T16825-1997 Technical parameters: • Max test force: 5KN, 10KN, 20KN (optional for users) • Effective stroke: about 600mm • Testing width: 400mm • Test force value relative error: ≤±1% • Test speed range: 30～300mm/min • Displacement resolution: 0.01mm • Drive connecting plate: high carbon steel forged, good mechanical performance, without deformation • Ball screw: §25 high precision and gapless of driving, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity, made in Taiwan • Grip surface process: all of the grips are adopted the hard chromium plating process, the grip block is adopted imported Japanese tool steel, SKD-11 high frequency process, HRC is over 55, wear resistant and impact resistant • Guide rod bearing: NSK ball linear bearing imported from Japan • Guide rod: it’s made of two ∮30 Korean Taijing guide rods, whose surface is being processed by high temperature and hard chrome electroplating, HRC is over 60 • Main drive bearing: NSK ball linear bearing imported from Japan( allocated with iron cover dust prevention) • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15 • Dust prevention device: Taiwan folding dust prevention cover, to protect the screw from dust • Device surface process: American DuPont powder, electrostatic painting process, solidified by 200℃ high temperature, fast color for a long time • Display method: Windows2007test software +computer display • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance. Specifications: • Overall dimensions: 810mm×520mm×1640mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Computer-controlled Servo-type Universal Tester (double columns) Product description: Computer-controlled servo-type universal tester (double columns) is used for tensile, compression, bending, cutting tests, which adopted with advanced machinery, SCM and computer technology to record the load of the sample, the variable displacement and time change curve, to research the material property and control the quality during manufacturing Standards: • GB/T 228-2002 • GB/T16825-1997 Technical parameters: • Max test force: 50KN (optional for users) • Effective stroke: about 600mm (customized) • Testing width: 350mm • Test force value relative error: ≤±1% • Test speed range: 0.01～300mm/min • Displacement resolution: 0.01mm • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation • Large deformation resolution: 0.1% • Drive connecting plate: high carbon steel forged, good mechanical performance, no deformation • Ball screw: §32high precision and gapless of driving, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity, made in Taiwan • Grip surface process: all of the grips are adopted the hard chromium plating process, the grip block is adopted imported Japanese tool steel, SKD-11 high frequency process, HRC is over 55, wear resistant and impact resistant • Guide rod bearing: NSK ball linear bearing imported from Japan • Guide rod: it is made of two ∮40 Korean Taijing guide rods, whose surfaces are being processed by high temperature and hard chrome electroplating, HRC is over 60 • Main drive bearing: NSK ball linear bearing imported from Japan( allocated with iron cover dust prevention) • Speed reducer: synchronous wheel deceleration 1: 6, Germany CONTITECH synchronizing wheel / belt • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry • Machine Body Surface treatment: Adopt the DuPont powder, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading • Display mode: Windows2007 test software + computer display • Section bar: one-time extrusion, generous appearance, oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance Specifications: • Overall dimensions: 805mm×465mm×1650mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Computer-controlled Electronic Tensile Tester (large deformation) Product description: Computer-controlled electronic tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. The computer-controlled electronic tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance Standards: • GB, UL, VDE Technical parameters: • Max test force: 50N, 100N, 500N, 1000N, 2000N (optional for users) • Test force value relative error: ≤±1% • Test speed range: 50~500mm/min • Displacement resolution: 0.01mm • Sensor: American Transcell S type sensor • Effective stroke: about 800mm • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation • Large deformation resolution: 0.1% • Grip materials: adopting imported Japanese tool steel, SKD-11 with hardness processed, HRC is over 50 • Ball screw: high precision and gapless of driving, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity, made in Taiwan • Surface process: adopt American DuPont powder, static electricity processed, and being solidified by 200℃ • Screw bearing: NSK ball linear bearing imported from Japan • Drive system: Italy Outes motor and reducer • Displacement of the whole travel: Japanese decoder 1000P/R • Safety device: overload emergency stop device, up and down stroke limit device, electric leakage automatic power off system, automatic breakpoint stop function • Display method: WindowsXP test software + computer display • Section bar: one-time extrusion, generous appearance, oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance. Specifications: • Overall dimensions: 500mm×420mm×1650mm • Power supply: AC 220V 50/60Hz 2A go to product group+
Intelligent Plate Vulcanizing Machine Product description: Put the raw materials into the casting mould, and fix it between electric heating plates with pressure and a certain temperature, make the raw materials to be a mould for the test, it is a basic tool to produce a plenty of compounding for factories. Intelligent plate vulcanizing machine is equipped with PLC program control color touch screen, man-machine interface operating system, which is able to set pressure, temperature, time and times in the vulcanizing process that is displayed and monitored timely, all of the mould programs are completed automatically, advanced and reliable Typical applications: • Detection of raw materials’ gels(fisheyes), black spots and smears • Tabletting of raw materials, color matching, mixture, and sample making of raw materials • Physical property test • Materials research and development Specifications: Capacity 20T (optional) Temperature range Room temperature～200℃ Program controller PLC programmable color touch screen, man-machine operating interface Pressing plate size 300*300*60mm Pressing plate layers Single layer Exhaust times 0～10 times settable Oil hydraulic system Proportional hydraulic flow valve closed loop control system Safety protection Self-locking safety visual door cover Dimensions(W*D*H) 900×450×1450mm Power supply 3∮, AC380V,20A Weight About 688Kg go to product group+
GB, UL, VDE Stripping Force Tester Product description: Stripping force tester is widely used for the stripping force, pressure resistance and bending test of wires, cables, terminals etc. Standards: • GB, UL, VDE Technical parameters: • Max test force: 50N, 100N (optional for users) • Relative error of test force indicating value: ≤±1% • Power system: AC rate regulating motor • Stroke: about 300mm • Safety device: yoke plate lower limit protection device • Display: dark blue LCD text prompt • Sensor: American Transcell S type sensor • Template：220×92×6mm, diameter φ1, φ1.5, φ2, φ2.2, φ2.5, φ3, φ4, φ5mm Specifications: • Overall dimensions: 1165mm×310mm×450mm • Power supply: AC 220V 50/60Hz 1.5A go to product group+
UL, CSA, GB, ASTM, VDE, IEC Wire Rod (copper wire) Elongation Tester Product description: Wire rod (copper wire) elongation tester is used to test the elongation of copper wires, aluminum wires, aluminum magnesium alloy wires, iron wires, and other wires. The circuit is adopted the integrated circuit and process control, which doesn’t need manual calculation, and automatically display the percentage of elongation; the elongation length adopted with the laser sensor technology, with high sensor precision, and the full-scale range error is ±0.3% Standards: • UL, CSA, GB, ASTM, VDE, IEC Technical parameters: • Applicable wire diameter: Ф0.08mm~Ф0.8mm • Stretching speed: 200~300mm/min • Specimen length: 250mm • Stretching range: 0~60% • Elongation resolution: 0.1% Specifications: • Overall dimensions: 550mm×260mm×350mm • Power supply: AC 220V 50/60Hz 1A go to product group+
GB5023-2008 • GB/T5013-2008 Cable Flexibility (2, 3 rounds) Tester Product description: Cable flexibility (2, 3 rounds) tester is a new combined test equipment for cords according to China National Standardization Technical Committee and National Wire and Cable Standardization Technical Committee, with novel appearance design, reliable structure and performance, convenient operation, one machine for two tests, and high accuracy of test data, it’s an ideal test equipment on the market so far. It is applicable to the determination of mechanical strength for rated voltage 450 / 750V or less, and more than two-core or two-core PVC insulated cables or rubber insulation and cords. Unsuited to the flexible cable with nominal cross-sectional area greater than 4mm2 and concentric glued cables have more than 2 layers, glued core number greater than 18 cores Standards: • GB5023-2008 • GB/T5013-2008 Technical parameters: • Test specimen type: two-core single-phase, three-phase three-wire, three-phase four-wire • Test method: no-load, single-phase (two-core), three-phase (three-phase three-wire/three-phase four-wire) • Determination method of the test result: A: Indication: O, R, S, T, Phase line broken and stop automatically B: Indication: R/S, R/T, S/T/R/O, S/O, T/O, short-circuit and stop automatically C: Indication: O, R, S, T, pulley short-circuit and stop automatically • Winding speed: Two-pulley: 0.33 m/s, three-pulley: 0.1m/s • Winding travel: ≥1M • Testing current: 0~35A • Testing voltage: single-phase AC 0~250V, three-phase AC：0~450V • Heavy hammer: Two-pulley: 0.5kg, 1.0 kg, 2.0 kg, 3.0 kg, 4.0 kg, two of each; Three-pulley: 21N, 28N, 42N, two of each • Pulley structure: The trolley is the two-pulley and three-pulley sharing structure, which is easy to replace • Two-pulley: Ф80, Ф 120, Ф 160, Ф 200mm, two of each • Three-pulley: Ф 40, Ф 45, Ф 50mm, three of each Specifications: • Overall dimensions: 2100mm×850mm×1500mm • Power supply: AC 380V 50/60Hz 10A go to product group+
GB/T 2951-2008 Double-end Grinding Machine Product description: Double-end grinding machine is used to grind the rubber, plastic and the other similar sample to a certain thickness for the test of other testing device, with advantages of both precision grinding wheel and fine grinding wheel working at the same time Standard: • GB/T 2951-2008 Technical parameters: • Grinding wheel speed: 12m/s • Grinding wheel: G260APRI 170×40×32, 36 grain G260APRI 170×40×32, 80 grain • Motor：GO2-11-40.6W, three- phase 380V, 1400r /min； • Working dimensions: diameter: 160mm×44mm, height of center: 214mm • Working wheel stroke: 20mm Specifications: • Overall dimensions: 500mm×400mm×314mm • Power supply: AC three- phase 380V 50/60Hz 3A • Weight: 80kg go to product group+
GB/T 2951-2008 Specimen Slicing Machine Product description: Specimen slicing machine is in line with IEC 60811, which is allocated to complete the hot set test and tensile test to meet with the product quality standard requirement. It must be used with the sample cutter that equipped with dumbbell die Standard: • GB/T 2951-2008 Technical parameters: • Max cutting width: 40mm • Cutting speed: 17m/min • Upper roller adjustment range: 0.5mm-15mm • Motor power: 370W Specifications: • Overall dimensions: 600mm×450mm×980mm • Power supply: AC 220V 50/60Hz 3A go to product group+
GB/T 2951.11-2008 Dumbbell Die Sample Cutter Product description: Dumbbell die sample cutter is used to cut rubber, insulation and sheath materials, make them to be standard-shaped sample for test. Allocated with various dumbbell cutter dies for different test requirements Standard: • GB/T 2951.11-2008 Technical parameters: • Max stroke: 35mm • Stroke adjustment range: 100mm • Working bed size: 210×170mm • International dumbbell cutter die: 50×8.5×4mm, 75×12.5×4mm • Dumbbell cutter die is able to be customized Specifications: • Overall dimensions: 370mm×315mm×530mm • Weight: 50kg go to product group+
GB / T 5023.1-2008 Load Off Core Tester Product description: Load off core tester is used to load off core test of finished flexible cables, take a flexible cable specimen in appropriate length, mount one end of it on a rigid support, and hang a 0.5kg heavy hammer on the specimen 0.5m away from the bottom of the support point, when test current about 0.1A is charged in conductors, lift the heavy hammer to the support point and free fall, repeat five times, current interruption does not occur during the test Standard: • GB / T 5023.1-2008 Technical parameters: • Heavy hammer: 0.5kg • Test height: 0.8m • Test current: 0.1A • Test voltage: 12V Specifications: • Overall dimensions: 400mm × 450mm × 1180mm • Power supply: AC 220V 50 / 60Hz go to product group+
JB / T8319-1999 Insulation Adhesion Force Tester Product description: Insulation adhesion force tester is designed accordance with national standards JB / 8139-1999, adopting 2mm stainless steel wire drawing plate to punch apertures, these apertures are slightly bigger than the corresponding core’ diameter successively, so that the core can smoothly pass through the horizontal aperture; 10mm steel plate at bottom is worked as stabilizing and supporting. φ20mm hard chrome plating optical axis on both sides are simplicity, that play a supporting role in horizontal stainless steel sheet; enable to successively select according to test requirements Standard: • JB / T8319-1999 Technical parameters: • Horizontal steel plate: 2mm stainless steel wire drawing plate • Aperture size: φ1.0, φ1.2, φ1.5, φ1.6, φ2.0mm • Weight: 0.50kg, 1.25kg • Optical axis: φ20mm hard chrome plating optical axis Specifications: • Overall dimensions: 300mm × 150mm × 352mm go to product group+
GB/T 25085-2010 • ISO6722:2011 Road Vehicles Cable Scrape Resistance Tester Product description: Road vehicles cable scrape resistance tester is used to detect the insulation and abrasion resistance strength of road vehicles PVC insulation low voltage cables. It is an essential test instrument for automotive wire production. This tester consists of a specially designed insulating surface reciprocating abrasion device which is along with the Specimen shaft, and a counter which is used to record the times and with reset function, when the needle scraping grinding through the insulator and touch the conductor, the device should stop automatically. Optionally stop during the test, and then restart. Specimen placement and force: the Specimen should not be moved during the test, in the state of motion, constant vertical force is on the Specimen Standards: • GB/T 25085-2010 • ISO6722:2011 Technical parameters: • Diameter of scraping-needle: 0.45mm±0.01mm • Frequency: reciprocate 55/min ±5/min( one round trip is one time) • Displacement of Scraping-needle: 20mm±1mm • Counter: 0 ~ 999999 • Weight: (258g/564g) one each of them • Testing voltage: about 8~10V • Scraping-needle assembly: 150±5g Specifications: • Overall dimensions: 500mm×400mm×420mm • Power supply: AC 220V 50/60Hz 5A go to product group+
JB/T 10696.6-2007 Wire and Cable Sheath Scratch Resistance Tester Product description: Wire and cable sheath scratch resistance tester is used to test the wire and cable sheath if it is breakdown and cracking of its inside and outside after being scratched and worn, with smart counting system, straightforward; it stops automatically when the specific digital achieves; customized weights, easy to load and unload Standards: • JB/T 10696.6-2007 Technical parameters: Cable measured outer diameter D(mm) Force(N) 30≤D＜40 65 40≤D＜50 106 50≤D＜60 155 60≤D＜70 210 70≤D＜80 270 80≤D＜90 340 90≤D＜100 420 100≤D＜110 550 110≤D 550 • Abrasion head curvature radius: R1.5mm • Abrasion stroke: 600mm • Abrasion speed: 15～30cm/s • Counter digit: 4places • Weight: 1N, 5N, 10N, 50N, 100N, 200N，one of each; 20N, 2 pcs Specifications: • Overall dimensions: 1200mm×600mm×1200mm • Power supply: AC 380V 50/60Hz 3A go to product group+
UL1581 Durability of Indelible-ink Printing Module Product description: Manual durability of indelible-ink printing module is in accordance with UL1581,Sect.169 Standard: • UL1581 Technical parameters: • Load-block dimensions: 25×50mm • Load-block weight: 450g • Felt thickness: 1.2mm go to product group+
Automatic Durability of Indelible-ink Printing Tester Product description: Automatic durability of indelible-ink printing tester can be used to test the abrasion resistant performance of printing on the wire completely automatically Technical parameters: • Friction Load: 450g±5g • Friction velocity: 10c.p.m • Friction fabric: woolen blankets 30% (self-prepared) • Friction distance: 100mm • Counter: LCD, 0 ~ 999,999 • Test stroke: 200mm; • Weight: 450g; • Test station: 2 groups. Specifications: • Overall dimensions: 540mm × 450mm × 540mm; • Power supply: AC 220V 50 / 60Hz 1A. go to product group+
GB/T 5023-2008 • GB/T 5013-2008 Electric Wire Static Flexibility Tester Product description: Electric wire static flexibility tester is applicable to standard IEC60227 and IEC60245-2:1998 the cable static flex test item for the mechanical strength test of finished flexible cables Standards: • GB/T 5023-2008 • GB/T 5013-2008 Technical parameters: • Flexing length: 200－1500(mm) • Flexing stroke: 1.3m • Specimen outer diameter: Φ6－32(mm) • Specimen length: 3000±5﹪(mm) • Height apart from the ground: 1500mm Specifications: • Overall dimensions: 2000mm×400mm×1800mm • Power supply: AC 220V 50/60Hz 2A go to product group+
GB/T 2951-2008 Resistance to Cracking Winding (thermal shock) Test Device Product description: Resistance to cracking winding (thermal shock) test device is suitable for PVC wire and cable winding before cracking test under the high temperature state, it is not only a auxiliary tool for the wire and cable cracking test, but also applicable to other unemployed soft wire winding test Standards: • GB/T 2951-2008 Technical parameters: • Max winding diameter: Φ12.5mm • Max winding width: 72mm • Max winding length: 200mm • Core rod: Ф2, Ф4, Ф5, Ф6, Ф8, Ф9, Ф10, Ф13, Ф19, Ф40 Specifications: • Overall dimensions: 242mm×160mm×80mm go to product group+
GB/T 12706-2002 XLPE Cable Insulation Splitting Machine Product description: XLPE cable insulation splitting machine is a requisite test apparatus to sample 35KV and under XLPE cables for the mechanical and physical property tests. The feature is to change the traditional rotary slicing blades into translational slicing blades, being allocated to complete the hot set test and tensile test, To meet the standard requirements of products, and avoid the irregular wheels on the specimen surface caused by rotary slicing blades, greatly improving the reliability of the test results, reducing the dispersion of the test results, safe to use, easy to operate. It is perfect equipment for sample preparation of polyethylene, polyethylene plastic, insulated power cables, insulated overhead line mechanical and physical property tests. The slipper of this equipment adopted with a dovetail groove dedicated for machine tool, which is with high precision driving screw, to make the device run more smoothly Standard: • GB/T 12706-2002 Technical parameters: • Max working width: 150mm • Cutting range: 0.5-2mm • Cross cutting sample width: 10mm－150mm • Longitudinal cutting sample width:10mm－150mm • Motor power: 0.55KW Specifications: • Overall dimensions: 1150mm×600mm×1080mm • Power supply: AC 220V 50/60Hz 10A go to product group+
GB/T 25085-2010 • ISO6722:2006 Road Vehicles Cable Drag Abrasion Tester Product description: Road vehicles cable drag abrasion tester is used to test road vehicles PVC insulated cables drag abrasion strength test. It’s an essential test instrument for road vehicles cable production Standards: • GB/T 25085-2010 • ISO6722:2006 Technical parameters: • Applicable wire diameter: 0～15mm • Abrasive belt counting range: 0～5000mm(± 2.5%) • Abrasive belt movement speed: 1500mm/min • Support abrasive belt circular bead: ￠7mm • Test voltage: 10V • Weight: two standards, only used for relevant standard (optional for users) GB weight: 250g, 450g, 750g, 1350g, 1900g, one each Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized) Weight of bearing kit (± 5g): 160g/PCS (customized) Japanese standard weights: 50g, 100g, 200g, 500g, 1500g, 1900g, one each Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized) Weight of bearing kit (± 5g): 64.24g/ PCS (customized) • Included angle of sandpaper and Specimen: 30° (adjustable) • Conductive bar width: 10mm • Distance of conductive bars: 150mm Specifications: • Overall dimensions: 720mm×370mm×450mm • Power supply: AC 220V 50/60Hz 1A go to product group+
GB/T 5023.2-2008 Wire Bending Tester Product description: Wire bending tester is applicable to bending test of power lines and DC lines for manufacturers and quality inspection departments, as well as power cable, USB cable, headphone cable, audio cable, plug wire, headphone cable and other finished wire bending test and swing or tests Standard: • GB/T 5023.2-2008 Technical parameters: • Test speed: 10-60 times adjustable • Bending angle: ±90° • Specimen workstation: 1group • Weight: 500g • Load current: 0.1A, voltage is less than 24V • Bending counter: 0~999999 pre-settable • Clamp width: 20mm,R angle is 2.5 Specifications: • Overall dimensions: 540mm×550mm×900mm • Power supply: AC 220V 50/60Hz 2A go to product group+
GB/T 5013-2008 Wire Abrasion Resistance Tester Product description: Wire abrasion resistance tester is mainly used for abrasion resistance test of rubber cable and braided flexible cord, which the rated voltage is 450/750V and diameter is less than 12mm Standard: • GB/T 5013-2008 Technical parameters: • Diameter of the fixed axle: Φ40mm±0.3mm • Distance between the fixed axle blocks: 0-50mm, continuously adjustable • Specimen moving speed: one-way 40/min, continuously adjustable • Specimen motion stroke: 100mm±2mm • Specimen working station: 3 • Counter: 1-999999, preset testing times • Weight: 500g±2g, quantity 3 Specifications: • Overall dimensions: 500mm×500mm×800mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Bending Tester Product description: Bending tester is applicable to bending test of cables for manufacturers and quality inspection departments. The method is to fix one end of the cable on the turntable, meanwhile passing through the bending round rod (optional), and the other end hanging a certain weight, the disc is rotated left and right during testing, to drive the specimen bending left and right, until it’s not charged with electricity after a certain number of times, the tester automatically stops operating, and then check its total number of swing. Technical parameters: • Shaking frequency: (10 ~ 60) ± 2 times / min, adjustable • Adjustable shaking angle: ± 90°, adjustable (four angles: <30º \ 45º \ 60º \ 90º> ± 1º) • Bending diameter: 10mm / 20mm / 30mm / 40mm / 50mm, straight line rod length of 50mm • Shaking times: 0 to 9999999, pre-settable • Controller: 7 inch TFT true color screen, one-button operation • Test station: 3 groups • Diameter of test cable: 1 ~ 20 mm • Motor: servo motor control system • Mass of weight: 100g, 200g, 300g, 500g, 600g, 900g, 1000g three groups of each • Wire grip adjustable range: 1 ~ 20 mm • Turntable size: diameter of 200mm Specifications: • Overall dimensions: 1200 × 800 × 1510mm (L × W × H) • Power supply: AC 220V 50 / 60Hz go to product group+
GB4909.4-2009 • GB4909.7-2009 Bare Wire Mandrel Winding and Torsion Tester Product description: Bare wire mandrel winding and torsion tester is used for copper rods, aluminum rods, steel wires mandrel winding and torsion tests under the specified torsion speed; as well as test of broken resistance strength and torsion frequency performance for different metal wires, and toughness and adhesion performance for overhead wire and galvanized steel wire. Test method is to clamp the both ends of the specimen, one end is fixed and the other end 360º continuously twisted Standards: • GB4909.4-2009 • GB4909.7-2009 Technical parameters: • Torsion specimen diameter range: copper rod less than φ8mm, steel wire less than Ф3mm • Torsion speed range: (10, 30, 60)r/min, adjustable • Grip space: 0~500mm • Grip movement: chuck type • Winding specimen diameter range: aluminum wire: Ф3mm-6mm, use the core rod for test, those of diameter are less than Ф3mm, we suggest to wind them manual; steel wire: less than Ф4mm • Core rod range: Ф3mm, Ф4mm, Ф5mm, Ф6mm, Ф8mm, Ф10mm, Ф12mm, Ф14mm, Ф16mm, Ф18mm, Ф20mm • Weight: 500g×1, 1000g×1, 2000g×4 • Hook: 587.5g Specifications: • Overall dimensions: 1400mm×500mm×1500mm • Power supply: AC 220V 50/60Hz 4A go to product group+
GB/T 5023.6-2006 Lift Cable Flexibility Tester Product description: Lift cable flexibility tester is based on the current needs of the international market, the addition of the new standard GB/T5023.6-2006: Polyvinyl chloide insulated cables of rated voltages up to and including 450/750V--Part 6: Lift cables and cables for flexible connections test apparatus Standard: • GB/T 5023.6-2006 Technical parameters: • Specimen voltage: DC12V • Test speed: max relative acceleration 4m/s • Test speed: 1500 ± 10( times/H ) • Max distance between grip heads: 1700 ± 10(mm) • Min distance: 760 ± 10(mm) • Test times: 15000 times (round trip) Specifications: • Overall dimensions: 2200mm×800 mm×1300 mm • Power supply: AC 220V 50/60Hz 3A go to product group+
IEC60245.8:1998 • GB/T 5013.8-2008 • GB/T 5013.2-2008 Rubber Insulated Cables Flexibility Tester Product description: Rubber insulated cables flexibility tester is suitable for the two-core and three-core sheathed cable that conductor cross-sectional area is 1.5mm2 or less, in line with standard IEC60245.8:1998 Standard: • IEC60245.8:1998 • GB/T 5013.8-2008 • GB/T 5013.2-2008 Technical parameters: • Specimen voltage: 220/450V (adjustable) • Conductor cross-sectional area: 0.75mm2～1.5mm2 • Test current: 6 -20A • Specimen length: 1000mm • Testing times: 3000 times (back and forth) • Loading: 10, 20, 25, 30, 50, 70, 100N • Upper grip displacement speed: 9 times (back and forth)/Min • Total length of upper and lower grips after straight: about 800mm Specifications: Overall dimensions: Electric cabinet: 600mm×600mm×1200mm Twisting tester: 350mm×280mm×1800mm Power supply: AC 380V 50/60Hz 5A go to product group+
Bare Wire Repeated Bending Tester Product description: Bare wire repeated bending tester is applicable to production plants and users of wires and cables, bare wires, wire ropes and others. Mainly use for repeated bending tests of bare wires and metal wires, to detect their plastic deformation performance and failures in repeated bending Test method: fixe one end of the specimen, and the free end along with a predetermined radius of cylindrical surface to do bending test at 90° normal and reverse directions Standards: • GB / T4909.5-2009 Technical parameters: • Specimen length: 300mm • Suitable wire OD: φ0.7mm ~ φ8.0mm • Bending rate: 10 to 60 beats / min • Times setting: 0 to 9999 times, settable • Cylindrical bending radius: r2.5, r3.75, r5, r7.5, r10, r15, r20mm • Distance: 15 ~ 100mm, adjustable Specifications: • Overall dimensions: 700mm×450mm×1000mm • Power supply: AC 220V 50 / 60Hz 0.75kW go to product group+
Towline Testing Machine Product description: Towline testing machine is used to test the single or multi-core cable fatigue strength, with function that stop running when one core or all the cores are break down. Touch screen to set test parameters and control the entire test process. The towline is used for mounting specimens and provide the required bending radius (replaceable), there are grips in both ends of towline that for holding specimens, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical parameters: Model No YN22181 YN22181B YN22181C YN22181D YN22181E Times Max: 60 Max: 60 Max: 35 Max: 25 Max: 35 Running distance (mm) 600 1000 1500 2000 1000 Towline quantity 4 4 4 4 1 Towline bending radius R28, R55, R75, R100 R100 Total cores of specimen ≤ 200 ≤ 200 ≤200 ≤200 ≤50 Features Touch screen have prompt function, each group enables to do core break detection, you can choose to stop running when one core or all the cores are break down; YN22181C D stroke and rate(XX times / min) is settable Each core is counted separately, each core can be zero-cleared individually, each group can be all zero-cleared All test data are stored function in case of power-down, to prevent data loss due to power failure Transfer method Inverter Servo controller Control method Touch screen + Microcontroller Counting 0～99999999 times Off signal voltage DC24V Power AC220/AC380V 50/60Hz Motor Power(KW) 1.5 3.7 3.0 1.5 0.75 Dimensions L × W × H（mm） 2400×950×1030 3000×1150×1500 2560×950×1230 3400×1000×1200 1800×500×850 Nylon towline Wearing parts go to product group+
Automation Cable Bending Tester Product description: Automation cable bending tester is used for testing bending mechanical properties of single and multi-core cable, with functions of single and stop working when all are disconnected. Touch screen to set test parameters, the pendulum rod holder holding the upper end of the sample, the lower end sequentially passes between the bent rod and anti-pendulum, vertically hang weights, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical Parameters: • Rate: Max 80 times / min • Bending angle: ±90°, ±60°, ±30° • Bending radius: R10, R15, R20, R25mm • Working station: 3 groups • Cable diameter range: ≤30mm • Cable cores: ≤50 cores / group • Weight: 50g, 100g, 200g, 500g, 1000g, three of each (customized according to customer’s requirements) • Counter: 0 to 9999999 times, 3 groups • Specimen bend mode: angle R is immobile when the specimen is bending, tract the specimen to bend by grips • Power signal voltage: DC24V • Enable to record breaking number of times during test • Optional load testing • Load current: 0-30A, adjustable • Current display: digital Specifications: • Overall dimensions: 1750mm×650mm×1100mm； • Power supply：AC 220V 50/60Hz 1.5kW go to product group+
Automation Cable Twist Tester Product description: Automation cable twist tester is used for testing twist resistance mechanical properties, with functions of single and stop working when all are disconnected. Touch screen to set test parameters, three-jaw chuck holder to hold specimens, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical Parameters: • Rate: 10 ~ 270º 60 times / min; 270 ~ 450º 40 times / min • Twisting mode: vertical twist, lower fixed, upper twist; • Twist angle: ± 180° • Distance between grips: 500 ~ 1000mm, adjustable • Working station: 3 groups (all twisting modes are same), twisting direction is adjustable clockwise or counterclockwise • Cable diameter range: ≤30mm • Cable cores: ≤50 cores / group • Weight: 0.5,1KG / three pcs • Counting range: 0 to 9999999 times • Power signal voltage: DC24V • Reverse life:> 500 million times Specifications: • Overall dimensions: 1300mm×900mm×1680mm • Power supply: AC 220V 50/60Hz 4A go to product group+
GB/T 16584 • ISO6502 • HG/T 3709-2003 Rotorless Rheometer Product description: Rotorless Rheometer is an instrument which is able to get the cure characteristic curve and parameters of rubber materials, by measuring the applied torque of rubber materials to the reciprocating swing die body. YN41096 Rotorless Rheometer is with good repeatability and stability. Under conditions of 160 ℃, 12mins; use the properly mixed rubber sample to do the test 4 times continuously, the gap of T90 is only a few seconds. Powerful database capabilities, which is able to support a number of curves drawing to storage, output and print in the same interface. Scorching time optional (Ts1, Ts2, T10, T20 .... T90), measuring range selectable, sample curve drawing, screen data capture etc. Standards: • GB/T 16584 • ISO6502 • HG/T 3709-2003 Technical parameters: • Temperature range: room temperature～200℃ • Heating up rate: ±0.5℃ • Temperature display resolution: 0.1℃ • Heating rate: room temperature--200℃, about 10 mins achieves the balance • Torque range: 0～20N.m • Rotor swing angle: ±0.5° • Swing frequency: 1.67Hz (100r/min) Specifications: • Overall dimensions: 530mm×560mm×1020mm • Power supply: AC 220V 50/60Hz 5A go to product group+
GB/T 1232 • ISO289, ISO667 • HG/T 3242-2005 Computer-based Mooney Viscometer Product description: Computer-based mooney viscometer is used to test the viscosity, scorch and vulcanization index, etc. of the raw rubber or rubber compound, with microcomputer control, digital display, and automatic calibration, which is an ideal laboratory instrument for rubber industry and scientific research units. It is adopted with imported intelligent digital temperature control, easy to adjust setting and has wide range of temperature control; A control computer working with the interface board used for data collection, holding, processing and printing of test results and curve. Software platform can be Windows 98/me/NT/XP, etc. A Visual graphics software window interface, makes the digital processing more accurate and the operation simple, flexible and convenient. High reliability, fully embodies the characteristics of highly automated Standards: • GB/T 1232 • ISO289, ISO667 • HG/T 3242-2005 Technical parameters: • Temperature range: room temperature～200℃ • Heating up rate: ±0.5℃ • Mooney value measuring range: 0～200 mooney points • Mooney value resolution: 0.1 mooney point • Mooney value measuring accuracy: ±0.5 mooney point • Rotor rate: 2±0.02 r Specifications: • Overall dimensions: 530mm×560mm×1040mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Melting Index Apparatus/Melt Flow Rate Tester (Touch screen) Product description: Melting index apparatus/melt flow rate tester (touch screen) is used for determination of the melt mass-flow rate (MFR)/melt volume-flow rate (MVR) Tester (touch screen) for thermoplastics like polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials; which is adopted microprocessor control and integration, digital measurement and control technology, programmed test process settings in line with test standard, high heating rate, high constant temperature accuracy; after filling materials, it can restore a constant temperature quickly; English color and crystal display, voice prompts, touch-screen operation, convenient and easy to understand Standards: • GB/T3682-2000 • ISO1133-97, ASTM1238 Technical parameters: • Temperature control range: room temperature～450 ℃ • Temperature control precision: ±0.2 ℃ • Display resolution: 0.1 ℃ • Max power consumption: ≤500 W • Temperature recovery time: 4 min • Charging barrel parameter: inner bore: Φ9.55±0.025mm • Piston parameter: piston head Φ=9.475±0.015mm • Piston head length: H=6.35±0.1mm • Mouth mold configuration: excluding hole Φ=2.095±0.005mm • Mouth mold configuration: Φ2.095±0.005/Φ1.18±0.01mm • Weight parameter: 325g, 875g, 960g, 1200 g, 1640g(including pressure feeding rod) extra weights are available for user’s demand • Weight accuracy: ±0.5％ Specifications: • Overall dimensions: 500mm×320mm×600mm • Power supply: AC 220V 50/60Hz 3A • Volumetric method: (optional for users) go to product group+
Rubber and Plastic Low-temperature (impact) Embrittlement Tester Product description: Rubber and plastic low-temperature (impact) embrittlement tester is used to test the vulcanized rubber’s max temperature (brittleness temperature) under specified condition appearing damage by impact. Enable to make comparative identification of usability for plastics and other elastic materials at low temperature, and measure the pros and cons for brittleness temperature and low temperature performance of different rubber materials or different formulations of vulcanized rubber. Therefore, it is indispensable for quality inspection of scientific R&D materials and finished products, and quality control during production process, etc. Standards: • GB/T 5470-2008 Technical parameters: • Test temperature: -80℃, -70℃, -40℃～room temperature (optional for users) • Impact rate: 2m/s ±0.2m/s • Impact mode: Manual • After the temperature is constant, temperature fluctuation in 3 mins of the test: ＜±0.5℃ • Distance between the impactor head lateral and grippers: 2.0±0.1mm • Cold well volume: 7L Specifications: • Overall dimensions: 900mm×530mm×950mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Rubber and Plastic Low-temperature (impact) Embrittlement Tester Product description: Rubber and plastic low-temperature (impact) embrittlement tester is used to test the vulcanized rubber’s max temperature (brittleness temperature) under specified condition appearing damage by impact. Enable to make comparative identification of usability for plastics and other elastic materials at low temperature, and measure the pros and cons for brittleness temperature and low temperature performance of different rubber materials or different formulations of vulcanized rubber. Therefore, it is indispensable for quality inspection of scientific R&D materials and finished products, and quality control during production process, etc. Standards: • GB/T 1682-2014 Technical parameters: • Test temperature: -70℃, -40℃～room temperature (optional for users) • Impact load: 113 ± 5N • Impact power: pneumatic • After the temperature is constant, temperature fluctuation in 3 mins of the test: ＜±0.5℃ • Distance between the impactor center and end face of the gripper: 11±0.5mm • Distance between the impactor head and specimen: 25±1mm • Cold well volume: 7L Specifications: • Overall dimensions: 900mm×530mm×950mm • Power supply: AC 220V 50/60Hz 5A go to product group+
Power-driven Low Temperature Elongation Test Equipment Product description: Wire and cable power-driven low temperature elongation test equipment is applicable to polymer materials, wire and cable, rubber, plastic and other insulating sheath tensile test at 0 to -70℃ environment. The stretching device consists of motor, transmission parts, Specimen chuck, sensors and other components Standard: • GB/T 2951.14-2008 Technical parameters: • Electronic control cabinet: it consists of three groups of displacement indicators, stretching indicator, reset and speed regulating system(the stretching speed is preset before leaving factory) • The displacement display displays the displacement length accurately, when the specimen is being stretched, it displays the displacement automatically, when the specimen is stretched to break, the displacement figure stops at the very moment of being broken, and the unit is mm • Motor power: 120W, placed outside of the low temperature chamber • Max tensile strength: 220mm • Tensile speed: 20～30mm/min • Chuck type: Non-self-tightening type • Specimen model: No. Ⅰ, Ⅱ dumbbell specimen Specifications: • Overall dimensions: stretching device: 390mm×245mm×280mm control cabinet: 440mm×400mm×200mm • Power supply: AC 220V 50/60Hz 2A • This tester is used in conjunction with the low temperature chamber go to product group+
Low Temperature Winding Test Device Product description: Low temperature winding test device is used to examine the property of round cables and round insulated wire core under the low temperature conditions Standard: • GB/T 2951.14-2008 Technical parameters: • Low temperature winding specimen diameter: Ф2.5～Ф12.5mm • Winding rod diameter: Ф4, Ф5, Ф6, Ф7, Ф8, Ф10, Ф12, Ф14, Ф16, Ф20, Ф24, Ф28, Ф32, Ф36, Ф40, Ф45, Ф50, one of each; 17 in total • Through wire sheath: Ф1.2, Ф2.4, Ф3, Ф3.8, Ф4.7, Ф5.9, Ф7.4, Ф9.2, Ф11.5, Ф14.5, two of each • Specimen winding coil number: 2～10 coils • All the devices of this series are made of stainless steel • This tester is used in conjunction with the low temperature chamber Specifications: • Overall dimensions: 310mm×450mm×320mm go to product group+
Road Vehicle Cable Low Temperature Winding Test Device Product description: Road vehicle cable low temperature winding test device is used to examine the property of round cables and round insulated wire core under the low temperature conditions Standard: • QC/T 730-2005 Technical parameters: • Low temperature winding specimen: less than 10mm2 • Winding rod diameter: Φ6; 10; 15; 20; 40, one of each • Heavy weight: 0.5; 2.5; 5; 8; 10kg, two f each • Specimen winding coil number: less than 3 coils • Working stations: 2 • This tester is used in conjunction with the low temperature chamber Specifications: • Overall dimensions: 400mm×200mm×600mm go to product group+
Road Vehicle Cable Low Temperature Winding Test Device Product description: Road vehicle cable low temperature winding test device is suitable for road vehicles 60V and 600V single wire or single core of multi-core wire, to do winding test at low temperature, the device must be complied with cold chamber, in two ways of manual winding and automatic winding. Standard: • ISO 6722.1-2011 Technical parameters: • Diameter of inner core: Ф3, 4, 7.5, 9.6, 12, 15, 17.4, 25, 30, 32, 52, 58, 98.5mm, 13pcs in total • Weight: 0.5, 2.5, 5, 8kg, two of each, 10kg four pcs • Sample range: ≦ 19.7mm • Materials: mandrel and device rack are stainless steel, weights are A3 steel + chrome-plated steel • Minimum size of cold chamber: 700 × 600 × 700mm ISO conductor specifications (mm2) Max cable outer diameter(mm) Diameter mandrel±0.1mm A B Weight (KG) Winding rate(r/min) Min number of turns 1 a≦0.75 2.5 12 3 0.5 60 3 2 0.75 go to product group+
GJB Low Temperature Winding Frame Product description: GJB low temperature winding frame is suitable for measuring insulations dynamic bending performance of wires and cables used in aviation, aerospace at a low temperature state Standards: • GJB17.21-84 • GJB773A-2000 Technical parameters: • Specimen diameter range: ≦ 10mm • Materials: mandrel and device rack are stainless steel, weights are A3 steel + chrome-plated steel • Internal dimensions of cold chamber: 1000×1000×1000mm • Working stations of device: 3 groups • Mandrel diameter and weight specifications as following: Low Temperature Winding Frame Winding rod (mm) Weight (KG) 1 6.4 3 pcs of each kind 0.227 3 pcs of each kind 2 9.5 0.340 3 12.7 0.454 4 19.1 0.907 5 25.4 1.36 6 76 1 pc of each kind 0.113 7 152 0.170 8 254 0.680 Specifications: • Overall dimensions: 580mm×450mm×937mm go to product group+
Low Temperature Impact Test Device Product description: Low temperature impact test device is used to examine the impact resistance property of electric accessories under low temperature conditions, as well as all kinds of PVC sheathed cables, if there are provisions for relevant cable product standard, it also can be applied to the polyethylene insulation of non-sheathed wires, cords and flat cords Standard: • GB/T 2951.14-2008 Technical parameters: • Height of impact at low temperature: 100mm • Weight: 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500g, three of each • This device is three groups of type • This tester is used in conjunction with the low temperature chamber Specifications: • Overall dimensions: 390mm×130mm×430mm  go to product group+
Hot Set Test Equipment (three groups type) Product description: Hot set test equipment is used in conjunction with the high-temperature oven, specimens are hung in the device and placed in an oven, and put the weights on the lower grip of specimens, after 10 minutes, measure the distance between the marks and calculate the elongation Standard: • GB/T2951.21-2008 Technical parameters: • Weight: 1g, 5g, 20g, 50g, 200g, three of each2g, 10g, 100g, six of each, 33 pcs in total • Max number of specimens in one test: 3 Specifications: • Overall dimensions: 330mm×160mm×355mm go to product group+
Electric Wire Heating Deformation Test Device Product description: Electric wire heating deformation test device in line with UL-1581 heat deformation test requirements, is used in conjunction with aging oven, with a tray that appropriate weights can be added accordingly Standard: • UL 1581 Technical parameters: • Pressure rod upper end diameter: Φ19mm • Pressure rod lower end diameter: Φ9.5mm • Pressure rod total weight: 250g • Working stations: 3 groups • Weight: 1g, 5g, 20g, 50g, 200g, one of each; 2g, 10g, 100g, two of each; 11pcs / unit in total Specifications: • Overall dimensions: 216mm×70mm×153mm go to product group+
Cable PVC Compounds Thermal Deformation Device Product description: Cable PVC compounds thermal deformation device is used for determination of thermal deformation for plasticized polyvinyl chloride (PVC) compounds for wire and cable Standard: • GB/T 8815-2008 Technical parameters: • The cylindrical pressure rod downward total pressure: 3.5±0.02N • Diameter of pressure rod lower: 3.15±0.03mm • Maximum specimen numbers of one test: three groups Specifications: • Overall dimensions: 350mm×160mm×230mm go to product group+
Cable Core Striping Device Product description: Cable core striping device is used for pushing out the conductors inside of electrical cables and optical cables Technical parameters: • Max thrust force: 10T • Cylinder stroke: 200mm • Export rod diameter: φ10, φ20, φ30 (customized according to customer’s requirements) • Template mold eyes: φ15, φ25, φ35, φ45, φ55 (customized according to customer’s requirements) • Template mold thickness: 10mm thick, SUS304 materials • Machine surface treatment: electrostatic painting process, corrosion-resistant, hard chrome plated for special positions, smooth and wear surface Specifications: • Overall dimensions: 470mm × 570mm × 840mm. go to product group+
Soldering Tester Product description: Soldering tester adopted with advanced machinery, record the displacement and time traveled in the whole process of test by electronic PCI capture card, to research if the spacer layer between un-tinning conductors and insulators is valid or not Standard: • GB / T 5013.2-2008 • GB / T60245-2 Technical parameters: • Cross-sectional diameter range of holding specimen: φ1-φ9 • Effective stroke: about 110mm • Test rate range: 25mm / s • Drive connecting plate: high carbon steel forged, good mechanical performance, without deformation • Drive screw: §8 high precision gapless ball screw, non-deformation after being used for a long time Grips: Self-tightening drill chuck • Guide rod bearings: JBDQ inlaid graphite bearing • Guide rod: it’s made of two ∮12 Korean Taijing guide rods, whose surface is being processed by high temperature and hard chrome electroplating, HRC is over 60 • Tin furnace temperature: 270 ℃ Specifications: • Overall dimensions: 500mm×505mm×970mm • Power supply: 220V 50 / 60HZ go to product group+
Pressure Test Device at High Temperature Product description: Pressure test device at high temperature is used in the indentation of the wire and cable insulation being produced at high temperature and pressure. To test the high temperature resistance and high pressure resistance deformation ability under thermal and mechanical loads simultaneously Standard: • GB/T 2951.21-2008 Technical parameters: • Thickness of blade edge: 0.70±0.01mm • Load worked on the blade edge: 1N~10N, 10 pcs in total, customized according to the data offered • Load worked on the blade edge(from the formula): F= k √2Dδ- δ2 • Max specimen numbers in one test: 3 • Weight: 1g, 5g, 20g, 50g, 200g, one of each; 2g, 10g, 100g, two of each, 11 pcs/ three units in total Specifications: • Overall dimensions: 350mm×200mm×277mm go to product group+
Two Roll Mill Machine Product description: Two Roll Mill Machine is used for plasticization and dispersion of masterbatch, PVC, plastic, pigment, adopted the electric heating specialized mould, double-roller mirror chrome plated, temperature uniformity, adjustable roller gap space, a safety protection device, good dispersion, light and easy to use Typical applications: • Mixture, color test, tabletting of raw materials • Color matching test • Hardness test • Testing stabilizer • Physical test • Chemical test • All kinds of special ingredients • Small scale production Specifications: Temperature Room temperature～200℃ Temperature controller LED digital display, button setting and input, digital display output Temperature precision ±3.5℃ Heating method Tubular electric heating element Heating up time It takes about 30min from room temperature to 200℃ Ratio of revolution 1: 1.27 Number of revolution Constant rate/rate governing(optional) Roller spacing 0.1～10mm Roller size(ø×L) ø120×L320mm/ø150×L320mm(optional) Roller surface HRC 60 mirror-like chrome plating Power 5KW Safety protection Pull rod stop, knee top reverse and other security devices Dimensions (W×D×H) About 1200×600×1380mm Power supply 3∮, AC380V,22A, three-phase five-wire Weight About 375kg go to product group+
High and Low Temperature Test Chamber Product description: High and low temperature test chamber is used to examine and determine the storage and working performance of electronic, electrical, automobile electrical appliances and materials etc, under conditions of high and low temperature environment, which is for schools, factories, war industries, R&D departments and so on Standards: • GB 2423.1—2001 • GB 2423.2--2001 Technical parameters: • Chamber structure: the test chamber body is shaped by the numerically-controlled machine tool, which has a beautiful and generous appearance, and it adopts a no-counteractive handle, which is easy to operate. Test chamber liner is adopted the imported high-quality stainless steel (SUS304) mirror panels, test chamber surface is adopted A3 steel plastic spraying, which increases the texture and cleanliness of the appearance. Large observation window with lights to keep the chamber bright, and using the heating element embedded tempered glass to observe the situation inside the cabinet very clearly any time. Equipped with a test interface with diameter of 50mm, for external testing power supply line or signal line • Control system: adopted a Japanese RKC display temperature controller, temperature control output powers are all calculated by P.I.D microcomputer • Refrigerating system: the refrigerator is adopted French original "Tecumseh" hermetic compressor. Filter drier, refrigerant flow windows, repair valve, oil separator, solenoid valve, liquid storage cylinder are all imported original pieces • Working room dimensions:(selected by users) Working volume Working dimensions 100L 400×500×500 150L 500×600×500 225L 500×600×750 500L 700×800×900 800L 800×1000×1000 1000L 1000×1000×1000 1300L 1000×1000×1300 • Temperature range: 0℃-150℃, -20℃-150℃, -40℃-150℃, -60℃-150℃, -70℃-150℃(optional for users) • Temperature fluctuation: ±0.5℃ (no-load) • Temperature deviation: ≤±2℃ • Average heating and cooling rate: 0.7℃～1.0℃/min (no-load) • Time setting range: 0～9999 hours Specifications: • Overall dimensions: customized depends on users’ requirement • Power supply: provided according to model selection of users go to product group+
Automatic Intelligent Low Temperature Elongation and Winding Tester Products description: Automatic intelligent low temperature elongation and winding tester is the latest auto intelligent test machine with integrate functions of cold elongation and winding tests, the equipment adopts a HMI control interface, intelligent operation, simple and convenient, equipped with micro-printer to print out test data. The equipment consists of four devices: high and low temperature test chamber, motor-driven cold tension device, cold winding test device, cold impact test device. High and low temperature chamber simulated high and low temperature environment, is widely used to determine the adaptability of electrical and electronic products for high and low temperature environment ( especially electrical and mechanical property change of products ), can also be used to check specimen corrosion tolerance abilities. Motor-driven cold tension test device is suitable for elongation test of polymer materials, wires and cables, rubber, plastics insulating sheath under conditions of 0 ~ -40 ℃/-60 ℃/-70 ℃, its structure and performance are in line with standard of GB/T2951-2008. Cold winding test device is generally applicable to the round insulating cores with outer diameter including 12.5mm and fan insulating cable cores which are unable to be prepared as dumbbell specimens. If the relevant cable products specified in the standard, the test should be carried out in big size insulated cores. Otherwise, the big size insulated core should be conducted cold tension test. Cold impact test device is applied for a variety of PVC sheathed cables, irrespective of the insulation types of insulated cores. If there are relevant provisions of cable product standards, it is also applied to polyethylene insulation of non-sheathed wires, cords and flat cords. PVC insulations of sheathed cables cannot be conducted impact test at low temperature directly Features: • Attractive appearance, safe and reliable • Reading convenience, stability, high accuracy • No manual calculation, easy to operate Technical parameters: • Working room dimensions (optional for users): Working volume Working dimensions(mm) 168L 500×580×580 225L 500×600×750 500L 700×800×900 1000L 1000×1000×1000 • Temperature range: -40 ℃/-60 ℃/-70 ℃ ~ 150 ℃(optional for users) • Temperature fluctuation: ± 0.5 ℃ ( no load ) • Temperature deviation: ≤ ± 2 ℃ • Heating and cooling average rate: 0.7 ℃ ~ 1.0 ℃/min ( no load ) • Time setting range: 0 to 9999 hours • Tension device: Motor: 120W, installed inside of the chamber Maximum tension strength: 220mm Tension rate: 20 ~ 30mm/min Chuck type: Non- self-tightening Specimen size: No Ⅰ, Ⅱ dumbbell die Data display: direct reading elongation • Winding device: Winding specimen diameter: Ф2.5 ~ Ф12.5mm Winding rod diameter: Ф4.0 ~ Ф50mm, 17 pcs in total Thread guide jacket: Ф1.2 ~ Ф14.5mm, 10 types in total, two of each Specimen winding number: 2 to 10 circles Winding rate: 5s/circle • Impact device: Impact height: 100mm Weights: 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500g; this device is three groups of type Specifications: • Overall dimensions: according to the customer 's selection to provide • Power supply: AC 220V 50/60Hz 20A, AC 380V 50/60Hz go to product group+
Programmable (alternating) Constant Temperature and Humidity Test Chamber Product description: Programmable (alternating) constant temperature and humidity test chamber is used to examine and determine the storage and working performance of electronic, electrical, automobile electrical appliances and materials etc, under conditions of high and low temperature environment, which is for schools, factories, war industries, R&D departments and so on. It adopted the imported original microcomputer large LCD(320 × 240 dots), with both Chinese and English display and control system. Infinitely repeated cycle tests, max time setting in each period is 99hrs 59mins, max settable capacity of the program is 120 groups: 100 segments: 999 circles, with smart PID＋SSR/SCR forward and backward direction sync output, enable to set the LCD screen Back Light opening time, to extend using life of Back Light. With functions of program correction, clear, reservation start, and power off memory and other functions. All components of heating, cooling, humidification, and dehumidification are totally automatically controlled by the microcomputer, the system is completely independent of the individual. Chamber structure: the test chamber body is shaped by the numerically-controlled machine tool, which has a beautiful and generous appearance, and it adopts a no-counteractive handle, which is easy to operate. Test chamber liner is adopted the imported high-quality stainless steel (SUS304) mirror panels, test chamber surface is adopted A3 steel plastic spraying, which increases the texture and cleanliness of the appearance. Large observation window with lights to keep the chamber bright, and using the heating element embedded tempered glass to observe the situation inside the cabinet very clearly any time. Equipped with a test interface with diameter of 50mm, for external testing power supply line or signal line Standards: • GB 2423.1—2001 • GB 2423.2--2001 Technical parameters: • Working room dimensions: (selected by users) Working volume Working dimensions 100L 400×500×500 150L 500×600×500 225L 500×600×750 500L 700×800×900 800L 800×1000×1000 1000L 1000×1000×1000 1300L 1000×1000×1300 • Performance parameters: Performance Humidity thermostat Balance temperature and humidity control (BTHC)PID smart adjustment Temperature range -20 ℃ ~150 ℃, -40 ℃ ~150 ℃, -60 ℃ ~150 ℃, -70 ℃ ~150 ℃(optional) Humidity range 30%-98%R.H Temperature uniformity ±2℃ Temperature fluctuation ±0.5℃ Humidity uniformity ±3%R.H Humidity fluctuation ±1%R.H Heating rate ≥ 2.5°C/min Cooling rate 0.7-1°C/min Materials Liner materials SUS304 light stainless steel plate Surface materials SUS304 brushed stainless steel plate or rust treatment cold-rolled steel(plastic spraying) Insulating materials Superthin glass wool + Polyurethane foam Adjuster Refrigeration mode Mechanical binary refrigeration mode Refrigerator Totally- enclosed ( France Tecumseh/ German Copeland) compressor Refrigerant R23/R404A (environmental) Condensing mode Air cooling system Heater Nichrome stainless steel heater Humidifier Stainless steel humidifier Air blower Centrifugal fan Airflow mode Broadband type forced air circulation (upper in, lower out) Controller Operating interface LCD touch screen, Chinese-English shift Running mode Constant running, program running Program memory capacity 120 groups of programmable programs, each program max: 999 (sections) Setting index range Temperature: -100℃+300℃, Humidity: 99.9％R.H Resolution Temperature: 0.1℃, Humidity:0.1％R.H Input PT100 Platinum resistance Control mode PID control Accessory functions Upper and lower limit alarm, self diagnosis, alarm display(failure cause), timing device(Automatic startup, shutdown) Water supply Water supply way Circulating water supply Water-feed tank Built-in portable (30kg capacity) Water quality Resistivity＞500Ω.M Standard configuration One observing window (double hollow timbered glass), one 60mm test hole (on the left), 2 layers sample rack, one lamp inside the chamber (fluorescent), one water supply tank Safety device Power supply is adopted the leakage protector, anti-dry heating device, water system protection device, extreme high or low temperature protection, temperature deviation alarm, overpressure, overload, lack of water, or lack of equal protections Specifications: • Overall dimensions: customized depends on users’ requirement • Power supply: provided according to model selection of users go to product group+
Ozone Resistance Aging Test Chamber Product description: Ozone resistance aging test chamber is used to test and determine the rubbers’ ozone resistance aging property of rubber products such as vulcanized rubber, thermoplastic rubber and cable insulation sheath according to the crack and other properties’ change occurred on the sample’s surface, when they’re in the static stretching or continuous dynamic tensile deformation or continuous dynamic and static stretching alternate tensile deformation, being exposed under the constant ozone concentration air and constant temperature chamber which is air confined without light in the preset time, it is widely used in schools, factories, military industry, research departments, etc. Standards: • GB/T 2951.21--2008 Technical parameters: • Working room dimensions: (selected by users) Working volume Working dimensions 100L 400×500×500 150L 500×600×500 225L 500×600×750 500L 700×800×900 800L 800×1000×1000 1000L 1000×1000v1000 1300L 1000×1000×1300 • Temperature range: RT～60℃ • Temperature fluctuation: ±0.5℃ • Temperature deviation: ≤±2℃ • Humidity range: ≤65% R.H • Humidity uniformity: +2% -3% R.H • Heating rate: 0.7-1.0℃/min • Time setting range: 0～999H • Ozone concentration: 50～500PPM • Gas flow rate: 280-560L/H • Grip elongation: 5%～35% Specifications: • Overall dimensions: customized depends on users’ requirement • Power supply: provided according to model selection of users go to product group+
Ventilation Ageing Test Oven Product description: Ventilation ageing test oven is applicable for wires, leathers, plastics, rubbers, textiles changing properties before and after being heated. For the wires, it is used to maintain the fresh air inside the chamber and a special regulation of ventilation when being heated. With a precision designed ventilation regulating device, a digital wattmeter and timer enable to measure the ventilation rate. Horizontal forced air circulation system and internal airflow adjustment on both sides, make sure the internal temperature of the testing machine uniformity and stability Standards: • UL1581 Technical parameters: • Temperature range: room temperature ~ 250℃ • Temperature fluctuation: ±0.5℃ • Temperature uniformity: ±2℃ • Heating time: it takes about 40min from room temperature to 250℃ • Oven internal dimensions: 500×500×500mm • Materials of oven interior: SUS#304 stainless steel, oven exterior materials: anti-static spray treated, with beautiful appearance and other characteristics • Thermal insulation materials: 80mm thick high-density fiberglass • Heater: a suit of solenoid heater, 380V 6KW • Accessory equipment: over-temperature protection, various action indicators, a group of rotary disk and rotary motor.(rotary disk is removable, rotating rate is 8～10rp) • A set of ventilation measuring device, and a set of a ventilation volumes adjusting device, ventilation volume is 5~200 times/h adjustable, under 80℃ testing condition • A set of timer: used for aging timing and ventilation volume measuring timing • Wind circulation system: adopt the multiply blade centrifugal circulating fan • Circuit-control system: temperature controller is adopted microcomputer electronic setting and LCD display, which is controlled by P.I.D+SCR, enable to improve the service life and stability of control component interface; and high precision PT100 Platinum thermocouple Specifications: • Overall dimensions: 1100×780×1400mm • Power supply: AC 380V 50/60HZ 12A • Motor power: 6KW go to product group+
Smart Ventilation Ageing Test Oven (touch screen) Product description: Smart ventilation ageing test oven (touch screen) is applicable for wires, leathers, plastics, rubbers, textiles changing properties before and after being heated. For the wires, it is used to maintain the fresh air inside the chamber and a special regulation of ventilation when being heated. With advanced PLC+ touch screen control, it can automatically adjust the ventilation to the preset value. Horizontal forced air circulation system and internal airflow adjustment on both sides, make sure the internal temperature of the testing machine uniformity and stability Standards: • UL1581 Technical parameters: • Temperature range: room temperature ~ 250℃ • Temperature fluctuation: ±0.5℃ • Temperature uniformity: ±2℃ • Heating time: it takes about 40min from room temperature to 250℃ • Oven internal dimensions: 500×500×500mm • Materials of oven interior: SUS#304 stainless steel, oven exterior materials: anti-static spray treated, with beautiful appearance and other characteristics • Thermal insulation materials: 80mm thick high-density fiberglass • Heater: a suit of solenoid heater, 380V 6KW • Accessory equipment: over-temperature protection, various action indicators, a group of rotary disk and rotary motor.(rotary disk is removable, rotating rate is 8～10rp) • Air ventilation volume: 8 ~ 200 times/h, arbitrarily settable at RT ~ 250℃ • Wind circulation system: adopt the multiply blade centrifugal circulating fan • Circuit-control system: PLC+touch screen to control the ventilation volume, ageing time, temperature, and the temperature control system is adopted P.I.D+SCR, enable to improve the service life and stability of control component interface; and high precision PT100 Platinum thermocouple Specifications: • Overall dimensions: 1100×780×1400mm • Power supply: AC 380V 50/60HZ 12A • Motor power: 6KW go to product group+
Natural Ventilation Ageing Test Oven Product description: Natural ventilation ageing test oven is mainly used for wires, cables, plastics, rubbers and other industries for the natural ventilation thermal aging test. The temperature control is adopted a digital instrumentation, easy to operate; it’s with an observation glass window, stainless steel working room; the shell is made of the high quality steel plate, whose surface is spray treated; the door seal is made of heat-resistance silicone rubber, healthy and safe Standard: • GB/T 2951-2008 Technical parameters: • Temperature range: room temperature (about 25℃) ~ 300℃, with buzzer alarm • Temperature fluctuation: ±0.5℃ • Temperature uniformity: ±2℃ • Heating time: it takes about 50mins from room temperature to 300℃ • Ventilation volume: 8～20 • Internal room dimensions: 450×450×500mm (customized) • Materials of oven interior: SUS#304 stainless steel, oven exterior materials: antistatic spray (white) • Thermal insulation materials: five-sided 100mm filling cotton insulation, underfill 60mm cotton insulation Specifications: • Overall dimensions: 950×750×1400mm • Power supply: AC 220V 50/60HZ 3KW go to product group+
Ageing Test Oven Product description: Ageing test oven is applicable to leather, plastic, rubber, cloth and other materials. Observe the yellow-resistance, tackless, shrinkage, extension and residual rate and other properties after being uniformly heated under the specific temperature and time, then you can determine its aging property Technical parameters: • Overload protection • Time: 0~999H arbitrarily set • Temperature controller: PID set • Novel structure, reasonable design • Imported digital display temperature control instrument with overtemperature protection function • The working room is made of stainless steel plate, and the surface is electrostatically sprayed Working room dimensions (mm, W*D*H) Overall dimensions (mm, W*D*H) Temperature range Other technical parameters 340×320×320 495×500×625 RT~200℃ Temperature fluctuation: ≤±0.5℃ Temperature uniformity: ≤±1.5% 400×350×500 545×530×805 450×550×550 595×730×855 500×600×750 645×780×1055 600×550×1300 745×730×1670 800×600×1300 945×780×1670 800×800×1000 945×1000×1370 1000×600×1600 1145×780×1970 340×320×320 495×500×625 RT ~300℃ Temperature fluctuation: ≤±0.5℃ Temperature uniformity: ≤±2% 400×350×500 545×530×805 450×550×550 595×730×855 500×600×750 645×780×1055 600×550×1300 745×730×1670 800×600×1300 945×780×1670 800×800×1000 945×1000×1370 1000×600×1600 1145×780×1970 go to product group+
Thermostatic Water Bath Product description: Thermostatic water bath is used to test the insulation resistance value and withstand voltage value when the wire is in the water. It can be used in conjunction with the insulation resistance tester and withstand voltage tester, accordance with VDE, UL, GB standards. Materials: The surface is electrostatic painting, the inside is stainless steel Standards: • UL 1581 Technical parameters: Internal Dimension (L×W×H) External Dimension (L×W×H) Temperature Range Electric Power (W) Input Voltage (V) 300×300×300mm 670×390×500mm RT~98℃ 2000 220 800×500×600mm 1170×590×880mm RT~98℃ 6000 380 1200×600×800mm 1680×750×1090mm RT~98℃ 12000 380 The dimensions above are just for your reference, it is customized according to users’ requirements • Temperature fluctuation: ± 0.5 ℃ • Temperature uniformity: ± 2 ℃ • Liner material: SUS304 drawing board • Water circulation mode: booster pump up and down circulation • Insulation material: glass fiber • Heating pipe: U type stainless steel heating pipe • Water way: manual drain valve at the bottom go to product group+
Oil Resistance Tester Product description: Oil resistance tester is suitable for oil-resistant test of enameled wires or insulations and other materials which are made of rubbers, plastics. Test method: Take out the test piece after being immersed in hot oil for a period of time, and then test its tensile strength, if it’s enameled specimen, then view and check its film quality Standards: • UL1581 Technical Parameters: • Quartz tube: ф40mm, depth 350mm • Oil tank working room: 360 x 240 x 290mm (LxWxH), stainless steel materials • Tube plug: Corrosion and temperature resistance Urethane (compact plug) • Built-in loop mode stirring, stirring motor power: 100W Temperature control and thermal insulation system: • P.I.D smart temperature controller and high-precision PT100 platinum RTD • Heater: spiral tube heater, power: 3000W • Temperature range: RT ~ 300 ℃, instrument display accuracy: 0.1 ℃, oil temperature uniformity within ± 2 ℃ • With over temperature protection function, after over temperature, automatically cut off and stop heating, enable to effectively protect the safety of equipment • Time setting: 9999H / M / S. Specifications: • Overall dimensions: 610mm × 330mm × 580mm • Power supply: AC 220V 50 / 60Hz go to product group+
Air Bomb (oxygen bomb) Ageing Tester Product description: Air bomb (oxygen bomb) ageing tester is applicable to wires, cables, rubber (plastic, artificial leather) jacket and insulation layer, and other high polymer materials aging test under the specific pressure and temperature in the oxygen and compressed air medium Standard: • GB/T 2951-2008 Technical parameters: • Maximum working pressure: 4.0MPa • Safety burst pressure:2.7-3.3 MPa • Temperature controlled range: room temperature-200 ℃ • Volume: 3.15L • Heater Power: 2400W • Temperature deviation: ± 0.5 ℃ • Temperature control: digital display • Air bomb test: medium: air; temperature: 127 ℃; pressure: 0.55MPa • Oxygen bomb test: test medium: oxygen; temperature: 70 ℃; pressure: 2.1MPa • Tank body material: stainless steel Specifications: • Overall dimensions: 800×480×830mm • Power supply: AC 220V 50/60HZ 12A • Air source: Compressed air, oxygen (user prepared) go to product group+
Thermal Stability Testing Machine Product description: Thermal stability testing machine is designed according to • GB/T 2951.32-2008< insulating and sheathing materials of electric and optical cables-Thermal stability test>, used for wire and cable PVC compounds insulating and sheathing test Standard: • GB/T 2951.32-2008 • GB/T 8815-2008 Technical parameters: • Temperature range: room temperature ~ 250 ℃ • Temperature Resolution: 0.1 ℃ • Heater power: 1.5KW • Glass beakers: 1000mL • Small tube: length 110mm, outer diameter 5mm, inner diameter 4mm, one end sealed • Big tube: inner diameter 12, outer diameter 14, height 95 • PH test paper: Congo red • Working stations: six groups Specifications: • Overall dimensions: 700×400×670mm • Power supply: AC 220V 50/60HZ 7A • Test oil: (user supplied) go to product group+
Fluorine Content Measuring Instrument Product description: Fluorine content measuring instrument is a perfect combination of advanced electronic technology, sensor technology and software design, it is the most cost-optimal fluoride content concentration analysis instrument of laboratories, widely used in fluoride test analysis of drinking water, surface water, sea water, sewage and industrial waste water, and the determination of fluorine in mineral materials, organic materials and biological materials. This instrument is built-in microprocessor chips, good looks, easy to use, with the following salient features: Technical Parameters Fluorine content: Measuring range electric meter: (0.00 ~ 9.00) pF; supporting: (1.00 ~ 6.00) pF Display Units pF, mol/L, mg/L, ppm Accuracy ± 0.01 pF Input current ≤2×10-12 A Input impedance ≥1×1012 Ω Stability ±0.01 pF/3h Temperature compensation range (0 ~ 50)℃(automatic or manual) mV: Measuring range -1999.9mV ~ 0 ~ 1999.9mV Resolution 0.1mV Accuracy ±0.1% FS go to product group+
Environmental Stress-cracking Resistance Test Apparatus Product description: Environmental stress-cracking resistance test apparatus is used for determination of the environmental stress-cracking resistance of ethylene plastics, which is designed and manufactured in line with ASTM D1693 standard and related Japanese standards. The instrument consists of a main machine and a transparent thermostatic bath, which the main machine including notch, bending, transfer and other components, and specimen die cutter, bending supporting frame and other accessories. Transparent thermostatic bath consists of a bath and electrical control components. Thermostatic bath can also be used for the viscosity and other thermostat test Standard: • GB/T 2951.41-2008； Technical parameters: • Specimen size: (38±2)×(13±1)×(2.0 ~ 3.8) mm • Notch depth: 0.2 ~ 0.65mm (adjustable according to different standards) • Temperature range: room temperature ~ 100 ℃ • Temperature control accuracy: 0.5 ℃ Specifications: • Overall dimensions: 720mm×350mm×600mm； • Power supply: 220V 50Hz 3.6KW • Weight: 40Kg go to product group+
AC High Voltage Withstand Tester Product description: AC high voltage withstand tester is used for motors, transformers, cables, electric appliance, insulation materials, high-voltage components manufacturers, as well as frequency voltage withstand tests for electric power, research institutions and colleges in high-voltage laboratories, with features of low loss, light weight, small waveform distortion and so on Standard: • GB/T3048.8-2007 Technical parameters: • Test voltage: AC 5KV, 10KV, 20KV, 30KV, 50KV, 100KV, etc. (optional for users) • Rated Capacity: 2 ~ 100KVA (optional for users) • Voltage waveforms: sine wave • Voltage error: ± 3% • Voltage Display: digital • Unit configuration: console, voltage regulators, transformers • Testing time: 0 ~ 9999min, settable • Control mode: manual boost, electric boost (optional for users) • Voltage regulator: auto type, inductive type(optional for users) • Transformers: oil-immersed testing transformer • Over current protection • Different specifications can be customized according to customer requirements Specifications: • Overall dimensions: provided according to model selection of users • Power supply: provided according to model selection of users • High-voltage lines and ground lines: prepared by users go to product group+
GB / T3048.8-2007 Automatic AC High Voltage Withstand Tester Product description: Automatic AC high voltage withstand tester is designed and produced based on the GB standard, which is used in motors, transformers, cables, electrical appliances, insulation materials, high-voltage component manufacturers, as well as frequency voltage withstand test in high-voltage electricity laboratory of electric power, research centre, colleges and universities, with low loss, light weight, less waveform distortion, and other advantages. The full set of device is consists of a high voltage test transformer, voltage regulators, and an integrated device of measurement, control and protection. It is with test lines and clip pliers, alarm and automatically return when there is failure wire. Standard: • GB / T3048.8-2007 Technical Parameters: • Test voltage: AC 5KV, 10KV, 20KV, 30KV, 50KV, etc. (optional) • Rated capacity: 2 ~ 50KVA (optional) • Voltage waveforms: sine wave • Voltage error: ± 3% • Voltage display mode: digital • Unit configuration: console, voltage regulators, transformers • Test time: 0 ~ 9999S, settable • Control mode: electric voltage boost • Voltage boost mode: auto boost, max voltage boost rate is 1000 V/S, it is 100V/S when reaching to 80% of the setting value • Voltage regulator: auto type • Transformer: Oil-immersed test transformer • Overcurrent protection, during the test, a red warning light running, in end of the test, it stops automatically. Adopt intelligent LCD screen in the whole process, simple operation, greatly reduce test time, and improve the detection efficiency • This device bottom is with corner wheels, freely movable, and lockable • Test time unit: seconds Specifications: • Overall dimensions: 770 (L) × 750 (W) × 1240 (H) mm • Power supply: AC220/AC380V 50 / 60Hz • Weight: about 200kg • High-voltage lines and ground lines: user prepared go to product group+
Wire and Cable High Voltage Withstand, Insulation Resistance, Conductor DC Resistance Tester Product description: One integrated auto tester which is a comprehensive set of high voltage withstand tester, insulation resistance tester, low DC resistance tester, equipped with a set of computer and a printer to record and print test results to ensure product traceability. And compared to traditional split machine, integration, visibility, intelligence has been greatly improved. Under the security situation, after the tester holds the sample to be tested properly, in the whole testing process, no need human intervention, the machine automatically conducts grouping test, thus improving test rate and also stopping the tester contact with high voltage, increase the safety factor of testers. Enable to edit, save and recall test methods of different products. In the production process of testing, the same product can be called directly, no need to re-edit the test method. According to the customized test method, the testing machine is of one-button start testing. Just click on the start of the machine to automatically complete the test, by comparing the test results and the test requirements, enable to automatically determine whether the sample is qualified, and generate the corresponding test report. Adopted a high-performance microprocessor-controlled insulation resistance tester, voltage continuously adjustable, enable to test the resistance of 500Ω ~ 50TΩ, the maximum displayed number is 9999, the test rate is up to 20 times / s Standards: GB / T3048.5-2007; GB / T3048.4-2007; Technical Parameters: High voltage withstand: • Test voltage: AC 5KV • Rated capacity: 5KVA • Voltage waveform: sine wave • Voltage error: ± 3% • Test time: 0 ~ 9999S, settable • Control mode: electric boost • Voltage increasing mode: auto • Overcurrent protection Insulation resistance: • Output voltage: DC10V ~ 1000V continuously adjustable • Basic voltage accuracy: ≥10V: ± (0.1%±5 readings), <10V: ± (0.3%±5 readings) • Resistance measurement basic error: Measuring range Basic error 0-107Ω ±( 1 %Rx+ 2 digitals) ＞107—1010Ω ±( 3 % Rx+ 2 digitals) ＞1010—1012Ω ±( 5 % Rx+ 2 digitals) ＞1012 ±( 10 % Rx+3 digitals) • Wherein Rx: meter reading value (shown resistance value) Insulation resistance: • Operation environment a. reference conditions: temperature of 20 ℃ ± 0.5 ℃, relative humidity of 40% -60% b. nominal conditions: temperature of 10 ℃ -30 ℃, relative humidity of 25% -75% Main parameters of each range: Measuring range Test current Resolution Measuring range Basic error 200μΩ 10A 0.01μΩ 0-199.9999μΩ ±0.5%Rx 2mΩ 10A 0.1μΩ 0-1.9999mΩ 20mΩ 1A 1μΩ 0-19.9999mΩ ±0.3%Rx 200mΩ 0.5A 10μΩ 0-199.9999mΩ 2Ω 100mA 100μΩ 0-1.9999Ω ±0.05%Rx 20Ω 100mA 1mΩ 0-19.9999Ω 200Ω 10mA 10mΩ 0-199.9999Ω 2kΩ 1mA 100mΩ 0-1.9999kΩ • Temperature accuracy: 0.5 ℃ ± 0.5 ℃ Specifications: • Overall dimensions: Approx. 1350 (L) × 600 (W) × 1700 (H) mm • Power supply: AC380V 50 / 60Hz go to product group+
Series Insulation Resistance Meter Product description: Insulation resistance meter is an ideal instrument to test electrical insulating materials, wires and cables, anti-static resistance measurements as well as other electrical products insulation resistance. Adopted the most advanced international high resistance, micro current components , with advantages of high accuracy, strong resolution, strong anti-interference ability, stable reading, small size, easy to carry and operate, and universal battery. It is recommended by Shanghai Electric Cable Research Institute (SECRI) as one of the essential equipment for production permit over the years Standard: • GB/T3048.5-2007 Technical parameters: • ZC-90: Rated voltage: 100V, 250V, 500V, 1000V Range: 105 ~ 2x1014Ω Applications: high insulation resistance measurement; electrical appliances, electrical equipment, electrical equipment, wire and cable insulation resistance measurement. • ZC-90E: Rated voltage: 100V, 250V, 500V, 1000V Range: 105 ~2x1016Ω Applications: exceeding high insulation resistance measurement, common wire and cable and XLPE(Cross Linked Polyethylene) cable measurements, insulation material resistivity measurement • ZC-90G: Rated Voltage: 10V, 25V, 50V, 100V, 250V, 500V, 1000V Range: 105~ 2x1017Ω Applications: Exceeding high insulation resistance measurement, common wire and cable and XLPE(Cross Linked Polyethylene) cable measurements, insulation material resistivity measurement. Weak current measurement, measurement of electronic components, optical measurement, bio-power measurement, atomic energy research • 31/2 digit display (with backlight), basic error: ± 1%, the built-in timer can be used to preset measuring time • Companied with a electrode box, enable to be used as rubber & plastic surface resistance meter and volume resistance meter (optional for users) Specifications: • Overall dimensions: 280×240×105mm , ZC-90G 320×290×115mm • Power supply: AC220V 50/60Hz 0.1A go to product group+
Direct-on-the-line Measuring Intelligent Digital Bridge Product description: To facilitate the direct-on-the-line measuring operations, save time to transport the instrument during test, QJ36A intelligent digital bridge is based on the original bridge and integrated with the bridge fixture to adapt the flexibility of on-site detection operation. Direct-on-the-line measuring intelligent digital bridge is a comprehensive test system, comprising functions of a DC bridge, a amplifying galvanometer, constant current source and standard resistors and other accessories. The technical performance of this instrument meets the International Electrotechnical Commission IEC 60468 and Chinese standard GB / T3048.4-2007 conductor DC resistance test standards. Measuring data are in line with standards to save materials for plants, realize the quality control from source and improve work efficiency. Height of the support bar on both sides is able to be adjusted by remote control, easy to operate Standards: • GB/T3048.4-2007 Advantages: • High-resolution touch screen, multidigit display, intuitive data reading • Collections of various testing methods: solid wire, flat wire, gravimetric method and so on • Advanced high-precision chips and temperature sensor, with features of high test accuracy and good data repeatability • One-button measurement, users no need to switch gears and converse values manually, the operation is more convenient • Wide measurement range (25μΩ-2000Ω), automatically converse resistivity under 20 ℃, automatically convert the data, etc • Beautiful appearance, durable, easy to carry. Technical parameters: • Operation environment A, reference conditions: temperature of 20 ℃ ± 0.5 ℃ relative humidity of 40% -60%; B, nominal conditions: temperature of 10 ℃ -30 ℃ relative humidity of 25% -75%; • Main parameters of each range Range Test current Resolution Measuring range Basic error 200μΩ 10A 0.01μΩ 0-199.99μΩ ±0.5%Rx 2mΩ 10A 0.1μΩ 0-1.9999mΩ 20mΩ 1A 1μΩ 0-19.999mΩ ±0.3%Rx 200mΩ 0.5A 10μΩ 0-199.99mΩ 2Ω 100mA 100μΩ 0-1.9999Ω ±0.05%Rx 20Ω 100mA 1mΩ 0-19.999Ω 200Ω 10mA 10mΩ 0-199.99Ω 2kΩ 1mA 100mΩ 0-1.9999kΩ • Temperature resolution：0.1℃ • Specimen cross-sectional area: ≤630mm2 • Lifting stroke: 400mm • Lifting speed: 30mm / s • Max tilt angle: 26 degrees Specifications: • Overall dimensions: 1000mm×660mm×1300mm • Power supply: AC 220V 50Hz go to product group+
GB/T 3048 Series Bridge Fixtures Product description: Bridge fixture in line with the amended GB/T 3048 standard requirements of conductor resistance test: The distance from each end of the potential fixture head and the current fixture head is not less than 1-5 times of sample cross-section perimeter, according to usage, it is sorted as bare conductors series and stranded conductors series All the appearance and structure are redesigned and adopted electrochemical dual-groove aluminum alloy baseplate to make it more reasonable Standard: • GB/T 3048 Technical parameters: • Can be used for round conductor, stranded conductor resistance tests • YN62112-A applies to 630mm2 round conductors and round stranded conductors • YN62112-B applies to up to 1200 mm2 round conductors and round stranded conductors Specifications: • Overall dimensions: 1550×230×125mm (630mm2) 1550×230×150mm (1200mm2) go to product group+
GB/T3048.4-2007 DC Kelvin Bridge Product description: QJ57 DC Kelvin bridge is applied to measurement of DC resistance in mining industries, laboratory or workshop site and field work place, to test DC resistance, resistivity inside of metal conductor, resistance of conductor line, resistance of DC shunt, contact resistance of switch and appliance; winding wire resistance of various of motors and transformers; and elevated temperature test and so on Standard: • GB/T3048.4-2007 Technical parameters: • Measuring range: 0.01μΩ ~ 1.1111KΩ • Accuracy: 0.05% • The main parameters of each range Range magnification Effective range(Ω) Accuracy(%) X103 0～1111.10 0.05 X102 0～111.110 X10 0～11.1110 X1 0～1.11110 X10ˉ1 0～0.111110 X10ˉ2 0～0.0111110 0.2 X10ˉ3 0～0.00111110 2 Specifications: • Overall dimensions: 300×250×160 mm • Power supply: built-in null indicator power supply 9 V (one 6F22 type battery) built-in bridge working power supply 1.5 V go to product group+
Wire and Cable Semi-conducting Rubbers and Plastics Resistivity Tester Product description: DB-4 microcomputer semi-conducting rubbers and plastics volume resistivity tester is a microcomputer controlled test instrument designed according to GB/T 3048 standard, applied to test the volume resistivity of rubbers and plastics, semi-conducting materials used for wires and cables, in line with requirements of GB/T 3048, DB-4 microcomputer semi-conducting rubbers and plastics volume resistivity tester is based on the microcomputer principles, automatically test the semi-conducting rubbers and plastics volume resistivity, after testing the resistance, and then input the sample thickness values, the instrument automatically displays the volume resistivity measurement values. No need to manual calculations according to GB/T 3048 standard, with features of high accuracy, good stability, compact structure, and easy to operate, it is completely compliance with the specific requirements of national standard GB/T3048-2007. It is the best test instrument for it so far Standard: • GB/T 3048.3-2007 Technical parameters: • Measuring range:10-4～103Ω.cm • Measurement error is less than ± (0.5 % rd ± 2d) • Current electrode: width 50mm, contact width of the sample 5mm, distance between two current electrodes 110mm • Potential electrode: width 50mm, contact radius go to product group+
Semi-conductive Shield Resistivity Tester Product description: BDDZ semi-conductive shield resistivity test complete sets of equipment is designed according to national standards GB/T12706, GB/T11017 and other standards, it is suitable for measuring wires and cables semi-conductive shield resistance, in line with specified requirements of GB/T 12706 GB/T11017 and other standards. In order to accurately complete the specified requirements of GB/T 12706, GB/T11017 and other standards, the test is completed by BDDZ semi-conductive shield resistivity tester, cable sample making machine and thermostatic oven Standards: • GB/T 12706 • GB/T11017 Technical parameters: • Measuring range: 2MΩ, 200KΩ, 20 KΩ, 2 KΩ, 200Ω, five gears • Output current: 1uA, 10μA, 100μA, 1mA, 10 mA • Measurement error: Measurement error is less than ± (0.5 % rd ± 2d) • The instrument is adopted a four-semi-number table to display, the digital table directly displays the test sample semi-conductive shield resistance value • The instrument has features such as high accuracy, good stability, compact structure, easy to use and so on, fully compliance with the specified requirements in the standard GB/T 12706, GB/T11017, etc Specifications: • Overall dimensions: 350×300×250mm • Power supply: AC220V 50/60Hz 0.5A • Oven: (optional for users) • Cable sample making machine: (optional for users) go to product group+
Withstand Voltage Test Instrument Product description: Withstand voltage test instrument is designed according to the relevant provisions of the safety standards of GB4706.1, IEC 60335, complying with CCC, UL, VDE, CSA, JIS test standards, which is an ideal instrument for safety withstand voltage test of wires and cables, household appliances, industrial appliances, electrical, chemical and medical instrumentation, and the whole machines of electronic products. Adopted the advanced digital circuit technology, enable to automatically control on and off for the output voltage. When the leakage current of measured items exceeds the set value during the test, the output voltage can be automatically cut off, and realize timing test. The test voltage, leakage current, test time of the instrument all are digital display, breakdown voltage and leakage current values of test items can be intuitive, accurate, fast and reliable measured Technical parameters: Model number LK2670AX LK2671B LK2672D Test voltage AC 0～5kv AC/DC 0~10kv AC 0～5kv Leakage current AC 0～2/20mA AC 0～2/20/50mA DC 0～2/10mA AC 0～200mA Test time 1～99s 1～99s 1～99s Transformer capacity 100VA 500VA 1000VA Measurement accuracy ±3% ±3% ±3% Others With superleak alarm With superleak alarm With superleak alarm go to product group+
ES-E210B Analytical Balance (lab balance) Product description: Rear type electromagnetic force sensor, a spacious weighing chamber; external calibration weights; large LCD display with white background; various units of measurement and counting weighing mode, unit conversion and data output; with functions of overload/underload alarm; full range net weight, cumulative/regressive, bottom hook weighing Technical parameters: • ES-E210B Maximum weighing: 210g, display accuracy: 0.1mg, readability: 0.0001g Repeatability: ± 0.0001g, linearity: ± 0.0002g; • ES-E320B Maximum weighing: 300g, display accuracy: 1mg, readability: 0.001g Repeatability: ± 0.001g, linearity: ± 0.002g • ES-E500B Maximum weighing: 500g, display accuracy: 1mg, readability: 0.001g Repeatability: ± 0.001g, linearity: ± 0.002g • Pan size: φ90mm; • Sensor: electromagnetic balance; • Ambient temperature: 5 ~ 40 ℃ Specifications: • Power supply: 220V/50HZ • Net weight: 11kg go to product group+
DH-300 Direct-reading Electronic Density Meter (proportion balance) Product description: Test type: solid, granules, film, floating body proportion, in line with CCC, UL, VDE test standards for the proportion of wires and cables, plastics; it is an important basis for the incoming quality inspection judgment Standards: • CCC, UL, VDE Technical parameters: • Density resolution: 0.001g/cm3 • Weighing range: 300g/0.01g • Measurement time: 0 ~ 16 secs • Density range: more than 1 and less than 1 both can be tested Specifications: • Overall dimensions: 190×218×170mm • Power supply: 220V AC/50HZ 0.1A go to product group+
CH-10-C Rubber Multihead Thickness Gauge Product description: Rubber multihead thickness gauge is mainly used for measurement of thickness of insulating and sheathing materials of electric and optical cables and vulcanized rubber plastic products, it meets with requirements of IEC 60811 test standard. Simple structure, easy to use, and high precision Standards: • GB/T 2951-2008 Technical parameters: • Dial gauge precision: level 0-1, division value: 0.01mm • Measuring head weight: 157±5g, 140±2g, 28±3g( including gossamer elastic force and weight of screw rod, etc.) • Measuring head size: Ф5mm, Ф10mm,1×4mm • Measuring stroke: 0-10mm go to product group+
LX-A Shore Durometer (Hardness Meter) Product description: Shore durometer (hardness meter) rack is dedicated to configure A type Shore durometer or C microporous material hardness meter. Configured with a dedicated load weight on the upper end of the rack, which is used to measure the hardness value of rubber and microporous materials Standards: • GB/T531-1999 Technical parameters: • Mass of the weight: 1Kg • Dial values: 0 ~ 100 HA • Pressure needle stroke: 2.5 mm • Size of pressure needle head: φ0.79 mm Specifications: • Overall dimensions: 116×160×340mm • Total weight: 5.5Kg go to product group+
YN31108-B Insulation Jacket Profile Projector (digital display) Product description: All-digital measuring profile projector is a high precision and efficient measuring instrument integrated of light, mechanical, electric, sorted as two types of front image and back image, it is widely applied to machinery, instrumentation, electronics, light industry and other industries, universities and colleges, research institutes and the measurement and inspection departments. The instrument can efficiently detect the outline size and shape of the surface of various workpieces with complex shape, such as templates, stamping parts, cam screw threads, gears, molding milling cutters and so on. High quality optical system, clear imaging lens, accurate magnification ratio, in transmitted light illumination, the profile measurement error is less than 0.08% Standard: • GB/T 2951.11-2008 Technical parameters: Working table Metal table size(mm) 340×152 Glass table size(mm) Ф140 X coordinate stroke (mm) 150 Y coordinate stroke (mm) 50 Z coordinate stroke (used for focusing) (mm) 100（focusing) Instrument measuring accuracy 3+L/200 X, Y coordinates digital resolution 0.0005 Projector screen Size(mm) Ф312, usable range＞Ф300 Projector rotation range: 0~360 Rotation angle digital resolution: 1 Objective lens Magnification 10*(standard configuration) 20*(optional) Object field ￠30mm ￠15mm Object working distance 85.17mm 81.94mm Data processing system 3000 type multifunction data processing system Instrument illumination Lighting transmission and reflection both are 24V, 150W tungsten halogen lamp Power supply 220V(AC), 50/60HZ, total motor power 350W Cooling Forced air cooling (three-axial fan) Overall dimensions L×W×H(mm) 720×390×1100 720×390×1100 Weight Unit: kg 175 175 go to product group+
YN31113 Intelligent Auto Profile Projector Product description: Intelligent auto profile projector can fully auto measure the cross-sectional area of wire and cable insulation sheaths and conductive layer, adopted optical and digital technology, the data after shooting is transferred into the full automatic program for processing, by image recognition technology to measure specific values of the conductor and the insulation sheaths. All the testing process is controlled by software, test results are automatically output. Standard: • GB / T2951.11-2008 Common test methods for insulating and sheathing materials of electric and optical cables--Part 11:Method for general application--Measurement of thickness and overall dimensions--Tests for determining the mechanical properties Technical Parameters: • Resolution: 1 μm • Measuring range: 0 ~ 8mm, 8 ~ 30mm, 30 ~ 80mm, 80 ~ 140mm • Lens fixed mode: fixed position and unmovable Configuration and structure: • Measuring lens: Japan computar, four pcs • Moving gate power source: 12V DC motor • Light source: bright SMD LED light source; adjustable internal light source, fixed back light source, opaque samples can be measured • Optical system: vertical dust prevention optical system, reducing optical refraction • Sample platform: flat tempered glass platform; the sample is placed on the measuring glass for easy movement • Data connection interface: USB interface • Main measuring program: auto release test reports which the information can be settable, saved and printed • Database program: enable to manage the measurement data, and can be converted into EXCEL documents • With a variety of cable standard measurement picture library to choose from • Main body is box structure, reducing external light interference Specifications: • Overall dimensions: 580 × 430 × 1120mm • Power supply: 220V / 50HZ go to product group+
YN31118 Intelligent Cable Profile Projector Product description: Intelligent cable profile projector is a measuring instrument controlled by a smart chip, it is adopted the principles of microcomputer and companied with profile projector, directly displays insulation thickness and outer diameter measurement values. Automatic intelligent controlled insulation thickness testing machine and companied with profile projector are applied to GB/T2951.11-2008 , standard for wire and cable insulation thickness and outer diameter tests Standard: • GB/T 2951.11-2008 Technical parameters: • Projector size: ф308mm, projection screen rotation range: 0 ~ 360°, rotation angle cursor partition: 2 ' • Objective lens: magnification: 10 times • Objective line view field(mm): ф30 • Working table: metal table size (mm): 200×160 • X coordinate axis stoke: (mm) 50 micrometer handwheel grid values: 0.01 • Y coordinate axis stroke: (mm) 25 micrometer handwheel grid values: 0.01 • Glass table size(mm): ф90, rotation range: 0~360 • Focus range: 70mm • Measurement accuracy less than ± 0.01mm, measurement repeatability less than ± 0.01mm • Touch screen: 7〃 MCGS touch screen • Instrument illumination: 24V, 150W tungsten halogen lamp • Cooling: air-cooled three-axial fan Intelligent test instrument main parameters and instructions: • Enable to do test of outer diameter and insulation thickness, automatically calculate minimum value, maximum value, average value, coupled with a printer that the above relevant data can be printed Specifications: • Overall dimensions: 1000×730×1060mm • Power supply: 220V (AC), 50/60Hz, total motor power 350W go to product group+
21DT(0.1-0.3MM) High Efficiency EDM Brass Wire Drawing Machine With Continuous Online Annealing Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
21DTA EDM Brass Wire Copper Alloy Wire Drawing Machine With Online Annealer Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
17DT(0.8-1.6mm) Medium Type EDM Brass Wire Drawing Machine With Continuous Online Annealing Machine & Down Coiler Single-wire drawing lines and system components for intermediate, fine and superfine wire drawing Top quality, reliability and performance Newlead single-wire drawing lines for intermediate, fine and superfine wire used in the manufacture of electronic equipment and special applications are determined by the highest requirements on the product. Get an overview of the range of wire drawing machines, drawing lines and continuous resistance annealers. More information on the most important developments is provided in the technology section. go to product group+
40/32/24 Heads Automatic Bare Copper Conduit/Brass Wire Annealing Tinning Machine Facts and figures PRO-NEWLEAD including two branches ,one is RBO to produce drawing,bunching and coiling, second in Guanzhong to produce enameling,metal bobbin and spare parts. More than 30 years of top-quality technology for the wire and cable industry one of the world’s leading manufacturers of wire-drawing , annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals. machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. NEWLEAD has played a major role in the EXPORT of the wire and cable industry throughout its existence. And goal service engineers to do commissioning for our clients.We develop, build and plan innovative technologies at the heart of the wire ＆cableindustry. Competence, fairness and reliability are just some of the values that make the difference for customers in more than 30 different countries Facts and figures about NEWLEAD Core industries: Wire industry and cable industry with a focus on the automotive, aviation and aerospace, electronics, telecommunications and transport industries Core business: Manufacture of lines and machinery for the drawing, annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals; machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. Turnover 2015/2016: USD 2000000.00 Number of employees: 120 Number of trainees: 13 Number of employees plant 1: 80 Number of employees plant 2: 30 Number of employees plant 3: 10 Locations:Suzhou,Changzhou,Wuxi Export ratio: > 35% go to product group+
High Efficiency Two / Double Lines Multi Fine Wire Drawing Machine With Online Annealer For Copper And Aluminum Facts and figures PRO-NEWLEAD including two branches ,one is RBO to produce drawing,bunching and coiling, second in Guanzhong to produce enameling,metal bobbin and spare parts. More than 30 years of top-quality technology for the wire and cable industry one of the world’s leading manufacturers of wire-drawing , annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals. machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. NEWLEAD has played a major role in the EXPORT of the wire and cable industry throughout its existence. And goal service engineers to do commissioning for our clients.We develop, build and plan innovative technologies at the heart of the wire ＆cableindustry. Competence, fairness and reliability are just some of the values that make the difference for customers in more than 30 different countries Facts and figures about NEWLEAD Core industries: Wire industry and cable industry with a focus on the automotive, aviation and aerospace, electronics, telecommunications and transport industries Core business: Manufacture of lines and machinery for the drawing, annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals; machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. Turnover 2015/2016: USD 2000000.00 Number of employees: 120 Number of trainees: 13 Number of employees plant 1: 80 Number of employees plant 2: 30 Number of employees plant 3: 10 Locations:Suzhou,Changzhou,Wuxi Export ratio: > 35% go to product group+
17DST/2 Intermediae / Medium Double / Dual Lines Copper Wire Drawing Machine With Online Annealer And Double Spooler / Bobbin Facts and figures PRO-NEWLEAD including two branches ,one is RBO to produce drawing,bunching and coiling, second in Guanzhong to produce enameling,metal bobbin and spare parts. More than 30 years of top-quality technology for the wire and cable industry one of the world’s leading manufacturers of wire-drawing , annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals. machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. NEWLEAD has played a major role in the EXPORT of the wire and cable industry throughout its existence. And goal service engineers to do commissioning for our clients.We develop, build and plan innovative technologies at the heart of the wire ＆cableindustry. Competence, fairness and reliability are just some of the values that make the difference for customers in more than 30 different countries Facts and figures about NEWLEAD Core industries: Wire industry and cable industry with a focus on the automotive, aviation and aerospace, electronics, telecommunications and transport industries Core business: Manufacture of lines and machinery for the drawing, annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals; machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. Turnover 2015/2016: USD 2000000.00 Number of employees: 120 Number of trainees: 13 Number of employees plant 1: 80 Number of employees plant 2: 30 Number of employees plant 3: 10 Locations:Suzhou,Changzhou,Wuxi Export ratio: > 35% go to product group+
Cable Coiling Labeling And Wrapping All In One Line 1040 coiling labeling wrapping all-in-one machine A. Characteristics: 1). Can be wire feeding by the pay-off unit or directly connected to extruder. 2). The yield of wire coil four times manual coiling (take 200M wire coil for example). 3). The automatic glue film coiling machine for wire coil automatic packaging and labeling after coiling. 4). The yield 7 times manual when automatic coiling and winding glue film. 5). This machine adopts servo motor flat cable system, the wire coil is beautiful. 6). Adopt touch screen man-machine interface operation panel, easy to operation. 7). The RAM of microcomputer can store 99 different of wire coil specifications, when you need to change the products specification, can be read stored specification, do not need to input again, can produce immediately. 8). The machine equipped with automatic detects error function, can be send out a warning to remind the operator when there is a problem. B. Performance specification: 1). Power: AC 380V, three phase, 50Hz (China), or specify by customer. 2). Operation direction: 3). Suitable for ψ3-ψ12mm building wire. 4). Design speed of cradle plate head: 780 RPM Max. 5). Wire coil size: 6). Outer diameter ψ400mm Max. × height 50～120mm; 7). Inner diameter of wire coil depend on cradle plate head specification, the specification range: ψ140mm，height 65-90mm. 8). Wire feeding mode of finished product: hold wire type. 9). Rule guide unit: rule counting unit 0.01M, prediction automatic speed down, automatic cradle plate action flow when meter is arrived. 10). Traverse device: Adopts the Japanese Mitsubishi servo motor traverse, synchronization with mainframe of cradle plate. 11). The whole machine control by electrical circuits: adopts the Mitsubishi microcomputer programmable controller (PLC). 12). Operation panel using the man-machine interface (Graphic Operator Interface). 13). Instrument and switch on the operation panel: touch screen and speed regulation knob. 14). Speed adjusting by speed regulation knob. 15). The machine PLC have power frequency spark tester contact. 16). Used in BV wire spark test, can be automatic spark breakdown point or continue to coiling function after artificial marks. 17). The machine PLC have diameter measuring instrument contact. 18). When the diameter not reached standard, can be automatic eliminate waster wire or continue to coiling function after artificial marks. go to product group+
8mm~30mm Copper Rod Upward Continuous Casting Machine Facts and figures PRO-NEWLEAD including two branches ,one is RBO to produce drawing,bunching and coiling, second in Guanzhong to produce enameling,metal bobbin and spare parts. More than 30 years of top-quality technology for the wire and cable industry one of the world’s leading manufacturers of wire-drawing , annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals. machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. NEWLEAD has played a major role in the EXPORT of the wire and cable industry throughout its existence. And goal service engineers to do commissioning for our clients.We develop, build and plan innovative technologies at the heart of the wire ＆cableindustry. Competence, fairness and reliability are just some of the values that make the difference for customers in more than 30 different countries Facts and figures about NEWLEAD Core industries: Wire industry and cable industry with a focus on the automotive, aviation and aerospace, electronics, telecommunications and transport industries Core business: Manufacture of lines and machinery for the drawing, annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals; machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service. Turnover 2015/2016: USD 2000000.00 Number of employees: 120 Number of trainees: 13 Number of employees plant 1: 80 Number of employees plant 2: 30 Number of employees plant 3: 10 Locations:Suzhou,Changzhou,Wuxi Export ratio: > 35% go to product group+
Cable laser printer laser marking machine for cable Cable laser printer laser marking machine for cable Main parameter ITEAM Parametr ITEAM Parameter Material Al alloy body Power 220V/5OHZ/15A Weight 150KG with packing KW 1.2KW Laser Power 35W-70W Marking deepth 0.1-0.5mm Mini dia cable 0.05mm Cable material PVC,PE,TPU,ETC application all maertial ,all colors. Language English Max speed 200m/m Note: PRO-PROGRAM FOR CABLE INDUSTRY ,Data from tens of thousands of experiments. go to product group+
Diameter Gauge for Measurement and Control Laser diameter control Diameter Gauge for Measurement and Control go to product group+
RBD450/13 Individual Servo motor drives type of Copper Rod Breakdown Machine with annealing, double spooler PND630 and Down coiler RBD450/13 Individual Servo motor drives type of Copper Rod Breakdown Machine with annealing, double spooler PND630 and Down coiler Advantages of this safe investment choice Increase in quality: High surface quality of the wires due to the optimized wire path (2° inclination of the gearing/drawing capstans) innovative drawing die holders with high-pressure cooling of the drawing dies Increase in productivity: Reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology (quick drawing die change system) Reduced downtime due to touch screen- Based user guidance and fault display Cost-effectiveness: Reduced tool consumption (drawing capstans, drawing dies) with minimized-slip operation
energy savings of up to 20% are achieved by switching off unused drives long service intervals and extended drawing tool service life minimize the requirement to stock and use spare parts Reduced consumption of oil and drawing lubricant Design: Optimized wire cooling/lubrication (due to the fully-immersed drawing basin) flexible adjustment of the wire elongation per draft Individually driven drawing shafts in horizontal tandem layout three-phase AC drives, water-cooled and maintenance-free Ergonomic and user-friendly machine design, with easy maintenance no noise protection cabin required up to 85 dB (A)
helically geared precision gearing for extremely smooth operation and uniform load transmission vibration-damping grey cast iron housing for long service life Highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals) go to product group+
Al flux-cored wire and Al brazing wire manufacturing whole line solutions Al flux-cored wire and Al brazing wire manufacturing whole line solutions 4043,4047,5356,6061 and so on. Aluminum brazing wire (XR-4047) is a solid aluminum silicon brazing wire,which needs to be used with aluminum flux paste. ①　Composition is 4047, conforming to American Standard BAlSi-4 ②　Spool:Φ1.0、Φ1.2、Φ1.6、Φ2.0 6kg/reel 1reel/box ③　Rod: xn--(1-4bc.xn--62-4bc5046b.xn--02-4bc5046b.xn--43-4bc5046b.xn--03-4bc5046b.2)*1000mm 5kg/box or 10kg/box ④　Ring: According to customers’ measurement Al flux-cored wire is a composite made of aluminum-silicate alloy (outside) and white fluoride flux (inside). The white flux is non-hygroscopic, non-corrosive and needs no cleaning after brazing. It is used to flame braze, induction braze and furnace braze aluminum heat exchanger for condenser, refrigerator, air conditioner, heat pump, cold storage aluminum platoon, various aluminum pipes and parts. If you plan to produce Al flux-cored wire and Al brazing wire,please feel free to ask.We supply the whole line solution. go to product group+
Grounding, Lightning Protection, Surge Suppression and Lightning Warning cable manufacturing whole line solution Grounding, Lightning Protection, Surge Suppression and Lightning Warning cable manufacturing whole line solution 1. Drawing step Drawing Aluminum rod/copper rod to get the Wire diameter required 2. Core cable twisting-630mm PLC cantilever type single twister 3-7PCS wires twisting into core cable 3:6- 7-8 Core cables twisting into final cable go to product group+
PV Solar cable extruder whole manufacturing line solutions PV Solar cable extruder whole manufacturing line. Step 1, Fine wire drawing machine. Inlet 1.2mm-1.6mm,Outlet 0.3mm Step 2, Annealing and tinning machine to produce tinned copper wire 0.3mm Step 3 630 Double twisting buncher to produce bunched 35/0.3,56/0.3,84/0.3 Step 4 70+90 PV solar cable extruder line to produce finished cable 2.5/4.0/6.0mm2 go to product group+
RV cable extruder manufacturing whole line solutions RV cable manufacturing whole line solutions Step 1. 4 wires drawing machine to produce 0.24/0.25 annealed copper wire Step 2 Wires bunching machine to produce bunched conductor Step 3 70 PLC extruder to produce core cable Step 4 1250 PLC cantilever type single twister to produce stranded 3/4 core cable Step 5 90 PLC Extruder to produce finished cable go to product group+
PV Ribbon Machine Rolling Mills Annealer Tinning Line The interconnect ribbon is responsible for transmitting current within a solar cell array. The photovoltaic interconnect ribbons produced by our company possess excellent electrical conductivity, good dimensional stability, and superior welding properties. These characteristics ensure that the photovoltaic interconnect ribbons work reliably and efficiently in practical applications, significantly enhancing the energy output and service life of the entire photovoltaic system. Video site:https://youtube.com/shorts/yUvxDyWmeg8?si=iyDJ1ew9tpUhm3Au go to product group+
PV CABLE EXTRUDER Whole line solution for manufacturing pv cable ,including drawing machine, tinning machine, bunching machine, extruder line. go to product group+
PV junction box Junction Boxes for Use in Photovoltaic Modules and Panels Junction Boxes for Use in Photovoltaic Modules and Panels Product Model PVMH280 Rated Voltage IEC1500V/UL1500V Rated Current 12/15A Ribbons Width Max 8mm Glue Volume 24/50mL Wire Size 4.0mm2/12AWG Protection Degree IP68(1m,1h) Safety Class Class Ⅱ Flammability Class UL94-V0,5VA Insulation Material PPO/PA66 Metal Material Copper Overall Dimension 100*75*15mm Temperature Range -40℃~+85℃ go to product group+
Welding wire production whole line solution Production introduction of welding wire project 1 Welding wire production process: composed of main equipment, auxiliary equipment and energy supply equipment. 1、 Main equipment: （1）、 It consists of wire drawing, copper plating and winding. （2）、 Wire drawing is to draw the purchased raw materials from the wire diameter of 5.5 or 6.5 mm to the required wire diameter specification. Copper plating is to coat the surface of the drawn wire with copper layer, and winding is to package the finished products from the large spool to the small size package required by the market. 2、 The auxiliary equipment includes spools, pointing machine, butt welding machine, packing machine, and laboratory instruments. 3、 Welding wire energy supply is provided by customers, including power supply, water source, compressed air source, boiler and pipeline heat source. 4、 Welding wire production accessories: including wire drawing die, chemical raw materials and plastic plate, heat shrinkable film and carton, etc. Main production equipment and process flow ( the production process of gas shielded welding wire) 1. The rough drawing process removes the rust layer on the surface of the 5.5mm raw material through the pretreatment line and draws it to 2.1-2.35mm. 2.The fine drawing is 2.35mm to 0.8mm-1.6mm 3.Copper plating (Options) 3.1Fine wire drawing with online copper plating 3.2 Multi wire copper plating line 4.Layer winding machine go to product group+
Copper Capillary tube precision layer rewinding machine spooling machine Copper Capillary tube from basket to empty coil packing usage . go to product group+
MIG Wire Drawing And Online Copper electroplating line Main specification 1. Production process 1.1 First step:Drawing 5.0/5.5mm to 0.8-2.0mm and copper plating to manufacture 0.8-2.0mm MIG wire 1.2 Second step:Layer spooling MIG wire 0.8-2.0mm on 270/300 spools 1.3 Third step:Barrels Winding wire 250-350kg/barrel 2. Equipment capacity [1]. According to 0.8mm-30%, 1.2mm-50%, other 20% considered. [2]. The annual working hours are 6600 hours, 330 days per year, and the production capacity is considered 20 hours per day. [3]. Capacity of SDMP500/7+400/7+2 drawing and copper plating line is 2400 tons / year of 1.2mm 3:Video sites 1. SDMP500/5+400/7+2 drawing with copper plating https://youtube.com/shorts/qVyzQGVL6ng?feature=share 2. NL-5DA Automatic layer spooling https://youtu.be/E99GSbkv27A 3. BWM500 Barrels winding machine https://youtube.com/shorts/Ss91xucswHo?feature=share go to product group+
PV Round Wire Machine Annealing And Tinning Line Round PV ribbons are particularly suitable for MBB (Multi-Busbar) and SMBB (Small-Multi-Busbar) technologies. These technologies employ multiple thinner ribbons can improve current collection efficiency by reducing shading area, enhancing optical utilization. Video site:https://youtube.com/shorts/0uj9rf60O98?si=ncRcv03bCV4s8DAl go to product group+
Aluminum Alloy Welding Wire MIG TIG Shaving Straightening Cutting With Embossing Machine It included:Payoff (with motor)+Dancer+Shaving +Dancer+High pressure water cleaning +dryer+tractor+dancer+take up+ straightening cutting with Embossing online <1>、The equipment consists of two groups of incoming straightener, belt pushing device, one group of straightener and cutting part. <2>、The incoming straightener is used to stabilize the wire, and the intermediate straightener is used to straighten the wire before cutting. <3>、The equipment is matched with two groups of belt pushing devices, which are placed at both ends of the straightener, and the power of the belt pushing motor is 4kw. <4>、The equipment adopts rotary cutting device, the servo motor drives the reducer to cut wire, and the power of the servo motor is 5.5kW. go to product group+
Flat Plus Round PV Ribbon Making Machine Five types PV ribbon making equipments 1.PV Ribbon(Flat wire) 2: PV Round wire 3. PV Segmented round plus flat welding tape for Module ,4.PV Flat Plus Triangle wire 5. Busbar Technical parameters: Segmented Round plus flat / triangular plus flat welding strip is a segmented high-efficiency welding strip composed of circular section and flat section by adopting the latest segmented rolling production process, in which the circular section is welded with the front of the battery, and the flat section is welded with the back of the battery. Compared with traditional welding strips, segmented welding strips have the following advantages: 1. Reduce the cell spacing and save the component cost; 2. The flat welding strip is used at the back of the battery, which can reduce the welding stress, reduce the hidden crack of the battery, and effectively reduce the partial welding and false welding; 3. Under the condition of constant module power, the amount of EVA on the back of the battery can be reduced and the material cost of the module end can be saved. go to product group+
Flat Plus Triangle PV Ribbon Making Machine Five types PV ribbon making equipments 1.PV Ribbon(Flat wire) 2: PV Round wire 3. PV Segmented round plus flat welding tape for Module ,4.PV Flat Plus Triangle wire 5. Busbar Technical parameters: Segmented Round plus flat / triangular plus flat welding strip is a segmented high-efficiency welding strip composed of circular section and flat section by adopting the latest segmented rolling production process, in which the circular section is welded with the front of the battery, and the flat section is welded with the back of the battery. Compared with traditional welding strips, segmented welding strips have the following advantages: 1. Reduce the cell spacing and save the component cost; 2. The flat welding strip is used at the back of the battery, which can reduce the welding stress, reduce the hidden crack of the battery, and effectively reduce the partial welding and false welding; 3. Under the condition of constant module power, the amount of EVA on the back of the battery can be reduced and the material cost of the module end can be saved. go to product group+
Welding Wire Lubricate Product Description: AL 503 is specialized in lubricating welding wire to decrease the friction when feed the wire to welding gun, which make wire moving smoothly. It is suitable to be coated by CWR electrostatic oiler. Resistivity greater than 102 MQ, viscosity greater than 40cst. ● Good lubricity; ● welding smoke is small; ● The smoke produced by high temperature is harmless to human body; ● Suitable for electrostatic coating. Professional for metal and aluminum alloy welding material surface lubrication and rust prevention. > Stainless steel welding wire > Aluminum alloy welding wire > Flux cored wire > copper-plated welding wire go to product group+
Wire Drawing Die Repairing Machine Wire Drawing Dies Sizing Machine. Wire Drawing Dies Inlet and Outlet Grinding Polishing Machine.Wire Drawing Dies Horizontal Grinding Machine go to product group+
SS Welding Wire TIG And MIG Production Line Whole line solution for SS welding wire ,MIG and TIG production Line,including :drawing with cleaning,annealing with cleaning, rewinding, straight-cutting machine and so on. go to product group+
Titanium Alloy Straightening And Cutting Stamping machine Titanium Alloy Straightening And Cutting Stamping machine,Special design ensures no scratches on the surface of the wire and ensures the straightness of the wire。 Video site Straightening And Cutting Stamping :https://youtu.be/8K6FS-Bv4gI Video site Shaving: https://youtu.be/TN8TWQ-OItc go to product group+
Copper Alloy Wire Drawing Machine Drawing Machine Designed for Copper,Copper Alloy,Silver, Inlet 1.2-2.0 copper, copper alloy,silver,Outlet 0.2-0.9mm Video site: 1.https://youtube.com/shorts/z14BG78SwfY?si=Bolqkh_oqchXeqqZ 2.https://youtube.com/shorts/rE8_E902ngI?si=Ytz8h3YLIpr66Snf go to product group+
Nickel Alloy Wire Titanium Alloy Wire Copper Alloy Wire Annealing Furnace Wire Annealing Furnace For Nickel Alloy Wire Titanium Alloy Wire Copper Alloy Wire. 1.wire diameter 0.01-1.2mm,2.Servo traverse .3.Servo Take up. Video site:https://youtu.be/oxulHTacEvk?si=2Fux95wgRmzLcqM7 go to product group+
PV Busbar Drawing Rolling Mills Annealing Tinning Line Video site:PV Busbar Drawing Rolling Mills Annealing Tinning Line Solar busbars are crucial components in photovoltaic power generation systems, as they provide efficient power transmission between solar cells and contribute to optimizing the overall performance of the system. Through continuous improvements in the production and manufacturing technology of busbars, our company produces solar busbars that meet the demands for higher efficiency and reliability. These busbars are designed to fulfill the requirements for enhanced performance in photovoltaic systems go to product group+
0.01 To 0.05 To 0.1m Ultra Fine Drawing Machine Annealing Furnace Rewinding Machine Precious metal wires casting machine , large wire drawing machine,ultra fine wire drawing machine, Annealing wire machine, rewinder , whole line solution. Semiconductor wire making machines. Video site: 1.https://www.facebook.com/share/v/icHWNtrH769ZLHVZ/?mibextid=WC7FNe 2.https://www.facebook.com/share/v/hsZfMPYVQQsPLpsC/?mibextid=CTbP7E They have formed a technical team composed of doctoral students, professors, senior engineers, etc. The aim is to deeply cultivate technology and develop a complete set of ultra-fine wire drawing equipment, including gold, silver, copper, aluminum wire, stainless steel wire, nickel wire, tungsten wire, molybdenum wire, carbon steel wire, iron wire, etc., for chip packaging, photovoltaic, medical, electronics, etc, Communication and other application fields, helping the development of China's semiconductor and metal ultrafine wire industries! Finished product:0.01 To 0.05 To 0.1m option go to product group+
Precious Metal Wire Production Technology And Equipments The aim is to deeply cultivate technology and develop a complete set of ultra-fine wire drawing equipment, including gold, silver, copper, aluminum wire, stainless steel wire, nickel wire, tungsten wire, molybdenum wire, carbon steel wire, iron wire, etc., for chip packaging, photovoltaic, medical, electronics, etc, Communication and other application fields, helping the development of semiconductor and metal ultrafine wire industries!Precious metal wire industry production technology and equipments are: Casting furnace,minuteness non-slip wire drawing machine,medium non-slip wire drawing machine,large double drum drawing machine,precious metal minuteness slip wire drawing machine,four-wire horizontal annealing furnace, two-wire vertical annealing furnace,four-wire rewinder,two-wire (four-wire) vertical rewinder,double-wire aluminum rewinder,fully automatic ultrasonic cleaning machine,take-up and pay-off machine, technology assistive equipment (such as: all kinds of guide wheel, wire traverse, clips) etc. go to product group+
Metal Wire Sanding Machine For Steel wire Nickel Wire Titanium Wire Wire Sanding Machine For Steel wire Nickel Wire Titanium Wire. Model:NEWLEAD—1180Plus Replace pickling，installation in front of the wire drawing process ,for the steel wire derusting, derusting process does not use any chemicals, no pollution, no emissions, derusting effect is better than pickling way 1、Usage： This machine can be used after mechanical descaling wire. Then the method of mechanical polishing cleaning, will rust on the surface of the wire divisible, replacing traditional pickling process, environment protection and energy saving. go to product group+
Annealer Electric Continuous Annealer Series for Copper/ Induction Annealer for Copper Alloy Annealers Electric Continuous Annealer Series for Copper/ Induction Annealer for Copper Alloy Copper continuous annealer process made by applying a high current onto the wire on its path through contact wheels Internally water-cooled wheels Includes a high power AC rectifier to supply DC voltage to heat and anneal the wire according the line speed HMI+PLC computer control is integrated in order to guarantee a zero hard copper starting Keeps a smooth and constant wire elongation during the whole range of drawing speeds and wire diameters Optionally driven by an independent 7.5/15/37 kW AC servo go to product group+
Welding Wire Making Equipments WELDING WIRE：CO2 Gas Shield Welding Wire ,Electrode,Submerged Arc Welding Wire,Flux.Cored Welding Wire,Aluminium Welding Wire,Stainless Steel Welding Wire,Ti Wire,Copper Alloy Wire. go to product group+
Automatic Bobbin/reel/spool Changer Our automatic bobbin changer is used whenever the highest demands on productivity and reliability are required. Thanks to an intelligent modular concept, the spooler can be adapted to all types of bobbins, whether cylindrical or biconical, from a bobbin size of 100 mm to 800 mm. Precise stepper motor controls in connection with powerful pneumatics ensure a long service life and low maintenance costs. A fully automatic rim correction always delivers the best package quality, and the variable package magazine can accommodate all the packages in a shift. Options such as the electronically controlled dancer or the oscillating wire diameter measuring device add to the efficiency of this machine. The extremely user-friendly bobbin changer is the result of many years of cooperation with our customers. Because only together can we find the best solutions. Thanks to the modular concept, this bobbin changer can be combined with a wide variety of drawing machines. go to product group+
Electromagnetic wire rolling mill equipment Production of high-precision copper flat wire with rounded corners ★ Applicable material: Copper rod (oxygen free or low oxygen) ★ Maximum incoming wire diameter of 8mm, product cross-sectional area ≤ 50mm ² ★ Rapid roller replacement ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 350m/min ★ Electric roller gap adjustment Equipment components Payoff+drawing+flat rolling +edge rolling+ flat rolling +edge rolling +flat rolling+flat drawing+annealing+take up go to product group+
Electric vehicle motor flat wire drawing and rolling line Usage and characteristics: Used for the front part of the enamel production line, linked with the enamel production line, round drawing+flat rolling+flat drawing+flat drawing, used for producing small-sized enamel flat wire ★ Applicable materials: Copper rod (oxygen free or low oxygen) ★ Incoming wire diameter of 2~8mm, product cross-sectional area ≤ 30mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 50m/min ★ Electric roll gap adjustment Equipment components drawing-rolling-drawing-drawing Usage and characteristics: Used for the front of the enamel production line, linked with the enamel production line, using the "rolling+drawing" process (flat rolling+flat drawing+flat drawing), for producing small-sized enamel flat wire. ★ Applicable materials: Copper rod (oxygen free or low oxygen) ★ Incoming wire diameter of 0.4~2mm, product cross-sectional area ≤ 10mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 180m/min ★ Electric roll gap adjustment Usage and characteristics: Used for the front of the enamel production line, linked with the enamel production line, flat rolling+flat pulling+flat pulling, used for producing small-sized enamel flat wire ★ Applicable materials: Copper wire (oxygen free or low oxygen) ★ Incoming wire diameter of 0.05~0.5mm, product cross-sectional area ≤ 3mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 150m/min ★ Electric roll gap adjustment go to product group+
Drawing and Rolling mills for Flat Brass, stainless steel, carbon steel Usage and characteristics: Suitable for producing high-precision alloy flat wire with rounded corners through the "drawing and rolling" process ★ Applicable materials: brass, stainless steel, carbon steel, etc. ★ Incoming wire diameter of 2~8mm, product cross-sectional area ≤ 30mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 180m/min ★ Electric roll gap adjustment go to product group+
PRIMARY WIRE WIPE SYSTEM - MECHANICAL WIRE CLEANING The patented Prima- ry Wire Wipe System (PWW) is a compact, mechanical wiping sys- tem for removing visi- ble particulate surface buildup such as dirt and fines, as well as excess drawing material from wires, strands and tapes. The material to be wi- ped off passes through two mirror-image, counter-rotating strips of 150 mm wide non- woven tapes. Wires and strands are guided transversely to the nonwoven tapes. Band shaped material is guided against the running di- rection of the two nonwoven tapes. go to product group+
Wire Drawing Lubricate Oil And water separation system Oil water separation system specially designed and developed for the wire drawing industry Water can be recycled The processing capacity of concentrated oil has been reduced to 1/10 Video site:https://youtu.be/KNh-Spc2Uko?si=A6OFpHUv7i8t5flT go to product group+
CTC CONDUCTOR PRODUCTION LINE CTC Conductor production line is a specialized equipment used for manufacturing transposition wire windings for energy-saving transformers of 1000 kVA and below. The main function of the equipment is to accurately perform small edge bending on a certain number (odd) of enameled flat wires through a transposition device, repeatedly cross transposition, weave them into bundled wires, and then wrap them with paper insulation to become products. Structural features: (1) This production line can be customized with 24-96 tray output lines according to customer requirements. Crossing type ultra long distance laying, with a large laying angle of less than 16. Medical grade stainless steel conduit with mechanical complete anti twist system and inner wall mirror treatment. (2) Forced horizontal device with fine adjustment tension for 8-10 ° (3) constant pressure double push type displacement operation, displacement distance 22-35mm, no gap adjustment, displacement action frequency<120 times/minute. The surface of each mold can be coated with ion spray industrial ceramic technology (4) tension complementary paper packaging, with an overlap coefficient of 40% -70% set arbitrarily, a gap winding width<2mm, and a self selling cross shaped wire frame. (5) Dual station track type traction, inductive display and adjustment of traction force (6) adopts AC servo variable frequency drive+program controller+industrial control type 14 "color screen+communication method for data exchange, realizing high-precision synchronous control, memory and self correction, remote diagnosis of each component's separate transmission. 1.https://youtu.be/TQMnqm9x3sA go to product group+
Metallographic Testing Equipment The main uses of metallographic testing equipment include the following aspects: Materials research and development: Metallographic testing can analyze the microstructure, composition, and structure of materials to understand their internal structure and composition, providing scientific basis for the development of new materials and helping to design materials rationally. Quality control and evaluation: Metallographic testing can quickly and effectively inspect the quality of products, ensuring that the performance indicators of materials meet standard requirements. At the same time, it is also an important means of testing and evaluating the service life of materials. Failure analysis: Through metallographic examination, the microscopic changes of materials before failure can be studied, and the causes of failure can be analyzed to improve material design and production processes. Biology, Medicine, and Teaching: Metallographic microscopes are widely used in medical and health institutions, laboratories, research institutes, and universities for biological, pathological, and bacteriological observation, teaching, and research. Multiple industry applications: Metallographic testing equipment is widely used in multiple industries, including metallurgy, mechanical manufacturing, automotive manufacturing, electronics, petrochemicals, etc. In the metallurgical industry, metallographic testing can observe the content and distribution of grains, grain boundaries, phases, and other information in metal materials, in order to study the material's microstructure and processing performance. In the mechanical manufacturing industry, metallographic testing is an important technology for quality control, which can determine the material, structure, and properties of mechanical parts. In the automotive manufacturing industry, metallographic testing can understand the internal structure of materials and their impact on performance, ensuring the quality and safety of components. In the electronics industry, metallographic testing can analyze and detect semiconductor materials, providing a basis for the manufacturing and research of electronic devices。 go to product group+
Rivets Making Equipment 1. Rivets Nail Making Machine 2. Rivets Cap Making Machine 3. Rivets Cap And Nail Combined Machine Video site :https://youtube.com/shorts/KYt4dhV3Ot0?feature=share go to product group+
Fully Automatic Metallographic Sample Grinding Tester 1.PV Round Wire Tinning Concentricity inspection instrument.Fully Automatic Metallographic Sample Grinding Tester. 2.Computer-based desktop tensile testing machine go to product group+
A new flexible Combination flat wire enameling Dies A new flexible Combination flat wire enameling Dies It is one kinds of professional tool for flat Cu/Al wire enamel coating, which is a ew generation of invention patent and the practical patent product.The mold was invented in 2017 and has been used in the Chinese market for 8 years. The technology is mature and widely praised by customers.Easy to operate, no need to change the dies by cutting the wire, saving raw material and time costs. Video: https://youtube.com/shorts/TEOQnIvjF28?si=M7E6LvNmE6Xz9ksT go to product group+
PV Reflective Busbar Production Line PV Busbar Standard/Reflective Busbar Production Line 3. Composition and function of the machine: (1)Pulling up pay off machine: 1 unit (2) D9-gear drawing machine: 1 unit (3) 200 roller: 1 unit (4) 160 roller: 1 unit (5) 400 single-mode flat drawing machine: 3 units (7) 120 textured finish roller: 1 unit (7) Annealing (including chiller): 1 unit (8) Hot tin coating machine with flux: 1 unit (9) Tension controller: 1 unit (10) Double spools Take up: 1 set (11) Electric control cabinet: 1 unit go to product group+
Black PV Busbar Production Line Black PV Busbar Production Line Composition and function of the machine: (1)Pay off (2) Painting device (3) Drying oven (4) Take up (5) Electric control cabinet and HMI go to product group+
BC Cell PV Ribbon Dual Wires production line ( Drawing, Rolling,annealing,tinning and Take up) PV Ribbon Factory Construction Project (Core Content) Conductor for solar panels(PV Ribbon,Busbar,Flat Ribbon) Note Germany Germany plans to achieve a significant increase in renewable energy installed capacity by 2030, with a photovoltaic installed capacity target of 45-47GW, and promote industrial development through policy support. Cluster of EU countries The overall goal of Europe is to double the installed capacity of renewable energy by 2030 (from 894 gigawatts in 2023 to approximately 1600 gigawatts), with significant contributions from countries such as Germany, the United Kingdom, and Italy. Britain The UK's 2030 Clean Power Action Plan proposes a photovoltaic installed capacity target of 45-47GW and is expected to exceed the upper limit. three America In 2024, the installed capacity of photovoltaics in the United States will approach 50GW, and policy support will promote the sustainable development of the industry India plans to achieve 186GW of photovoltaic installed capacity by 2026-2027 1GW need 55-600 tons PV Ribbon. PV Ribbon,Busbar,Flat Ribbon Manufacturing video sites : https://youtube.com/playlist?list=PLg4LSScaB5vsjUtx2pBikyM7PxaB5vXAX&si=u4_njSvgexC55Fm3 The manufacturing process is similar as wire and cable. We can supply setting up manufacturing line for pv ribbons on turnkey basis. go to product group+
Ultrasonic cleaning Machine For Enameling Machine Online Ultrasonic cleaning copper ,aluminum wire/strips for enameling machine. Install between payoff and enameling machine. go to product group+
Square Wire Drawing Machine Square wire drawing machine 1. Performance parameters: (1) Input wire: 0.8-2.2 soft round wire (2) Finished Square wire production:0.40 * 0.40, 0.45 * 0.45, 0.50 * 0.50, 0.60 * 0.60, 0.64 * 0.64, 0.70 * 0.70, 0.71 * 0.71, 0.80 * 0.80, 0.92 * 0.92, 1.0 * 1.0 (3) Mechanical speed: 300MPM/Max go to product group+
Spare parts of wire drawing machine Spare parts of wire drawing machine. cones,capstan,annealing ring,carbon brush, bobbin,pulleys, copper wheel, shaft and so on. go to product group+
Spare parts of bunching machine Spare parts of bunching machine, pulleys,bow,gear ,clutch ,circuit board, tension gun and so on. go to product group+
spare parts of cable extruder spare parts of cable extruder, pulleys, wheels, extruding mould and so on. go to product group+

Search Keywords

This website stores cookies on your computer. These cookies are used to improve your website experience and provide more personalized services to you, both on this website and through other media. To find out more about the cookies we use, see our Privacy Policy.
We won't track your information when you visit our site. But in order to comply with your preferences, we'll have to use just one tiny cookie so that you're not asked to make this choice again.
Accept
Decline
