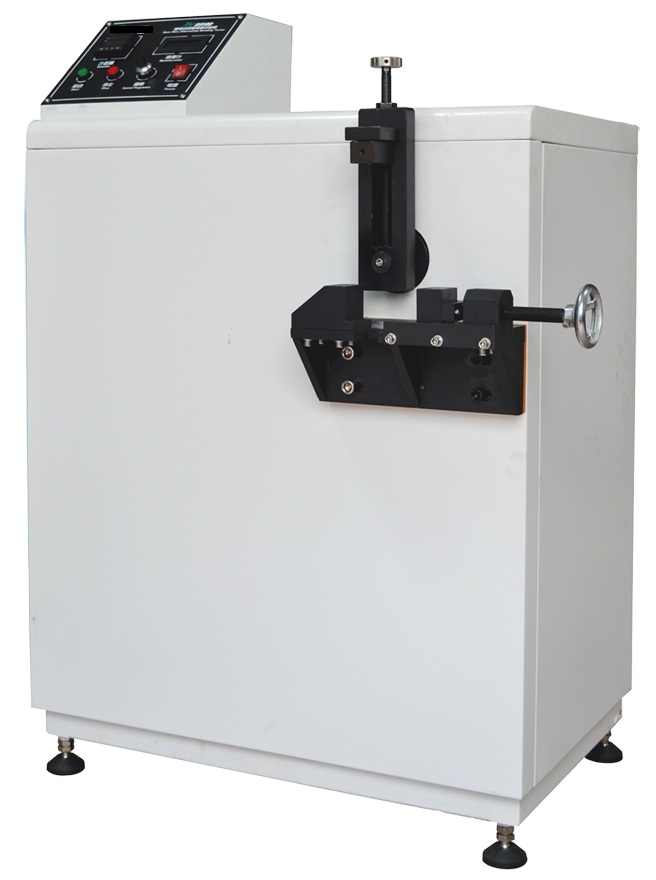

Bare Wire Repeated Bending Tester

Product description: Bare wire repeated bending tester is applicable to production plants and users of wires and cables, bare wires, wire ropes and others. Mainly use for repeated bending tests of bare wires and metal wires, to detect their plastic deformation performance and failures in repeated bending Test method: fixe one end of the specimen, and the free end along with a predetermined radius of cylindrical surface to do bending test at 90° normal and reverse directions Standards: • GB / T4909.5-2009 Technical parameters: • Specimen length: 300mm • Suitable wire OD: φ0.7mm ~ φ8.0mm • Bending rate: 10 to 60 beats / min • Times setting: 0 to 9999 times, settable • Cylindrical bending radius: r2.5, r3.75, r5, r7.5, r10, r15, r20mm • Distance: 15 ~ 100mm, adjustable Specifications: • Overall dimensions: 700mm×450mm×1000mm • Power supply: AC 220V 50 / 60Hz 0.75kW
