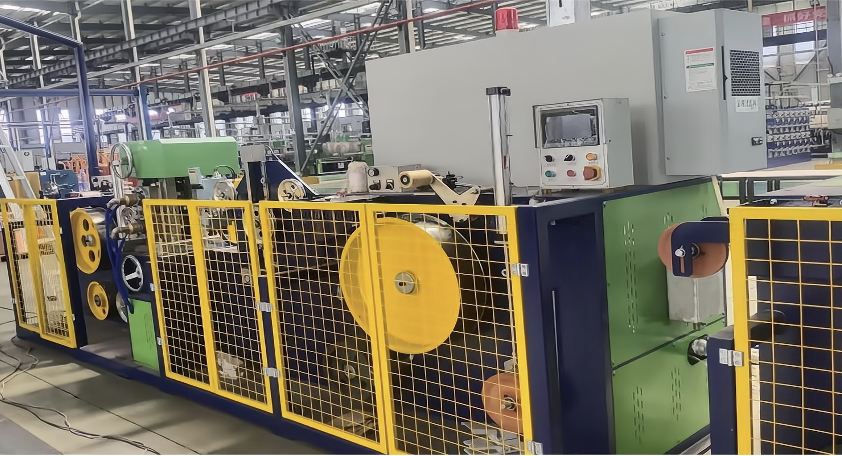

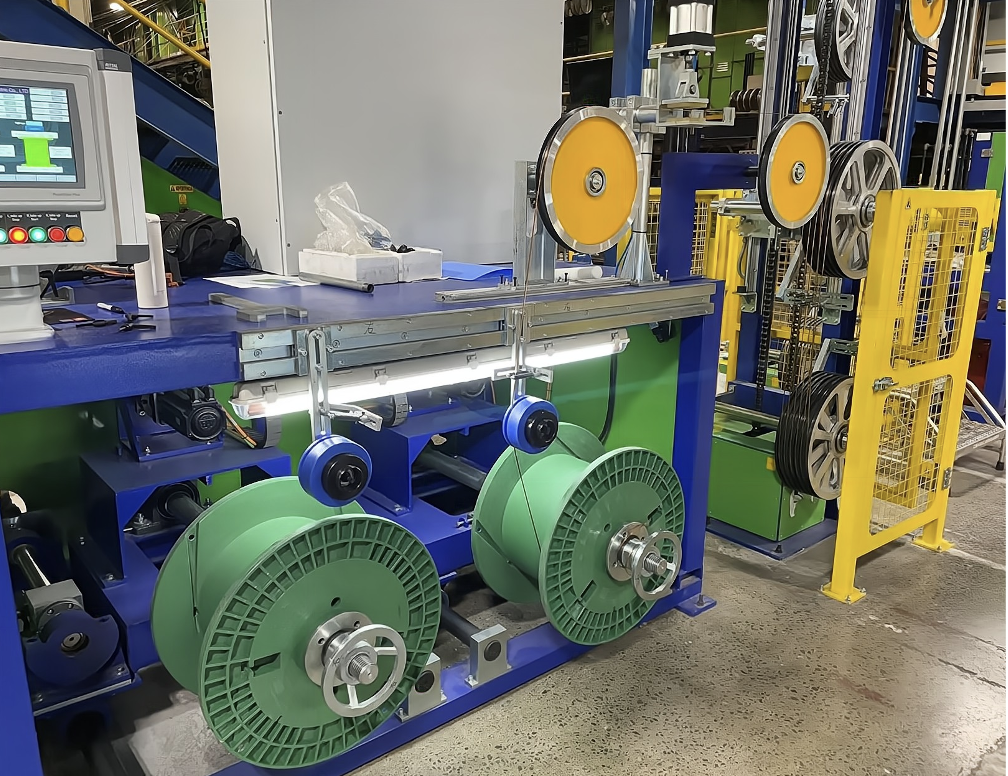

Electric vehicle motor flat wire drawing and rolling line

Usage and characteristics: Used for the front part of the enamel production line, linked with the enamel production line, round drawing+flat rolling+flat drawing+flat drawing, used for producing small-sized enamel flat wire ★ Applicable materials: Copper rod (oxygen free or low oxygen) ★ Incoming wire diameter of 2~8mm, product cross-sectional area ≤ 30mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 50m/min ★ Electric roll gap adjustment Equipment components drawing-rolling-drawing-drawing Usage and characteristics: Used for the front of the enamel production line, linked with the enamel production line, using the "rolling+drawing" process (flat rolling+flat drawing+flat drawing), for producing small-sized enamel flat wire. ★ Applicable materials: Copper rod (oxygen free or low oxygen) ★ Incoming wire diameter of 0.4~2mm, product cross-sectional area ≤ 10mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 180m/min ★ Electric roll gap adjustment Usage and characteristics: Used for the front of the enamel production line, linked with the enamel production line, flat rolling+flat pulling+flat pulling, used for producing small-sized enamel flat wire ★ Applicable materials: Copper wire (oxygen free or low oxygen) ★ Incoming wire diameter of 0.05~0.5mm, product cross-sectional area ≤ 3mm ² ★ Quick roll change ★ High precision hard alloy roller, roller runout<1 μ m ★ Dual servo drive rolling, maximum linear speed 150m/min ★ Electric roll gap adjustment
