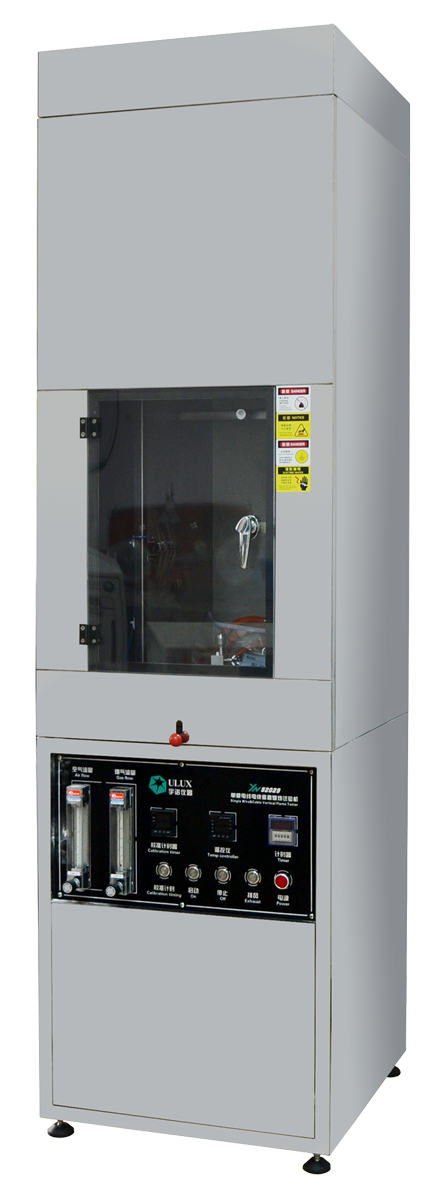

Single Wire and Cable Vertical Flame Propagation Tester

Product description: Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 . Obtain and determine wire and cable’s capability of prevent the fire from spreading under fire condition Standards: • GB/T18380.(11-12)—2008 • GB/T5169.14-2007 Technical parameters: • Stainless steel control cabinet, fume cupboard and metal cover is all-in-one type, which is easy to operate and good looking • Metal cover: 1200mm (H)×300mm(W)×450mm(D). The front is open, the top and bottom are sealed • Blowtorch: nominal power: 1kw • Control mode: When the set burning time reaches the preset time, the machine stops supplying the fire automatically • Burning device: automatic high pressure ignition • Flowmeter: air flowmeter: 1.5~15L/min, gas flowmeter, 0.1~1L/min • The separately controlled exhaust fan is installed at the top • Flame detection device: one imported thermocouple of ￠0.5, K type, one electrolytic copper billet ￠9mm, one each weight is 10g±0.05g, a suit of temperature and time display device Specifications: • Overall dimensions: 630mm(W)×600mm(D)×2170mm(H) • Power supply: AC 220V, 50/60Hz, 2A • Air source: propane and air( prepared by users)
