GB/T 3048 Series Bridge Fixtures

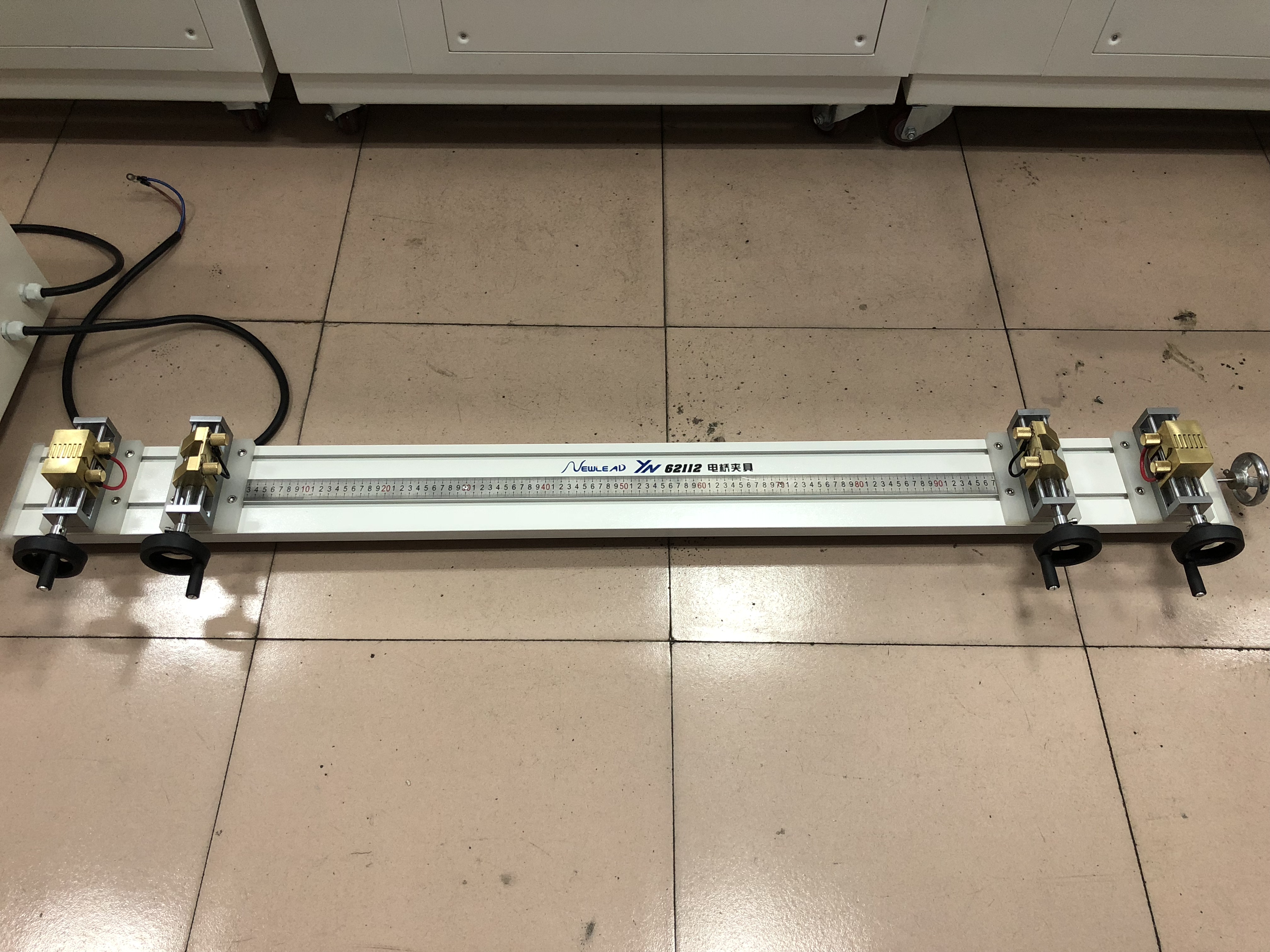

Product description: Bridge fixture in line with the amended GB/T 3048 standard requirements of conductor resistance test: The distance from each end of the potential fixture head and the current fixture head is not less than 1-5 times of sample cross-section perimeter, according to usage, it is sorted as bare conductors series and stranded conductors series All the appearance and structure are redesigned and adopted electrochemical dual-groove aluminum alloy baseplate to make it more reasonable Standard: • GB/T 3048 Technical parameters: • Can be used for round conductor, stranded conductor resistance tests • YN62112-A applies to 630mm2 round conductors and round stranded conductors • YN62112-B applies to up to 1200 mm2 round conductors and round stranded conductors Specifications: • Overall dimensions: 1550×230×125mm (630mm2) 1550×230×150mm (1200mm2)
