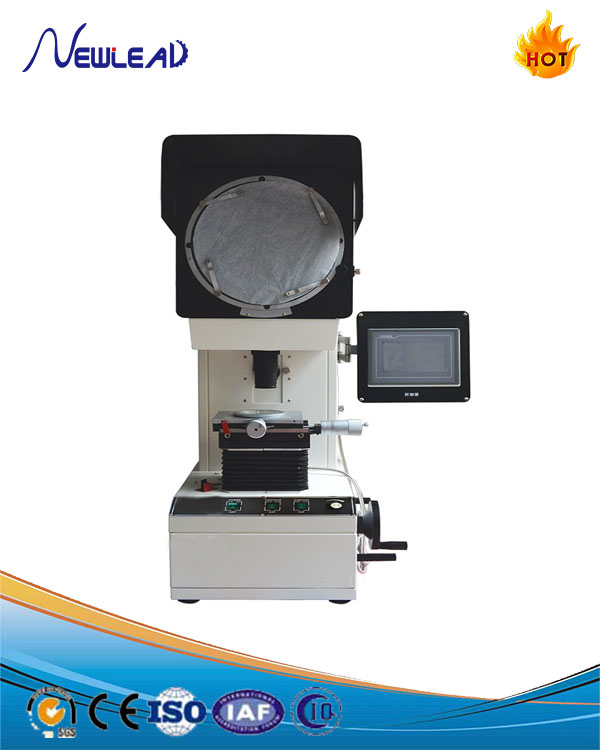

YN31118 Intelligent Cable Profile Projector

Product description: Intelligent cable profile projector is a measuring instrument controlled by a smart chip, it is adopted the principles of microcomputer and companied with profile projector, directly displays insulation thickness and outer diameter measurement values. Automatic intelligent controlled insulation thickness testing machine and companied with profile projector are applied to GB/T2951.11-2008 , standard for wire and cable insulation thickness and outer diameter tests Standard: • GB/T 2951.11-2008 Technical parameters: • Projector size: ф308mm, projection screen rotation range: 0 ~ 360°, rotation angle cursor partition: 2 ' • Objective lens: magnification: 10 times • Objective line view field(mm): ф30 • Working table: metal table size (mm): 200×160 • X coordinate axis stoke: (mm) 50 micrometer handwheel grid values: 0.01 • Y coordinate axis stroke: (mm) 25 micrometer handwheel grid values: 0.01 • Glass table size(mm): ф90, rotation range: 0~360 • Focus range: 70mm • Measurement accuracy less than ± 0.01mm, measurement repeatability less than ± 0.01mm • Touch screen: 7〃 MCGS touch screen • Instrument illumination: 24V, 150W tungsten halogen lamp • Cooling: air-cooled three-axial fan Intelligent test instrument main parameters and instructions: • Enable to do test of outer diameter and insulation thickness, automatically calculate minimum value, maximum value, average value, coupled with a printer that the above relevant data can be printed Specifications: • Overall dimensions: 1000×730×1060mm • Power supply: 220V (AC), 50/60Hz, total motor power 350W
