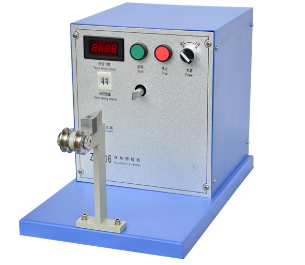

Flat/strip rebound angle tester
Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Used to detect the rebound elasticity of enameled flat wires with narrow side of 0.800mm- 5.600mm and of enameled round wires with nominal conductor diameter of 1.600mm- 5.600mm. Major Technical Parameters Bending angle of sample ＞30° Minimum resolution for quadrant dividing rule 0.2° Adjustable range of movable slider (contact) 28~252mm Overall dimensions L×W×H 460×315×120mm Weight 20kg
