IEC 60754-1~2-1994;GB/T 17650.1~2-1998 Halogen, PH & Conductivity Tester

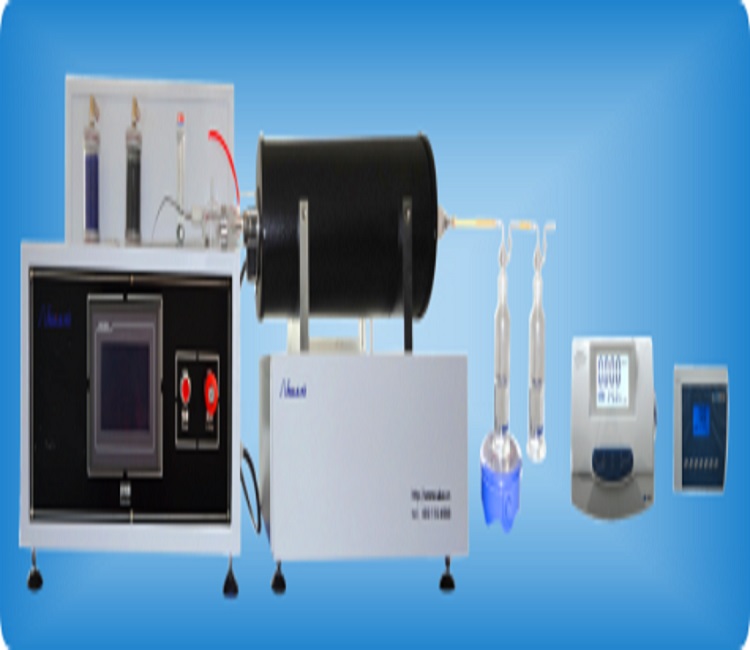

Product description: Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃) Standards: • IEC 60754-1~2-1994 • GB/T 17650.1~2-1998 Technical parameters: • Activated carbon (air filtering): filter for filtering the supplied air • Silica gel (air drying): a device for drying the supplied air • Flowmeter: 0.1～1L/min, a device to control the flow of the air source • Thermocouple: K type of high temperature resistant stainless thermocouple, range: 0 ～ 1300℃ • Quartz tube: ￠40×800 • Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water • PH meter: a device used for measuring the pH acidity (ray magnetic) • Conductivity meter: a device for measuring conductivity of combustion gas (ray magnetic) • 7 "color touch screen and PLC and PID automatic calculation of the module control heating furnace temperature • Heating furnace: ￠220×600; effective heating space: ￠43×550; power: 4KW • Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup, quantity: 1 Specifications: • Installation size: 2300 mm (W) × 600 mm (D) • Power supply: AC 220V, 50/60Hz, 21A • The reagent and air supply are prepared by users
