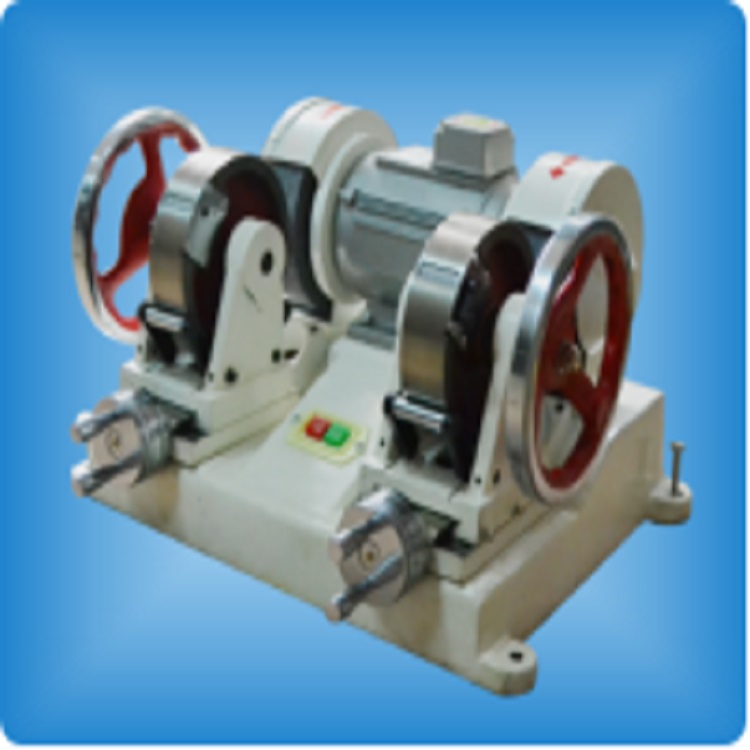

GB/T 2951-2008 Double-end Grinding Machine

Product description: Double-end grinding machine is used to grind the rubber, plastic and the other similar sample to a certain thickness for the test of other testing device, with advantages of both precision grinding wheel and fine grinding wheel working at the same time Standard: • GB/T 2951-2008 Technical parameters: • Grinding wheel speed: 12m/s • Grinding wheel: G260APRI 170×40×32, 36 grain G260APRI 170×40×32, 80 grain • Motor：GO2-11-40.6W, three- phase 380V, 1400r /min； • Working dimensions: diameter: 160mm×44mm, height of center: 214mm • Working wheel stroke: 20mm Specifications: • Overall dimensions: 500mm×400mm×314mm • Power supply: AC three- phase 380V 50/60Hz 3A • Weight: 80kg
