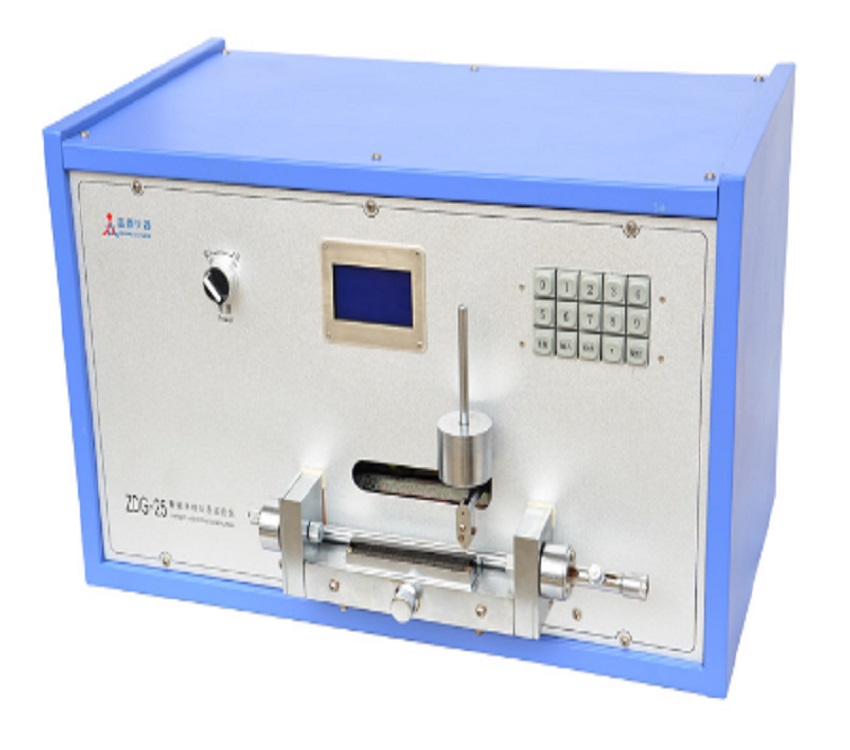

Intelligent one-way scraping paint tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.9-2008 ◆Used to measure the film scrap resistance of enameled round wires with nominal conductor diameter above 0.250mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Automatically complete the whole test process and work out the average of scraping forces obtained in three times;  ◆Sample support table allows for parallel rise and fall, maintaining close contact between the entire plane with sample; ◆As driven by precision linear rail, scraper is free from shake during movement; ◆When film is scratched, painting scraper would automatically stop scraping, with exposed conductor of sample＜3mm; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test result; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Displacement distance of painting scraper ＞100mm Movement speed of painting scraper 400±40mm/min Diameter of scraper 0.23±0.01mm Test voltage DC6.5±0.5V Short-circuit current 20±0.5mA Scraping force error ＜±5% Input power AC220V±10%  50Hz Consumed power ＜150W Overall dimensions L×W×H 640×350×355mm Weight 45kg ●Preparation of weights:  5N×3、2N×2、1N×1、0.5N×1、0.2N×2、0.1N×1
