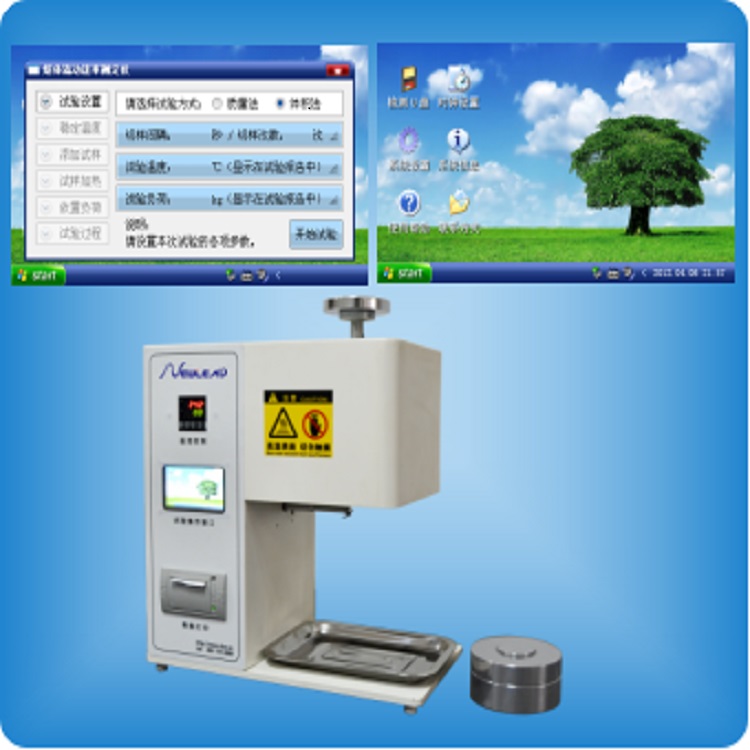

Melting Index Apparatus/Melt Flow Rate Tester (Touch screen)

Product description: Melting index apparatus/melt flow rate tester (touch screen) is used for determination of the melt mass-flow rate (MFR)/melt volume-flow rate (MVR) Tester (touch screen) for thermoplastics like polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials; which is adopted microprocessor control and integration, digital measurement and control technology, programmed test process settings in line with test standard, high heating rate, high constant temperature accuracy; after filling materials, it can restore a constant temperature quickly; English color and crystal display, voice prompts, touch-screen operation, convenient and easy to understand Standards: • GB/T3682-2000 • ISO1133-97, ASTM1238 Technical parameters: • Temperature control range: room temperature～450 ℃ • Temperature control precision: ±0.2 ℃ • Display resolution: 0.1 ℃ • Max power consumption: ≤500 W • Temperature recovery time: 4 min • Charging barrel parameter: inner bore: Φ9.55±0.025mm • Piston parameter: piston head Φ=9.475±0.015mm • Piston head length: H=6.35±0.1mm • Mouth mold configuration: excluding hole Φ=2.095±0.005mm • Mouth mold configuration: Φ2.095±0.005/Φ1.18±0.01mm • Weight parameter: 325g, 875g, 960g, 1200 g, 1640g(including pressure feeding rod) extra weights are available for user’s demand • Weight accuracy: ±0.5％ Specifications: • Overall dimensions: 500mm×320mm×600mm • Power supply: AC 220V 50/60Hz 3A • Volumetric method: (optional for users)
