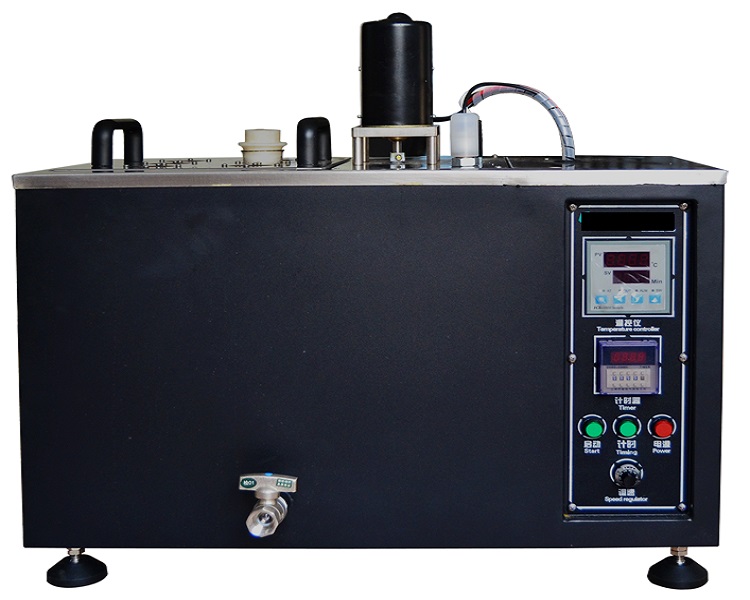

Oil Resistance Tester

Product description: Oil resistance tester is suitable for oil-resistant test of enameled wires or insulations and other materials which are made of rubbers, plastics. Test method: Take out the test piece after being immersed in hot oil for a period of time, and then test its tensile strength, if it’s enameled specimen, then view and check its film quality Standards: • UL1581 Technical Parameters: • Quartz tube: ф40mm, depth 350mm • Oil tank working room: 360 x 240 x 290mm (LxWxH), stainless steel materials • Tube plug: Corrosion and temperature resistance Urethane (compact plug) • Built-in loop mode stirring, stirring motor power: 100W Temperature control and thermal insulation system: • P.I.D smart temperature controller and high-precision PT100 platinum RTD • Heater: spiral tube heater, power: 3000W • Temperature range: RT ~ 300 ℃, instrument display accuracy: 0.1 ℃, oil temperature uniformity within ± 2 ℃ • With over temperature protection function, after over temperature, automatically cut off and stop heating, enable to effectively protect the safety of equipment • Time setting: 9999H / M / S. Specifications: • Overall dimensions: 610mm × 330mm × 580mm • Power supply: AC 220V 50 / 60Hz
