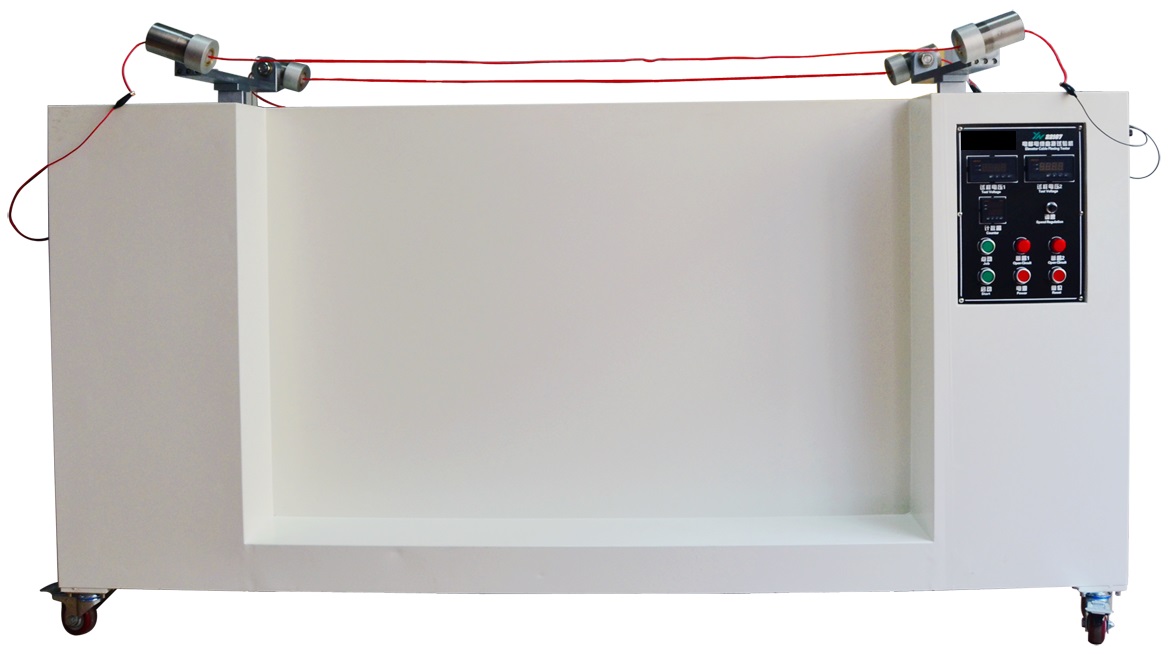

GB/T 5023.6-2006 Lift Cable Flexibility Tester
Product description: Lift cable flexibility tester is based on the current needs of the international market, the addition of the new standard GB/T5023.6-2006: Polyvinyl chloide insulated cables of rated voltages up to and including 450/750V--Part 6: Lift cables and cables for flexible connections test apparatus Standard: • GB/T 5023.6-2006 Technical parameters: • Specimen voltage: DC12V • Test speed: max relative acceleration 4m/s • Test speed: 1500 ± 10( times/H ) • Max distance between grip heads: 1700 ± 10(mm) • Min distance: 760 ± 10(mm) • Test times: 15000 times (round trip) Specifications: • Overall dimensions: 2200mm×800 mm×1300 mm • Power supply: AC 220V 50/60Hz 3A
