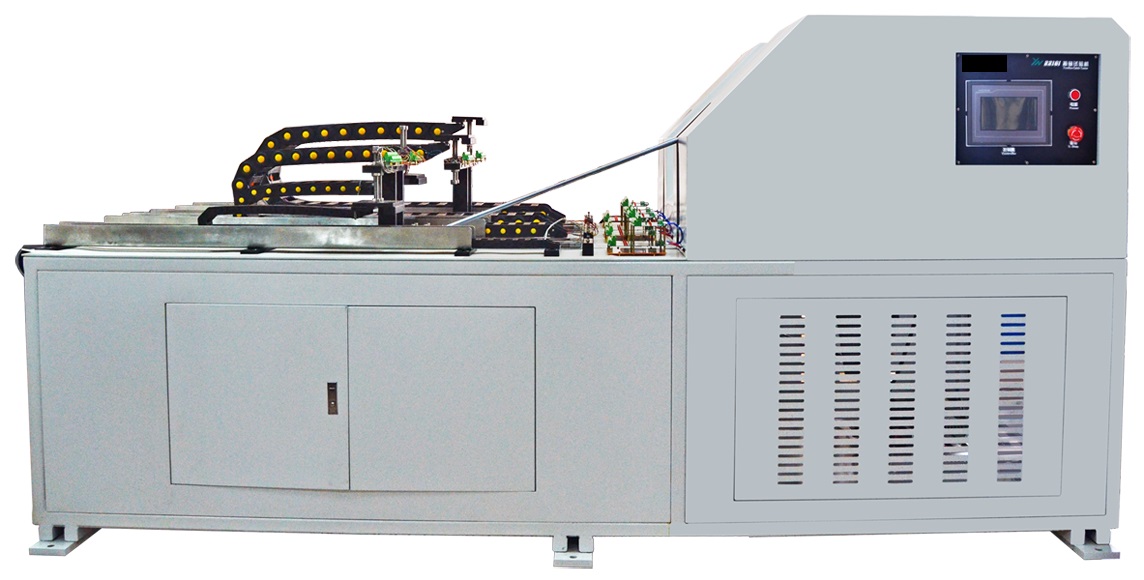

Towline Testing Machine

Product description: Towline testing machine is used to test the single or multi-core cable fatigue strength, with function that stop running when one core or all the cores are break down. Touch screen to set test parameters and control the entire test process. The towline is used for mounting specimens and provide the required bending radius (replaceable), there are grips in both ends of towline that for holding specimens, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical parameters: Model No YN22181 YN22181B YN22181C YN22181D YN22181E Times Max: 60 Max: 60 Max: 35 Max: 25 Max: 35 Running distance (mm) 600 1000 1500 2000 1000 Towline quantity 4 4 4 4 1 Towline bending radius R28, R55, R75, R100 R100 Total cores of specimen ≤ 200 ≤ 200 ≤200 ≤200 ≤50 Features Touch screen have prompt function, each group enables to do core break detection, you can choose to stop running when one core or all the cores are break down; YN22181C D stroke and rate(XX times / min) is settable Each core is counted separately, each core can be zero-cleared individually, each group can be all zero-cleared All test data are stored function in case of power-down, to prevent data loss due to power failure Transfer method Inverter Servo controller Control method Touch screen + Microcontroller Counting 0～99999999 times Off signal voltage DC24V Power AC220/AC380V 50/60Hz Motor Power(KW) 1.5 3.7 3.0 1.5 0.75 Dimensions L × W × H（mm） 2400×950×1030 3000×1150×1500 2560×950×1230 3400×1000×1200 1800×500×850 Nylon towline Wearing parts
