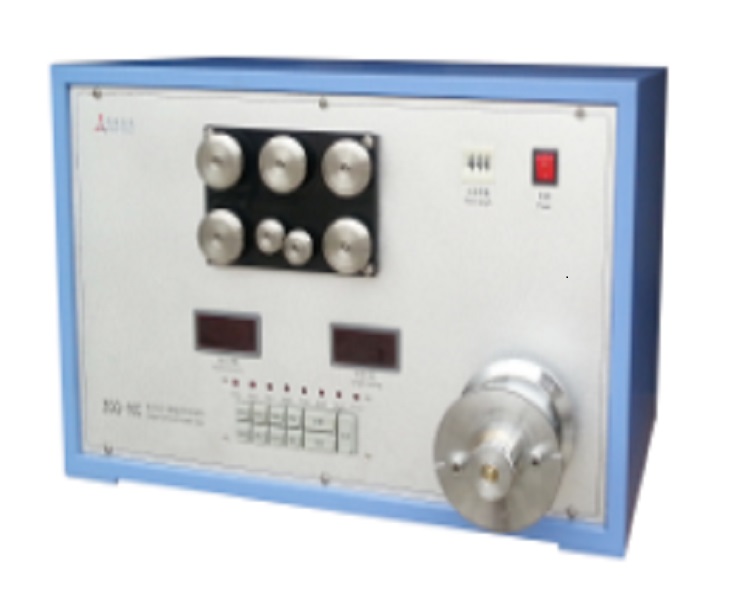

Enamelled round wire winding tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3 ◆Instruments necessary for measuring the flexibility, adhesiveness, thermal shock and other performances of the film of enameled round wire with nominal conductor diameter below 1.600mm; ◆Used in combination with JRB-16 enameled round wire winding test bar; ◆Set any number of winding turns ◆LED would automatically display and record the number of winding turns. ◆The application of high-end SCM control allows for simple operation, steady and stable performance. Major Technical Parameters   Winding speed 100±10r/min Number of winding turns 1~999r optional   Input power AC220V±10%  50Hz Consumed power ≤100W Overall dimensions L×W×H 640×345×350mm Weight 40kg   ●Preparation of weights: Mini-weight hook 0.1N×1, mini-weight 0.1N×2, 0.2N×1 and 0.5N×1 Large-weight hook 1N×1, large-weight 1N×2, 2N×1 and 5N×3
