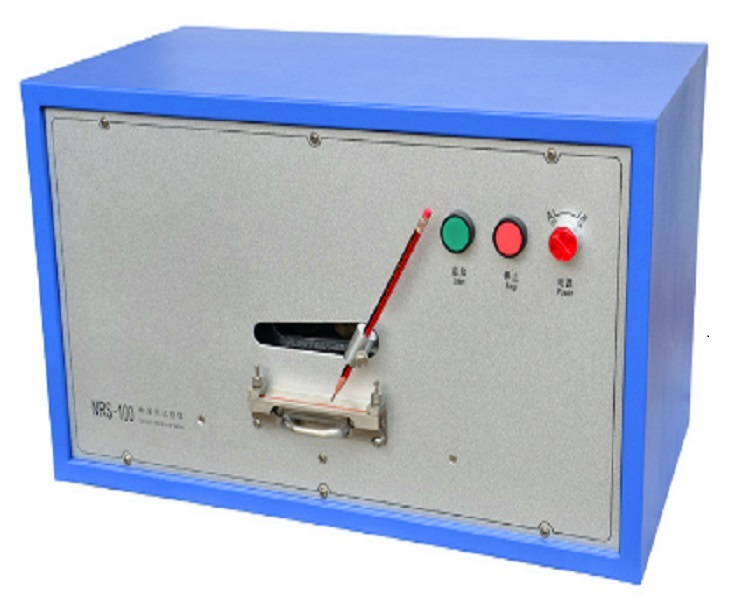

Solvent resistance tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.10-2008 ◆Used to detect the solvent resistance performance of enameled round wires and flat wires with nominal conductor diameter above 0.250mm; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Driven by precision linear rail, pencil moves steadily, free from shake; ◆Pencil push unit would automatically lay down pencil and move ahead, lift pencil and automatically return to initial position; ◆Used in combination with JRK-60 solvent thermostatic controller; ◆Automatic pencil sharper can sharpen pencil tip to be 60° symmetrical to its axis; ◆Clamp can be loaded and unloaded with sample quickly and conveniently. Major Technical Parameters Movement speed of pencil 400±40mm/min Movement distance of pencil ＞60mm Inclination angle between pencil and plane of sample 60±5° Force along the direction of pencil 5±0.25N Input power AC220V±10%  50Hz Consumed power ＜100W Overall dimensions L×W×H  640×345×350mm Weight 35kg ●Optional accessories: JRK-60 solvent thermostatic controller MBQ-60 automatic pencil sharpener
