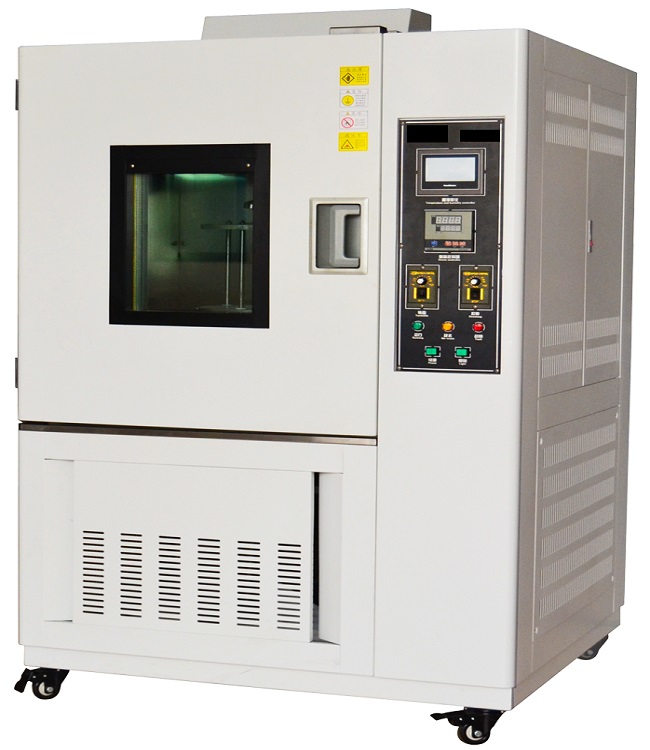

Smart Ventilation Ageing Test Oven (touch screen)

Product description: Smart ventilation ageing test oven (touch screen) is applicable for wires, leathers, plastics, rubbers, textiles changing properties before and after being heated. For the wires, it is used to maintain the fresh air inside the chamber and a special regulation of ventilation when being heated. With advanced PLC+ touch screen control, it can automatically adjust the ventilation to the preset value. Horizontal forced air circulation system and internal airflow adjustment on both sides, make sure the internal temperature of the testing machine uniformity and stability Standards: • UL1581 Technical parameters: • Temperature range: room temperature ~ 250℃ • Temperature fluctuation: ±0.5℃ • Temperature uniformity: ±2℃ • Heating time: it takes about 40min from room temperature to 250℃ • Oven internal dimensions: 500×500×500mm • Materials of oven interior: SUS#304 stainless steel, oven exterior materials: anti-static spray treated, with beautiful appearance and other characteristics • Thermal insulation materials: 80mm thick high-density fiberglass • Heater: a suit of solenoid heater, 380V 6KW • Accessory equipment: over-temperature protection, various action indicators, a group of rotary disk and rotary motor.(rotary disk is removable, rotating rate is 8～10rp) • Air ventilation volume: 8 ~ 200 times/h, arbitrarily settable at RT ~ 250℃ • Wind circulation system: adopt the multiply blade centrifugal circulating fan • Circuit-control system: PLC+touch screen to control the ventilation volume, ageing time, temperature, and the temperature control system is adopted P.I.D+SCR, enable to improve the service life and stability of control component interface; and high precision PT100 Platinum thermocouple Specifications: • Overall dimensions: 1100×780×1400mm • Power supply: AC 380V 50/60HZ 12A • Motor power: 6KW
