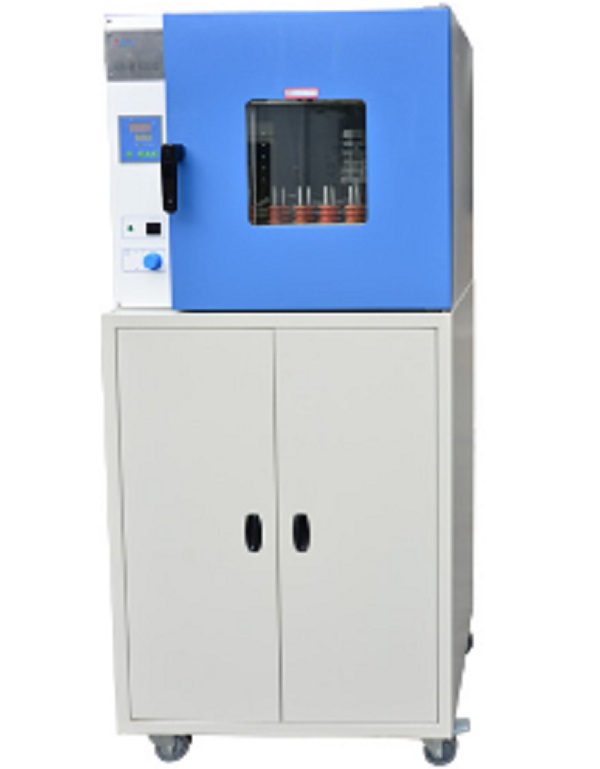

Thermal voltage tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.6-2008/IEC 60851-6; Inspection standard: JB/T4279.7-2008 ◆Used in combination with voltage tester for such tests as high-temperature breakdown voltage, high-temperature failure and thermal shock, etc.; ◆Working chamber is equipped with double-deck shelf (with height adjustable) for heating sample, drying workpiece and gaining components; ◆Working chamber door is sealed with silicone rubber, presenting high temperature resistance and excellent sealing property; ◆Cabinet door is provided with large areas of double-layer tempered glass inspection window through which samples or articles to be heated in the cabinet can be clearly observed; ◆High precision intelligent digital temperature controller has such functions as digital setting, digital display, over temperature alarm, P (proportion) I(Integral) D(differential) regulation and PID parameter self-tuning, timing for heating, etc. ◆Durable ceramic insulation terminal is used Major Technical Parameters Temperature range RT+10~300℃ Temperature fluctuation 0.5℃ Temperature uniformity ±2.5℃ Dimensions of working chamber L×W×H   400×450×450mm Input power AC220V±10%  50Hz Heating power 1550W Overall dimensions L×W×H  740×530×1580mm Weight 80kg
