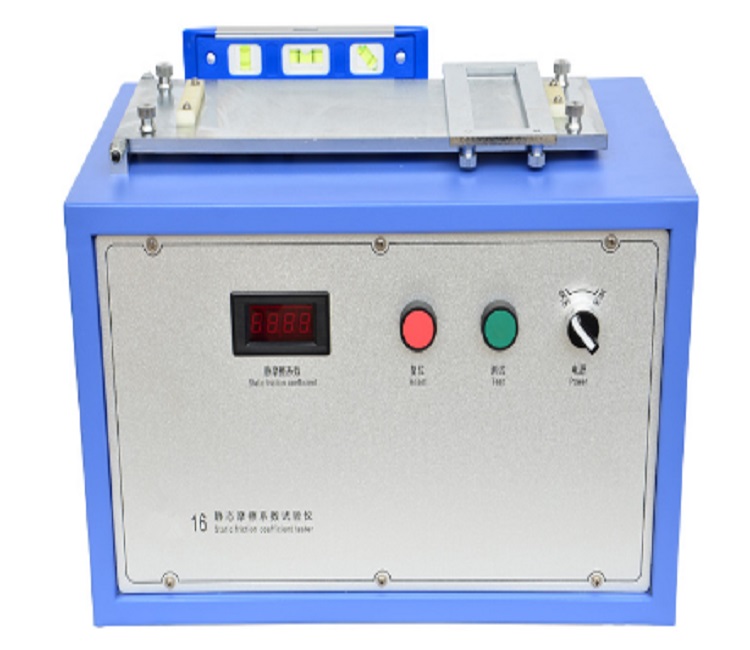

Static friction coefficient tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.16-2008 ◆Used to detect static friction coefficient (μs) of enameled round wires with nominal conductor diameter ranging from 0.050mm to 1.600mm; ◆The application of high-end SCM control allows for high sensitivity and excellent repeatability. ◆Four-digit LED would automatically display static friction coefficient (μs) of sample; Major Technical Parameters Speed of sliding plate at slant angle 1±0.2°/s Inclination angle of sliding plate 0-30° Tanα indication error α＜0.005 Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H  490×280×290mm Weight 28kg
