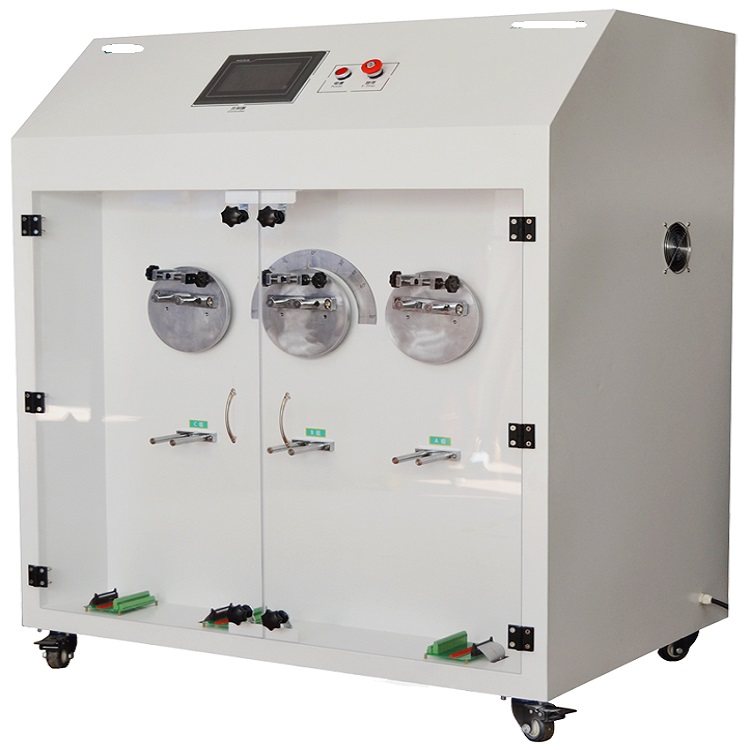

Bending Tester

Product description: Bending tester is applicable to bending test of cables for manufacturers and quality inspection departments. The method is to fix one end of the cable on the turntable, meanwhile passing through the bending round rod (optional), and the other end hanging a certain weight, the disc is rotated left and right during testing, to drive the specimen bending left and right, until it’s not charged with electricity after a certain number of times, the tester automatically stops operating, and then check its total number of swing. Technical parameters: • Shaking frequency: (10 ~ 60) ± 2 times / min, adjustable • Adjustable shaking angle: ± 90°, adjustable (four angles: <30º \ 45º \ 60º \ 90º> ± 1º) • Bending diameter: 10mm / 20mm / 30mm / 40mm / 50mm, straight line rod length of 50mm • Shaking times: 0 to 9999999, pre-settable • Controller: 7 inch TFT true color screen, one-button operation • Test station: 3 groups • Diameter of test cable: 1 ~ 20 mm • Motor: servo motor control system • Mass of weight: 100g, 200g, 300g, 500g, 600g, 900g, 1000g three groups of each • Wire grip adjustable range: 1 ~ 20 mm • Turntable size: diameter of 200mm Specifications: • Overall dimensions: 1200 × 800 × 1510mm (L × W × H) • Power supply: AC 220V 50 / 60Hz
