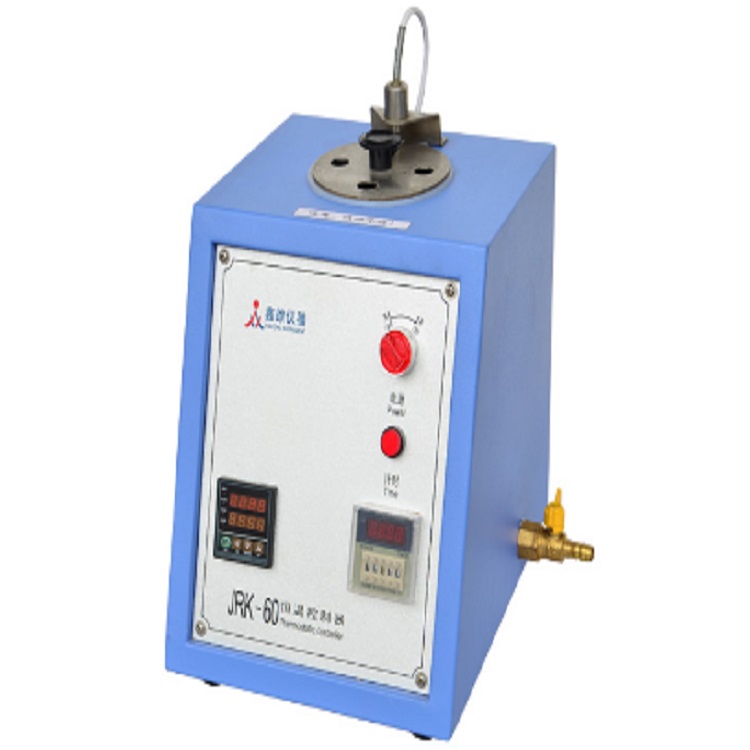

Solvent temperature controller
Performance Characteristics of Product ◆Executive standard: GB/T4074.4-2008/IEC60851-4; Inspection standard: JB/T4279.10-2008 ◆A heater used to detect the solvent resistance performance of enameled round wires and flat wires with nominal conductor diameter above 0.250mm; ◆Heat solvent and automatically maintain constant temperature; ◆Capable to performing temperature correction; ◆Equipped test timing and completion allocation equipment; ◆Used in combination with NRS-100 solvent -resistance tester Major Technical Parameters Maximum service temperature 100℃ Error between indicating solvent temperature and actual temperature ＜3℃ Timing range Ranging 0.01s ~99h 99min Input power AC220V±10% 50Hz Consumed power ＜400W Overall dimensions L×W×H 240×288×340mm Weight 6kg
