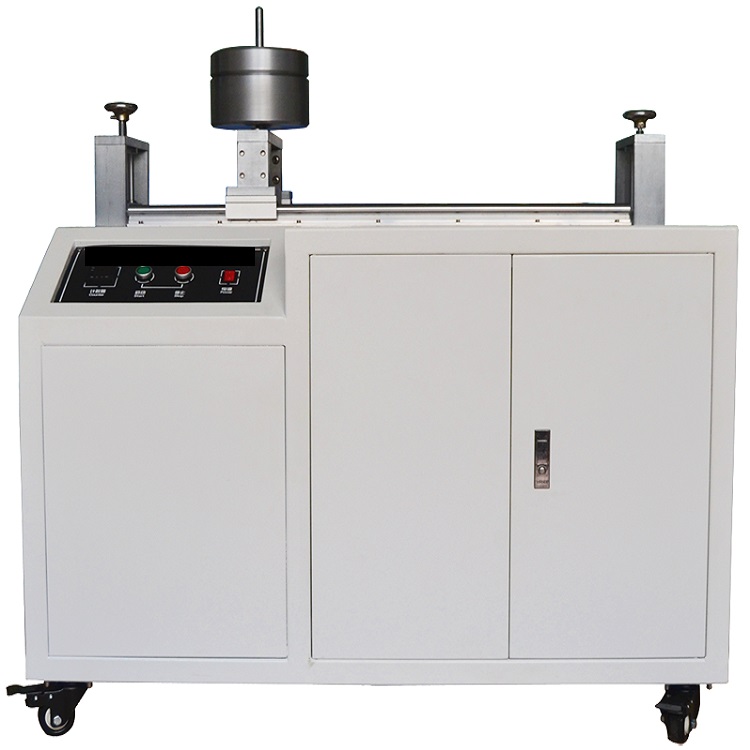

JB/T 10696.6-2007 Wire and Cable Sheath Scratch Resistance Tester

Product description: Wire and cable sheath scratch resistance tester is used to test the wire and cable sheath if it is breakdown and cracking of its inside and outside after being scratched and worn, with smart counting system, straightforward; it stops automatically when the specific digital achieves; customized weights, easy to load and unload Standards: • JB/T 10696.6-2007 Technical parameters: Cable measured outer diameter D(mm) Force(N) 30≤D＜40 65 40≤D＜50 106 50≤D＜60 155 60≤D＜70 210 70≤D＜80 270 80≤D＜90 340 90≤D＜100 420 100≤D＜110 550 110≤D 550 • Abrasion head curvature radius: R1.5mm • Abrasion stroke: 600mm • Abrasion speed: 15～30cm/s • Counter digit: 4places • Weight: 1N, 5N, 10N, 50N, 100N, 200N，one of each; 20N, 2 pcs Specifications: • Overall dimensions: 1200mm×600mm×1200mm • Power supply: AC 380V 50/60Hz 3A
