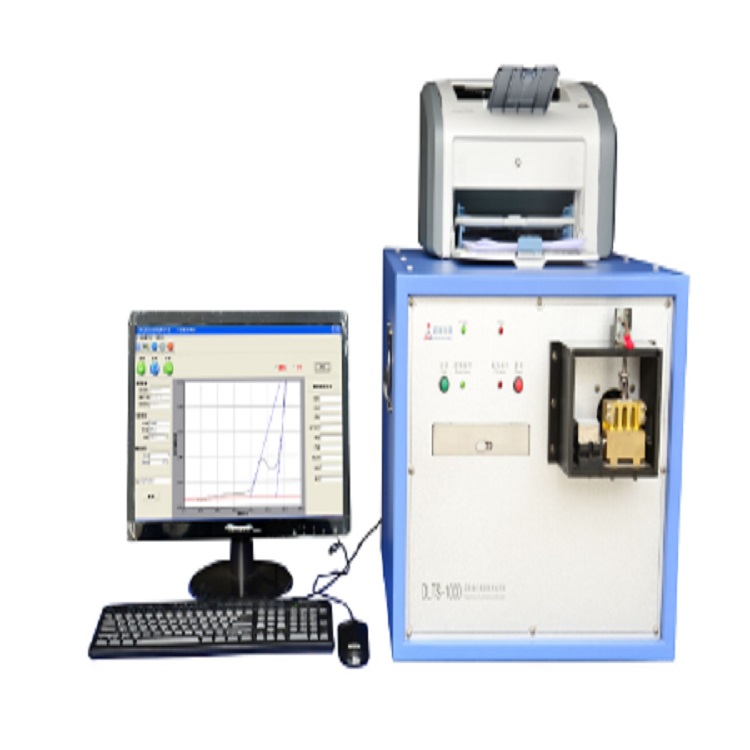

Intelligent tensile strength tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008 ◆Applicable to metal wires with pulling strength ≤3000N; ◆Test process would be automatically completed and, after user inputting wire size of samples to be measured, the instrument would automatically calculate tensile strength; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test results of elongation, pulling strength and tensile strength; ◆Two test modes are available: Micro-fine wire and medium & large wire; ◆50N-3000N sensors can be switched over arbitrarily; ◆Automatic outrange protection for instrument; ◆The application of software facilitates instrument’s on-line operation and control as well as data analysis and comparison, and allows for display of stress-strain curve chart of 15 samples in different colors; ◆Automatically calculate the average of each test result of less than fifteen samples; ◆Number and save test results and corresponding curves automatically in chronological order; ◆Report of test results can be generated and printed out; ◆Instrument is provided with sensor self-calibration function and equipped with standard weight for calibration; ◆Servo motor and high precision ball screw is used; ◆Clamps are designed on the basis of characteristics of wires and can be conveniently loaded and unloaded with samples; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Start distance between two clamps  (200mm or 250mm) ±0.5mm two modes adjustable Displacement distance of movable clamp ≥80﹪(≥160mm or 200mm) Stretching speed of sample 50~400mm/min adjustable Error between displayed and actual elongation value ＜1%; Dynamometry accuracy Within ±0.2% of indicating value Test force resolution 0.10N Input power AC220V±10%  50Hz Consumed power ≤400W Overall dimensions L×W×H  600×400×1050mm Weight 75kg   ●Standard configuration: ◆Microwire: One 50N and 500N sensor for each; One 20N standard weight; One SC-5E software CD; ◆Medium and large wires: One 500N and 3000N sensor for each; One SC-5E software CD; ●Sensors available: 100N, 200N, 1000N and 2000N ●Optional Model: SC-5D elongation and tensile strength tester (desktop)
