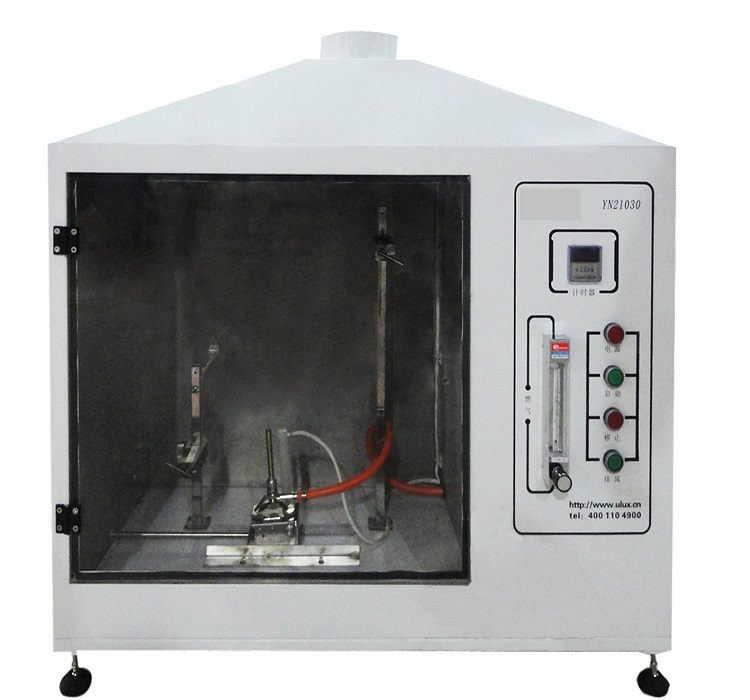

Single Wire and Cable Tilting Flame Tester

Product description: Single wire and cable tilting flame tester is generally applicable to road vehicles 60V and 600V single core wire tilt anti-retardant standard, horizontal flame-resistant time standard and international automotive cable standards of low-voltage cables for automobiles unshielded horizontal flame test methods. It is used for performance assessment of cable under fire conditions. Test method: Fix the two terminals of the sample, and put it into a metal over with three metal plate surfaces. Light on the blowtorch, keep the blue inner cone point under sample 50mm away, and connect with the sample. The sample should be 45°tilted to the horizontal plane Standards: • ISO6722-2006; • QC/T 730-2205; • GB/T 2508/5-2010; Technical parameters: • Metal cover: electric cabinet and the metal cover are integrated, the material is SUS304 stainless steel • Blowtorch: imported from USA HUMBOLDT, burning pipe internal diameter: 9mm, flame height: 100mm, inner blue flam cone length: 50mm • When the setting burning time reaches to preset time, the device will automatic stop • Ignition: automatic high pressure ignition • Flowmeter: 0.2L～2L/min Specifications: • Overall dimensions: 1000mm(W)×600(D)mm×1000(H) • Power supply: AC220V 50/60Hz 1A • Air source: propane or natural gas( prepared by users)
