Intelligent elongation tester

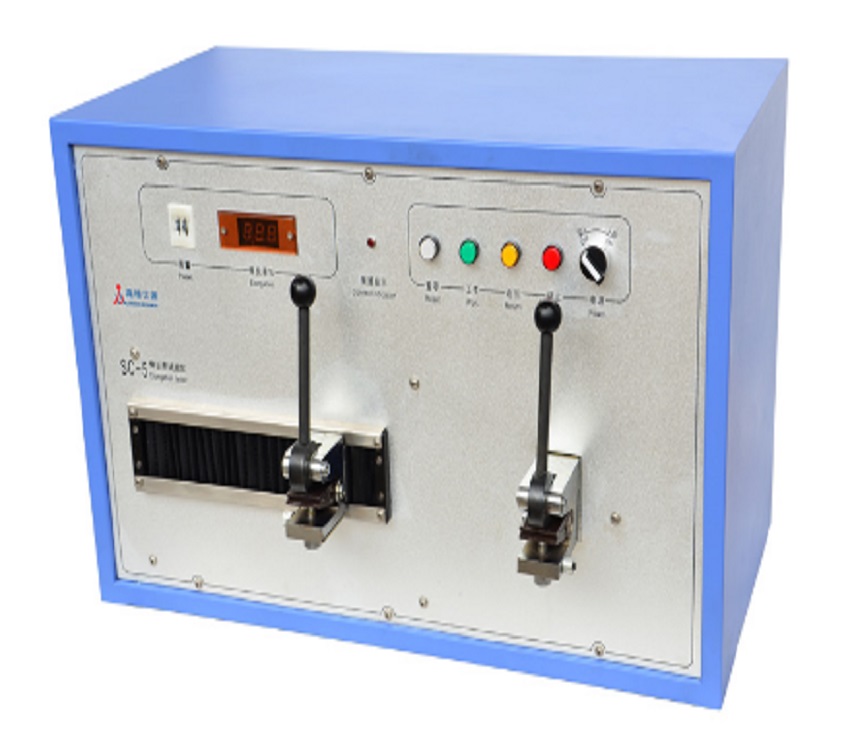

Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.3-2008 ◆Used to test elongation (ductility) of copper wires covered with φ0.018-φ3.000mm enamel, silk or other insulation materials and other metal wires with tensile strength ≤2000N; ◆Application of SCM control allows for fast operation and strong anti-interference capacity; ◆Application of matured advanced human-computer interface would provide a hint for test operating procedure and display test result; ◆Clamps are designed according to characteristics of various wires to prevent samples from breaking at clamp jaws, easy to load samples and, after samples are compressed, enamel can be automatically broken; ◆While sample is broken, movable clamp would automatically stop moving, with error between displayed and actual elongation value less than 1%; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire.  ●Optional Model: SC-5 Elongation Tester Major Technical Parameters Start distance between two clamps 200±0.5mm Stretching speed of sample 300±60mm/min Maximum elongation testing range ( displacement distance of movable clamp) ≥80% (≥160mm) Display of elongation LCD display, display accuracy of 0.1% Input power AC220V±10% 50Hz Consumed power ≤200W Overall dimensions L×W×H  640×420×410mm Weight 45kg Note: non-standard products can be ordered according to requirement.
