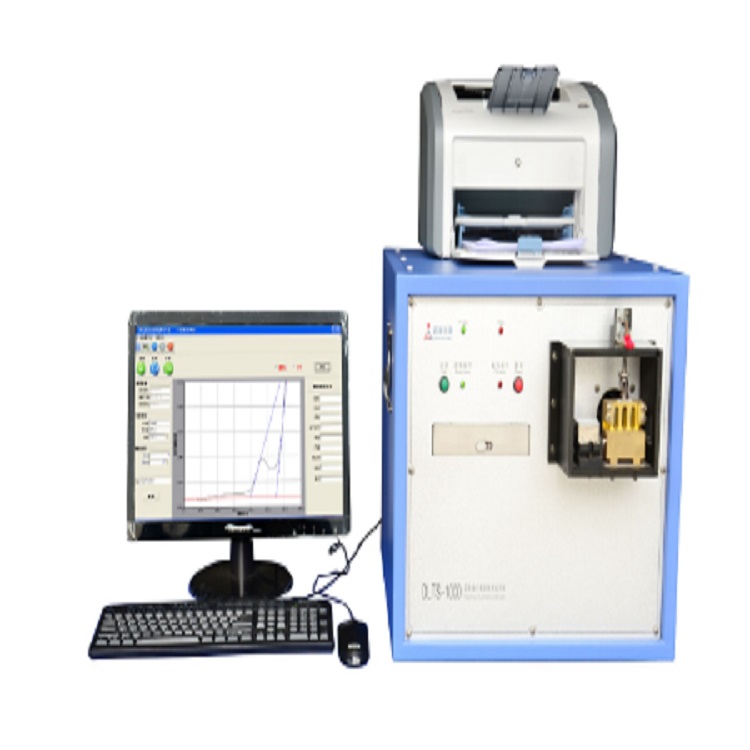

Computer conductor resistance tester

Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008/IEC60851-4; Inspection standard: JB/T4279.2-2008 ◆Used to measure conductor with nominal diameter ≥0.010～9.000mm or various round or flat copper and aluminum wires and other metal wires with DC current resistance of 1μΩ～3MΩ; ◆Combination of intelligent DC conductor resistance measuring meter and DC resistance test fixture with sample straightening function; ◆Both potential fixture and current fixture are made of copper; ◆The application of microcomputer control allows for full-automatic completion of test; ◆Select tap position automatically according to the resistance value of sample, and after clamping samples, current temperature resistance value would be displayed; ◆Temperature sensor would automatically sense the temperature; after inputting material number, diameter or cross section area of sample to be tested, the instrument will automatically work out the resistance value (R20 resistance value), real-time resistivity and R20 resistivity at 20℃; ◆According to the market need, setting for six different materials is available, it is allowed to input at will the temperature coefficient not specified in the standard; ◆Chinese LCD will intuitively display various parameters and measurement results; ◆The application of software facilitates instrument’s on-line operation and control as well as data analysis and comparison; ◆All test data can be automatically transmitted to upper computer, and be saved and analyzed by DMS-15 quality inspection data management system for enameled winding wire. Major Technical Parameters Length measurement (space between two potential fixtures) 1000±1mm Space between potential fixture and adjacent current fixture 50mm Knife-edge width of potential fixture 1.8±0.2mm Resolution 1μΩ measurement range and accuracy 1μΩ～3MΩ±0.05% Input power AC220V±10%  50Hz Consumed power ＜80W Overall dimensions L×W×H 1380×265×290mm Weight 25kg ●Optional model and accessories: Computer conductor resistance tester (0.1μΩ -110MΩ) DZJ-15 DC resistance test fixture; DRS-10 DC resistance test fixture; LDZ-15 DC resistance test fixture (with tensile force)
