GB/T 16584 • ISO6502 • HG/T 3709-2003 Rotorless Rheometer

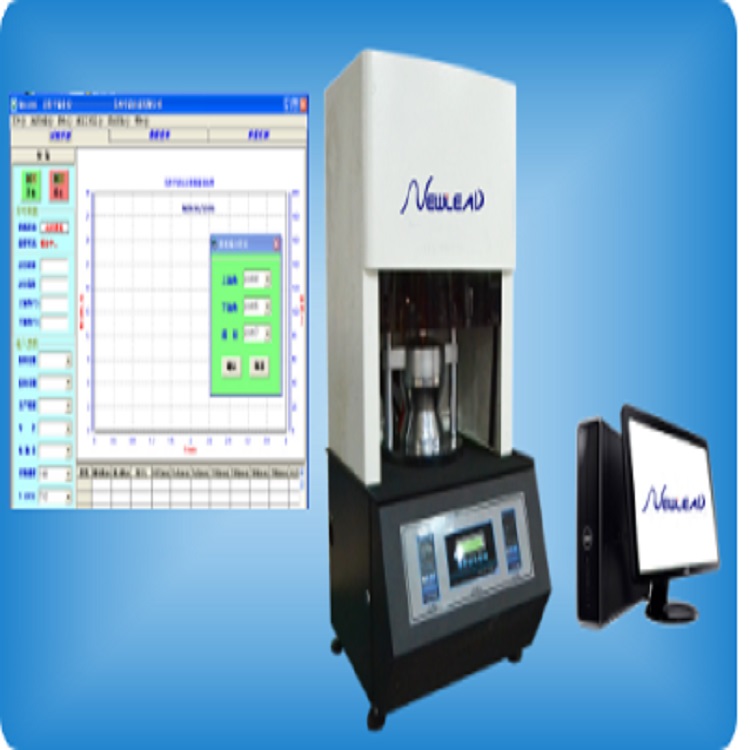

Product description: Rotorless Rheometer is an instrument which is able to get the cure characteristic curve and parameters of rubber materials, by measuring the applied torque of rubber materials to the reciprocating swing die body. YN41096 Rotorless Rheometer is with good repeatability and stability. Under conditions of 160 ℃, 12mins; use the properly mixed rubber sample to do the test 4 times continuously, the gap of T90 is only a few seconds. Powerful database capabilities, which is able to support a number of curves drawing to storage, output and print in the same interface. Scorching time optional (Ts1, Ts2, T10, T20 .... T90), measuring range selectable, sample curve drawing, screen data capture etc. Standards: • GB/T 16584 • ISO6502 • HG/T 3709-2003 Technical parameters: • Temperature range: room temperature～200℃ • Heating up rate: ±0.5℃ • Temperature display resolution: 0.1℃ • Heating rate: room temperature--200℃, about 10 mins achieves the balance • Torque range: 0～20N.m • Rotor swing angle: ±0.5° • Swing frequency: 1.67Hz (100r/min) Specifications: • Overall dimensions: 530mm×560mm×1020mm • Power supply: AC 220V 50/60Hz 5A
