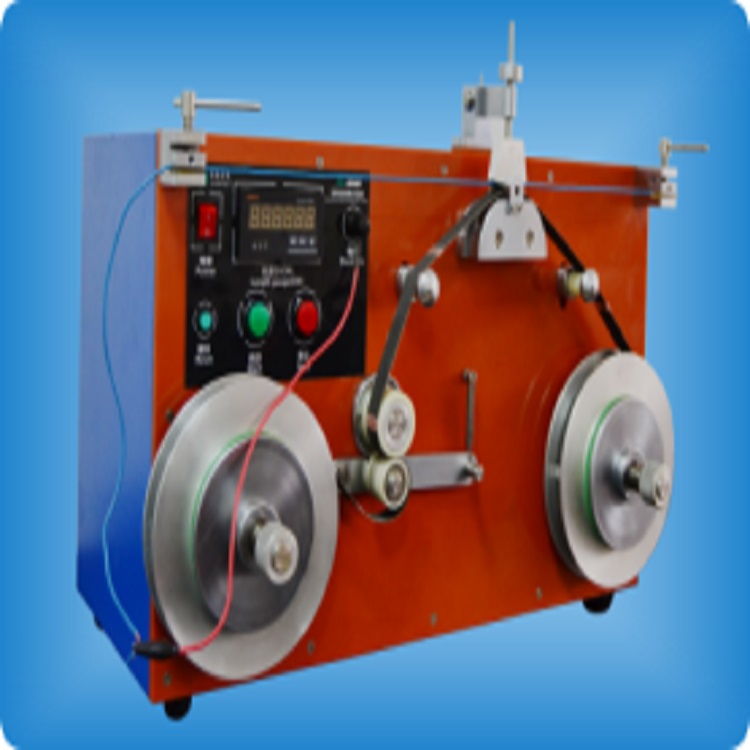

GB/T 5013-2008 Wire Abrasion Resistance Tester

Product description: Wire abrasion resistance tester is mainly used for abrasion resistance test of rubber cable and braided flexible cord, which the rated voltage is 450/750V and diameter is less than 12mm Standard: • GB/T 5013-2008 Technical parameters: • Diameter of the fixed axle: Φ40mm±0.3mm • Distance between the fixed axle blocks: 0-50mm, continuously adjustable • Specimen moving speed: one-way 40/min, continuously adjustable • Specimen motion stroke: 100mm±2mm • Specimen working station: 3 • Counter: 1-999999, preset testing times • Weight: 500g±2g, quantity 3 Specifications: • Overall dimensions: 500mm×500mm×800mm • Power supply: AC 220V 50/60Hz 5A
