Cable Coiling Labeling And Wrapping All In One Line

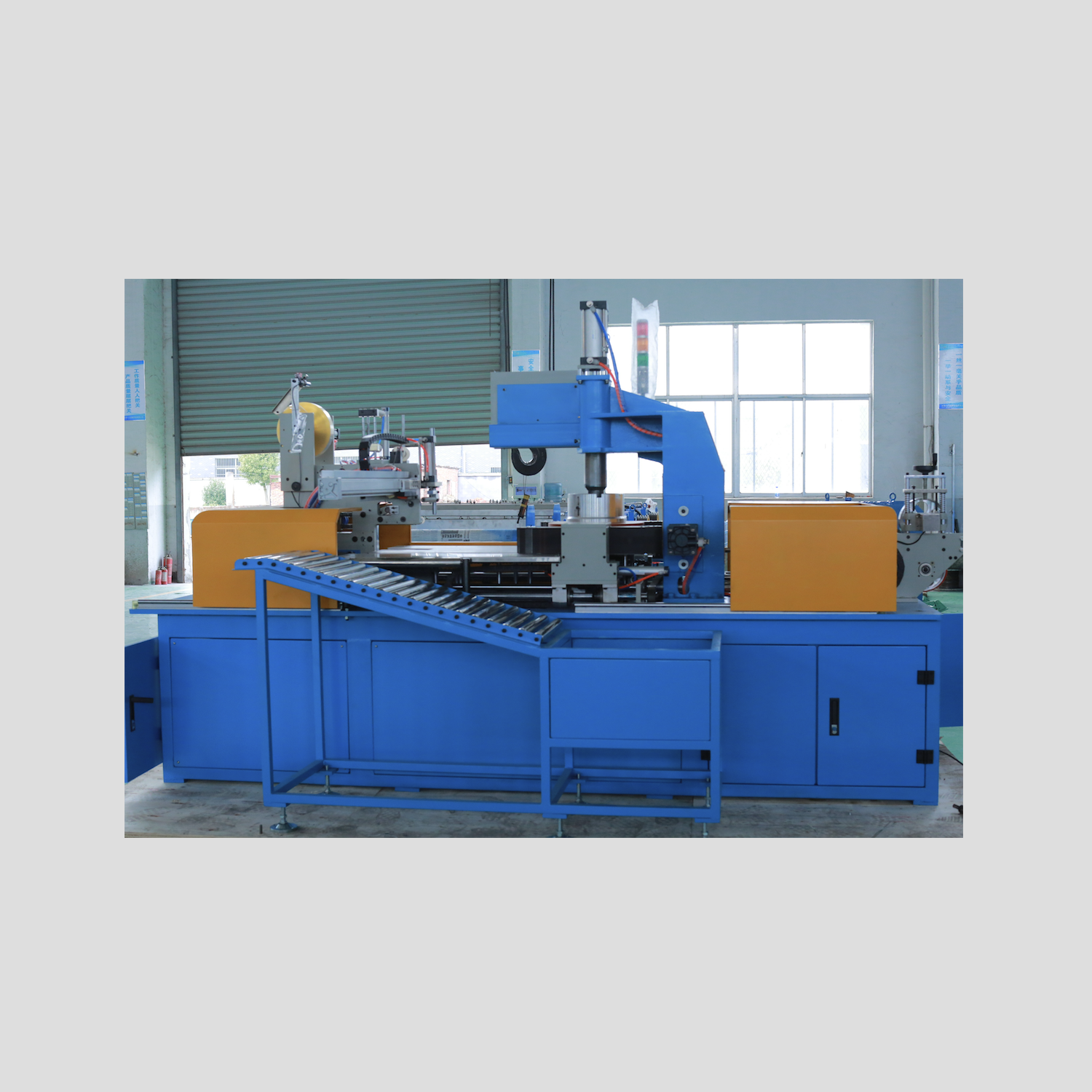

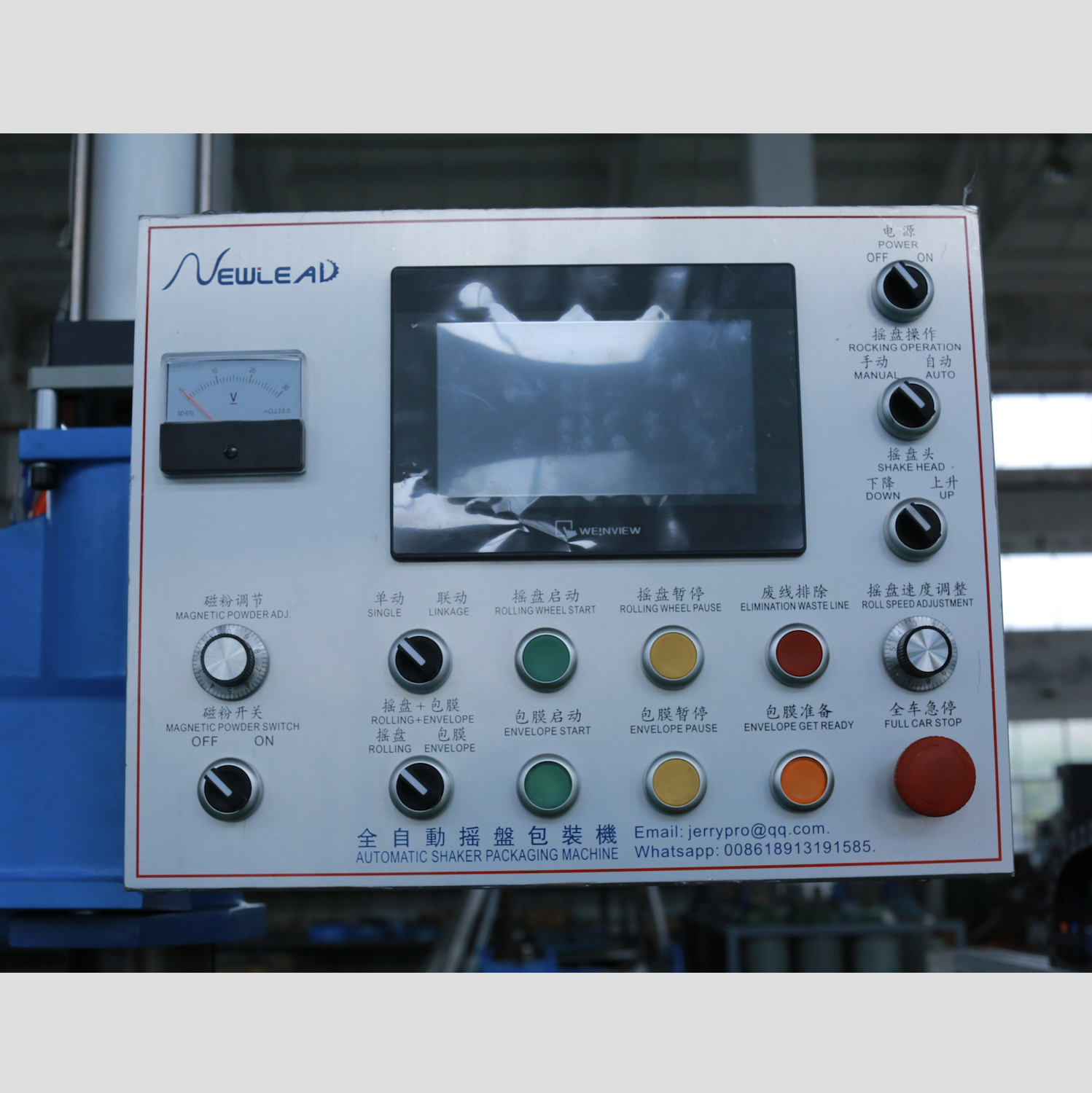

1040 coiling labeling wrapping all-in-one machine A. Characteristics: 1). Can be wire feeding by the pay-off unit or directly connected to extruder. 2). The yield of wire coil four times manual coiling (take 200M wire coil for example). 3). The automatic glue film coiling machine for wire coil automatic packaging and labeling after coiling. 4). The yield 7 times manual when automatic coiling and winding glue film. 5). This machine adopts servo motor flat cable system, the wire coil is beautiful. 6). Adopt touch screen man-machine interface operation panel, easy to operation. 7). The RAM of microcomputer can store 99 different of wire coil specifications, when you need to change the products specification, can be read stored specification, do not need to input again, can produce immediately. 8). The machine equipped with automatic detects error function, can be send out a warning to remind the operator when there is a problem. B. Performance specification: 1). Power: AC 380V, three phase, 50Hz (China), or specify by customer. 2). Operation direction: 3). Suitable for ψ3-ψ12mm building wire. 4). Design speed of cradle plate head: 780 RPM Max. 5). Wire coil size: 6). Outer diameter ψ400mm Max. × height 50～120mm; 7). Inner diameter of wire coil depend on cradle plate head specification, the specification range: ψ140mm，height 65-90mm. 8). Wire feeding mode of finished product: hold wire type. 9). Rule guide unit: rule counting unit 0.01M, prediction automatic speed down, automatic cradle plate action flow when meter is arrived. 10). Traverse device: Adopts the Japanese Mitsubishi servo motor traverse, synchronization with mainframe of cradle plate. 11). The whole machine control by electrical circuits: adopts the Mitsubishi microcomputer programmable controller (PLC). 12). Operation panel using the man-machine interface (Graphic Operator Interface). 13). Instrument and switch on the operation panel: touch screen and speed regulation knob. 14). Speed adjusting by speed regulation knob. 15). The machine PLC have power frequency spark tester contact. 16). Used in BV wire spark test, can be automatic spark breakdown point or continue to coiling function after artificial marks. 17). The machine PLC have diameter measuring instrument contact. 18). When the diameter not reached standard, can be automatic eliminate waster wire or continue to coiling function after artificial marks.
