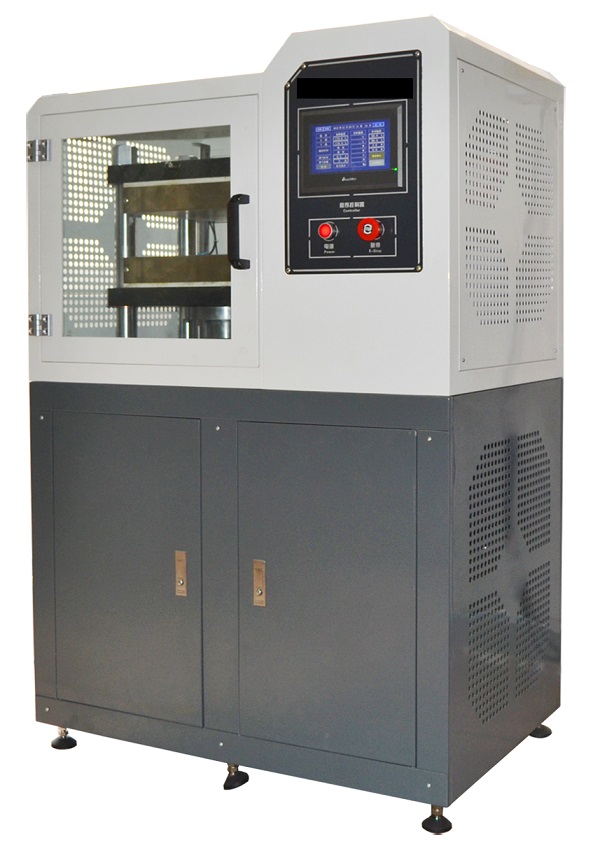

Intelligent Plate Vulcanizing Machine

Product description: Put the raw materials into the casting mould, and fix it between electric heating plates with pressure and a certain temperature, make the raw materials to be a mould for the test, it is a basic tool to produce a plenty of compounding for factories. Intelligent plate vulcanizing machine is equipped with PLC program control color touch screen, man-machine interface operating system, which is able to set pressure, temperature, time and times in the vulcanizing process that is displayed and monitored timely, all of the mould programs are completed automatically, advanced and reliable Typical applications: • Detection of raw materials’ gels(fisheyes), black spots and smears • Tabletting of raw materials, color matching, mixture, and sample making of raw materials • Physical property test • Materials research and development Specifications: Capacity 20T (optional) Temperature range Room temperature～200℃ Program controller PLC programmable color touch screen, man-machine operating interface Pressing plate size 300*300*60mm Pressing plate layers Single layer Exhaust times 0～10 times settable Oil hydraulic system Proportional hydraulic flow valve closed loop control system Safety protection Self-locking safety visual door cover Dimensions(W*D*H) 900×450×1450mm Power supply 3∮, AC380V,20A Weight About 688Kg
