Automatic Intelligent Low Temperature Elongation and Winding Tester

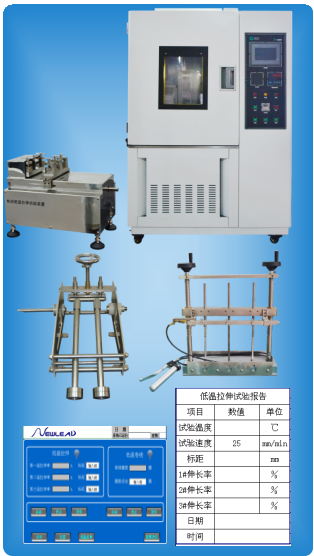

Products description: Automatic intelligent low temperature elongation and winding tester is the latest auto intelligent test machine with integrate functions of cold elongation and winding tests, the equipment adopts a HMI control interface, intelligent operation, simple and convenient, equipped with micro-printer to print out test data. The equipment consists of four devices: high and low temperature test chamber, motor-driven cold tension device, cold winding test device, cold impact test device. High and low temperature chamber simulated high and low temperature environment, is widely used to determine the adaptability of electrical and electronic products for high and low temperature environment ( especially electrical and mechanical property change of products ), can also be used to check specimen corrosion tolerance abilities. Motor-driven cold tension test device is suitable for elongation test of polymer materials, wires and cables, rubber, plastics insulating sheath under conditions of 0 ~ -40 ℃/-60 ℃/-70 ℃, its structure and performance are in line with standard of GB/T2951-2008. Cold winding test device is generally applicable to the round insulating cores with outer diameter including 12.5mm and fan insulating cable cores which are unable to be prepared as dumbbell specimens. If the relevant cable products specified in the standard, the test should be carried out in big size insulated cores. Otherwise, the big size insulated core should be conducted cold tension test. Cold impact test device is applied for a variety of PVC sheathed cables, irrespective of the insulation types of insulated cores. If there are relevant provisions of cable product standards, it is also applied to polyethylene insulation of non-sheathed wires, cords and flat cords. PVC insulations of sheathed cables cannot be conducted impact test at low temperature directly Features: • Attractive appearance, safe and reliable • Reading convenience, stability, high accuracy • No manual calculation, easy to operate Technical parameters: • Working room dimensions (optional for users): Working volume Working dimensions(mm) 168L 500×580×580 225L 500×600×750 500L 700×800×900 1000L 1000×1000×1000 • Temperature range: -40 ℃/-60 ℃/-70 ℃ ~ 150 ℃(optional for users) • Temperature fluctuation: ± 0.5 ℃ ( no load ) • Temperature deviation: ≤ ± 2 ℃ • Heating and cooling average rate: 0.7 ℃ ~ 1.0 ℃/min ( no load ) • Time setting range: 0 to 9999 hours • Tension device: Motor: 120W, installed inside of the chamber Maximum tension strength: 220mm Tension rate: 20 ~ 30mm/min Chuck type: Non- self-tightening Specimen size: No Ⅰ, Ⅱ dumbbell die Data display: direct reading elongation • Winding device: Winding specimen diameter: Ф2.5 ~ Ф12.5mm Winding rod diameter: Ф4.0 ~ Ф50mm, 17 pcs in total Thread guide jacket: Ф1.2 ~ Ф14.5mm, 10 types in total, two of each Specimen winding number: 2 to 10 circles Winding rate: 5s/circle • Impact device: Impact height: 100mm Weights: 100, 200, 300, 400, 500, 600, 750, 1000, 1250, 1500g; this device is three groups of type Specifications: • Overall dimensions: according to the customer 's selection to provide • Power supply: AC 220V 50/60Hz 20A, AC 380V 50/60Hz
