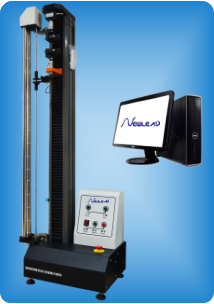

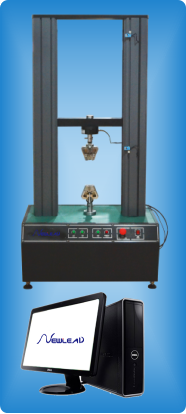

Computer-controlled Electronic Tensile Tester (large deformation)

Product description: Computer-controlled electronic tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. The computer-controlled electronic tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance Standards: • GB, UL, VDE Technical parameters: • Max test force: 50N, 100N, 500N, 1000N, 2000N (optional for users) • Test force value relative error: ≤±1% • Test speed range: 50~500mm/min • Displacement resolution: 0.01mm • Sensor: American Transcell S type sensor • Effective stroke: about 800mm • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation • Large deformation resolution: 0.1% • Grip materials: adopting imported Japanese tool steel, SKD-11 with hardness processed, HRC is over 50 • Ball screw: high precision and gapless of driving, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity, made in Taiwan • Surface process: adopt American DuPont powder, static electricity processed, and being solidified by 200℃ • Screw bearing: NSK ball linear bearing imported from Japan • Drive system: Italy Outes motor and reducer • Displacement of the whole travel: Japanese decoder 1000P/R • Safety device: overload emergency stop device, up and down stroke limit device, electric leakage automatic power off system, automatic breakpoint stop function • Display method: WindowsXP test software + computer display • Section bar: one-time extrusion, generous appearance, oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance. Specifications: • Overall dimensions: 500mm×420mm×1650mm • Power supply: AC 220V 50/60Hz 2A
