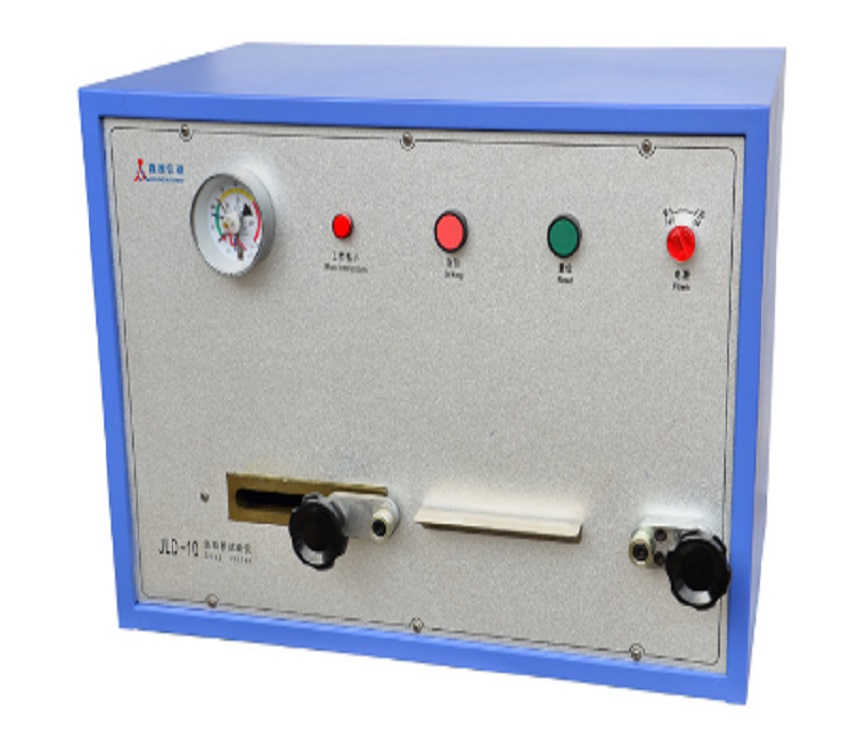

Snap tester
Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.5-2008 ◆Used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below; ◆Built-in small ultra-quiet air compressor would provide power supply and automatic constant pressure; ◆Samples, while being jerked, would not move and slip out; Major Technical Parameters Jerking speed ≥3m/s Start distance between two clamps 250±1mm Maximum moving distance of movable clamp 125mm Working pressure 0.4~0.8MPa Input power AC220V±10% 50Hz Consumed power ＜150W Overall dimensions L×W×H 650×405×425mm Weight 55kg ●Optional Model: JLS-10 Stretching Tester (Subject to NEMA and GB/T4074)
