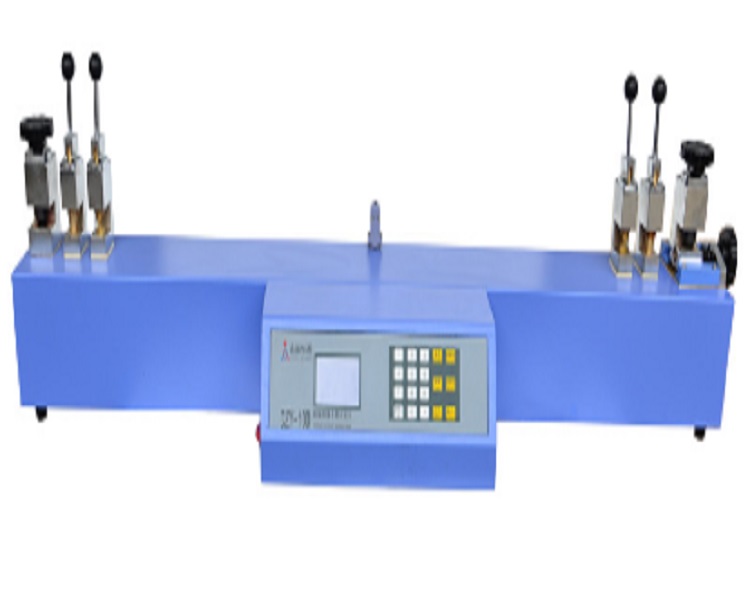

Enameled wire stripping twist tester
Performance Characteristics of Product ◆Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection standard: JB/T4279.6-2008 ◆Used to measure the film adhesion property of enameled round wires with nominal conductor diameter of 1.000mm and below; ◆High-end SCM control is used; ◆Set arbitrarily the number of twist; ◆LED would automatically display the number of twists; ◆Twist counter performs accurate and reliable counting; ◆High-strength steel scraper would complete sample scarping at once, easy to operate and use; Major Technical Parameters Twist speed 80±5r/min Space between two clamps(Test length) 500±2mm Preset twist counting Ranging 1~999r Input power AC220V±10% 50Hz Consumed power ＜150W Overall dimensions L×W×H 1200×220×350mm Weight 35kg ●Preparation of weights: 5N×1, 15N×2, 20N×3 and hook + hook seat 5N ● Optional accessories: 55N weight, 100N weight, hook + hook seat (10N)
