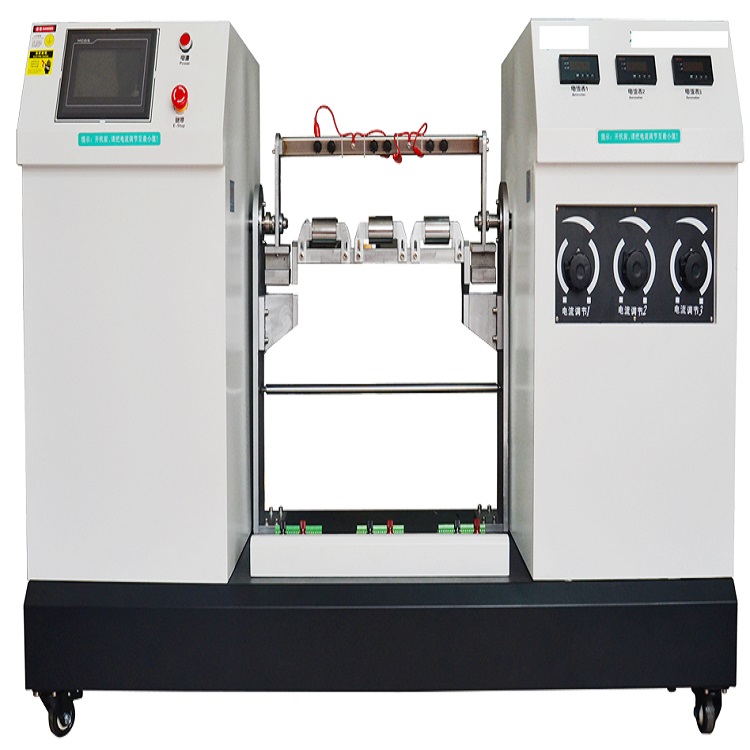

Automation Cable Bending Tester

Product description: Automation cable bending tester is used for testing bending mechanical properties of single and multi-core cable, with functions of single and stop working when all are disconnected. Touch screen to set test parameters, the pendulum rod holder holding the upper end of the sample, the lower end sequentially passes between the bent rod and anti-pendulum, vertically hang weights, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical Parameters: • Rate: Max 80 times / min • Bending angle: ±90°, ±60°, ±30° • Bending radius: R10, R15, R20, R25mm • Working station: 3 groups • Cable diameter range: ≤30mm • Cable cores: ≤50 cores / group • Weight: 50g, 100g, 200g, 500g, 1000g, three of each (customized according to customer’s requirements) • Counter: 0 to 9999999 times, 3 groups • Specimen bend mode: angle R is immobile when the specimen is bending, tract the specimen to bend by grips • Power signal voltage: DC24V • Enable to record breaking number of times during test • Optional load testing • Load current: 0-30A, adjustable • Current display: digital Specifications: • Overall dimensions: 1750mm×650mm×1100mm； • Power supply：AC 220V 50/60Hz 1.5kW
