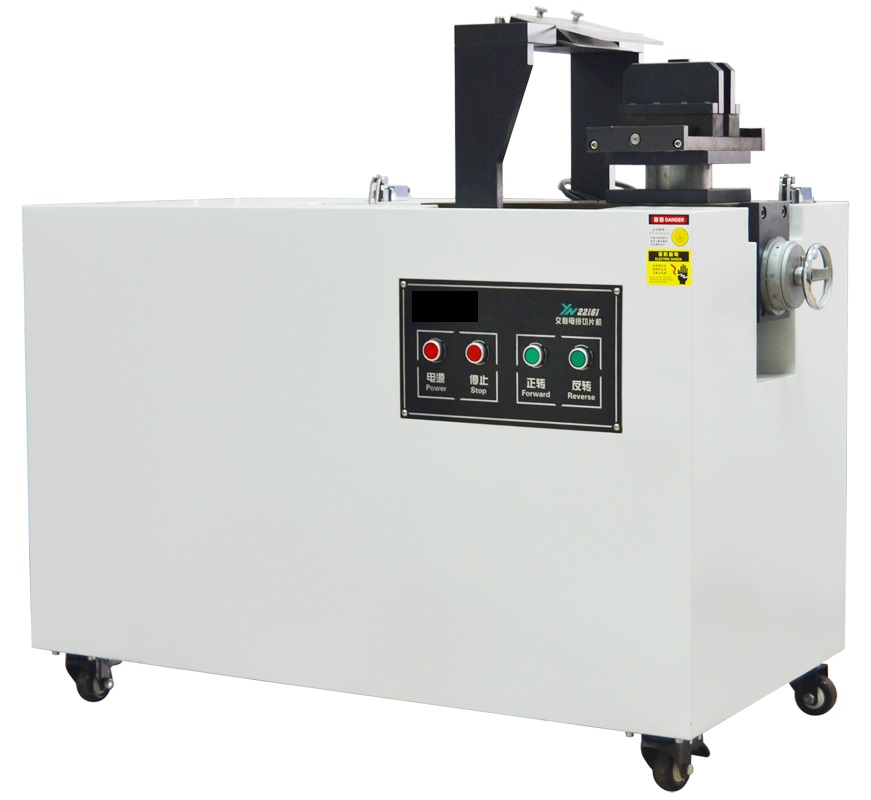

GB/T 12706-2002 XLPE Cable Insulation Splitting Machine

Product description: XLPE cable insulation splitting machine is a requisite test apparatus to sample 35KV and under XLPE cables for the mechanical and physical property tests. The feature is to change the traditional rotary slicing blades into translational slicing blades, being allocated to complete the hot set test and tensile test, To meet the standard requirements of products, and avoid the irregular wheels on the specimen surface caused by rotary slicing blades, greatly improving the reliability of the test results, reducing the dispersion of the test results, safe to use, easy to operate. It is perfect equipment for sample preparation of polyethylene, polyethylene plastic, insulated power cables, insulated overhead line mechanical and physical property tests. The slipper of this equipment adopted with a dovetail groove dedicated for machine tool, which is with high precision driving screw, to make the device run more smoothly Standard: • GB/T 12706-2002 Technical parameters: • Max working width: 150mm • Cutting range: 0.5-2mm • Cross cutting sample width: 10mm－150mm • Longitudinal cutting sample width:10mm－150mm • Motor power: 0.55KW Specifications: • Overall dimensions: 1150mm×600mm×1080mm • Power supply: AC 220V 50/60Hz 10A
