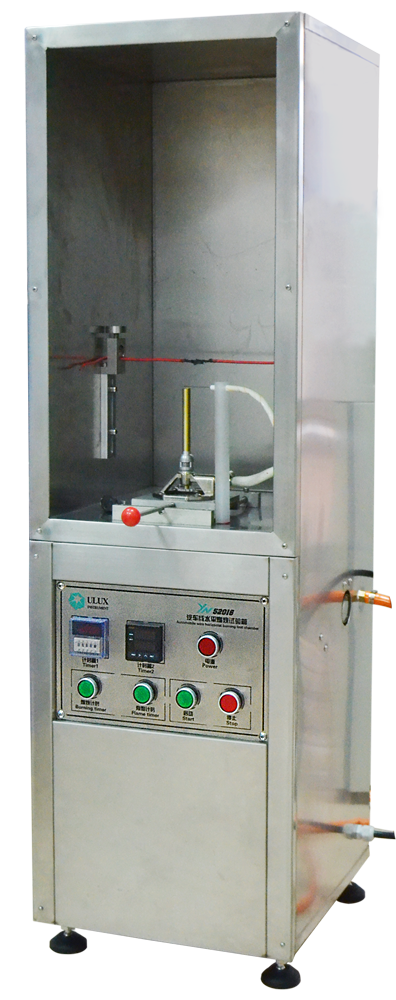

Automobiles Cable Horizontal Flame Test Chamber
Product description: Automobiles cable horizontal flame test chamber is suitable for test and determination of low-tension cables with thin wall insulation for automobiles, keep cables under fire conditions until flaming, and self-extinguish after the flame is removed within 15s Standard: • JASO D 618-1994 Low-tension cables with thin wall insulation for automobiles Technical parameters: • Integrated flame chamber, brushed stainless steel surface • Test chamber: 610 (H) mm × 310 (W) mm × 360 (L) mm, front open • Control mode: automatic ignition, and automatically the blowtorch self-extinguishes when setting time is up • Blowtorch: blowtorch inner diameter of 10mm, flame height of 35mm • Timing range: 0-9999s Specifications: • Overall dimensions: 380mm (L) × 470mm (W) × 1250mm (H) • Power supply: 220V 50HZ
