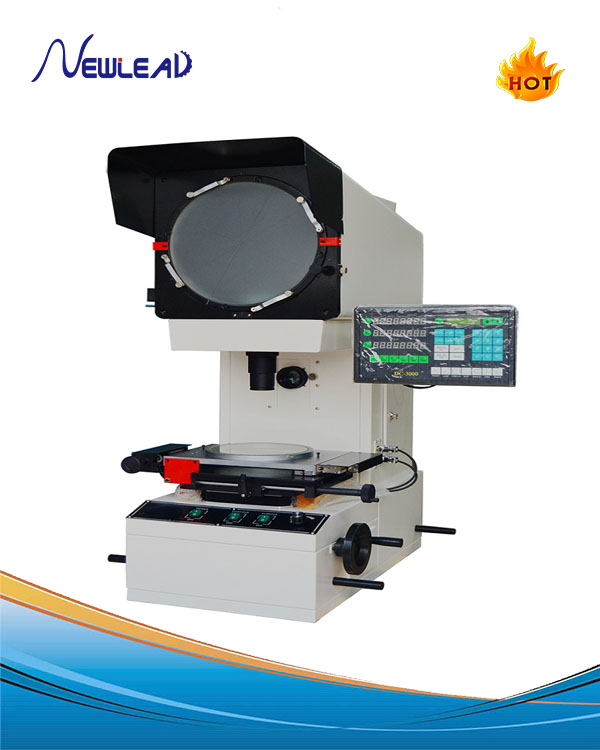

YN31108-B Insulation Jacket Profile Projector (digital display)

Product description: All-digital measuring profile projector is a high precision and efficient measuring instrument integrated of light, mechanical, electric, sorted as two types of front image and back image, it is widely applied to machinery, instrumentation, electronics, light industry and other industries, universities and colleges, research institutes and the measurement and inspection departments. The instrument can efficiently detect the outline size and shape of the surface of various workpieces with complex shape, such as templates, stamping parts, cam screw threads, gears, molding milling cutters and so on. High quality optical system, clear imaging lens, accurate magnification ratio, in transmitted light illumination, the profile measurement error is less than 0.08% Standard: • GB/T 2951.11-2008 Technical parameters: Working table Metal table size(mm) 340×152 Glass table size(mm) Ф140 X coordinate stroke (mm) 150 Y coordinate stroke (mm) 50 Z coordinate stroke (used for focusing) (mm) 100（focusing) Instrument measuring accuracy 3+L/200 X, Y coordinates digital resolution 0.0005 Projector screen Size(mm) Ф312, usable range＞Ф300 Projector rotation range: 0~360 Rotation angle digital resolution: 1 Objective lens Magnification 10*(standard configuration) 20*(optional) Object field ￠30mm ￠15mm Object working distance 85.17mm 81.94mm Data processing system 3000 type multifunction data processing system Instrument illumination Lighting transmission and reflection both are 24V, 150W tungsten halogen lamp Power supply 220V(AC), 50/60HZ, total motor power 350W Cooling Forced air cooling (three-axial fan) Overall dimensions L×W×H(mm) 720×390×1100 720×390×1100 Weight Unit: kg 175 175
