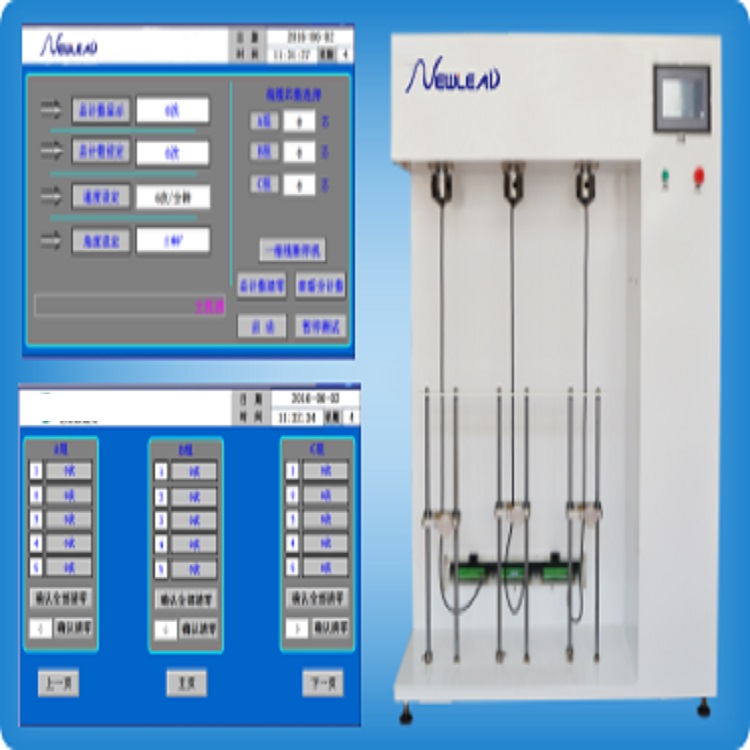

Automation Cable Twist Tester

Product description: Automation cable twist tester is used for testing twist resistance mechanical properties, with functions of single and stop working when all are disconnected. Touch screen to set test parameters, three-jaw chuck holder to hold specimens, easy to operate. Max single-station line of cores is up to 50, each terminal corresponds to an indicator, which enables to see the core on-off situation visually Technical Parameters: • Rate: 10 ~ 270º 60 times / min; 270 ~ 450º 40 times / min • Twisting mode: vertical twist, lower fixed, upper twist; • Twist angle: ± 180° • Distance between grips: 500 ~ 1000mm, adjustable • Working station: 3 groups (all twisting modes are same), twisting direction is adjustable clockwise or counterclockwise • Cable diameter range: ≤30mm • Cable cores: ≤50 cores / group • Weight: 0.5,1KG / three pcs • Counting range: 0 to 9999999 times • Power signal voltage: DC24V • Reverse life:> 500 million times Specifications: • Overall dimensions: 1300mm×900mm×1680mm • Power supply: AC 220V 50/60Hz 4A
