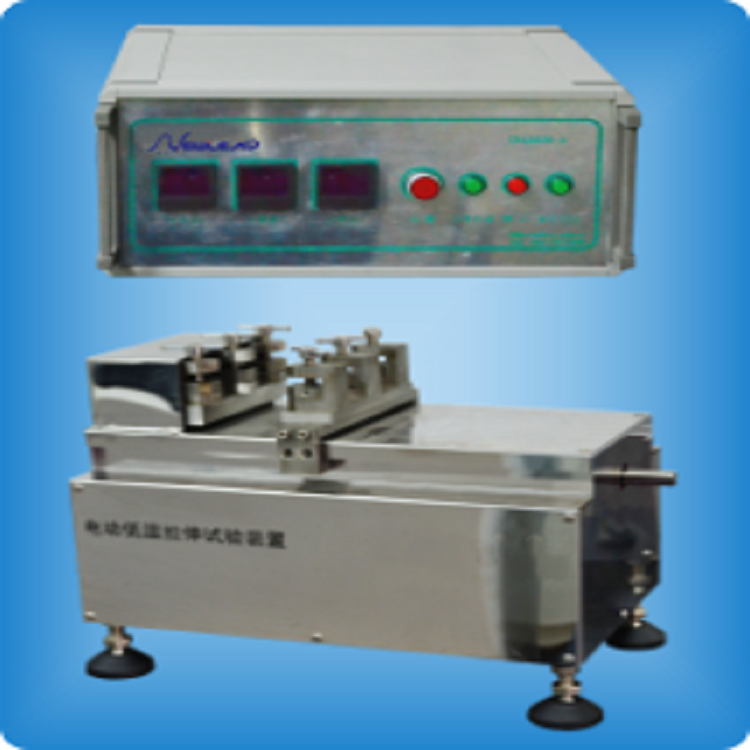

Power-driven Low Temperature Elongation Test Equipment

Product description: Wire and cable power-driven low temperature elongation test equipment is applicable to polymer materials, wire and cable, rubber, plastic and other insulating sheath tensile test at 0 to -70℃ environment. The stretching device consists of motor, transmission parts, Specimen chuck, sensors and other components Standard: • GB/T 2951.14-2008 Technical parameters: • Electronic control cabinet: it consists of three groups of displacement indicators, stretching indicator, reset and speed regulating system(the stretching speed is preset before leaving factory) • The displacement display displays the displacement length accurately, when the specimen is being stretched, it displays the displacement automatically, when the specimen is stretched to break, the displacement figure stops at the very moment of being broken, and the unit is mm • Motor power: 120W, placed outside of the low temperature chamber • Max tensile strength: 220mm • Tensile speed: 20～30mm/min • Chuck type: Non-self-tightening type • Specimen model: No. Ⅰ, Ⅱ dumbbell specimen Specifications: • Overall dimensions: stretching device: 390mm×245mm×280mm control cabinet: 440mm×400mm×200mm • Power supply: AC 220V 50/60Hz 2A • This tester is used in conjunction with the low temperature chamber
