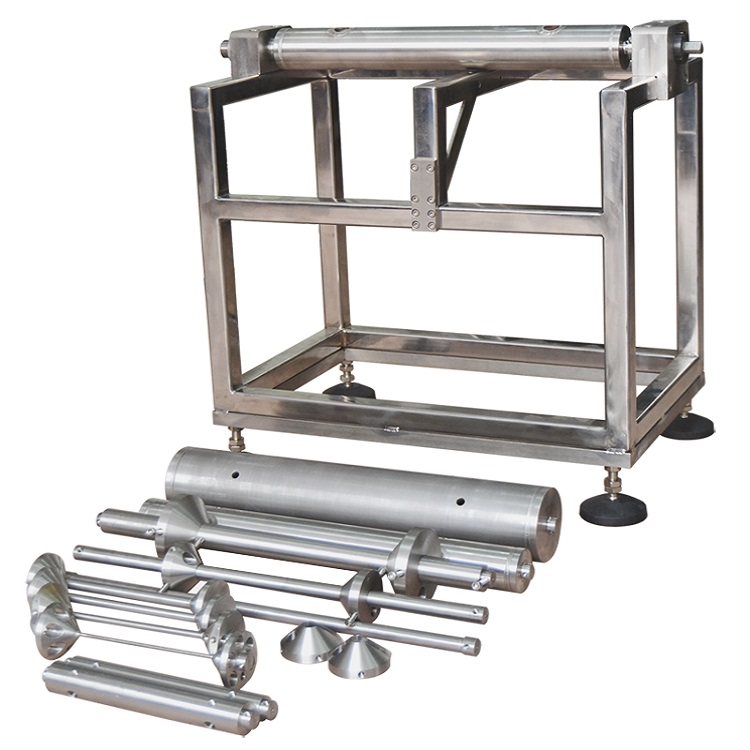

Road Vehicle Cable Low Temperature Winding Test Device

Product description: Road vehicle cable low temperature winding test device is suitable for road vehicles 60V and 600V single wire or single core of multi-core wire, to do winding test at low temperature, the device must be complied with cold chamber, in two ways of manual winding and automatic winding. Standard: • ISO 6722.1-2011 Technical parameters: • Diameter of inner core: Ф3, 4, 7.5, 9.6, 12, 15, 17.4, 25, 30, 32, 52, 58, 98.5mm, 13pcs in total • Weight: 0.5, 2.5, 5, 8kg, two of each, 10kg four pcs • Sample range: ≦ 19.7mm • Materials: mandrel and device rack are stainless steel, weights are A3 steel + chrome-plated steel • Minimum size of cold chamber: 700 × 600 × 700mm ISO conductor specifications (mm2) Max cable outer diameter(mm) Diameter mandrel±0.1mm A B Weight (KG) Winding rate(r/min) Min number of turns 1 a≦0.75 2.5 12 3 0.5 60 3 2 0.75
