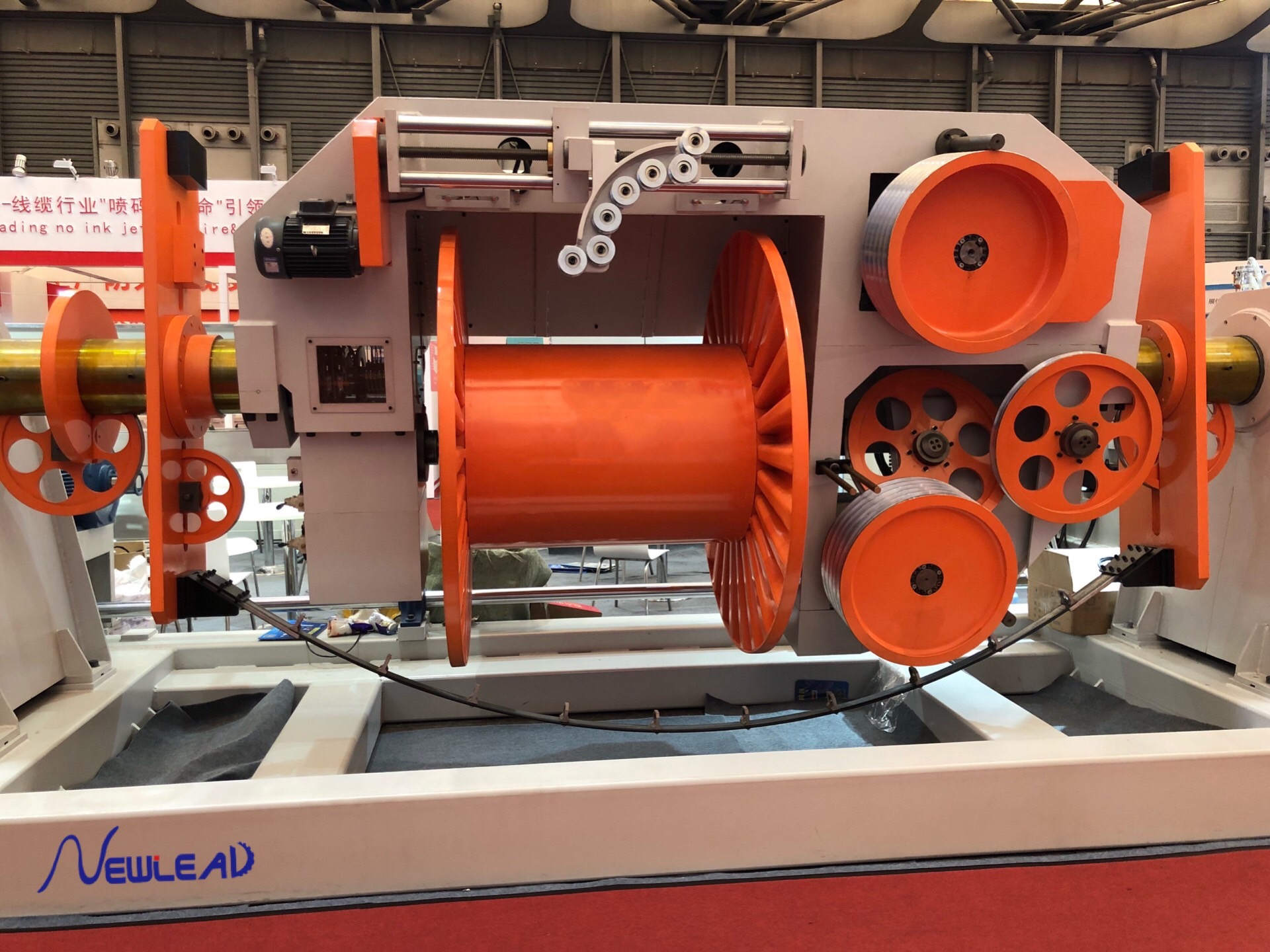

1250 Double Twist Stranding Machine

Video site:https://youtu.be/IN2HCBk4LVc Design: • universally applicable for bunching and stranding of insulated conductors • working height of 1300 mm for all range of double twist stranders • rotor bearings with temperature control & vibration sensor • automatic traverse with flange detection Increase in quality: • adjustable winding force • strong compacting degree achievable • smooth cable passage for highest quality of conductor • compacting rollers or long set of post- formers useful for special cables • motorized compacting die with cable lubrication • dancer tension control for winding the cable onto the spool (optional) • perfect repeatable product quality Increase in productivity: infinitely variable lay length for max. flexibility by virtue of the haul-off capstan with separate drive without change gear • highest flexibility for the production of sector-shaped conductors, insulated cables, ropes and strands • telemetric system for reliable contactless data transfer • highest automation, best production control via recipe management 1. Main technique parameter: 1.1 Usage: PVC wire, flexible copper wire and Aluminum wire; 1.2 Inlet diameter: Flexible copper wire: 1.0 mmφ- 3.2 mmφ/ 7 cores; PVC wire: 2.0 mmφ-6.5 mmφ/2 - 4 cores; Aluminum wire: 1.6mmφ- 3.2mmφ/7 cores. 1.3 Stranding Sec. Area: 3.5-350 mm2; 1.4 Lay pitch: 40- 350mm (can changeable according to the customer’s requirement) Automatic calculus adjustment; 1.5 Twisted wire diameter: Soft copper wire Twisted outer diameter: 3.0 mm -25mm φ 1.6 Twisted outer diameter of PVC wire: 5.0 mm diameter -15 mm diameter 1.7 Stranding Direction: S: Z; 1.8 Twist speed: 1000RPM/Max (2000TPM)
