Middle Section Automatic Circling Equipment

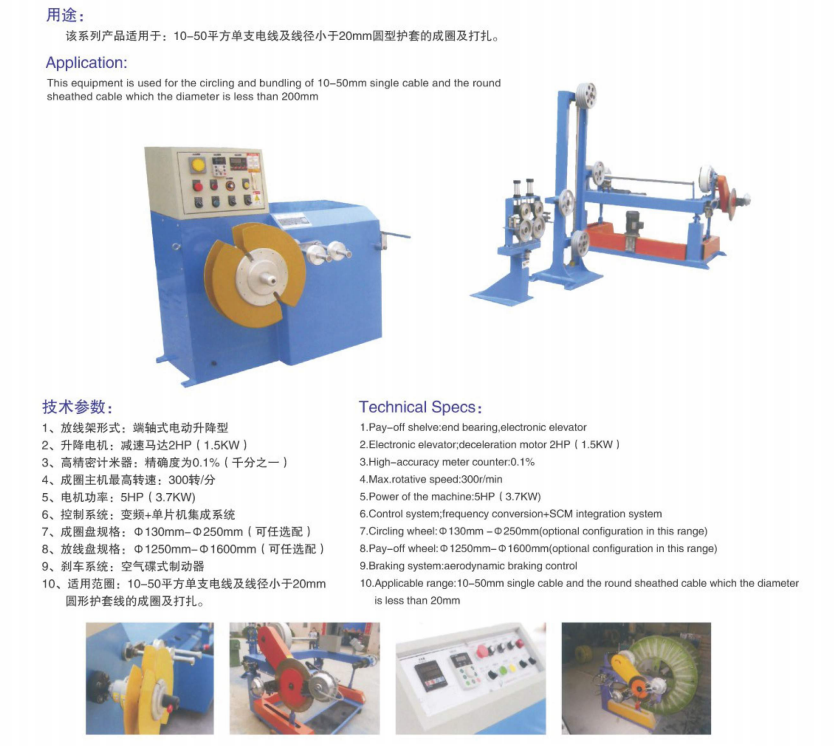

Middle Section Automatic Circling Equipment Application: This equipment is used for the circling and bundling of 10-50mm single cable and the round sheathed cable which the diameter is less than 200mm. Technical Specs: 1.Pay-olf shelve:end bearing,electronic elevator 2.Electronic elevator:deceleration motor 2HP( 1.5KW) 3.High-accuracy meter counter 0.1% 4Max.rotative speed:300r/min 5.Powerof the machine:5HP(3.7KW) 6.Control system;Frequency conversion+SCM integration system 7Circling wheel:〇130mm-〇250mm(optional configuration in this range) 8.Pay-off wheel:1250mm-l600mm(optional configuration In this range) 9,Braking system:aerodynamic braking control 10 Applicable range:10-50mm single cable and the round sheathed cable which the diameter is less than 20mm
