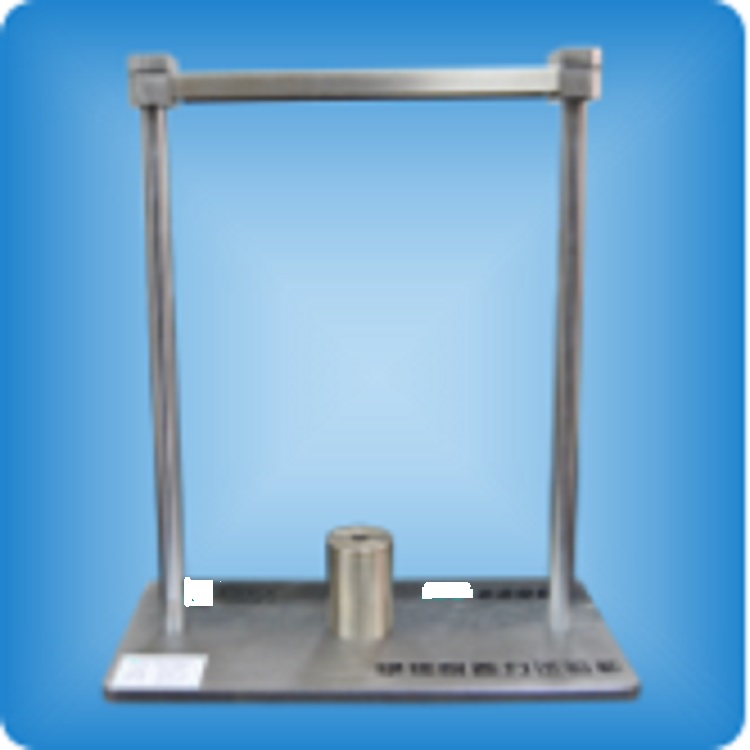

JB / T8319-1999 Insulation Adhesion Force Tester

Product description: Insulation adhesion force tester is designed accordance with national standards JB / 8139-1999, adopting 2mm stainless steel wire drawing plate to punch apertures, these apertures are slightly bigger than the corresponding core’ diameter successively, so that the core can smoothly pass through the horizontal aperture; 10mm steel plate at bottom is worked as stabilizing and supporting. φ20mm hard chrome plating optical axis on both sides are simplicity, that play a supporting role in horizontal stainless steel sheet; enable to successively select according to test requirements Standard: • JB / T8319-1999 Technical parameters: • Horizontal steel plate: 2mm stainless steel wire drawing plate • Aperture size: φ1.0, φ1.2, φ1.5, φ1.6, φ2.0mm • Weight: 0.50kg, 1.25kg • Optical axis: φ20mm hard chrome plating optical axis Specifications: • Overall dimensions: 300mm × 150mm × 352mm
