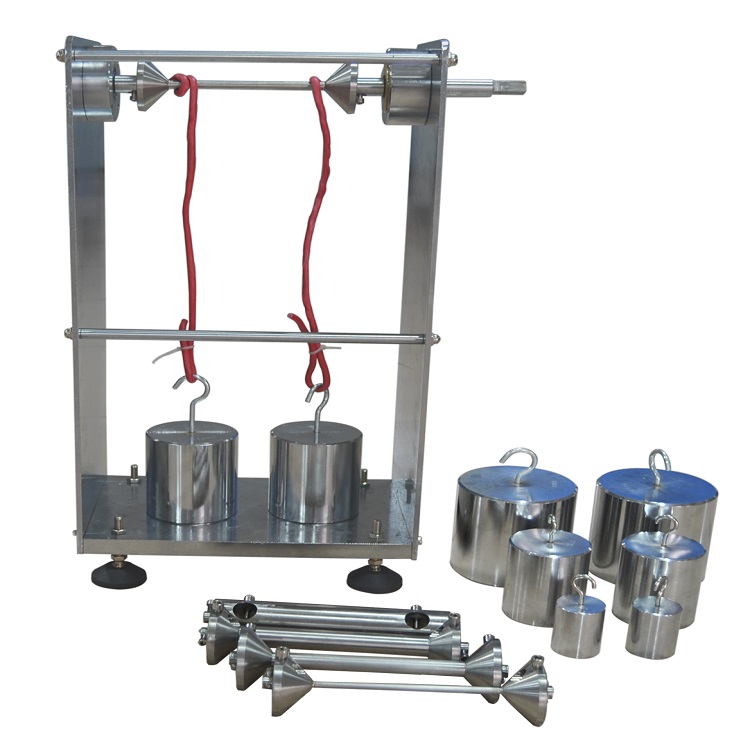

Road Vehicle Cable Low Temperature Winding Test Device
Product description: Road vehicle cable low temperature winding test device is used to examine the property of round cables and round insulated wire core under the low temperature conditions Standard: • QC/T 730-2005 Technical parameters: • Low temperature winding specimen: less than 10mm2 • Winding rod diameter: Φ6; 10; 15; 20; 40, one of each • Heavy weight: 0.5; 2.5; 5; 8; 10kg, two f each • Specimen winding coil number: less than 3 coils • Working stations: 2 • This tester is used in conjunction with the low temperature chamber Specifications: • Overall dimensions: 400mm×200mm×600mm
