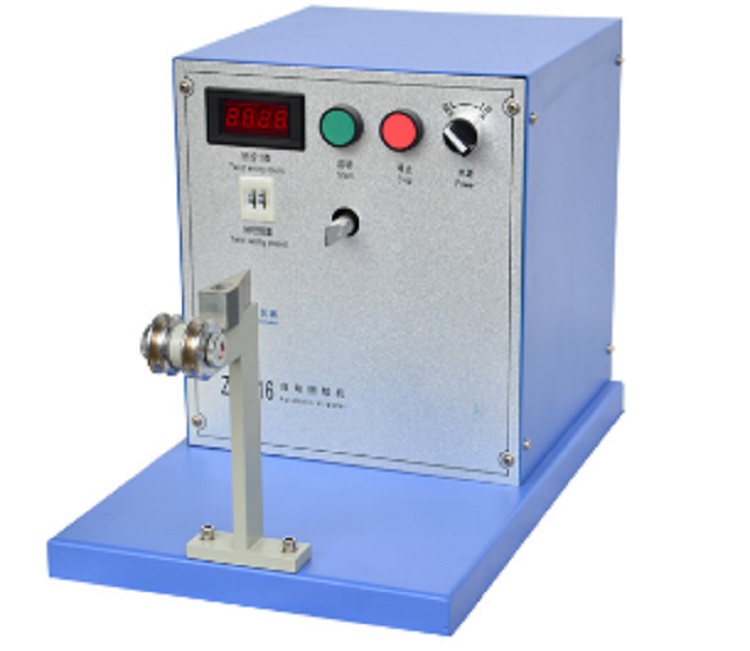

Automatic twisting machine
Performance Characteristics of Product ◆Executive standard: GB/T4074.5-2008 and IEC60851-5, USA NEMA and JIS; ◆Inspection standard: JB/T4279.11-2008 ◆Satisfy the requirement of GB/T6109; ◆Auxiliary equipment used for sample preparation in twist pair test for breakdown voltage test of enameled round wires with nominal conductor diameter of 0.100～2.500mm; ◆Number of twist turns: 0~99 ◆LED would automatically display the twist result Major Technical Parameters Twist speed 100±5r/min Input power AC220V±10% 50Hz Consumed power ＜100W Overall dimensions L×W×H 603×294×335mm Weight 25kg ●Preparation of weights: 0.85N, 1.7N, 3.4N, 6.5N and 13.5N, one for each, 27N×3, one 7N (weight hook seat)
