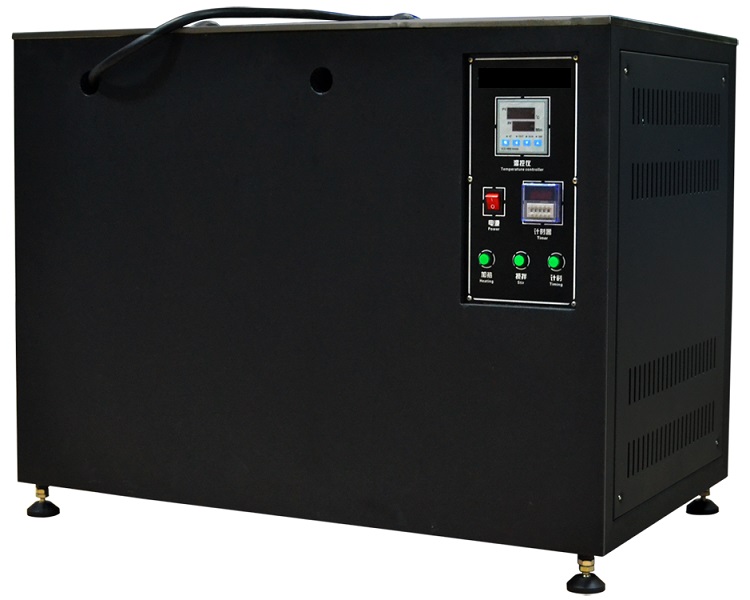

Thermostatic Water Bath

Product description: Thermostatic water bath is used to test the insulation resistance value and withstand voltage value when the wire is in the water. It can be used in conjunction with the insulation resistance tester and withstand voltage tester, accordance with VDE, UL, GB standards. Materials: The surface is electrostatic painting, the inside is stainless steel Standards: • UL 1581 Technical parameters: Internal Dimension (L×W×H) External Dimension (L×W×H) Temperature Range Electric Power (W) Input Voltage (V) 300×300×300mm 670×390×500mm RT~98℃ 2000 220 800×500×600mm 1170×590×880mm RT~98℃ 6000 380 1200×600×800mm 1680×750×1090mm RT~98℃ 12000 380 The dimensions above are just for your reference, it is customized according to users’ requirements • Temperature fluctuation: ± 0.5 ℃ • Temperature uniformity: ± 2 ℃ • Liner material: SUS304 drawing board • Water circulation mode: booster pump up and down circulation • Insulation material: glass fiber • Heating pipe: U type stainless steel heating pipe • Water way: manual drain valve at the bottom
