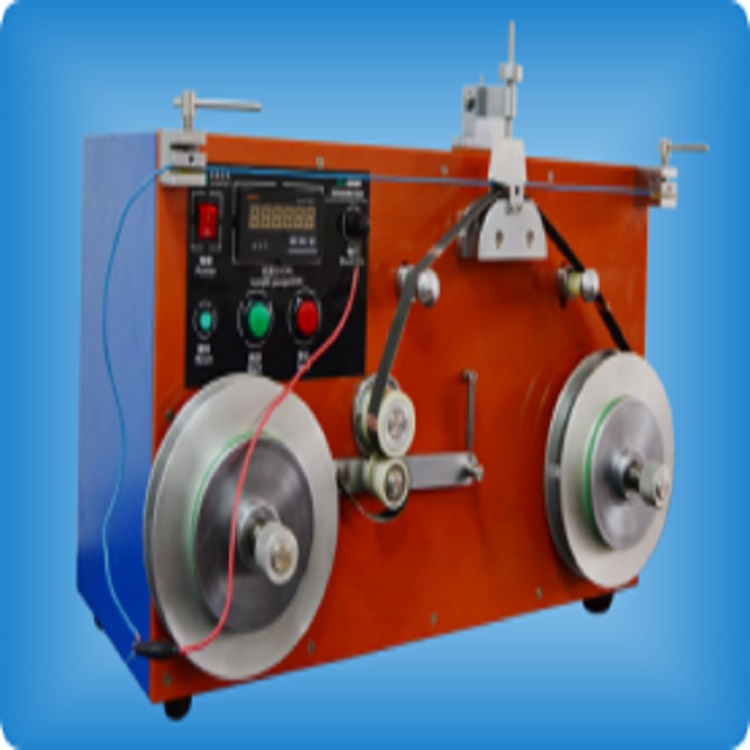

GB/T 25085-2010 • ISO6722:2006 Road Vehicles Cable Drag Abrasion Tester

Product description: Road vehicles cable drag abrasion tester is used to test road vehicles PVC insulated cables drag abrasion strength test. It’s an essential test instrument for road vehicles cable production Standards: • GB/T 25085-2010 • ISO6722:2006 Technical parameters: • Applicable wire diameter: 0～15mm • Abrasive belt counting range: 0～5000mm(± 2.5%) • Abrasive belt movement speed: 1500mm/min • Support abrasive belt circular bead: ￠7mm • Test voltage: 10V • Weight: two standards, only used for relevant standard (optional for users) GB weight: 250g, 450g, 750g, 1350g, 1900g, one each Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized) Weight of bearing kit (± 5g): 160g/PCS (customized) Japanese standard weights: 50g, 100g, 200g, 500g, 1500g, 1900g, one each Weight bearing: 1 / 32R, 1 / 16R, 3 / 16R, one each (customized) Weight of bearing kit (± 5g): 64.24g/ PCS (customized) • Included angle of sandpaper and Specimen: 30° (adjustable) • Conductive bar width: 10mm • Distance of conductive bars: 150mm Specifications: • Overall dimensions: 720mm×370mm×450mm • Power supply: AC 220V 50/60Hz 1A
