CTC CONDUCTOR PRODUCTION LINE

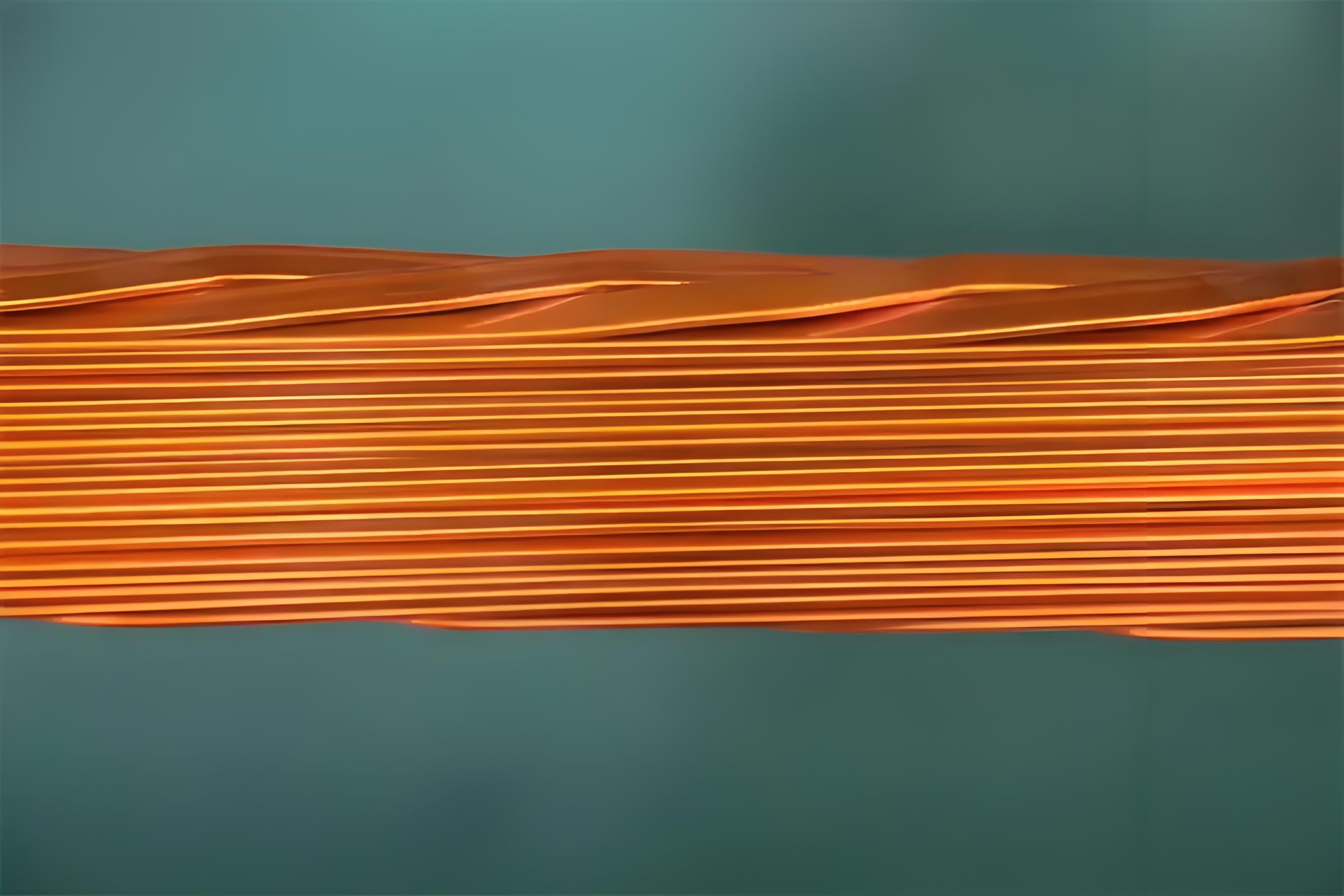

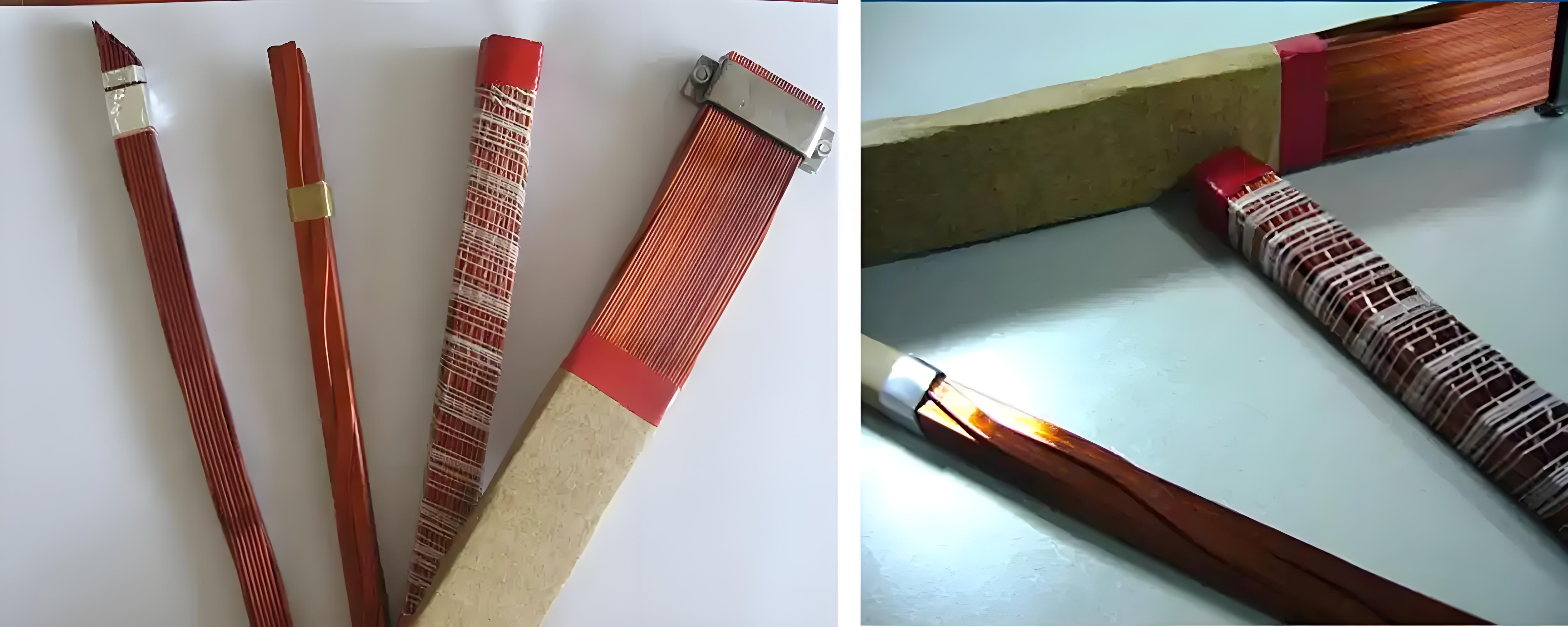

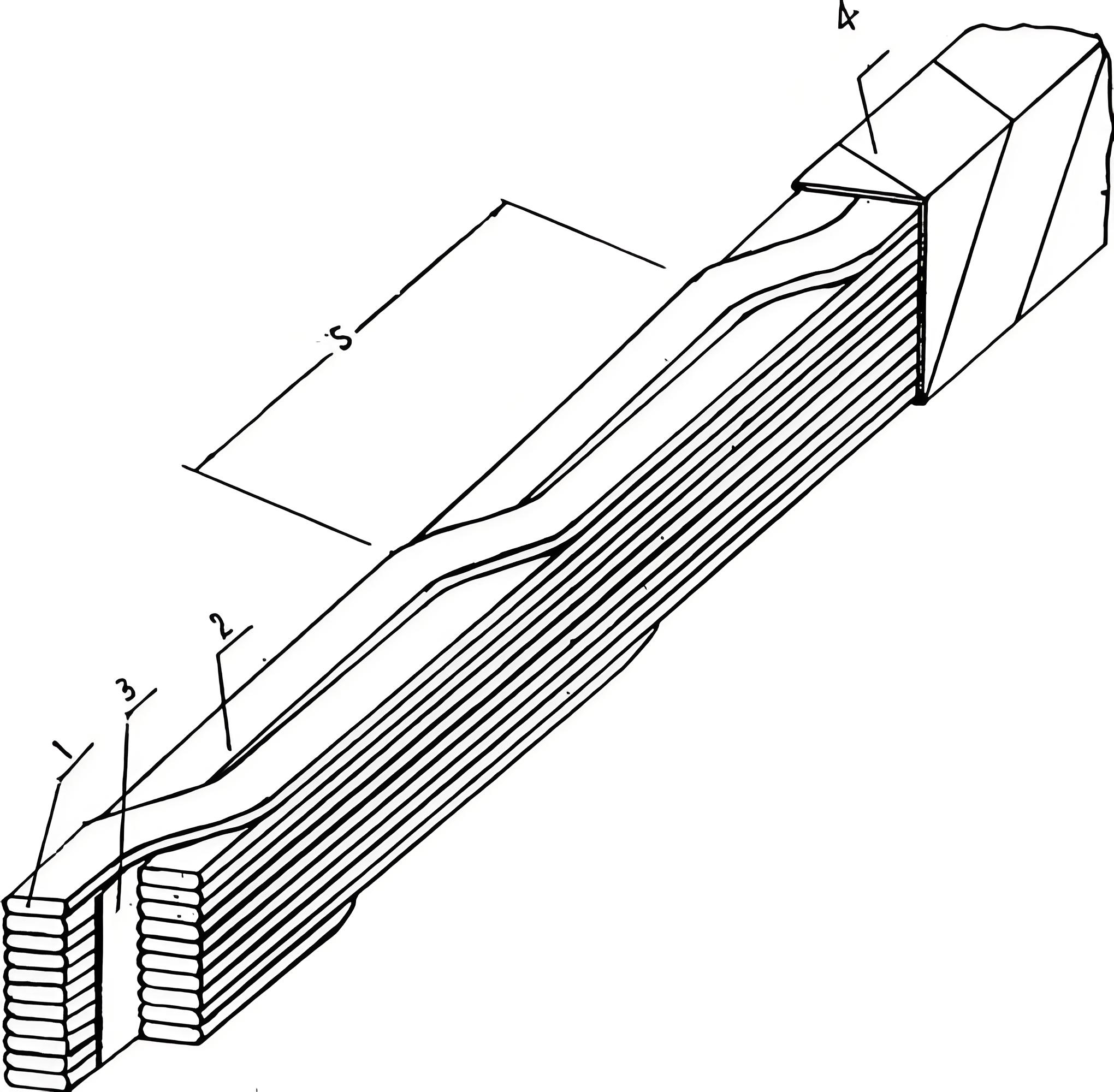

CTC Conductor production line is a specialized equipment used for manufacturing transposition wire windings for energy-saving transformers of 1000 kVA and below. The main function of the equipment is to accurately perform small edge bending on a certain number (odd) of enameled flat wires through a transposition device, repeatedly cross transposition, weave them into bundled wires, and then wrap them with paper insulation to become products. Structural features: (1) This production line can be customized with 24-96 tray output lines according to customer requirements. Crossing type ultra long distance laying, with a large laying angle of less than 16. Medical grade stainless steel conduit with mechanical complete anti twist system and inner wall mirror treatment. (2) Forced horizontal device with fine adjustment tension for 8-10 ° (3) constant pressure double push type displacement operation, displacement distance 22-35mm, no gap adjustment, displacement action frequency<120 times/minute. The surface of each mold can be coated with ion spray industrial ceramic technology (4) tension complementary paper packaging, with an overlap coefficient of 40% -70% set arbitrarily, a gap winding width<2mm, and a self selling cross shaped wire frame. (5) Dual station track type traction, inductive display and adjustment of traction force (6) adopts AC servo variable frequency drive+program controller+industrial control type 14 "color screen+communication method for data exchange, realizing high-precision synchronous control, memory and self correction, remote diagnosis of each component's separate transmission. 1.https://youtu.be/TQMnqm9x3sA
