Semi-conductive Shield Resistivity Tester

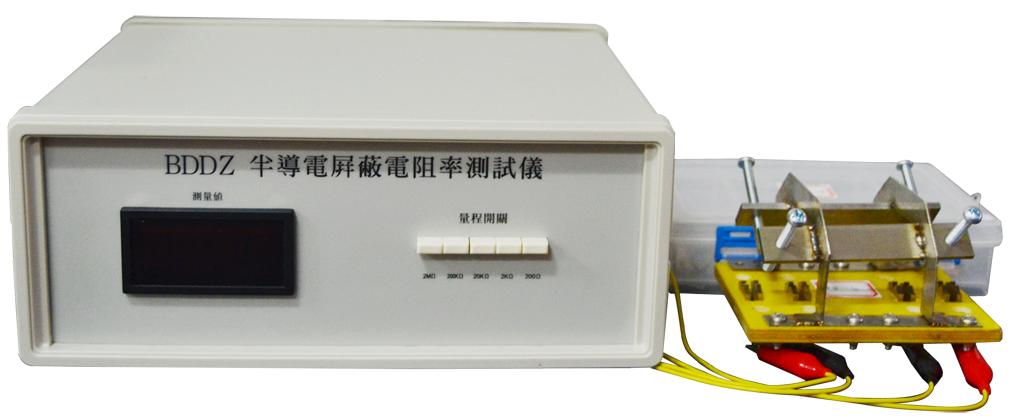

Product description: BDDZ semi-conductive shield resistivity test complete sets of equipment is designed according to national standards GB/T12706, GB/T11017 and other standards, it is suitable for measuring wires and cables semi-conductive shield resistance, in line with specified requirements of GB/T 12706 GB/T11017 and other standards. In order to accurately complete the specified requirements of GB/T 12706, GB/T11017 and other standards, the test is completed by BDDZ semi-conductive shield resistivity tester, cable sample making machine and thermostatic oven Standards: • GB/T 12706 • GB/T11017 Technical parameters: • Measuring range: 2MΩ, 200KΩ, 20 KΩ, 2 KΩ, 200Ω, five gears • Output current: 1uA, 10μA, 100μA, 1mA, 10 mA • Measurement error: Measurement error is less than ± (0.5 % rd ± 2d) • The instrument is adopted a four-semi-number table to display, the digital table directly displays the test sample semi-conductive shield resistance value • The instrument has features such as high accuracy, good stability, compact structure, easy to use and so on, fully compliance with the specified requirements in the standard GB/T 12706, GB/T11017, etc Specifications: • Overall dimensions: 350×300×250mm • Power supply: AC220V 50/60Hz 0.5A • Oven: (optional for users) • Cable sample making machine: (optional for users)
